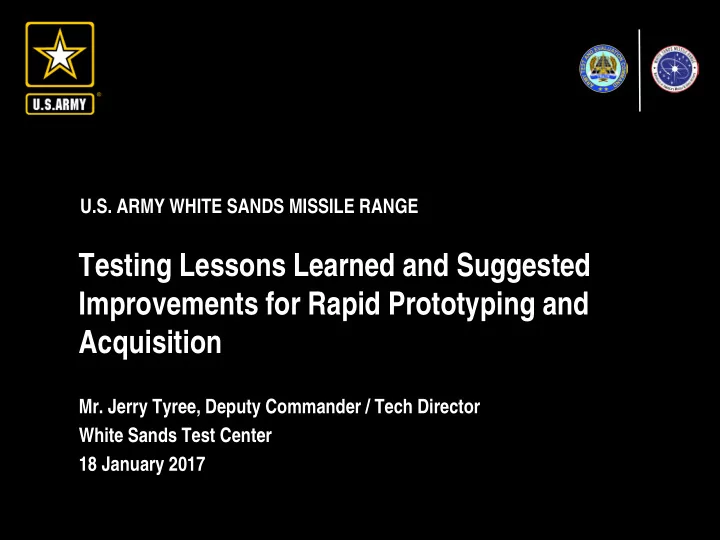

U.S. ARMY WHITE SANDS MISSILE RANGE

Testing Lessons Learned and Suggested Improvements for Rapid Prototyping and Acquisition

• Mr. Jerry Tyree, Deputy Commander / Tech Director

White Sands Test Center 18 January 2017

2

Outline

• 1. Testing in Rapid Acquisition – Criteria Based
• 2. Risk Management Approach
• 3. Test Design, Planning, Execution
• 4. Test Execution and Analysis
• 5. Training (DOTLmPF) in Testing
• 6. Threat Environment / Presentation
• 7. Data Acquisition / Instrumentation
• 8. Test Results, Analysis, Reporting
• 9. Prototype Testing in Rapid Acquisition
• 10. Summary

3

CUMULATIVE COST & RESOURCES TIME DESIGN / Prototype AoA / COEA TEST PROCURE & FIELD Operate / Maintain / Sustain – Improve – Adjust to threat & technology changes CUMULATIVE COST & RESOURCES TIME DESIGN / Prototype AoA / COEA TEST PROCURE & FIELD Operate / Maintain / Sustain – Improve – Adjust to threat & technology changes

Testing Is a LEARNING Tool to Inform & Enables Warfighter Effectiveness Survivability, Suitability  Develop & validate Warfighter capabilities  Develop & validate tactics, procedures, training

Life Cycle Cost is highly dependent on the T&E Phase

 Research & development of technologies  Exploit threat systems, capabilities, operations

Finding & Fixing issue Upfront Saves Lives, Cost Later

• Reliability
• Repairs or rework
• Maintenance, spares

Acquisition Life Cycle

Notional Resources Over Time

Test occurs throughout life cycle

(stockpile reliability, product improvements, threat…)

Effe ffect ct ive T Test st ing

• Finds / Solves Issues
• Characterizes Performance
• Is Relevant to the Threat Environment
• Includes all aspects of DOTLmPF
• Informs Risk
• Numerous Studies over the last 2 decades
• Aimed at Cost, Schedule, OT failure
• Early Warfighter Involvement
• Reliability, Readiness, Schedule
• Combine DT/OT

Testing As a Solution to Acquisition

Com

• m m on
• n Acqu

quisit ion

• n Obj

bj ect ive Provide Warfighter Capability to Defeat the Threat and Defend the Nation - Quality Performance, Responsive, Cost Effective

4

Testing Rapid Acquisition “Historical Faster Testing Approach”

Criteria Based Acquisition Drives Criteria Based Test and Evaluation

• Criteria Based – Schedule Driven Funding Constrained
• Generally Sequential Process by Design – Not

Integrated

• Test Type “Tools” – Generally Phase / Criteria Driven
• Generally Binary – PASS / FAIL

CURRENT PROCESS IS NOT TIED TO MISSION RISK

Material Solution to Operational Rqmt Design to Spec Operational Criteria Ver/Val

• Fab. Prototype

Spec / Function Criteria Ver/Val TTP / Log Train Ver/Val Combat M&S > COEA / BOI DT&E FDT&E Log Demo SE M&S > Spec Criteria Ctr Confidence DT OT&E Procure Field Train Sustain Report Criteria Met?

Capabilities & Limitations FOA Faster by Less of Each

• Integration / Interoperability / Compatibility
• Leader / Operator Training

5

An Integrated Risk Assessment Approach

Integrated Risk Management Concept Fundamentals – Test Design

Key Challenges

• How Much of Which Tool(s) will Provide

the Required Information?

• M&S, DT, FDTE, OTE
• How Much is Enough Information?

Safety & OT are Only Test Required by Law Sample Size, Reliability

Les esson L Lea earned ed

• Criteria based requirements drive a pass/fail process –
• Reliability drives schedule
• Threat changes faster than our process can respond to (Cyber

example in software blocking)

• Capabilities evolve over time – rarely work right / meet

requirements the first time

Rec ecom m en endat ion

• Informed Risk Management Approach
• Focus process Test Design and

resources on Risk based requirements

• 1. Identified Risk
• Lives/Impact, Performance, Cost
• Risk to schedule (not fielding a

capability against a threat)

• 2. Knowledge Required
• What we know
• What we don’t know
• What is worth knowing (CBA)
• What can be learned over time
• Apply Knowledge Management and

track or assess risk throughout

6

Rapid Acquisition T&E

Test Design, Planning, Execution

Lessons Learned:

• Too much time repeatedly spent coordinating, socializing and mustering resources for test
• Environmental, Safety procedures
• Instrumentation Data Collection and Reduction
• Threat Systems / Environment
• Systems or Systems of Systems (acquisition, transportation, configuration)
• Test is a learning continuum, capabilities evolve over time – changes in threat, technology,

tactics, cyber

Recommendation:

• Establish persistent SME stakeholder teams – Consolidate and Co-locate
• Knowledge grows/evolves over time improves quality, throughput, responsiveness
• ALL stakeholders must be represented (materiel developer, combat developer (warfighter), tester, threat)
• Establish persistent Test Bed - fall in
• Representative systems of systems (networks)
• Consistent instrumentation
• Threat representation (threat systems, denied environments,
• Climatic, dynamics, electromagnetic, logistics…

Time Readiness

7

Rapid Acquisition T&E

Test Execution and Analysis

Lessons Learned:

• Insufficient Instrumentation and Data Collection leads to re-test or indeterminate solutions
• Constrains or cripples forensics required for efficient Test-Fix-Test
• Post test data analysis leads to re-test, delays or inclusive evaluation
• Sharing, communications and knowledge of all stakeholders is critical to rapidly fixing or

assessing capabilities

Recommendation:

• Upfront, establish rapid, reconfigurable instrumentation and data collection
• System /Threat Level - data links, emissions, optics, effects, signatures
• Operations Level – Optics, Radiometric, TM, RF spectrum, Radar, Meteorological, GPS,
• Require Real-Time Data Analysis and Display
• Critical to test execution, refinement and execution decision and learning process
• Must be re-configurable, acceptance of multiple inputs and custom presentation
• Establish a “Joint” Analysis Team comprised of a lead by phase but include all

stakeholders (PM, OEM, Combat Developer, Logistics, Training, Test/Evaluator)

8

Rapid Acquisition T&E

Training in Value in Test, Test Value in Training

Lessons Learned:

• Early Prototypes and Rapid Acquisition Systems often have ‘engineering’ level or poor user

interfaces

• Training with the Lack of or Insufficient Experience will result in poor or failed test
• Major difference in Training and Experience – can skew measures and results

Recommendation:

• Include Human Factors and Training Upfront and Continually
• Warfighter involvement in test process results in matured training products and knowledgeable operators
• Can mitigate or simultaneously satisfy the need for separate training/logistics test and data collection
• Evolves with system maturity and development

9

DT&E “Success” > OT&E “Failure”

Contributing Factor - Prototype vs. Production Rep SUT

M&S Combat Effectiveness M&S Design – component / System / SoS Prototype (s) Fab /form/fit Contractor Confidence Test DT&E Prototypes

• Tech. Perf. Specs
• World-wide environments
• Threat / Vulnerability
• Reliability Indicators

Test – Fix Test Cycle “Pass DT” LUT LRIP IOT&E

• Schedule & Funding drive Acq Community to regard

hand built EMD Prototypes as Production Rep Result: Test design for full spectrum for world wide environments requires “sealed” systems

• Fixing “sealed” systems is more expensive, time

consuming or impractical to support test/fix/test Result: Tendency to defer fixes or tests = Increased risk to OT. Increased cost and schedule. Tendency to mod only certain prototypes resulting in various configurations / fixes = risk to test success

• Tendency for “special treatment” and allowances for

limited prototype resources Result: Fewer “operational” type reliability and durability issues are discovered

• Prototypes get high use / use rates in excess of

OMS/MP estimates (through multiple environments) Result: Increased risk of failure in LUT / OT COMMON FACTS & EFFECTS

(there are exceptions)

Prototypes

• limited number / spares
• various configurations
• delayed fixes to issues in DT
• excessively used devices

Milestone B – COEA rqmts validation / spec Design / mature design concept

10

DT&E Success – IOT&E Failure

Contributing Factor - Prototype vs. Production Rep SUT

M&S Combat Effectiveness M&S Design – component / System / SoS Prototype (s) Fab /form/fit Contractor Confidence Test DT&E Prototypes

• Tech. Perf. Specs
• World-wide environments
• Threat / Vulnerability
• Reliability Indicators

Test – Fix Test Cycle “Pass DT&E” LUT LRIP Fail IOT&E

COMMON CAUSES & EFFECTS

(there are exceptions)

Prototypes

• limited number / spares
• various configurations
• delayed fixes to issues in DT
• excessively used devices
• Fixes often invalidate or reduce the confidence in

tests already conducted Result: Requires analysis, re-test or deferred tests resulting in increased, cost, schedule or risk

• DT of LRIP systems prior to IOT not typically

planned for. Prototype DT data used for entrance. Result: Untested LRIP systems significantly different than “passed” DT systems > high risk of OT failure DT&E Success - IOT&E Failure

• Prototype Expectations / Perceptions

is likely one of the dominate factors

Milestone B – rqmts validation / design spec Design / mature design concept

11

Improved Acquisition Test Process

Prototype vs. Production Rep SUT

Planned Prototype DT – Mature the Design

• Test Critical Technical Parameters – Effectiveness
• Safety verification

Apply Risk Management Approach

• Test Characteristics High Risk to Mission Perf
• Exit criteria based on % risk to Mission Effectiveness

> Determine by Combat M&S using Test Data Planned Prototype LUT

• Suitability / Survivability Indicators - Fixes
• OT Readiness - % risk

LRIP Build

• Incorporate test fixes / lessons learned
• Production Representative

PPQT - IOT&E

• Check test CTPs
• Start IOT&E
• Test world wide environments

M&S Combat Effectiveness M&S Design – component / System / SoS Prototype (s) Fab /form/fit Contractor Confidence Test DT&E Prototypes

• Critical Technical Parameters
• High Risk Requirements

Prototype DT Test – Fix Test Cycle DT&E Exit Planned LUT Planned LRIP IOT&E Milestone B – rqmts validation / design spec Design / mature design concept Mature Design Production Rep Systems

• Quick Look Validate CTPs
• Test WWE parallel with IOT

PPQT&E HIGHER PROBABILITY OF SUCCESS

LOWER COST – SHORTER SCHEDULE

PPQT&E Exit

12

Operational Assessment Methodology

Graphical Overview

FI ELD & SUSTAIN Effective Capabilities Efficiently in advance of the Threat Fielding Decision RISK Management Based decision Risk / I m pact To Perf Schedule Cost / Benefit

(also a risk to not fielding even minimal capability against certain threats)

OA Knowledge Gap & Risk based

• Task/ Org/ Arch
• unit size
• threat
• scenario
• instrument
• data

Test For Knowledge based on risk Exploit or Defeat a Threat Operational Enviro -Climatic, Emi Threat - EW, cyber Integration, Compatibility Log demo Safety Security Training – TTP , Doctrine GOAL

Knowledge / Confidence

Know ledge Requirem ents Technical & Operation

• KPP/ KSA…
• COIC
• CDD – ONS
• DOTLmPF
• Architecture
• Task Org
• MOP / MOE

Risk (due to unknowns)

Running Estimate of Gaps drives OA design Test to the Gaps

• What do we need to know?
• What do we know?
• What don’t we know?
• Is it worth learning?

Risk Report

• Risk/ Impact
• Cost/ Benefit
• Ver/ Val knowns

in operational environment

Changes in Threat Technology, CBA/ ONS… Evolve When Needed, When Available

13

SUT Anomaly

(Test Success May Look Like Failures)

Program Success is Often Perceived as Void of “Failures”

• System “Failures” Are Common, Even Expected in Early DT&E

> Finding and Resolving them Early Reduces Costs – and Sometimes Saves Lives > They Also May Just Define the Limitations Unintended Consequences

• Success Oriented Testing
• Avoiding or Limiting DT&E
• Redundant Pre-Test or Experiments
• THE ONLY REAL FAILURE -

NOT Providing The Warfighter Required Capability (in a Timely and Cost Effective Manner)

Doing the Right Thing for the Warfighter and the Nation

14

Success or Failure?

Questions / Discussion?
