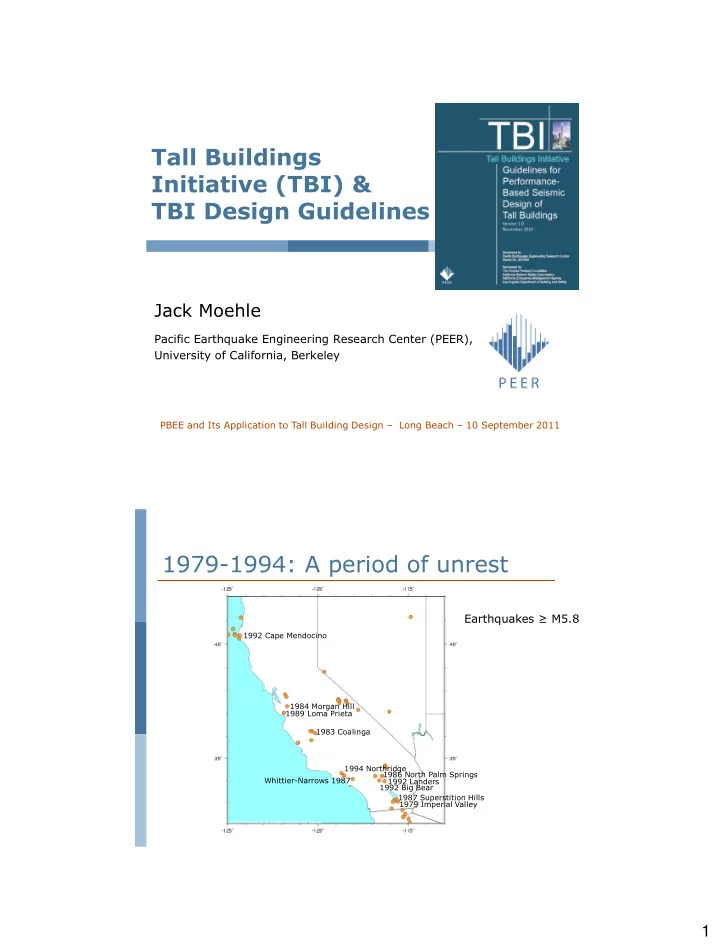

Tall Buildings Initiative (TBI) & TBI Design Guidelines Jack Moehle Pacific Earthquake Engineering Research Center (PEER), University of California, Berkeley PBEE and Its Application to Tall Building Design Long Beach 10 September

slide-1
SLIDE 1

1

Tall Buildings Initiative (TBI) & TBI Design Guidelines

Jack Moehle

Pacific Earthquake Engineering Research Center (PEER), University of California, Berkeley

PBEE and Its Application to Tall Building Design – Long Beach – 10 September 2011

1979-1994: A period of unrest

1979 Imperial Valley 1984 Morgan Hill 1983 Coalinga 1986 North Palm Springs Whittier-Narrows 1987 1989 Loma Prieta 1992 Big Bear 1992 Landers 1987 Superstition Hills 1994 Northridge 1992 Cape Mendocino

Earthquakes ≥ M5.8

slide-2
SLIDE 2

2

Seismic rehabilitation

1996 2006 1997 Operational Occupiable, Damaged Life Safe, Major Damage Near Collapse Frequent (50%/50yr) Occasional (20%/50yr Rare (~10%/50yr) MCE (~2%/50yr) Design Shaking Level Building Performance Level

Performance objectives

Most commonly selected performance

  • bjective

c a b d g e f h k i j l

  • m

n p

slide-3
SLIDE 3

3

Performance objectives

Deformation Damage Threshold Collapse Onset

O P E N O P E N O P E N

IO LS CP

FEMA 356 Levels

Rare

(10%/50yr)

MCE

(~2%/50yr) Global Model

EQ effect Force Deformation A B D E C

Acceptance Criteria Component Tests

di qi dj qj

Component Model

Details

slide-4
SLIDE 4

4

Seismic rehabilitation New buildings

Lateral system Gravity-only system

  • 0.2
  • 0.15
  • 0.1
  • 0.05

0.05 0.1 0.15

  • 4000
  • 3000
  • 2000
  • 1000

1000 2000 3000 Total rotation [-] TonyCB - CyclicTest1 Analytical Experimental

Link beam Moment Rotation

slide-5
SLIDE 5

5

Tall buildings guidelines

2007 2008 2010

Seismic performance objectives

after SEAOC Vision 2000

slide-6
SLIDE 6

6

Deformation Damage Threshold Collapse Onset

Performance objectives

ASCE 41 Performance Levels

IO LS CP

First generation $, % replacement

25% 50% 100%

Downtime, days

1 7 30 180

Casualty rate

0.0 0.0001 0.001 0.01 0.25

Next generation

O P E N O P E N O P E N

Conceptual damage calculation

EDP

Performance Group i

0.0 0.5 1.0 1 2 3 4 5 6

EDP = story drift Probability

y0 y1 y2 y3

slide-7
SLIDE 7

7

Conceptual repair quantities calculation

Performance Group i

Quantities

y0 y1 y2 y3

Damage State concrete wallboard 100 10,000 paint 100 1000 10,000 steel electrical …

Conceptual repair cost calculation

Quantity i (e.g., running feet of wallboard partition)

Unit Cost, $ Quantity

Ci Total cost = SCiQi

Total repair cost

(plus contractor's OH and profit (~12%) and general project costs (design, admin etc, at 20-50%).

Qi

slide-8
SLIDE 8

8

Conceptual repair cost calculation

Total Cost Hazard level

50/50 10/50 5/50

Annual frequency of exceedance

Summary repair costs

0.5 1 1.5 2 2.5 3 3.5 4 x 10

6

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

$C (dollar) P(Total Repair Cost ≤ $C)

Return period = 36 yrs Return period = 72 yrs Return period = 475 yrs Return period = 975 yrs

slide-9
SLIDE 9

9

slide-10
SLIDE 10

10

Tall Buildings Initiative (TBI) & TBI Design Guidelines

Jack Moehle

Pacific Earthquake Engineering Research Center (PEER), University of California, Berkeley

TBI Partners

Applied Technology Council

California Geological Survey

California Emergency Management Agency

California Seismic Safety Commission

FEMA

Los Angeles Dept. of Buildings & Safety

Los Angeles Tall Buildings Council

National Science Foundation

Pankow Foundation

PEER

San Francisco Building Department

SCEC

SEAOC

USGS

slide-11
SLIDE 11

11

TBI thanks

Sponsors

TBI Project Advisory Committee (TPAC)

  • N. Abrahamson, Y. Bozorgnia, R. Hamburger, H. Krawinkler, J. Moehle, and F. Naeim

  • P. Somerville (SCEC), M. Lew (LATBSDC), M. Moore, N. Rodriguez (SEAOC), R. Lui

(SFDBI)

Task 2 – Performance Objectives

  • W. Holmes (Chair), C. Kircher, L. Kornfield, W. Petak, N. Youssef, K. Telleen

Various Technical Studies

  • N. Abrahamson, Y. Bozorgnia, B. Chiou, C.B. Crouse, G. Deierlein, D. Dreger, M. Gemmill,
  • R. Hamburger, J. Heintz, J. Hooper, S. Freeman, C. Kircher, H. Krawinkler, M. Lew, N.

Luco, J. Maffei, S. Mahin, J. Malley, N. Mathias, C. McQuoid, A. Mikami, J. Moehle, M. Moore, Y. Moriwaki, F. Naeim, F. Ostadan, M. Pourzanjani, P. Somerville, J. Stewart, E. Taciroglu, J. Taner, T. Visnjic, J. Wallace, T. Yang, Y. Zeng

TBI Guidelines Development Team

  • R. Hamburger, J. Moehle, Y. Bozorgnia, C.B. Crouse, R. Klemencic, H. Krawinkler, J.

Malley, F. Naeim, J. Stewart

Case Studies

Designers

MKA – A. Fry, B. Morgen, J. Hooper, R. Klemencic

REI – T. Ghodsi, J.S. Flores Ruiz, R. Englekirk, C. Massie, Y. Chen, E. Hoda, M. Bravo, K. Lee

SGH – A. Dutta, R. Hamburger

Analysts

URS/SCEC – P. Somerville

UCB/UBC – T. Yang, J. Moehle, Y. Bozorgnia

UCLA – J. Wallace, Z. Tuna

UCI – F. Zareian, P. Zhong, P. Jones

Loss Studies

ATC 58 – R. Hamburger, J. Hooper, P. Morris, T. Yang, J. Moehle

RMS – N. Shome, M. Rahnama, P. Seneviratna; H. Aslani

Tall Buildings Initiative (TBI)

 Purpose

 Develop design criteria and guidance for the seismic

design and review of tall buildings in high seismicity regions

 Tasks

 Develop consensus on performance objectives  Ground motion selection and scaling  Soil-foundation-structure interaction modeling  Benchmark studies of building dynamic response  Model building designs  Case studies: comparison of seismic performances  Development of performance-based design Guidelines  Modeling and acceptance criteria (ATC-72)

slide-12
SLIDE 12

12

Building Design and Modeling

42-story reinforced concrete core wall 42-story reinforced concrete dual system 40-story steel special moment-frame

Three Building Systems

Building Design and Modeling

42-story reinforced concrete core wall 42-story reinforced concrete dual system 40-story steel special moment-frame

Three Building Systems

Performance-based design guideline for tall buildings

slide-13
SLIDE 13

13

TBI Guidelines

 Key Sponsor  Charles Pankow Foundation  Development team  R. Hamburger, J. Moehle

(Co-chairs)

 Y. Bozorgnia  C.B. Crouse  R. Klemencic  H. Krawinkler  J. Malley  F. Naeim  J. Stewart

TBI Guidelines Chapters

1.

Introduction

2.

Performance objectives

3.

Design process

4.

Design criteria documentation

5.

Seismic input

6.

Preliminary design

7.

Service level evaluation

8.

MCE level evaluation

9.

Presentation of results

  • 10. Project review
slide-14
SLIDE 14

14

Overview of PBEE and TBI

Jack Moehle

Performance Objectives, Design Criteria, & Conceptual Design

Andy Fry

Seismic Input, Soil-Structure Interaction, and Ground Motions developed for the Case Study Buildings

Yousef Bozorgnia

Service Level and MCE Analysis

Ron Hamburger

Design & Iteration Process for Case Studies: Core Wall & Dual System Buildings

Andy Fry

Analysis of the Case Study Buildings

Farzin Zareian

Performance Analysis (Loss Estimation)

Ron Hamburger

Wrap Up and Q & A

Jack Moehle
