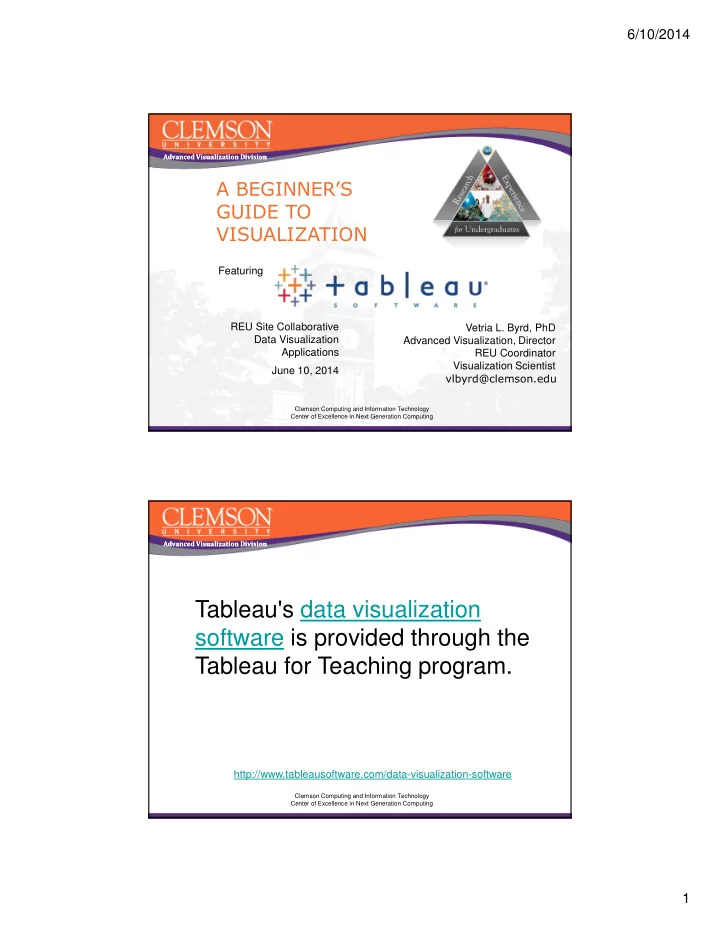

6/10/2014 Advanced Visualization Division Advanced Visualization Division Featuring REU Site Collaborative Vetria L. Byrd, PhD

slide-1
SLIDE 1

6/10/2014 1

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Featuring

Vetria L. Byrd, PhD Advanced Visualization, Director REU Coordinator Visualization Scientist REU Site Collaborative Data Visualization Applications June 10, 2014

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Tableau's data visualization software is provided through the Tableau for Teaching program.

http://www.tableausoftware.com/data-visualization-software

slide-2
SLIDE 2

6/10/2014 2

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

“Enable researchers to gain keen insight into their data by equipping them with tools and resources that will allow for visualizing the expected, and discovering the unexpected in their data.”

  • !""

Advanced Visualization Division Advanced Visualization Division

Agenda

  • Introduction to Visualization (High level)

– Purpose – Process

  • Visualization Applications
  • Introducing Tableau
  • Q&A
slide-3
SLIDE 3

6/10/2014 3

Advanced Visualization Division

INTRODUCTION

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

What does visualization mean?

#$" # ""

Dictionary.com

slide-4
SLIDE 4

6/10/2014 4

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

What is the purpose

  • f visualization?

Advanced Visualization Division

REU Boot Camp Lecture July 08, 2013

“The purpose of visualization is “insight”, not pictures.”

~Ben Shneiderman

slide-5
SLIDE 5

6/10/2014 5

Advanced Visualization Division

in•sight [in-sahyt]

An instance of apprehending the true nature of a thing, especially through intuitive understanding.

Dictionary.com

Advanced Visualization Division

in•sight [in-sahyt]

An instance of apprehending the true nature of a thing, especially through intuitive understanding. An understanding of relationships that sheds light

  • n or helps solve a problem.

Dictionary.com

slide-6
SLIDE 6

6/10/2014 6

Advanced Visualization Division

“The greatest value of a picture is when it forces us to notice what we never expected to see.”

~ John Tukey, 1977

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Why is “insight” important?

slide-7
SLIDE 7

6/10/2014 7

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Why is “insight” important?

  • Analysis of Data
  • Explanation
  • Discovery
  • Decision Making
  • Tells a story

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Basics of Visualization

  • The process of visualization is taking raw data and

converting it to a form that is viewable and understandable to humans.

slide-8
SLIDE 8

6/10/2014 8

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Basics of Visualization

  • The process of visualization is taking raw data and

converting it to a form that is viewable and understandable to humans.

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Basics of Visualization

  • The process of visualization is taking raw data and

converting it to a form that is viewable and understandable to humans.

Created using Gephi

slide-9
SLIDE 9

6/10/2014 9

Advanced Visualization Division

Visualization Applications

BioVis GeoVis InfoVis SciVis

VISUALIZATION

Biological Data Non- Numerical Data Geospatial Data Simulated, 3D Phenomena

Research Fields Input Data

Advanced Visualization Division

Information Visualization

  • Emerged from Research in

– Human-Computer Interaction – Computer Science – Graphics – Visual Design – Psychology – Business Methods

slide-10
SLIDE 10

6/10/2014 10

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Information Visualization

  • Often applied to data

that is not generated by scientific inquiry

– Non-numerical information – Survey data – Social media – Test scores – Shopping habits – Etc.,

Advanced Visualization Division

Information Visualization

  • Researchers aim to provide compact graphical

presentations and user interfaces – interactively manipulating large numbers of items – possibly extracted from far larger data sets

slide-11
SLIDE 11

6/10/2014 11

Advanced Visualization Division

Information Visualization

  • Information visualization focused on the creation of

approaches for conveying abstract information in intuitive ways.

Beginner’s Guide to Visualization

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

slide-12
SLIDE 12

6/10/2014 12

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

%

http://www.tableausoftware.com

Advanced Visualization Division

Tableau for Macs

  • Mac version will be released in the next

couple weeks.

– Once it’s available, students will be able to use the key and landing page (info sent via email) to download it.

  • http://kb.tableausoftware.com/articles/kno

wledgebase/tableau-products-mac

slide-13
SLIDE 13

6/10/2014 13

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Products

  • Tableau Desktop – Fast Analytics
  • Tableau Server - Collaboration
  • Tableau Online – Cloud
  • Tableau Public - WWW

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Opens Data From

Desktop

slide-14
SLIDE 14

6/10/2014 14

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Desktop

  • Show Me Feature
  • Drag & Drop

Technology

  • Web Offering on

Mobile Devices

  • License Keys

provided via email

  • Valid for 1 year

(June 02, 2015)

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

slide-15
SLIDE 15

6/10/2014 15

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

& "$ ' "(

http://www.tableausoftware.com

Advanced Visualization Division

CONNECTING TO DATA

slide-16
SLIDE 16

6/10/2014 16

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Don’t see your database format?

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Connect to Data

  • In a file

– Tableau Data Extract – Microsoft Access – Microsoft Execl – Text File – Import from Workbook

  • Server

– Tableau Serer – IBM DB2 – MapR Hadoop Hive – Microsoft SQL Server – My SQL – Oracle – Salesforce – Google Analytics – Other Data (ODBC)

slide-17
SLIDE 17

6/10/2014 17

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Connect locally

  • Excel file

– Microsoft Excel

  • Sample – Superstore

Sales (Excel.xls)

  • Ships with Tableau

OR

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Excel Workbook Connection

Step 1: Select an excel workbook Step 2: Select the worksheet (table) to analyze Step 3: Does the data include field names in the first row? Step 4: Give the connection a name for use in Tableau

slide-18
SLIDE 18

6/10/2014 18

Advanced Visualization Division

Data Connection

  • Connect Live: Connect directly to your

data; speed of data source determines performance

  • Import all data: Import all of your data

into Tableau’s data engine

  • Import some data: select a subset of your

data to import

Advanced Visualization Division

Data Connection

  • Connect Live:

– Data updates frequently – Every time you update the data the results show in the visualization

  • Import all data

– Useful when importing big data

  • Import some data

– Useful when importing big data

Data is local so .. .

slide-19
SLIDE 19

6/10/2014 19

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Tableau connects data and automatically generates dimensions and measures brought straight from the dataset Dimensions: Identifiers Measures: Numbers

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Start Asking Questions What are my total sales? Click or Drag and Drop Sales

slide-20
SLIDE 20

6/10/2014 20

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Start Asking Questions What are my total sales by Container?

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Start Asking Questions

What are my total sales by Container? Add a subcategory: Department

Just 3 Drag & Drops

slide-21
SLIDE 21

6/10/2014 21

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Other Options

One click sorting

Ascending Descending

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Other Options

One click sorting: Ascending by Sales

slide-22
SLIDE 22

6/10/2014 22

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Group different subcategories

Advanced Visualization Division

Other Options

slide-23
SLIDE 23

6/10/2014 23

Advanced Visualization Division

Add Labels

Advanced Visualization Division

Add Profit Numbers

  • Drag and Drop

Profits over graph

  • Show Me Icon

Appears (release mouse)

  • Tableau gives you

the best way to visualize the data

  • Given Tableau’s

visualization best practices

slide-24
SLIDE 24

6/10/2014 24

Advanced Visualization Division

Sum Profit

  • Added to Color

shelf

  • Easy to see which

items are doing better than others

  • Hover over each

bar for more information

Advanced Visualization Division

Swap easily to see a different view

slide-25
SLIDE 25

6/10/2014 25

Advanced Visualization Division

Add Region

Advanced Visualization Division

Easily Change Thins

slide-26
SLIDE 26

6/10/2014 26

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Column for Each Region

Hover over a field to see the actual data points

Advanced Visualization Division

Click view data

slide-27
SLIDE 27

6/10/2014 27

Advanced Visualization Division Advanced Visualization Division

All changes made within Tableau

Right Click

Save for subsequent sessions with this data; save the meta data

slide-28
SLIDE 28

6/10/2014 28

Advanced Visualization Division

VIEWING DATA OVER TIME

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Click New Sheet

slide-29
SLIDE 29

6/10/2014 29

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Double Click Sales
  • Drag Order Date to

Columns

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Time data has drill-

ability

– Year – Quarter – Month

slide-30
SLIDE 30

6/10/2014 30

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Time data

has drill- ability

– Year – Quarter – Month

  • Click + to

expand; - to retract

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Right Click on

Month(Order Date) and choose a continuous month view

Right Click

slide-31
SLIDE 31

6/10/2014 31

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

X

Right Click

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Easy Forecasting

  • Right click on

white space

  • Select

Forecast

  • Show Forecast
slide-32
SLIDE 32

6/10/2014 32

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Show Forecast

  • Forecast Options

– Forecast Length – Source Data – Forecast Model – Describe Mode

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Double Click Tabs to Rename

slide-33
SLIDE 33

6/10/2014 33

Advanced Visualization Division

SHOW ME FEATURE

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Select new Tab

slide-34
SLIDE 34

6/10/2014 34

Advanced Visualization Division

Good place to start when you’ve got data and you don’t know where to start in terms of visualization Show Me gives you chart types to help you to begin your analysis

Advanced Visualization Division

Hover over the chart types and Show Me will tell you what dimensions, measures and how many of each are needed to generate the chart.

slide-35
SLIDE 35

6/10/2014 35

Advanced Visualization Division

  • 1. Click State (Dimension)

Tableau automatically recognizes as geographic in nature

  • 2. Go back to Show Me feature and click Field Map

Advanced Visualization Division

Tableau automatically generates a map where you have data It’s ready for more data: Drag & Drop

  • Profit to the Color Mark
  • State to the Label Mark
slide-36
SLIDE 36

6/10/2014 36

Advanced Visualization Division Advanced Visualization Division

slide-37
SLIDE 37

6/10/2014 37

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Iteration

  • Save Bar chart
  • Duplicate Worksheet
  • Iteration is the

showpiece

– Show Me Tab – 23 Chart Types

  • Tableau automatically

populates the visualization with dimensions and variables necessary to build the chart

Advanced Visualization Division

Training and Tutorials From Tableau

  • On Demand – Free
  • Live Online Training – Free
  • Class Room Training

http://www.tableausoftware.com/learn/training

slide-38
SLIDE 38

6/10/2014 38

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

http://www.tableausoftware.com/academic

slide-39
SLIDE 39

6/10/2014 39

Advanced Visualization Division

Free Tableau Desktop

  • Instructors who are faculty

– Interested in teaching with Tableau

  • Students who are

– Enrolled full time

Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Advanced Visualization

  • If there is interest:

– Training – Hands on Workshops Topics

  • Introduction

– Working with data – Formatting – Calculations – Dashboard development

  • Advanced

– Basic Mapping – Google Analytics

slide-40
SLIDE 40

6/10/2014 40

Advanced Visualization Division

TEST DRIVE TABLEAU

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

Tableau Public - WWW

http://myweb.clemson.edu/~gemmill/irnc/index.html

look for download button at bottom of page to get spreadsheet. The data is a list of scientific facilities around the world that are either generating or storing large amounts of data of interest to the int’l science community. Please DO NOT distribute the data to anyone. If you want to publish (eg., poster, in powerpoint) your images anywhere contact Dr. Jill Gemmill (jbg@clemson.edu) before doing so.

slide-41
SLIDE 41

6/10/2014 41

Advanced Visualization Division Advanced Visualization Division

Clemson Computing and Information Technology Center of Excellence in Next Generation Computing

  • Featuring

Vetria L. Byrd, PhD Advanced Visualization, Director REU Coordinator Visualization Scientist REU Site Collaborative Data Visualization Applications June 10, 2014
