Systme lectronique de monitoring de d donnes pour sportifs de haut niveau if d h i (Etude de cas pour la Patrouille des Glaciers) ( p ) Romain Farkas, LEG EPFL Romain Farkas, LEG EPFL 12/09/2007 Architecture / Goals /


slide-1
SLIDE 1

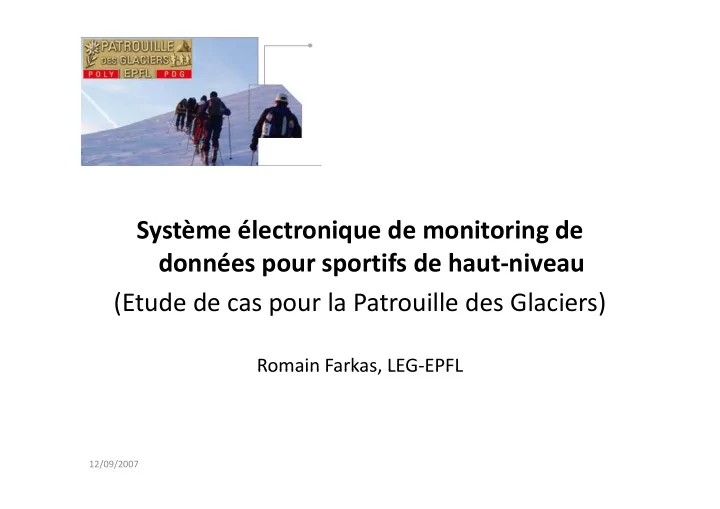

Système électronique de monitoring de d é if d h i données pour sportifs de haut‐niveau (Etude de cas pour la Patrouille des Glaciers) ( p )

Romain Farkas, LEG‐EPFL Romain Farkas, LEG EPFL

12/09/2007

slide-2
SLIDE 2

Architecture / Goals /

  • What are we looking for ?

– Fast prototyping for this « proof of concept » project. – An all‐in‐one GPS/GPRS/DSP solution – Light‐weight – Low‐power – Flexibility

  • Easily interface with all kinds of sensors (analog, digital, …)
  • Evolutivity

– Embedded intelligence on‐board for power management and other projects.

12/09/2007

slide-3
SLIDE 3

Roadmap

  • September‐October 2007

– Prototyping, laboratory work on DSB and sensors

O t b N b 2007

  • October‐November 2007

– Prototyping continues, realization & debug of the first boards

  • December January 2007
  • December‐January 2007

– First tests on field – Reporting and presentation to Prof. Kayal epo t g a d p ese tat o to

  • . aya
  • January‐April 2007

– Testing on field – Prototyping continues and realization of more systems if needed

12/09/2007

slide-4
SLIDE 4

Architecture / General /

Sensors Device on subject SSCu

Sensor Signal Conditionning Unit

Servers

SPI

GSATu GPS Signal Analyzer and Transmitter Unit

Sensors SSCu

Sensor Signal Conditionning Unit

Servers Post‐processing, Visualisation, …

GPRS / EDGE

I2C Sensors SSCu

1‐wire

SSCu

Sensor Signal Conditionning Unit

12/09/2007 PolyPDG/RF

slide-5
SLIDE 5

Architecture / General /

GSAT (GPS Si l A l d T i U i )

  • GSATu (GPS Signal Analyzer and Transmitter Unit)

– Motherboard (battery, power supply, interfaces, antennas, SIM card reader display future extension boards) SIM card reader, display, future extension boards) – Siemens XT65/XT75 (DSP, RAM, Flash, GPS receiver, GPRS/EDGE modem, battery charger, interfaces) / , y g , )

  • SSCu (Sensor Signal Conditionner Unit)

– Some sensors need signal conditionning on a dedicated So e se so s eed s g a co d t o g o a ded cated PCB near the Sensor Unit

  • Su (Sensor Unit)

– The sensor itselfs (oxymeter, metabolic cart, temperature sensor, pressure gauge, etc.)

12/09/2007

slide-6
SLIDE 6

Architecture / GSAT Unit / Goal: to achieve a small‐footprint, low‐power device

Display LCD or LED Interface Board Power supply Li‐Po Battery SPI 1‐wire USB2 I2C SIM card Siemens XT65/XT75 Module

ARM core based A/D GPIO AUDIO I/O RAM FLASH

Antennas’ Board GSM GPS

GPRS EDGE Atmel GPS Blackfin DSP I2C SPI GPIO ADC PWM FLASH

antenna antenna

Motherboard

12/09/2007

slide-7
SLIDE 7

Architecture / Siemens XT65/75 module / /

  • Blackfin DSP architecture, 400 kB (RAM), 1.2 MB (Flash)
  • Atmel GPS (Antaris4 u‐blox based) (DGPS, SBAS, WAAS, EGNOS,

MSAS, A‐GPS)

  • Quad‐Band GSM, GPRS class 12 (XT65), EDGE (XT75), voice & data

features

  • < 10g, 34x59x3.5mm, ‐30° C to +75° C
  • Java software platform
  • Power consumption: sleep mode 4.5 mA, power down 50 uA, GPRS

class 12 (average) 600 mA.

  • Supply voltage 3.3V…4.5V
  • Has USB2.0 / GPIO / Analog IO / I2C / SPI / etc. interfaces
  • No SIM card reader on board ?
  • No antenna on board (TBD: patch, monopole antenna)

Original size Original size

https://pia.khe.siemens.com/index.aspx?nr=14197 12/09/2007

slide-8
SLIDE 8

Architecture / Development Kits / p

DSB75 Development Board Price: 1200 CHF or 150 CHF per month

Siemens XT‐65 Module

Price: 1200 CHF or 150 CHF per month 1 week buy, 2‐3 days rent

Siemens XT‐75 Module CHF 162 per module 2‐3 days Nonin Oximeter OEM D l t Kit Development Kit ~ 300 USD Quote in progress 12/09/2007

slide-9
SLIDE 9

Selected sensors (3‐4 months) ( )

  • Goal: demonstrate that various sensor types can be

interfaced to the whole system easily interfaced to the whole system easily.

  • SpO2, Pulse: oxymeter (TBD)
  • SPI interface (Nonin )
  • VO2, VO2max, cardio‐pulmonary : metabolic cart (TBD)

VO2, VO2max, cardio pulmonary : metabolic cart (TBD)

  • RS/ 232 interface (Cosmed K4b2, Cortex MetaMax)
  • Temperature: temperature sensor (TBD)
  • 1‐wire interface (proof of concept)

(p p )

  • Latitude, Longitude, Elevation: GPS
  • Included in XT65/75 module

More sensors… (6 months)

  • Non invasive blood pressure (NIBP) sensors
  • They consume a lot of power (additional batteries)
  • Bio‐impedance research for dehydratation problems
  • Force impactor sensors

12/09/2007

slide-10
SLIDE 10

Budget proposal for PolyPDG (up to november) g p p y ( p )

  • Development Kit for GPS/GPRS modules: 1.2 kCHF
  • Modules: 162 CHF per item assuming 2 modules

Modules: 162 CHF per item, assuming 2 modules

  • Development Kit for Oximeter: 300‐400 USD
  • Antennas: 100‐200 USD (TBD)
  • SIM card: 40 CHF

SIM card: 40 CHF

  • GPRS traffic: 50 CHF
  • Batteries: 400 CHF

Total: 2000‐2500 CHF

12/09/2007
