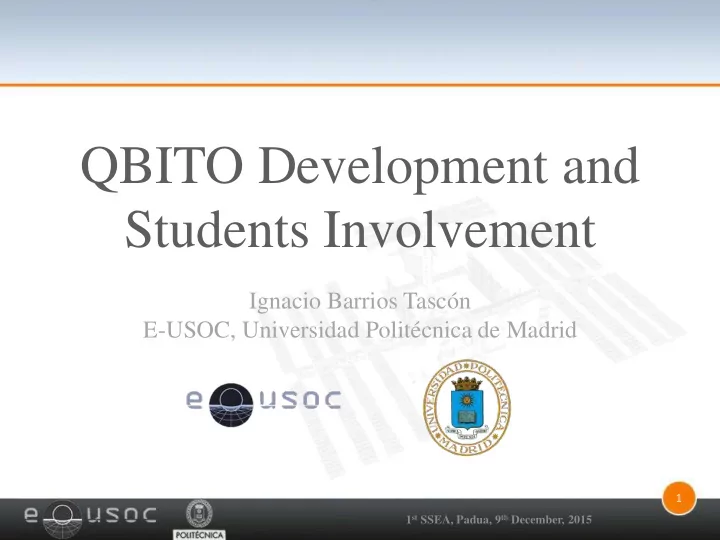

QBITO Development and Students Involvement Ignacio Barrios Tascn E-USOC, Universidad Politcnica de Madrid 1 1 st SSEA, Padua, 9 th December, 2015 Contents Who we are E-USOC Educational activities Project based learning

slide-1
SLIDE 1

1st SSEA, Padua, 9th December, 2015 1

QBITO Development and Students Involvement

Ignacio Barrios Tascón E-USOC, Universidad Politécnica de Madrid

slide-2
SLIDE 2

Contents

1st SSEA, Padua, 9th December, 2015 2

  • Who we are
  • E-USOC
  • Educational activities
  • Project based learning
  • QBITO
slide-3
SLIDE 3

Who we are

1st SSEA, Padua, 9th December, 2015 3

Aerospace Science and Operations Research Group

slide-4
SLIDE 4

European Space Agency (ESA) USOCs

1st SSEA, Padua, 9th December, 2015 4

E-USOC CADMOS DAMEC N-USOC MUSC BIOTESC B·USOC

USOC: User Support and Operations Centre

slide-5
SLIDE 5

E-USOC

  • Responsible for the assigned payloads operations

(laboratories or experiments)

  • Information and support point for scientists

performing or willing to perform an experiment

  • nboard the ISS.

1st SSEA, Padua, 9th December, 2015 5

MSG (USLab ‘Destiny’) FSL (COLUMBUS)

slide-6
SLIDE 6

Educational activities

  • Project based learning
  • Conceptual design of satellite missions
  • Educational satellite
  • Satellite tracking ground station
  • QBITO

1st SSEA, Padua, 9th December, 2015 6

slide-7
SLIDE 7

Project based learning

  • 2nd semester, last year.
  • CDIO (Conceive-Design-Implement-Operate) syllabus.
  • Preliminary design of a realistic satellite mission.
  • Groups of 6 students where each of them get a role (manager, system, subsystem,

payload).

  • Documents:

– Requirements – Mission analysis – Final report

  • Final oral presentation.
  • Objectives:

– Subsystems interaction – System point of view – Technical reports – Oral presentations – Time management – Transversal skills

  • Completed with educational satellite for AIT.

1st SSEA, Padua, 9th December, 2015 7

slide-8
SLIDE 8

1st SSEA, Padua, 9th December, 2015 8

QBITO

  • Comply with QB50 mission requirements
  • Operate secondary payloads
  • Involve university students
  • Test in-house developments in space
  • Industrial Sponsors
slide-9
SLIDE 9

1st SSEA, Padua, 9th December, 2015 9

Schedule

Call for Proposals November 2011 Submission of Proposal April 2012 PDR May 2013 CDR September 2014 AIT Readiness Review February 2015 FRR February 2016 Shipment for Main Payload Integration April 2016 Launch window start July 2016

QB50 Precursor Flight launched in June 2014 We have received TM and we expect to command in the coming weeks

slide-10
SLIDE 10

1st SSEA, Padua, 9th December, 2015 10

  • Ion and Neutral Mass Spectrometer (MSSL, UK)

– Pointing accuracy +/- 10 deg, pointing knowledge +/- 2 deg – 2 Mbit/day

  • Phase Change Material (in collaboration with WALOPT, Belgium)
  • Uncooled Medium Wave Infrared Detector (New Infrared Technologies, Spain)
  • ADCS Experimental Software based on fuzzy logic algorithms (UPM, Spain)

Payloads

slide-11
SLIDE 11

1st SSEA, Padua, 9th December, 2015 11

System configuration

  • 2 Units, 1,8 Kg
  • Max average power consumption = 2,1 W; 20 Wh storage;
  • 3-axis attitude control (MTM, CSS, Rate Sensor, Nadir and Sun sensors, GPS, MTQ, Momentum wheel)
  • COM: full duplex UHF downlink / VHF uplink

EPS ADCS COM PAYLOAD

Antenna Deployment Mechanism

OBC

CubeControl CubeSense CubeComputer GPS Coarse Sun Sensor (x5) Nadir Sensor Sun Sensor Rate Sensor Magnetometer Magnetorquer (x3) Momentum Wheel EPS PCB Batteries (x2) Solar Panels (x18) Deployment Switches (x2) CubeComputer OBC Auxiliary PCB UHF antenna VHF antenna COM PCB PCM MWIRD INMS External STM Thermistors (x 5)

UART serial I/F I2C ADCS: 3V3, CubeComputer Master 3V3 & 5V switched ON/OFF together 3V3 permanent 5V permanent Unregulated power supply (~8V) I2C: 3V3, OBC Master Analogue line RF line Digital line I2C EPS: 3V3, EPS MCU Master

Signal Conditioning PCBs

SPI: OBC Master

slide-12
SLIDE 12

1st SSEA, Padua, 9th December, 2015 12

Test Activities

RFT TVAC BO VFT STR (Shock) STR (Vibration) STR (Vibration) STR (Shock)

SM PFM

RFT RFT RFT

slide-13
SLIDE 13

1st SSEA, Padua, 9th December, 2015 13

In-house developments

  • Structure

– Low mass (<150 g) – Maximum useful volume – Modular configuration, highly configurable – Fully qualified

  • EPS

– High efficiency – Advanced MPPT – Highly configurable – Different power supplies

  • Solar panels
  • Antenna deployment mechanisms

– Minimum impact on CubeSat configuration – Can be located anywhere in the CubeSat

  • COM

– Full duplex – Downlink: UHF, 9600 bps, turnstile 4 monopole antenna – Uplink: VHF, 1200 bps, one monopole

  • Thermal Subsystem, Phase Change Material

QBITO-EUSOC

slide-14
SLIDE 14

Students’ involvement

1st SSEA, Padua, 9th December, 2015 14

Work group Professor Engineer/PhD Student System Engineering 1 1 EPS 0.5 1 4 OBC 1 5 ADCS 1 2 4 COM 1 3 Structure 0.5 1 3 TCS 1 1 Payloads 1 Ground Segment 2 3 AIT 2 1 TOTAL 25

slide-15
SLIDE 15

1st SSEA, Padua, 9th December, 2015 15

Thank you!

Please visit us at http://www.eusoc.upm.es
