Steady-state scheduling on CELL Mathias Jacquelin, joint work with - - PowerPoint PPT Presentation

1/ 22

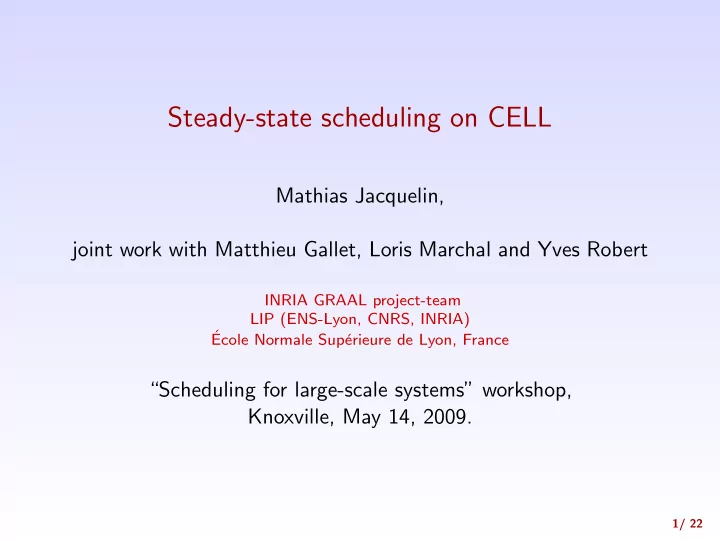

Steady-state scheduling on CELL

Mathias Jacquelin, joint work with Matthieu Gallet, Loris Marchal and Yves Robert

INRIA GRAAL project-team LIP (ENS-Lyon, CNRS, INRIA) ´ Ecole Normale Sup´ erieure de Lyon, France

“Scheduling for large-scale systems” workshop, Knoxville, May 14, 2009.

2/ 22

Outline

Introduction Steady-state scheduling CELL Platform and Application Modeling Mapping the Application Practical Steady-State on CELL Preprocessing of the schedule State machine of the application Preliminary results Conclusion and Future works

3/ 22

Motivation

◮ Multicore architectures: new opportunity to test the

scheduling strategies designed in the GRAAL team.

◮ Our trademark: efficient scheduling on heterogeneous

platforms

◮ Most multicore architecture are homogeneous, regular

◮ Need for tailored algorithms (linear algebra,. . . )

◮ Emerging heterogeneous multicore:

◮ Dedicated processing units on GPUs ◮ Mixed system: processor + accelerator

◮ This study: steady-state scheduling on CELL (bounded

heterogeneity) to demonstrate the usefulness of complex (static) scheduling techniques

◮ Ongoing work: only preliminary results

3/ 22

Motivation

◮ Multicore architectures: new opportunity to test the

scheduling strategies designed in the GRAAL team.

◮ Our trademark: efficient scheduling on heterogeneous

platforms

◮ Most multicore architecture are homogeneous, regular

◮ Need for tailored algorithms (linear algebra,. . . )

◮ Emerging heterogeneous multicore:

◮ Dedicated processing units on GPUs ◮ Mixed system: processor + accelerator

◮ This study: steady-state scheduling on CELL (bounded

heterogeneity) to demonstrate the usefulness of complex (static) scheduling techniques

◮ Ongoing work: only preliminary results

3/ 22

Motivation

◮ Multicore architectures: new opportunity to test the

scheduling strategies designed in the GRAAL team.

◮ Our trademark: efficient scheduling on heterogeneous

platforms

◮ Most multicore architecture are homogeneous, regular

◮ Need for tailored algorithms (linear algebra,. . . )

◮ Emerging heterogeneous multicore:

◮ Dedicated processing units on GPUs ◮ Mixed system: processor + accelerator

◮ This study: steady-state scheduling on CELL (bounded

heterogeneity) to demonstrate the usefulness of complex (static) scheduling techniques

◮ Ongoing work: only preliminary results

4/ 22

Introduction: Steady-state Scheduling

Rationale:

◮ A pipelined application:

◮ Simple chain ◮ More complex application

(Directed Acyclic Graph)

◮ Objective: optimize the throughput

• f the application

(number of input files treated per seconds)

◮ Today: simple case where each

task has to be mapped on one single resource

4/ 22

Introduction: Steady-state Scheduling

Rationale:

◮ A pipelined application:

◮ Simple chain ◮ More complex application

(Directed Acyclic Graph)

◮ Objective: optimize the throughput

• f the application

(number of input files treated per seconds)

◮ Today: simple case where each

task has to be mapped on one single resource

T1 T2 T3

4/ 22

Introduction: Steady-state Scheduling

Rationale:

◮ A pipelined application:

◮ Simple chain ◮ More complex application

(Directed Acyclic Graph)

◮ Objective: optimize the throughput

• f the application

(number of input files treated per seconds)

◮ Today: simple case where each

task has to be mapped on one single resource

T1 T2 T3 T4 T5 T6 T7 T8 T9

4/ 22

Introduction: Steady-state Scheduling

Rationale:

◮ A pipelined application:

◮ Simple chain ◮ More complex application

(Directed Acyclic Graph)

◮ Objective: optimize the throughput

• f the application

(number of input files treated per seconds)

◮ Today: simple case where each

task has to be mapped on one single resource

T1 T2 T3 T4 T5 T6 T7 T8 T9

4/ 22

Introduction: Steady-state Scheduling

Rationale:

◮ A pipelined application:

◮ Simple chain ◮ More complex application

(Directed Acyclic Graph)

◮ Objective: optimize the throughput

• f the application

(number of input files treated per seconds)

◮ Today: simple case where each

task has to be mapped on one single resource

P2 P1 P3 P4

T5 T6 T7 T8 T9 T1 T2 T3 T4

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB PPE0 SPE3 SPE2 SPE6 SPE7 SPE1 SPE0 SPE4 MEMORY SPE5

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB SPE5 SPE3 SPE2 SPE6 SPE7 SPE1 SPE0 SPE4 PPE0 MEMORY

◮ 1 PPE core

◮ VMX unit ◮ L1, L2 cache ◮ 2 way SMT

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB SPE4 SPE5 SPE2 SPE6 SPE7 SPE1 MEMORY SPE3 PPE0 SPE0

◮ 8 SPEs

◮ 128-bit SIMD instruction set ◮ Local store 256KB ◮ Dedicated Asynchronous DMA engine

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB SPE5 SPE3 SPE2 SPE6 SPE7 SPE1 SPE0 SPE4 PPE0 MEMORY

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB PPE0 SPE3 SPE2 SPE6 SPE7 SPE1 SPE0 SPE4 MEMORY SPE5

◮ Element Interconnect Bus (EIB)

◮ 200 GB/s bandwidth

5/ 22

CELL brief introduction

◮ Multicore heterogeneous processor ◮ Accelerator extension to Power architecture

EIB PPE0 SPE4 SPE2 SPE6 SPE7 SPE1 SPE0 SPE5 MEMORY SPE3

◮ 25 GB/s bandwidth

6/ 22

Outline

Introduction Steady-state scheduling CELL Platform and Application Modeling Mapping the Application Practical Steady-State on CELL Preprocessing of the schedule State machine of the application Preliminary results Conclusion and Future works

7/ 22

Platform modeling

Simple CELL modeling:

◮ 1 PPE and 8 SPE: 9 processing elements P1, . . . , P9, with

unrelated speed,

◮ Each processing element access the communication bus with a

(bidirectional) bandwidth b = (25GB/s) ,

◮ The bus is able to route all concurrent communications

without contention (in a first step),

◮ Due to the limited size of the DMA stack on each SPE:

◮ Each SPE can perform at most 16 simultaneous DMA

• perations,

◮ The PPE can perform at most 8 simultaneous DMA

• perations to/from a given SPE.

◮ Linear cost communication model:

a data of size S is sent/received in time S/b

8/ 22

Application modeling

Application is described by a directed acyclic graph:

◮ Tasks T1, . . . , Tn ◮ Processing time of task Tk on Pi is

ti(k),

◮ If there is a dependency Tk → Tl,

datak,l is the size of the file produced by Tk and needed by Tl,

T1 T2 T3 T4 T5 T6 T7 T8 T9

◮ If Tk is an input task, it reads readk bytes from main memory, ◮ If Tk is an output task, it writes writek bytes to main memory,

8/ 22

Application modeling

Application is described by a directed acyclic graph:

◮ Tasks T1, . . . , Tn ◮ Processing time of task Tk on Pi is

ti(k),

◮ If there is a dependency Tk → Tl,

datak,l is the size of the file produced by Tk and needed by Tl,

T1 T2 T3 T4 T5 T6 T7 T8 T9

◮ If Tk is an input task, it reads readk bytes from main memory, ◮ If Tk is an output task, it writes writek bytes to main memory,

8/ 22

Application modeling

Application is described by a directed acyclic graph:

◮ Tasks T1, . . . , Tn ◮ Processing time of task Tk on Pi is

ti(k),

◮ If there is a dependency Tk → Tl,

datak,l is the size of the file produced by Tk and needed by Tl,

T1 T2 T3 T4 T5 T6 T7 T8 T9

◮ If Tk is an input task, it reads readk bytes from main memory, ◮ If Tk is an output task, it writes writek bytes to main memory,

9/ 22

Target application: vocoder

• othingFilte

10/ 22

Outline

Introduction Steady-state scheduling CELL Platform and Application Modeling Mapping the Application Practical Steady-State on CELL Preprocessing of the schedule State machine of the application Preliminary results Conclusion and Future works

11/ 22

How to compute an optimal mapping

◮ Ojective: maximize throughput ρ ◮ Method: write a linear program gathering constraints on the

mapping

◮ Binary variables: αk i =

• 1

if Tk is mapped on Pi

• therwise

◮ Other useful binary variables: βk,l i,j = 1 iff file Tk → Tl is

transfered from Pi to Pj

12/ 22

Constraints 1/2

On the application structure:

◮ Each task is mapped on a processor:

∀Tk

• i

αk

i = 1 ◮ Given a dependency Tk → Tl, the processor computing Tl

must receive the corresponding file: ∀(k, l) ∈ E, ∀Pj,

• i

βk,l

i,j ≥ αl j ◮ Given a dependency Tk → Tl, only the processor computing

Tk can send the corresponding file: ∀(k, l) ∈ E, ∀Pi,

• j

βk,l

i,j ≤ αk i

13/ 22

Constraints 2/2

On the achievable throughput ρ = 1/T:

◮ On a given processor, all tasks must be completed within T:

∀Pi,

• k

αk

i × ti(k) ≤ T ◮ All incoming communications must be completed within T:

∀Pj, 1 b

k

αk

j × readk +

• k,l
• i

βk,l

i,j × datak,l

• ≤ T

◮ All outgoing communications must be completed within T:

∀Pi, 1 b

k

αk

i × writek +

• k,l
• i

βk,l

i,j × datak,l

• ≤ T

+ constraints on the number of incoming/outgoing communications to respect the DMA requirements + constraints on the available memory on SPE

14/ 22

Optimal mapping computation

◮ Linear program with the objective of minimizing T ◮ Integer (binary) variables: Mixed Integer Programming ◮ NP-complete problem ◮ Efficient solvers exist with short running time

◮ for small-size problems ◮ or when an approximate solution is searched

◮ We use CPLEX, and look for an approximate solution (5% of

the optimal throughput is good enough)

15/ 22

Outline

Introduction Steady-state scheduling CELL Platform and Application Modeling Mapping the Application Practical Steady-State on CELL Preprocessing of the schedule State machine of the application Preliminary results Conclusion and Future works

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

◮ min periodl = maxm∈precl(min periodm) + peekl + 2 ◮ min buffi,l = min periodl − min periodi

min periodk min periodl = maxm∈precl(min periodm) + peekl + 2 min buffj,l min buffi,l =min periodl − min periodi min periodj peekj peekk peeki peekl min buffi,k min buffi,j min periodi min buffk,l

Tl Ti Tk Tj

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

min buffi,j = 3 min buffj,l = 6 min periodl = 9 min buffi,l = 9 min buffk,l = 4 peeki = 0 min periodi = 0 peekj = 1 min periodj = 3 min periodk = 5 peekk = 3 peekl = 2 min buffi,k = 5

Tl Ti Tk Tj

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekk = 3 peekl = 2 min buffi,k = 5 min buffi,j = 3 min buffi,l = 9 min buffj,l = 6 min periodl = 9 peeki = 0 min buffk,l = 4 min periodi = 0 min periodj = 3 peekj = 1 min periodk = 5

Ti Tk Tj Tl

period = 0

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

min periodl = 9 min buffj,l = 6 min buffi,j = 3 min buffi,k = 5 peekl = 2 peekk = 3 min periodj = 3 min periodk = 5 min periodi = 0 peeki = 0 min buffi,l = 9 min buffk,l = 4 peekj = 1

Tk Tl Tj Ti

period = 1

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekk = 3 min periodk = 5 peekj = 1 min periodj = 3 min periodi = 0 peeki = 0 min buffk,l = 4 min periodl = 9 min buffj,l = 6 min buffi,j = 3 min buffi,k = 5 peekl = 2 min buffi,l = 9

Tk Ti Tj Tl

period = 2

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekk = 3 min periodk = 5 peekj = 1 min periodj = 3 min periodi = 0 peeki = 0 min buffk,l = 4 min periodl = 9 min buffi,l = 9 min buffj,l = 6 min buffi,j = 3 min buffi,k = 5 peekl = 2

Tl Tj Tk Ti

period = 3

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekk = 3 min periodk = 5 peekj = 1 min periodj = 3 min periodi = 0 peeki = 0 min buffk,l = 4 min periodl = 9 min buffi,l = 9 min buffj,l = 6 min buffi,j = 3 min buffi,k = 5 peekl = 2

Tl Tj Tk Ti

period = 4

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekk = 3 min periodk = 5 peekj = 1 min periodj = 3 min periodi = 0 peeki = 0 min buffk,l = 4 min periodl = 9 min buffi,l = 9 min buffj,l = 6 min buffi,j = 3 min buffi,k = 5 peekl = 2

Tl Tj Tk Ti

period = 5

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

min periodj = 3 peekj = 1 min periodk = 5 peekk = 3 peekl = 2 min buffi,k = 5 min buffi,j = 3 min buffj,l = 6 min periodl = 9 min buffi,l = 9 min buffk,l = 4 peeki = 0 min periodi = 0

Tk Tj Tl Ti

period = 6

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

peekj = 1 min periodj = 3 min periodi = 0 min buffj,l = 6 peekk = 3 min buffi,j = 3 min periodk = 5 peeki = 0 min buffk,l = 4 min buffi,k = 5 peekl = 2 min periodl = 9 min buffi,l = 9

Tk Ti Tj Tl

period = 7

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

min periodl = 9 min buffi,l = 9 min buffk,l = 4 peeki = 0 min periodi = 0 min periodj = 3 peekj = 1 peekk = 3 min periodk = 5 peekl = 2 min buffi,k = 5 min buffi,j = 3 min buffj,l = 6

Ti Tk Tj Tl

period = 8

16/ 22

Preprocessing of the schedule

Main Objective: Compute minimal starting period and buffer sizes.

min buffi,l = 9 min buffk,l = 4 peeki = 0 min periodi = 0 min periodj = 3 peekj = 1 min periodk = 5 peekl = 2 peekk = 3 min buffi,k = 5 min buffi,j = 3 min buffj,l = 6 min periodl = 9

Tj Tl Ti Tk

period = 9

17/ 22

State machine of the application

Two main phases: Computation and Communication

Select a Task Wait Resources Process Task Signal new Data

Computation Phase

Communicate

17/ 22

State machine of the application

Two main phases: Computation and Communication

Select a Task Wait Resources Communicate Signal new Data

Computation Phase

Process Task

17/ 22

State machine of the application

Two main phases: Computation and Communication

Communicate Wait Resources Process Task Signal new Data

Computation Phase

Communicate Select a Task

17/ 22

State machine of the application

Two main phases: Computation and Communication

Select a Task Wait Resources Communicate Signal new Data

Computation Phase

Process Task

17/ 22

State machine of the application

Two main phases: Computation and Communication

Select a Task Wait Resources Communicate Signal new Data

Computation Phase

Process Task

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Get Data Watch DMA Check input buffers Check input data

Communication Phase

Compute For each inbound comm.

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Check input data Watch DMA Check input buffers Get Data

Communication Phase

For each inbound comm. Compute

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Check input data Watch DMA Check input buffers Get Data

Communication Phase

For each inbound comm. Compute

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Check input data Watch DMA Check input buffers Get Data

Communication Phase

For each inbound comm. Compute

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Check input data Watch DMA Check input buffers Get Data

Communication Phase

For each inbound comm. Compute

17/ 22

State machine of the application

Two main phases: Computation and Communication

No No more comm. No

Check input data Watch DMA Check input buffers Get Data

Communication Phase

For each inbound comm. Compute

18/ 22

Communication between processors

PK PL T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

18/ 22

Communication between processors

Signal Data(i) PL T (i)

2

T (i+1)

1

T (i)

1

PK T (i−1)

2

mfc putb for SPEs’ outbound communications. spe mfcio getb for PPEs’ outbound communications to SPEs. memcpy for PPEs’ outbound communications to main memory.

18/ 22

Communication between processors

cannot be overwritten Input buffers are available to store data Output buffer containing i

Signal Data(i) PL T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK

mfc putb for SPEs’ outbound communications. spe mfcio getb for PPEs’ outbound communications to SPEs. memcpy for PPEs’ outbound communications to main memory.

18/ 22

Communication between processors

Get Data(i)

cannot be overwritten Input buffers are available to store data Output buffer containing i

Signal Data(i) T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK PL

mfc get for SPEs’ inbound communications. spe mfcio put for PPEs’ inbound communications from SPEs. memcpy for PPEs’ inbound communications from main memory.

18/ 22

Communication between processors

Get Data(i)

cannot be overwritten Input buffers are available to store data Output buffer containing i

Signal Data(i) T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK PL

mfc get for SPEs’ inbound communications. spe mfcio put for PPEs’ inbound communications from SPEs. memcpy for PPEs’ inbound communications from main memory.

18/ 22

Communication between processors

Transfer Done(i) Get Data(i)

Output buffer containing i cannot be overwritten Input buffers are available to store data

Signal Data(i) PL T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK

mfc putb for SPEs’ acknowledgements. spe mfcio getb for PPEs’ acknowledgements to SPEs. Self acknowledgement of PPEs’ transfers from main memory.

18/ 22

Communication between processors

Output buffer containing i can now be overwritten

Transfer Done(i) Get Data(i)

Input buffers are available to store data Output buffer containing i cannot be overwritten

Signal Data(i) PL T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK

mfc putb for SPEs’ acknowledgements. spe mfcio getb for PPEs’ acknowledgements to SPEs. Self acknowledgement of PPEs’ transfers from main memory.

18/ 22

Communication between processors

Signal Data(i + 1)

can now be overwritten Output buffer containing i

Transfer Done(i) Get Data(i)

Input buffers are available to store data Output buffer containing i cannot be overwritten

Signal Data(i) T (i−1)

2

T (i)

2

T (i+1)

1

T (i)

1

PK PL

mfc putb for SPEs’ acknowledgements. spe mfcio getb for PPEs’ acknowledgements to SPEs. Self acknowledgement of PPEs’ transfers from main memory.

19/ 22

Preliminary results

We outperform both greedy heuristic and sequential version.

0
 50
 100
 150
 200
 250
 300
 350
 400


Sequen-al
 Greedy
 Linear
Program
 Throughput


Results are obtained over 70000 periods

20/ 22

Outline

Introduction Steady-state scheduling CELL Platform and Application Modeling Mapping the Application Practical Steady-State on CELL Preprocessing of the schedule State machine of the application Preliminary results Conclusion and Future works

21/ 22

Feedback on Cell programming

◮ Multilevel heterogeneity:

◮ 32 bits SPEs vs 64 bits PPE architectures ◮ Different communication mechanism and constraints

◮ Non trivial initialization phase

◮ Varying data structure sizes (32/64bits) ◮ Runtime memory allocation

22/ 22

On-going and Future work

◮ Various code optimizations

◮ SIMD code for SPEs ◮ Reduce control overhead

◮ Better communication modeling

◮ Is linear cost model relevant ? ◮ Contention on concurrent DMA operations ?

◮ Larger platforms

◮ Using multiple CELL processors ◮ CELL + other type of processing units ? ◮ Work on communication modeling

◮ Design scheduling heuristics

◮ MIP is costly
