Status Report on Chromatics Optics Measurements and Correction M. Bai, R. Calaga, Y. Luo, S. White 2009 Measurements (R. Calaga et al.) Proposed Correction Initial 2011 Proposal (R. Calaga) => Merged with requests from M. Bai and Y. Luo: 2h

slide-1
SLIDE 1

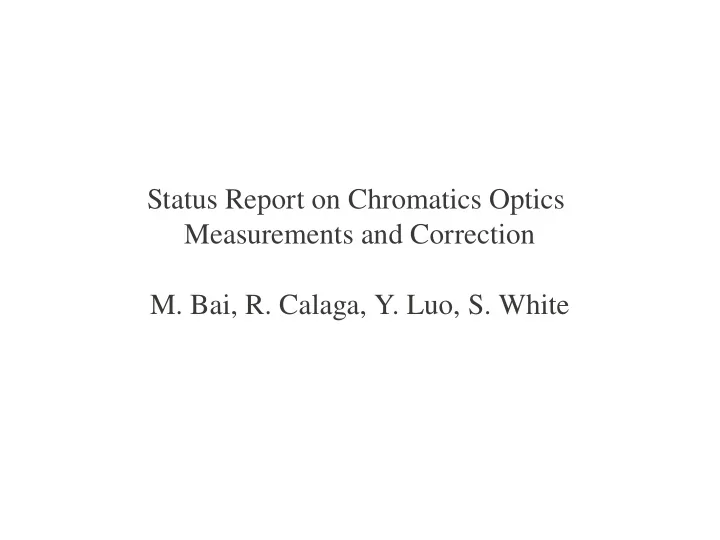

Status Report on Chromatics Optics Measurements and Correction

  • M. Bai, R. Calaga, Y. Luo, S. White
slide-2
SLIDE 2

2009 Measurements (R. Calaga et al.)

slide-3
SLIDE 3

Proposed Correction

slide-4
SLIDE 4

Initial 2011 Proposal (R. Calaga)

=> Merged with requests from M. Bai and Y. Luo: 2h assigned overall, first take measurements

slide-5
SLIDE 5

Summary

  • APEX session planned from 6-8am. Summary (from elog):
  • Started ramp at 6:25 only
  • 6:37-7:02: chromaticity, tune adjustments
  • 7:06-7:24: on-momentum measurement for blue and yellow with AC-dipole
  • ~7:30: beams lost during radial steering
  • 7:30-8:00: back to injection, exercised radial, and tune kicker script
  • Achieved on-momentum measurements for both beams simultaneously for the first time
slide-6
SLIDE 6

On-momentum Measurements

Blue and yellow beam horizontal measurements: => Measured simultaneously for the first time Blue:

  • IP6: β*~ 0.70 / 0.75
  • IP8: β*~ 0.87 / 0.65

Yellow:

  • IP6: β*~ 0.77 / 0.84
  • IP8: β*~ 0.80 / 0.88
slide-7
SLIDE 7

Outstanding Issues

Setting-up the chromaticity: “The other headache is to minimize the tune spread by tweaking chroms at store. Very ineffective in vertical. We tried to change the Blue V chrom in both directions, couldn't get more than 200 turns of coherent

  • scillations. Also, this exercise

indicated that Blue V chrom is on the negative side.” Radial steering: From elog: “Beam was loss due a to a 1.69mm step on the radial steering function which came as a result of starting the function from zero instead of the offset value left in by the orbit feedback.”

slide-8
SLIDE 8

Proposal for next Experiment

  • Repeat baseline measurements (AC dipole and tune kicker)
  • Off-momentum optics measurements and correction:
  • Check available range, lifetime at maximum offset
  • Apply corrections (phase advance between IP6 and IP8) + tune feedback
  • Dump, inject ramp, repeat measurements and check for improvements
  • Requirements:
  • 2h beam time
  • 2 ramps / same beam conditions as Wednesday
  • Measurements can be done in common with Yun and Mei, corrections have

to be done separately (different scheme)
