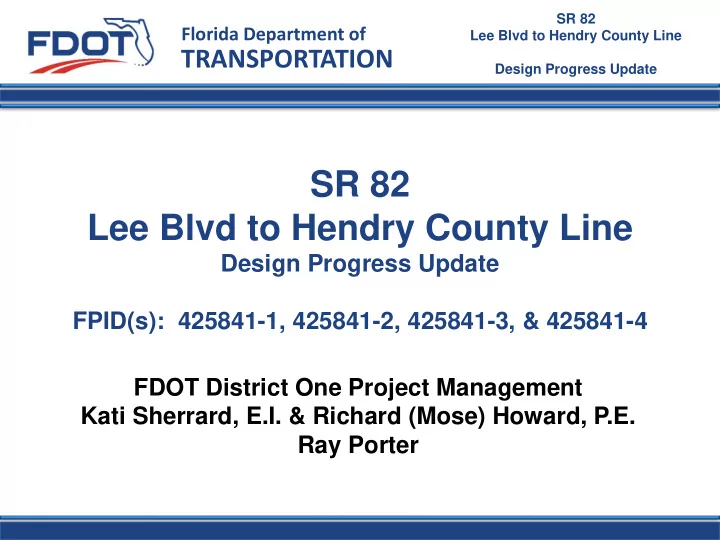

SR 82 Lee Blvd to Hendry County Line

Design Progress Update FPID(s): 425841-1, 425841-2, 425841-3, & 425841-4

Florida Department of

TRANSPORTATION

FDOT District One Project Management Kati Sherrard, E.I. & Richard (Mose) Howard, P.E. Ray Porter

SR 82 Lee Blvd to Hendry County Line Design Progress Update

slide-2
SLIDE 2

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Agenda

  • 425841-1 (Lee Blvd. to Shawnee Rd.)
  • 425841-2 (Shawnee Rd. to Alabama Rd.)
  • 425841-3 (Alabama Rd. to Homestead Rd.)
  • 425841-4 (Homestead Rd. to Hendry County Line)
  • Questions / Answers
slide-3
SLIDE 3

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd.

slide-4
SLIDE 4

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Design Improvements

  • Widen SR 82 from an existing two-lane roadway to a six-

lane divided roadway (asphalt & concrete construction)

  • Continuous Flow Intersection (CFI)
  • Shared-use Path
  • Noise Barrier
  • Roadway Lighting
slide-5
SLIDE 5

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

  • Three 12-ft travel lanes in each direction
  • 30-ft raised grass median / 6.5-ft paved shoulders
  • 6.5-ft buffered bike lanes in each direction
  • 5-ft sidewalk on the north side of SR 82
  • 10-ft shared-use path on the south side of SR 82
  • Posted Speed = 55 MPH

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Typical Section

slide-6
SLIDE 6

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Signalized Intersections

  • SR 82 at Gateway Blvd.
  • Mast Arms
  • SR 82 at Griffin Rd.
  • Mast Arms
  • SR 82 at Daniels Pkwy./Gunnery Rd.
  • Continuous Flow Intersection
  • Combination of Mast Arms and Strain Poles
slide-7
SLIDE 7

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Continuous Flow Intersection

The Continuous Flow Intersection Video

slide-8
SLIDE 8

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Continuous Flow Intersection

  • 10-ft wide special emphasis crosswalks for pedestrians
  • 6.5-ft wide buffered keyhole bike lanes for bicyclists
slide-9
SLIDE 9

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Noise Barrier

  • Village of Stoneybrook Community
  • 1,250-ft. long x 22-ft high
  • Light Beige Color, Ashlar Stone Texture
slide-10
SLIDE 10

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Maintenance of Traffic

4 Construction Phases

  • Phase I – Construct two new westbound lanes while maintaining traffic on existing SR

82

  • Phase II – Shift traffic to newly constructed westbound lanes, remove existing SR 82

pavement, and construct new eastbound lanes

  • Phase III – Shift eastbound traffic to new eastbound lanes and construct median
  • Phase IV - Final signing and pavement markings and friction course

Detours & Lane Closures

  • Anticipate temporary short term Meadow Rd. and side street detours
  • No lane closures allowed on SR 82 during peak commuter hours:

(6 am to 9 am) and (4 pm to 7 pm)

  • Anticipate nightly lane closures (10 pm to 6 am) at Daniels Pkwy. and Gunnery Rd. to

construct CFI

  • Detour routes utilizing Gateway Blvd. for Daniels Pkwy. and Lee Blvd. for Gunnery Rd.
slide-11
SLIDE 11

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Phase Funding Year Cost Estimate* Design Ongoing $5.7M Right-of-Way Ongoing $7.1M Construction FY 16/17 $56.7M

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Project Funding

* Costs shown in table are in present-day dollars. Construction costs are based on Phase III design plans.

slide-12
SLIDE 12

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Project Schedule

Construction duration is approximate. The following factors will have an effect on the duration: Utilities & Maintaining Access Along the Corridor.

slide-13
SLIDE 13

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-1-52-01 SR 82 from Lee Blvd. to Shawnee Rd. Public Information Meeting

Joint Public Meeting with 425841-2 Thursday September 22, 2016 5:30 pm to 7:00 pm New Life Assembly of God Church 5146 Leonard Avenue S. Lehigh Acres, FL 33973

slide-14
SLIDE 14

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd.

slide-15
SLIDE 15

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Design Improvements

  • Widen SR 82 from an existing two-lane roadway to a six-

lane divided roadway

  • Shared-use Path
  • Roadway Lighting
slide-16
SLIDE 16

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

  • Three 12-ft travel lanes in each direction
  • 30-ft raised grass median / 6.5-ft paved shoulders
  • 6.5-ft buffered bike lanes in each direction
  • 5-ft sidewalk on the north side of SR 82
  • 10-ft shared-use path on the south side of SR 82
  • Posted Speed = 55 MPH

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Typical Section

slide-17
SLIDE 17

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Muck Remediation

  • Deep muck pocket located just east of Shawnee Rd.
  • Will be mitigated as part of the 425841-1 project
  • Combination of muck removal and soil surcharging
  • Two construction phases – ½ roadway at a time using

temporary diversion roadways within the right-of-way

slide-18
SLIDE 18

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Maintenance of Traffic

4 Construction Phases

  • Phase I – Construct two new westbound lanes while maintaining traffic on

existing SR 82

  • Phase II – Shift traffic to newly constructed westbound lanes, remove existing

SR 82 pavement, and construct new eastbound lanes

  • Phase III – Shift eastbound traffic to new eastbound lanes and construct

median

  • Phase IV - Final signing and pavement markings and friction course

Detours & Lane Closures

  • Anticipate temporary short term Meadow Rd. and side street detours

resulting from drainage improvements

  • No lane closures allowed on SR 82 during peak commuter hours:
  • (6 am to 9 am) and (4 pm to 7 pm)
slide-19
SLIDE 19

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Phase Funding Year Cost Estimate* Design Ongoing $3.55M Right-of-Way Ongoing $0.23M Construction FY 21/22 $23M

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Project Funding

* Costs shown in table are in present-day dollars. Construction costs are based on Phase III design plans.

slide-20
SLIDE 20

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Project Schedule

Construction duration not yet determined. The following factors will have an effect on the duration: Utilities & Maintaining Access Along the Corridor.

slide-21
SLIDE 21

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-2-52-01 SR 82 from Shawnee Rd. to Alabama Rd. Public Information Meeting

Joint Public Meeting with 425841-1 Thursday September 22, 2016 5:30 pm to 7:00 pm New Life Assembly of God Church 5146 Leonard Avenue S. Lehigh Acres, FL 33973

slide-22
SLIDE 22

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd.

slide-23
SLIDE 23

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Design Improvements

  • Widen SR 82 from an existing two-lane roadway to a four-

lane divided roadway

  • Expandable to 6-lanes in the future by the addition of one lane in

each direction in the median

  • Shared-use path
  • Roadway lighting
slide-24
SLIDE 24

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Typical Section

  • Two 12-ft travel lanes in each direction (expandable to six lanes

in the future)

  • 6.5-ft buffered bike lanes in each direction
  • 5-ft sidewalk on the north side of SR 82
  • 10-ft shared-use path on the south side of SR 82
  • Posted Speed = 55 MPH
slide-25
SLIDE 25

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Maintenance of Traffic

3 Phases

  • Phase 1 – Construct new westbound lanes while maintaining traffic on

existing SR 82

  • Phase II – Shift traffic to newly constructed westbound lanes, remove existing

SR 82 pavement, and construct new eastbound lanes

  • Phase III – Final signing, striping, and friction course

Detours & Lane Closures

  • Anticipate temporary minor side street detours resulting from drainage

improvements

  • Anticipate no lane closures allowed during commuter hours:
  • 6 am to 9 am
  • 4 pm to 7 pm
slide-26
SLIDE 26

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Phase Funding Year Cost Estimate* Design Ongoing $4.15M Right-of-Way Ongoing $3.9M Construction FY 17/18 $39.6M

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Project Funding

* Costs shown in table are in present-day dollars. Construction costs are based on Phase III design plans.

slide-27
SLIDE 27

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Project Schedule

Construction duration is approximate. The following factors will have an effect on the duration: Utilities & Maintaining Access Along the Corridor.

slide-28
SLIDE 28

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-3-52-01 SR 82 from Alabama Rd. to Homestead Rd. Public Information Meeting

Joint Public Meeting with 425841-4 October 4, 2016 5:30 pm to 7:00 pm Veterans Park Recreational Center Gymnasium Lehigh Acres

slide-29
SLIDE 29

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line

slide-30
SLIDE 30

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Design Improvements

  • Widen SR 82 from an existing two-lane roadway to a four-

lane divided roadway

  • Expandable to 6-lanes in the future by the addition of one lane in

each direction in the median

  • Shared-use path
  • Roadway lighting
slide-31
SLIDE 31

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Typical Section

  • Two 12-ft travel lanes in each direction (expandable to six lanes

in the future)

  • 7-ft buffered bike lanes in each direction
  • 5-ft sidewalk on the north side of SR 82
  • 10-ft shared-use path on the south side of SR 82
  • Posted Speed = 60 MPH
slide-32
SLIDE 32

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Maintenance of Traffic

3 Phases

  • Phase 1 – Construct new westbound lanes while maintaining traffic on

existing SR 82

  • Phase II – Shift traffic to newly constructed westbound lanes, remove existing

SR 82 pavement, and construct new eastbound lanes

  • Phase III – Final signing, striping, and friction course

Detours & Lane Closures

  • Anticipate temporary minor side street detours resulting from drainage

improvements

  • Anticipate no lane closures allowed during commuter hours:
  • 6 am to 9 am
  • 4 pm to 7 pm
slide-33
SLIDE 33

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Phase Funding Year Cost Estimate* Design Ongoing $3.26M Right-of-Way Ongoing $0.10M Construction FY 17/18 $18.0M

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Project Funding

* Costs shown in table are in present-day dollars. Construction costs are based on Phase III design plans.

slide-34
SLIDE 34

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update Construction duration is approximate. The following factors will have an effect on the duration: Utilities & Maintaining Access Along the Corridor.

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Project Schedule

slide-35
SLIDE 35

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

425841-4-52-01 SR 82 from Homestead Rd. to Hendry County Line Public Information Meeting

Joint Public Meeting with 425841-3 October 4, 2016 5:30 pm to 7:00 pm Veterans Park Recreational Center Gymnasium Lehigh Acres

slide-36
SLIDE 36

Florida Department of

TRANSPORTATION

SR 82 Lee Blvd to Hendry County Line Design Progress Update

Segment 1 Richard “Mose” Howard, P.E. Project Manager (863) 519-2374 Richard.Howard@dot.state.fl.us Segment 2, 3, & 4 Ray Porter Project Manager (863) 519-2484 Jray.Porter@dot.state.fl.us
