SR 6006 (Pennsylvania Avenue), SR 1017 (Market Street), and Water Street Intersection Improvement City of Warren, Warren County, PA Project Goals Safety Improvements Reduce crashes The intersection has a history of vehicles hitting

SLIDE 1

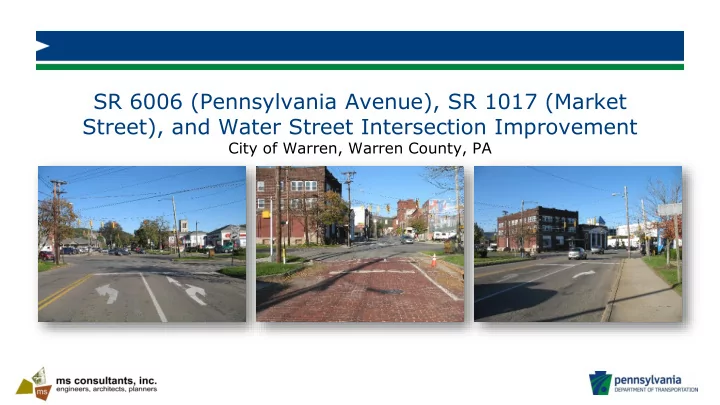

SR 6006 (Pennsylvania Avenue), SR 1017 (Market Street), and Water Street Intersection Improvement

City of Warren, Warren County, PA

SLIDE 2

Project Goals

Safety Improvements

– Reduce crashes – The intersection has a history of vehicles hitting fixed objects.

Drainage Improvements

– Update inlets and pipes to current standards.

Arterial Efficiency and Operations

– Signalized intersections within the city are not currently interconnected. – Improve traffic flow in the system.

SLIDE 3

Existing Crash Data

Collision Types Reportable Crashes by Year

4 1 3

1 2 3 4 5 2012 2013 2014 2015 2016

38% 25% 25% 13%

Hit Fixed Object Rear-End Angle Pedestrian

SLIDE 4

Existing Collision Diagram

Hit Fixed Object Rear-End Angle Pedestrian

SLIDE 5

WB-50 WB-67 WB-50 WB-50

Existing Radius Returns and Truck Encroachments

SLIDE 6

Alternative 1 – Signal Replacement and Geometric Improvements

SLIDE 7

Alternative 1 – Truck Turning Templates

WB-50 WB-50 WB-50 WB-50

SLIDE 8

Alternative 1 – Truck Turning Templates

WB-67 WB-67

SLIDE 9

Alternative 1 – Loss of Parking

2 spaces (street parking)

SLIDE 10

Alternative 1 – Potential Construction Phase 1

SLIDE 11

Alternative 1 – Potential Construction Phase 2

SLIDE 12

Alternative 1 – Potential Construction Phase 3

SLIDE 13

Alternative 1 – Potential Construction Phase 4

SLIDE 14

Alternative 2 – Single Lane Roundabout

SLIDE 15

Alternative 2 – Truck Turning Templates

WB-50 WB-50 WB-50 WB-50

SLIDE 16

Alternative 2 – Truck Turning Templates

WB-67 WB-67

SLIDE 17

Alternative 2 – Truck Turning Templates

WB-67

SLIDE 18

Alternative 2 – Loss of Parking

2 spaces (street parking) 7 spaces (street parking) 5 spaces (parking lot) 5 spaces (street parking) 2 spaces (street parking) 3 spaces (street parking) 5 spaces (street parking)

SLIDE 19

Alternative 2 – Construction Detour

SLIDE 20

Alternative 2 – Potential Construction Phase 1

SLIDE 21

Alternative 2 – Potential Construction Phase 2

SLIDE 22

Alternative 2 – Potential Construction Phase 3

SLIDE 23

Intersection Conflict Points

SLIDE 24

SLIDE 25

Lighting/Signal Pole Options

Standard Poles (Galvanized)

– No additional cost to City

Standard Poles Painted Black

– No additional cost to City

Decorative Poles Painted Black

– City responsible for: $12,000 to $16,000/signal pole $2,000 to $4,000/light pole (generally half the cost)

SLIDE 26

Project Goals Satisfied?

Safety Improvements

– Statistically, roundabouts are safer than traditional signalized intersections. – Both alternatives will improve the geometry of the intersection and accommodate large vehicles.

Drainage Improvements

– The existing drainage network will be improved with either alternative; however, the roundabout would require a more complex drainage system.

Arterial Efficiency and Operations

– Both alternatives would improve the efficiency and operation of the arterial network.

SLIDE 27

Phase Dates

Anticipated Project Timeline

Preliminary Engineering Final Design Utility Clearances/Relocation Agreements Right-of-Way Acquisition Construction 2018 2019 2020 2021

SLIDE 28

What’s Next?

PennDOT and the City of Warren are evaluating the two

alternatives for the intersection of (SR 6006) Pennsylvania Avenue, (SR 1017) Market Street, and Water Street.

– Signal Replacement and Retiming with Geometric Improvements – Single Lane Roundabout

PennDOT and City officials will take public feedback into

consideration.

– Let us know your thoughts and concerns.

Questions?
