SR 0068 Karns Crossing Bridge Replacement

1

SR 0068 Section 253 Butler and Summit Townships Butler County, PA

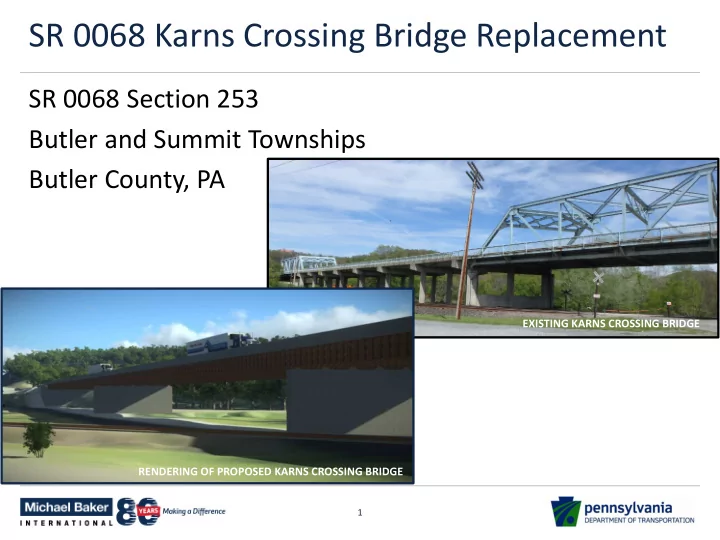

EXISTING KARNS CROSSING BRIDGE RENDERING OF PROPOSED KARNS CROSSING BRIDGE

Project Team

2

PennDOT District 10:

• Jason Layman, E.I.T. – Project Manager

Michael Baker International, Inc:

• Sean Hart, P.E., C.B.S.I. – Project Manager

Direct Project Questions to Jason Layman:

• jlayman@pa.gov
• (724) 357-7614

Please complete the survey at the end of this presentation.

Project Purpose

• The purpose of this project is to address identified

deficiencies along SR 0068 between SR 0422 and Hospital Way

3

Project Location Map

4

Project Location Map

5

Project Needs

• Replacement of the Karns Crossing Bridge
• Carries SR 0068 over the B&LE and B&P Railroads
• Replacement of the Twin-Cell Arch Culvert
• Carries SR 0068 over the Connoquenessing Creek
• Correct the Traffic Safety Issues at:
• SR 0068 / Delwood Road Intersection
• SR 0068 / SR 0422 EB Onramp Intersection

6

Project Requirements

• Maintain 1 Lane of Traffic in Each Direction along SR

0068 During Construction

• Maintain Access to Butler Memorial Hospital During

Construction

7

Project Description

• Replace the Karns Crossing Bridge
• New 3 Span Continuous Steel Plate Girder Bridge
• Replace the Twin-Cell Arch Culvert over the

Connoquenessing Creek

• New 1 Span Prestressed Concrete Bulb-Tee Beam Bridge

8

Project Description (continued)

• Correct the Traffic Safety Issues at the SR 0068 /

Delwood Road Intersection and SR 0068 / SR 0422 EB Onramp Intersection

• Add a Right Turn Lane on to Delwood Road for SR 0068 WB

Traffic (heading towards Butler)

• Add a Left Turn Lane on to Delwood Road for SR 0068 EB

Traffic (heading towards SR 0422 Interchange)

• Add a Right Turn Lane on to SR 0422 EB Onramp for SR 0068

EB Traffic

• Construct a Retaining Wall between SR 0068 and the

B&LE Railroad

9

Project Description – Quick Facts

Average Daily Traffic (ADT) = 12,900 for Design Year 2042

• 4% Truck Traffic

Roadway Dimensions

• Existing Lane/Shoulder Width = 11’ Lanes, Shoulders

Vary 3’ to 6’

• Proposed Lane/Shoulder Width = 11’ Lanes, 8’

Shoulders

10

Project Description – Quick Facts (continued)

Karns Crossing Bridge

• Existing Roadway Width = 34’ with 5’ sidewalk
• Proposed Roadway Width = 63’ with no sidewalk
• Wider Shoulders on Proposed Bridge can be used for

Pedestrians

11

Project Description – Quick Facts (continued)

Karns Crossing Bridge (continued)

• B&LE Railroad Horizontal Clearance:
• 9’-7” Minimum Existing
• 18’-0” Required
• 20’-7” Minimum Proposed
• B&LE Railroad Vertical Clearance:
• 21’-4’ Minimum Existing
• 23’-0” Required
• 23’-11” Minimum Proposed

12

Project Description – Quick Facts (continued)

Karns Crossing Bridge (continued)

• B&P Railroad Horizontal Clearance:
• 8’-8” Minimum Existing
• 18’-0” Required
• 20’-3” Minimum Proposed
• B&P Railroad Vertical Clearance:
• 21’-2’ Minimum Existing
• 23’-0” Required
• 27’-0” Minimum Proposed

13

Project Description – Quick Facts (continued)

Twin-Cell Arch Culvert

• Existing Roadway Width = 50’
• Proposed Roadway Width = 74’-7 ½”

14

Project Overview – Existing Karns Crossing Bridge

15

Typical Roadway across Existing Karns Crossing Bridge (Looking Westbound Towards Butler) Existing Karns Crossing Bridge. Photo Taken from Parking Lot Adjacent to B&LE Railroad and Delwood Road

Project Overview – Existing Twin-Cell Arch Culvert

16

Existing Twin-Cell Arch Culvert Carrying SR 0068 over the Connoquenessing Creek. Culvert is Located Between Existing Karns Crossing Bridge and SR 0422. Looking through One Cell of Existing Twin-Cell Arch Culvert which Carries SR 0068 over the Connoquenessing Creek

Project Overview – Delwood Road Intersection

17

SR 0068 / Delwood Road Intersection (Looking Right Towards Butler) SR 0068 Looking Westbound at the Delwood Road Intersection SR 0068 / Delwood Road Intersection (Looking Left Towards SR 0422)

Project Overview – SR 0422 Interchange

18

SR 0068 Eastbound Looing at the SR 0422 Interchange SR 0068 Eastbound Looing at the SR 0422 Interchange

Delwood Road Detour

19

Detour Route

Delwood Road will be closed at its intersection with SR 0068 for some phases during construction. Motorists traveling between SR 0068 and Delwood Road will use 3rd Street and E. Brady Street for the detour route. The detour route is highlighted in blue in the adjacent figure.

Delwood Road Detour Route

Rendering of Proposed Karns Crossing Bridge

20

Rendering of Proposed Bridge (Looking Northeast Towards SR 0422)

Rendering of Proposed Karns Crossing Bridge

21

Rendering of Proposed Bridge (Looking West)

Project Plans

22

Project Plans

23

Project Plans

24

Project Plans

25

Project Plans

26

Project Plans

27

Project Plans

28

Project Schedule

29

Proposed Construction:

• Start 2022
• Dependent upon construction funding

Anticipated Construction Duration:

• 3 Years (2022 to 2024)

Project Survey

30

Please complete the survey below in order to provide feedback about the project: https://forms.gle/1VikJ2CqeMNEgHxQ9
