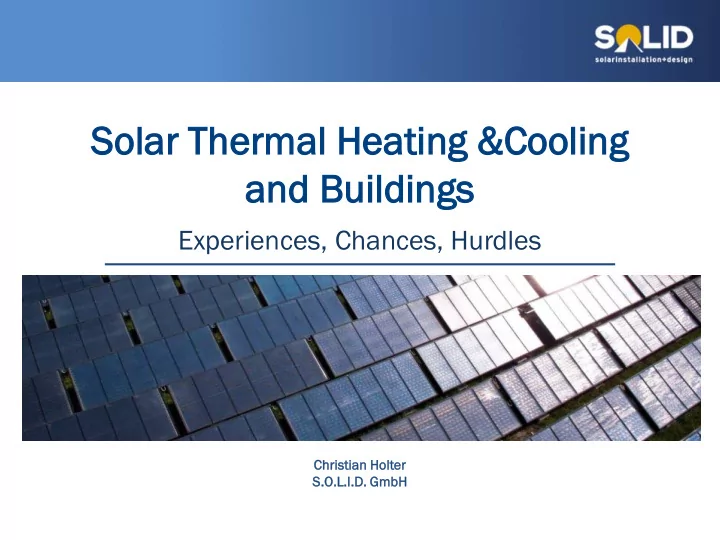

Sola lar Ther ermal H Heat atin ing & &Cooling ing and and B Buil ildin ings Experiences, Chances, Hurdles Christian an H Holt lter S.O.L .L.I .I.D .D. G . GmbH S.O.L.I. .L.I.D. A D. Activities Large solar thermal

slide-1
SLIDE 1

Sola lar Ther ermal H Heat atin ing & &Cooling ing and and B Buil ildin ings

Experiences, Chances, Hurdles

Christian an H Holt lter S.O.L .L.I .I.D .D. G . GmbH

slide-2
SLIDE 2

Large solar thermal systems (>500m²)

  • Project Development
  • Reasonable approved concepts
  • Master engineering- system KH
  • Construction supervision
  • Operation and Maintenance
  • Project Financing (ESCo)
  • Research & development
  • Consulting, Training

S.O.L.I. .L.I.D. A

  • D. Activities
slide-3
SLIDE 3

S.O.L.I. .L.I.D. G

  • D. Group

up

Headquarter in Graz, Austria Subsidiaries in USA & Singapore Partners in many other countries Recent reference plants around the world

Graz, Austria Office Solar Cooling Qingdao UWC SZDLC, Al-Ain CGD DigiCel Harvard Singapore Phoenix, AZ Pristina SOLID Office KFU Graz KVK Körner FW Berger SDH Graz PepsiCo DOC Lanta DMHS Hyatt Partners Hyatt Heating

slide-4
SLIDE 4

Techn hnic ical S Solutio tions b by S SOLID

THERMAL DRIVEN COOLING PROCESS

SOLAR YIELD

COOLING LOAD HEAT COLD WATER CONDITIONED AIR STORAGE

SOLAR R COOL OOLING DOME OMESTIC HO HOT W WATER SPACE H HEATING NG DI DISTR TRICT T HEATI TING PROCESS SS HEAT AT GREEN Factory

slide-5
SLIDE 5

Large Hotel

2% 14% 1% 29% 54% Air Conditioning Lighting Laundry Other Hot w ater

Large Office Buidling

13% 37% 49% 1% Air Conditioning Lighting Office equipment Other

Medium Size Hospital

18% 8% 15% 39% 20% Air Conditioning Lighting Laundry Other Hot w ater

Background

  • Peak Demand on cooling meets solar Peak
  • Cooling creates expensive peak demand
  • Cooling is the biggest single user of

electricity in buildings

slide-6
SLIDE 6

Why s y solar a air cond nditioni

  • ning

ng ? ?

  • Electric Energy Savings

– Electric COP Solar Cooling System incl. recooling ~10-40 – Electric COP Compression Chiller Syst. incl. recooling ~2-6  reduced electric consumption by 70-80%

  • More stable energy expenses
  • CFC Free Chillers – No Ozone Depleting Potential
  • LEED certification - up to 10 additional points possible
  • Quiet operation – no vibrations
  • Reliable operations – no wear and tear on pistons or screws

as there are no such stressed parts

slide-7
SLIDE 7

Office b buildin ing - EAR EAR Tower Pris r Pristin ina, Kosovo

2 LiBr absorption machines, total capacity of 70 kW / 20 tons Solar Panels: 226 m² 4 m³ storage tank Operating since Feb. 2003 13th op h opera rating s season

  • n, 0

0% % unfore

  • reseen d

down time

slide-8
SLIDE 8

Solar c cooling - Digic igicel, K , Kingston, n, Jam amaic aica

Office space: 13,685 m² Solar Panels: 982 m² / 680 kW Single stage LiBr chiller: 600 kW Hot storage: 2 x 5.5 m³ 492 MWh cooling energy per year In operation since 2012 Realised in partnership with RED, Jamaica

Energ rgy G Globe A Award 2 2014

slide-9
SLIDE 9

Solar Cooling via concrete core activation

  • f a desert museum

Cooling power: 400 kW Collector area: 1108 m2 Expected Solar yield: 825 kWh/m2/year Commissioning: 2012

Sheik ik Zayed Dese sert L Learning g Cen enter er (UAE/A E/Al Ain Ain)

slide-10
SLIDE 10

Solar Cooling & Hot Water for School Campus Solar Panels: 3900 m² / 2.73 MW LiBr absorption chiller: 1470 kW Operation started: 2011 Enlargement actually under discussion World

  • rld‘s m

mos

  • st p

powerfu ful So Solar Co Cooling Sy System until 20 2013 3

UWC WC Tampine nes, S , Singapor pore

slide-11
SLIDE 11

UWC WC Tampine nes, S , Singapor pore

Live visualization: http://www.uwc.heizwerk.at/?email=frei&pw=frei

slide-12
SLIDE 12
  • Collector area: 4,450 m²
  • Cooling load: ~1023 kW =

291 RT

  • Peak heat power: 2600 kW
  • Annual solar production:

~3 GWh heat

  • Yearly energy savings:
  • 140 tons of gas,
  • 435 MWh electricity,
  • 500 kW of connected

load

Man Managu agua H a Hospit ital al, N Nic icarag aragua

Almost c completed

slide-13
SLIDE 13

IKE IKEA; S Sing ngapur

  • Solar Cooling System IKEA Singapur, Alexandra Road.
  • Under construction now
  • 2600 m² solar collectors
  • 900 kW cooling
