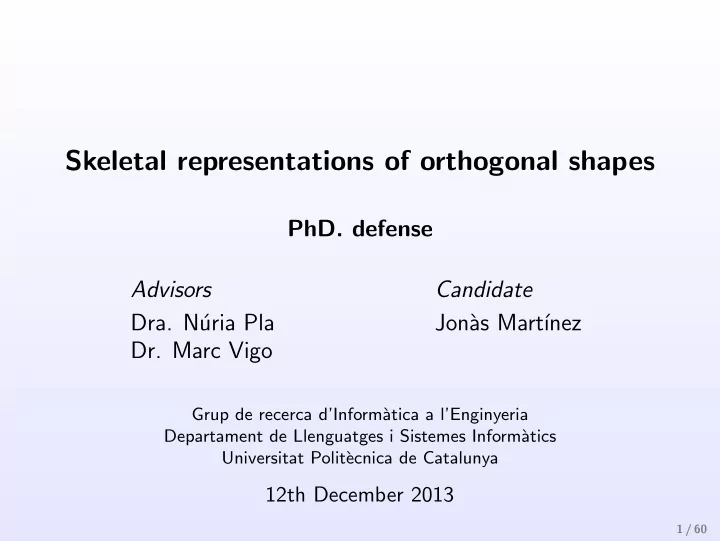

Skeletal representations of orthogonal shapes

  • PhD. defense

Advisors Candidate

  • Dra. N´

uria Pla Jon` as Mart´ ınez

  • Dr. Marc Vigo

Grup de recerca d’Inform` atica a l’Enginyeria Departament de Llenguatges i Sistemes Inform` atics Universitat Polit` ecnica de Catalunya

12th December 2013

1 / 60

slide-2
SLIDE 2

Objectives

  • Our main objective was to obtain a simple skeletal

representation of shapes.

  • We considered orthogonal shapes in order to approximate the

input shape.

  • The L∞ metric was also considered, to substitute the Euclidean
  • ne, as it behaves well with orthogonal shapes.

2 / 60

slide-3
SLIDE 3

Objectives

  • The first objective was to design and implement a robust

framework to compute the L∞ Voronoi diagram of orthogonal polygons and polyhedra.

  • We found several problems in addressing degenerate cases and

pseudomanifold features (brep extraction, non-trihedral vertices, etc.).

3 / 60

slide-4
SLIDE 4

Objectives

  • The second objective was to introduce skeletal representations

based on the L∞ Voronoi diagram.

  • We found that the L∞ Voronoi diagram may not reduce the

dimension or be homotopical equivalent to the input shape.

  • Moreover, it is highly sensitive to perturbations on the shape

boundary.

4 / 60

slide-5
SLIDE 5

Contributions

  • A practical and robust approach to compute the L∞ Voronoi

diagram of orthogonal shapes:

  • 1. B-Rep extraction of 2D/3D orthogonal pseudomanifolds from

several solid representation schemes (voxel, EVM, etc.).

  • 2. Refinement of the topology of 3D orthogonal pseudomanifolds,

which is required by the Voronoi computation.

  • 3. Computation of the L∞ Voronoi diagram of 2D/3D orthogonal

pseudomanifolds.

5 / 60

slide-6
SLIDE 6

Contributions

  • The cube skeleton: a skeletal representation derived from the

L∞ Voronoi diagram of orthogonal shapes with dimension reduction, homotopy equivalence and linear/planar structure.

  • The scale cube skeleton: a skeletal representation derived

from the cube skeleton, which is more stable.

6 / 60

slide-7
SLIDE 7

Contributions

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

7 / 60

slide-8
SLIDE 8

List of publications

  • Martinez, J., Vigo, M., Pla, N., and Ayala, D. Skeleton computation of an

image using a geometric approach. In Proceedings of Eurographics (2010), 13–16

  • Martinez, J., Vigo, M., and Pla, N. Skeleton computation of orthogonal
  • polyhedra. Computer Graphics Forum 30, 5 (2011), 1573–1582
  • Vigo, M., Pla, N., Ayala, D., and Martinez, J. Efficient algorithms for

boundary extraction of 2D and 3D orthogonal pseudomanifolds. Graphical Models 74 (2012), 61–74

  • Martinez, J., Pla-Garcia, N., and Vigo, M. Skeletal representations of
  • rthogonal shapes. Graphical Models 75 (2013), 189–207
  • D. Lopez Monterde, J. Martinez, M. Vigo, N. Pla. A practical and robust

method to compute the boundary of three-dimensional axis-aligned boxes. Accepted to GRAPP 2014.

8 / 60

slide-9
SLIDE 9

Introduction: skeletal representations

  • Skeletal representations reduce the dimension of shapes and try

to capture their geometric and topological properties.

  • Skeletons are compact shape representations that emphasize

shape properties.

9 / 60

slide-10
SLIDE 10

Introduction: skeleton applications

  • Skeletons are powerful multidisciplinary tools used in a broad

number of scientific fields, such as biology, medical imaging, motion analysis and animation, visual perception, etc.

  • The first application of skeletal representations was as a natural

descriptor for shapes such as cells and body tissues.

10 / 60

slide-11
SLIDE 11

Introduction: BioCAD applications

  • In recent years, the spectacular development of bioengineering

has yield to the apparition of a new application field of computer aided design, the BioCAD.

  • One of the challenges of the BioCAD is to understand the

morphology of the pore space of bone, biomaterials, rocks, etc. Several approaches rely on the skeleton computation.

11 / 60

slide-12
SLIDE 12

Introduction: skeleton properties

  • Dimension reduction.
  • Homotopy equivalence.
  • Hierarchical shape representation and abstraction.
  • Stability and smoothness.

Unstable skeleton More stable skeleton

12 / 60

slide-13
SLIDE 13

Introduction: medial axis problems

  • Medial axis: the set of points which have at least two closest

points on the shape boundary.

  • High sensitivity to small changes in the shape boundary and

difficult to compute exactly.

  • For polygons and polyhedra can be non linear or non planar.
  • For polyhedra, the upper bound on its combinatorial complexity

is O

  • n3+ǫ

, for ǫ > 0.

13 / 60

slide-14
SLIDE 14

Introduction: approximation paradigm

O O P

  • M
  • O
  • M
  • O
  • Approximate M

Approximate shape Prune Compute M

14 / 60

slide-15
SLIDE 15

Introduction: orthogonal shapes

  • Polygons and polyhedra with their edges and faces axis-aligned,

respectively.

  • Their constrained structure has enabled advances on problems

for arbitrary shapes.

Pseudomanifold polygon Pseudomanifold polyhedron

15 / 60

slide-16
SLIDE 16

Introduction: the L∞ Voronoi diagram

  • The Voronoi sites are restricted to be open edges and faces of

polygons and polyhedra, respectively.

  • The set of closest sites only considers the L∞ distance to a

point in a site and not as an infimum.

Classical definition Proposed definition

16 / 60

slide-17
SLIDE 17

Main idea

  • The shape and the distance function are simplified together.
  • The shape is approximated by an orthogonal shape.
  • The Euclidean metric is substituted by the L∞ or Chebyshev

distance.

17 / 60

slide-18
SLIDE 18

Preprocess: B-Rep extraction

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

18 / 60

slide-19
SLIDE 19

Preprocess: B-Rep extraction

  • None of the existing previous approaches was designed for the

pseudomanifold case.

  • Input: the set of vertices of the orthogonal shape and some

neighborhood information (3D).

  • Output: B-Rep model composed by the set of vertices, the set
  • f edge loops and the set of faces (topological relation

face:loop and loop:vertices). Lemma (O’Rourke) Let Lxy be the lexicographically xy-sorted list of vertices

  • f an orthogonal manifold polygon. Then, the pairs of consecutive

vertices sorted in Lxy are the vertical polygon edges.

19 / 60

slide-20
SLIDE 20

Preprocess: 2D B-Rep extraction

  • The events correspond to the vertical edges of the polygon.
  • The face:loop relationship is recovered by the status data

structure.

xor

step j step j+1

20 / 60

slide-21
SLIDE 21

Preprocess: 3D B-Rep extraction

  • Sort vertices using the six possible lexicographical orders and

apply 2D algorithm.

  • Indicate the number of times a vertex must be repeated in each

list.

+X +Y +Z

(a) (b) (c) (d) (e) (j) (i) (h) (g) (f) (1,0,1,0,1,0) (2,0,1,1,1,1) (1,1,1,1,1,1) (1,0,1,0,1,0) (0,1,0,1,1,0) (2,1,1,2,2,1) (2,0,0,2,2,0) (2,0,1,1,2,0) (1,1,1,1,1,1) (2,2,2,2,2,2)

21 / 60

slide-22
SLIDE 22

Preprocess: topology refinement

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

22 / 60

slide-23
SLIDE 23

Preprocess: topology refinement

  • The Voronoi computation becomes more simpler if we modify

the topology of the orthogonal polyhedron, such as it only has trihedral vertices and remains self-intersection free (trihedralization problem)

  • Local vertex trihedralization can be seen as the dual problem of

planar polygon triangulation.

23 / 60

slide-24
SLIDE 24

Preprocess: topology refinement

  • Consider that some orthogonal polyhedron faces are translated

inwards an infinitesimal amount, such that non-trihedral vertices disappear.

  • The restrictions between coplanar faces can be expressed as

equality and inequality integer constraints.

  • Finding a valid trihedralization is equivalent to solving the

constraint satisfaction problem over the set of constraints induced by some vertex configurations.

24 / 60

slide-25
SLIDE 25

Preprocess: topology refinement

Input polyhedron A possible solution

((fx1 = fx2) ∧ (fy1 > fy2) ∧ (fz1 > fz2)) ∨ ((fx1 < fx2) ∧ (fy1 = fy2) ∧ (fz1 < fz2)) ∨ ((fx1 > fx2) ∧ (fy1 < fy2) ∧ (fz1 = fz2))

25 / 60

slide-26
SLIDE 26

Preprocess: topology refinement

26 / 60

slide-27
SLIDE 27

Preprocess: topology refinement

  • A solution to the trihedralization may not exist.
  • Represents an almost negligible amount of the tested randomly

generated datasets.

27 / 60

slide-28
SLIDE 28

L∞ Voronoi diagram computation

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

28 / 60

slide-29
SLIDE 29

2D L∞ Voronoi diagram

  • Two specific implementations of the sweep line algorithm of

Papadopoulou and Lee [3] for planar straight graphs.

  • The sweep line events correspond to vertical edges or polygon

vertices (edge event and vertex event), and candidate Voronoi vertices (junction event).

  • The algorithm that processes the vertices has been developed

in order to extend it to three dimensions.

  • Video demonstration.

29 / 60

slide-30
SLIDE 30

2D L∞ Voronoi diagram: overview

Computed Voronoi diagram Wavefront Sweep line Ray x y

30 / 60

slide-31
SLIDE 31

2D L∞ Voronoi diagram: edge-based algorithm

  • Edge event: the sweep-line meets a vertical polygon edge.

31 / 60

slide-32
SLIDE 32

2D L∞ Voronoi diagram: edge-based algorithm

  • Ray-ray junction event: the intersection of two rays that

could induce a Voronoi vertex.

32 / 60

slide-33
SLIDE 33

2D L∞ Voronoi diagram: vertex-based algorithm

  • Vertex event: the sweep-line meets a polygon vertex.
  • Ray-edge junction event: the intersection of a ray and an

edge that could induce a Voronoi vertex.

33 / 60

slide-34
SLIDE 34

2D L∞ Voronoi diagram: robustness

  • Degeneracy by collinearity: a polygonal area whose points

are L∞ equidistant to two or more collinear edges.

  • Degeneracy by coincidence: a Voronoi vertex L∞

equidistant to more than three non-collinear edges.

34 / 60

slide-35
SLIDE 35

2D L∞ Voronoi diagram: experimental results

Our algorithm Thinning algorithm CGAL implementation CGAL exact implementation

  • Our approach was significantly faster than thinning and CGAL approaches.

35 / 60

slide-36
SLIDE 36

3D L∞ Voronoi diagram: overview

  • Based on the sweep-plane technique instead of propagating the

faces inwards (Barequet et al. [1]).

  • Video demonstration.

Computed Voronoi diagram Wavefront Sweep plane Ray

36 / 60

slide-37
SLIDE 37

3D L∞ Voronoi diagram: events

  • Vertex event: the occurrence of a trihedral vertex of the input

polyhedron.

  • Ray-ray junction event: the intersection of two rays.

z x y z x y

37 / 60

slide-38
SLIDE 38

3D L∞ Voronoi diagram: ray-face junction events

  • Ray-face junction event: the intersection of a ray and a face.

z y x z y x

38 / 60

slide-39
SLIDE 39

3D L∞ Voronoi diagram: ray-face junction event

z x y z y x

39 / 60

slide-40
SLIDE 40

3D L∞ Voronoi diagram: algorithm complexity

  • W has size O (n). Wavefront update O (log n) per event.
  • Find ray-ray junction events O (1) per event. Find ray-face

junction events O (n) per event.

  • Overall O (kn), where k is the total number of processed

events.

40 / 60

slide-41
SLIDE 41

3D L∞ Voronoi diagram: robustness

  • Degeneracy by coplanarity: a three-dimensional volume

containing points that are L∞ equidistant to two or more coplanar faces.

  • Degeneracy by coincidence: a Voronoi vertex L∞

equidistant to more than four non-collinear faces.

41 / 60

slide-42
SLIDE 42

3D L∞ Voronoi diagram: experimental results

Our algorithm Thinning algorithm Voronoi vertices

42 / 60

slide-43
SLIDE 43

Cube skeleton

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

43 / 60

slide-44
SLIDE 44

Cube skeleton: motivation

  • Could the L∞ Voronoi diagram serve as a skeletal

representation?

  • Problems (dimension reduction, homotopy equivalence)

specially arise in three dimensions.

44 / 60

slide-45
SLIDE 45

Cube skeleton: definition

  • Boundary element: A vertex or set of open collinear/coplanar

edges/faces of an orthogonal shape.

  • Cube skeleton: set of points in which have at least two

closest boundary elements.

  • The closest boundary elements are defined recursively.

45 / 60

slide-46
SLIDE 46

Cube skeleton: definition

  • If only one maximal dimension boundary element is closer,

recursion is performed.

46 / 60

slide-47
SLIDE 47

Cube skeleton: homotopy equivalence

  • We proved the homotopy equivalence between the cube

skeleton and the input orthogonal shape.

  • We defined a deformation retract between the orthogonal

shape and the cube skeleton.

  • We studied the continuity during the deformation.

47 / 60

slide-48
SLIDE 48

Cube skeleton: homotopy equivalence

48 / 60

slide-49
SLIDE 49

Cube skeleton: computation

  • Some L∞ Voronoi edges/faces belong to the cube skeleton.
  • The remaining ones can be computed efficiently from the

diagram.

49 / 60

slide-50
SLIDE 50

Interior cube skeleton 2D

  • A homotopy equivalent subset of the 2D cube skeleton, which

does not intersect the shape boundary.

Cube skeleton Interior cube skeleton

50 / 60

slide-51
SLIDE 51

Scale cube skeleton

Extract B-Rep Refine topology Compute L∞ Voronoi diagram Compute CS Simplify CS

51 / 60

slide-52
SLIDE 52

Scale cube skeleton: motivation

  • The cube skeleton is sensitive to boundary noise.
  • The scale axis transform of Giesen et al. [2] could be adapted.

Grow balls Compute MA Shrink balls

52 / 60

slide-53
SLIDE 53

Scale cube skeleton: definition

  • Consider the union of cubes induced by the cube skeleton.
  • Scale cube skeleton: the cube skeleton of the scaled union of

cubes.

  • The scaled shape is orthogonal when is grown. It corresponds

to the union of axis-aligned boxes.

53 / 60

slide-54
SLIDE 54

Scale cube skeleton: results

Medial axis Straight skeleton Cube skeleton Scale cube skeleton

54 / 60

slide-55
SLIDE 55

Scale cube skeleton: results

s=1 s=1.2 s=1.6 s=2.5 s=4

  • Video demonstration.

55 / 60

slide-56
SLIDE 56

Conclusions

  • Although the constrained structure of orthogonal shapes, few

skeletal representations specifically designed for them are found.

  • We provided a complete framework to compute the L∞

Voronoi diagram of pseudomanifold orthogonal shapes. All the presented methods are meant to be practical.

  • The cube and scale cube skeletons could serve as a skeletal

representations with linear/planar structure and constrained combinatorial complexity.

56 / 60

slide-57
SLIDE 57

Work in progress

  • Definition of the 3D interior cube skeleton.
  • Computation of the 3D scale cube skeleton.

57 / 60

slide-58
SLIDE 58

Future work

  • The B-Rep extraction may identify and classify 3D shells.
  • Settle the complexity of the trihedralization problem in our

restricted setting.

  • The performance of 3D status data structure could be

improved.

  • The recursive formulation of the cube skeleton and scale cube

skeleton could be extended to higher dimensional orthogonal polytopes.

58 / 60

slide-59
SLIDE 59

Bibliography

Barequet, G., Eppstein, D., Goodrich, M. T., and Vaxman, A. Straight skeletons of three-dimensional polyhedra. Lecture Notes in Computer Science 5193 (2008), 148 – 160. Giesen, J., Miklos, B., Pauly, M., and Wormser, C. The scale axis transform. In Proceedings of the 25th annual symposium on Computational geometry (2009), pp. 106–115. Papadopoulou, E., and Lee, D. T. The L∞ Voronoi diagram of segments and VLSI applications. International Journal of Computational Geometry and Applications 11 (2001), 503 – 508.

59 / 60

slide-60
SLIDE 60

Acknowledgments

Thank you for your attention.

This work has been partially supported by the project TIN2008-02903 and TIN2011-24220 of the Spanish government.

60 / 60
