Skeletal System - Synovial Joints 16a A&P: Skeletal System - - - PowerPoint PPT Presentation

Jul 01, 2023 215 likes •1.14k views

16a A&P: Skeletal System - Synovial Joints 16a A&P: Skeletal System - Synovial Joints Class Outline 5 minutes Attendance, Breath of Arrival, and Reminders 10 minutes Lecture: 25 minutes Lecture:

slide-1

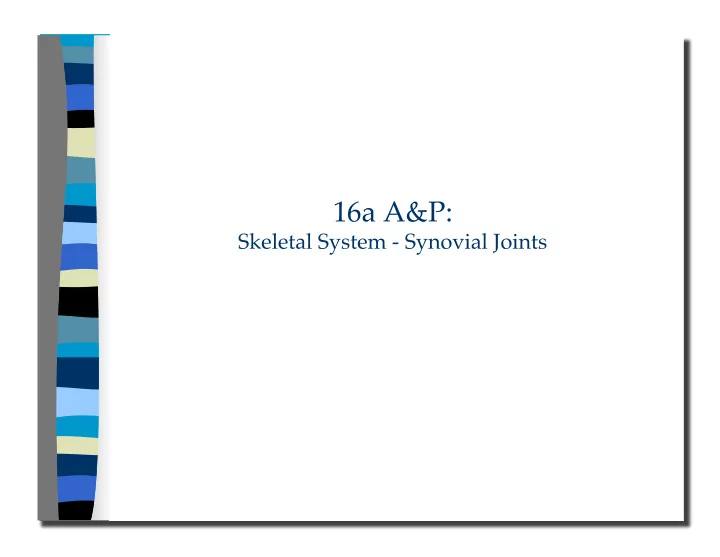

SLIDE 1

16a A&P:

Skeletal System - Synovial Joints

slide-2
SLIDE 2

16a A&P:

Skeletal System - Synovial Joints Class Outline

5 minutes Attendance, Breath of Arrival, and Reminders 10 minutes Lecture: 25 minutes Lecture: 15 minutes Active study skills: 60 minutes Total

slide-3
SLIDE 3

16a A&P:

Skeletal System - Synovial Joints Class Reminders

Assignments:

  • 17a Review Questions (A: 115-122)

Quizzes and Written Exams:

  • 17b Kinesiology Quiz

– Biceps, coracobrachialis, SCM, levator, scalenes, frontalis, occipitalis, temporalis, and masseter

  • 18a Written Exam Prep Quiz
  • 19a Written Exam Prep Quiz
  • 21a Written Exam

Preparation for upcoming classes:

  • 17a A&P: Skeletal System - Joint Actions and Articulations

– Trail Guide: frontalis, occipitalis, temporalis, and masseter – Trail Guide: Pages 23-24 and 34 – Salvo: Pages 480-487 – Packet E: 23-24 – Packet A-122

  • 17b Kinesiology: AOIs - Anterior Shoulder, Anterior Neck, and Head
slide-4
SLIDE 4

Classroom Rules

Punctuality - everybody’s time is precious

  • Be ready to learn at the start of class; we’ll have you out of here on time
  • Tardiness: arriving late, returning late after breaks, leaving during class, leaving

early The following are not allowed:

  • Bare feet
  • Side talking
  • Lying down
  • Inappropriate clothing
  • Food or drink except water
  • Phones that are visible in the classroom, bathrooms, or internship

You will receive one verbal warning, then you’ll have to leave the room.

slide-5
SLIDE 5

Scalenes

Trail Guide, Page 247

Scalenes are sandwiched between the SCM and the anterior flap of the trapezius. During inhalation, the scalenes perform the vital task of elevating the upper ribs.

Anterolateral View

slide-6
SLIDE 6

Unilateral actions of the Scalenes

Lateral flexion of the head and neck Rotation of the head and neck to the opposite

slide-7
SLIDE 7

Bilateral actions of the Scalenes

Elevate the ribs during inhalation Flexion of the head and neck

slide-8
SLIDE 8

O A I

Lateral View

slide-9
SLIDE 9

O A I

Lateral View

slide-10
SLIDE 10

O A I

Lateral View

slide-11
SLIDE 11

O A I

Lateral View

slide-12
SLIDE 12

O A I

Lateral View

slide-13
SLIDE 13

O A I

Lateral View

slide-14
SLIDE 14

O A I

Lateral View

slide-15
SLIDE 15

O A I

Lateral View

slide-16
SLIDE 16

O A I

Lateral View

slide-17
SLIDE 17

O A I

Lateral View

slide-18
SLIDE 18

O A I

Lateral View

slide-19
SLIDE 19

O A I

Lateral View

slide-20
SLIDE 20

O A I

Lateral View

slide-21
SLIDE 21

O A I

Lateral View

slide-22
SLIDE 22

O A I

Lateral View

slide-23
SLIDE 23

O A I

Lateral View

slide-24
SLIDE 24

Anterior scalene

  • Middle scalene
  • Posterior scalene
slide-25
SLIDE 25

16a A&P:

Skeletal System - Synovial Joints E-19

slide-26
SLIDE 26

Joint (AKA: articulation or arthrosis) Where bones come together or join .

Joints

slide-27
SLIDE 27

Physiology

Enable the body to move. Bear the weight of the body. Provide stability.

Joints

slide-28
SLIDE 28

Fibrous / Synarthrotic Cartilaginous / Amphiarthrotic Synovial / Diarthrotic

Structural and Functional Classification

slide-29
SLIDE 29

Fibrous / Synarthrotic

Connected by dense fibrous connective tissue, consisting mainly of collagen. Extremely limited movement. Examples: cranial sutures, facial sutures, teeth, and tibiofibular joints

Structural and Functional Classification

slide-30
SLIDE 30

Cartilaginous / Amphiarthrotic

Connected by cartilage . Slightly movable . Examples: costochondral joints, pubic symphysis, and intervertebral disk joints

Structural and Functional Classification

slide-31
SLIDE 31

Synovial / Diathrotic

Contains contains synovial fluid to nourish and lubricate articulation. Freely movable. Examples: glenohumeral, iliofemoral . . . see next page for more examples

Structural and Functional Classification

slide-32
SLIDE 32

Articular cartilage Joint capsule Joint cavity Synovial membrane Synovial fluid Synovial sheath Bursa Meniscus

Synovial Joints

slide-33
SLIDE 33

Articular cartilage Hyaline cartilage covering an epiphysis.

Synovial Joints

slide-34
SLIDE 34

Joint capsule Double-layered structure around a synovial joint. The outer layer is fibrous and forms ligaments. The inner layer is the synovial membrane.

Synovial Joints

slide-35
SLIDE 35

Joint cavity Space within a joint capsule. Lined with a synovial membrane.

Synovial Joints

slide-36
SLIDE 36

Synovial membrane Membrane joint cavities, synovial sheaths, and bursae.

Synovial Joints

slide-37
SLIDE 37

Synovial fluid Fluid secreted by synovial membranes to lubricate and nourish.

Synovial Joints

slide-38
SLIDE 38

Synovial sheath Tube-like structure lined with synovial membrane that surrounds long tendons.

Synovial Joints

slide-39
SLIDE 39

Bursae (s. bursa) Collapsed sac-like structure with an interior lining of synovial membrane. Contains synovial fluid.

Synovial Joints

slide-40
SLIDE 40

Menisci (s. meniscus) Fibrocartilage pads smooth joint movement and absorb shock. Examples: knee and jaw.

Synovial Joints

slide-41
SLIDE 41

Hinge Pivot Ellipsoidal / condyloid Saddle Ball and socket Gliding / planar

Types of Synovial Joints

slide-42
SLIDE 42

Hinge Limited to flexion and extension .

Types of Synovial Joints

slide-43
SLIDE 43

Pivot Limited to rotation .

Types of Synovial Joints

slide-44
SLIDE 44

Ellipsoidal / condyloid Limited to flexion, extension, abduction, and adduction.

Types of Synovial Joints

slide-45
SLIDE 45

Saddle Allowing flexion, extension, abduction, adduction, opposition, reposition, and circumduction, but not rotation.

Types of Synovial Joints

slide-46
SLIDE 46

Ball and socket Allowing all movements except gliding . Offers the greatest range of motion.

Types of Synovial Joints

slide-47
SLIDE 47

Gliding / planar Limited to planar movements but movement may be permitted in all planes .

Types of Synovial Joints

slide-48
SLIDE 48

16a A&P:

Skeletal System - Synovial Joints

slide-49
SLIDE 49

Flexion Bending or decreasing the angle of a joint. Extension Straightening or increasing the angle of a joint . Actions and Articulations

slide-50
SLIDE 50

Flexion Bending or decreasing the angle of a joint. Extension Straightening or increasing the angle of a joint .

slide-51
SLIDE 51

Flexion Bending or decreasing the angle of a joint. Extension Straightening or increasing the angle of a joint .

slide-52
SLIDE 52

Hyperextension A continuation of extension beyond anatomic position.

slide-53
SLIDE 53

Abduction Movement away , from the median plane. Adduction Movement toward , the median plane.

slide-54
SLIDE 54

Abduction Movement away , from the median plane. Adduction Movement toward , the median plane.

slide-55
SLIDE 55

Supination Lateral (outward) rotation

  • f the forearm so

that the palm is turned up .

Pronation Medial

(inward) rotation of the forearm so that the palm is turned down .

slide-56
SLIDE 56

Plantarflexion Extension of the ankle such that the toes are pointing downward , increasing the ankle angle anteriorly. Dorsiflexion Flexing the ankle dorsally so that the toes are moving toward the shin .

slide-57
SLIDE 57

Inversion Elevation of the medial , edge of the foot so that the sole is turned inward (or medially). Eversion Elevation of the lateral , edge of the foot so that the sole is turned

  • utward (or laterally).
slide-58
SLIDE 58

Circumduction Cone -shaped range of motion that

  • ccurs when the distal

end moves in a circle and the proximal end is fixed.

slide-59
SLIDE 59

Rotation Circular movement when a bone moves around its

  • wn central axis .
slide-60
SLIDE 60

Right and left rotation Rotation for joints that lie within the median axis.

slide-61
SLIDE 61

Lateral and medial rotation Rotation for joints that lie

  • utside of the

median axis.

slide-62
SLIDE 62

Upward and downward rotation Rotation of the scapula so that the glenoid fossa faces either upward or downward.

slide-63
SLIDE 63

Elevation Raising or lifting a body part. Moving superiorly . Depression Lowering or dropping a body part. Moving inferiorly .

slide-64
SLIDE 64

Protraction Movement forward or anteriorly . Retraction Movement backward or posteriorly .

slide-65
SLIDE 65

Opposition Movement in which the tip of the thumb comes into contact with the tip of any other digit on the same hand.

slide-66
SLIDE 66

Lateral deviation Side to side movement in the transverse plane.

slide-67
SLIDE 67

Anterior pelvic tilt Entire pelvis tilted forward in the frontal plane. Posterior pelvic tilt Entire pelvis tilted backward in the frontal plane.

slide-68
SLIDE 68

Glenohumeral Glenoid fossa of the scapula – Humerus; AKA: shoulder joint.

slide-69
SLIDE 69

Iliofemoral Ilium of the pelvic bone – Femur; AKA: hip joint.

slide-70
SLIDE 70

Humeroulnar Humerus – Ulna; AKA: elbow joint.

slide-71
SLIDE 71

Humeroradial Humerus – Radius; AKA: elbow joint.

slide-72
SLIDE 72

Tibiofemoral Tibia – Femur; AKA: knee joint.

slide-73
SLIDE 73

Talocrural Talus – Tibia; AKA: ankle joint.

slide-74
SLIDE 74

Interphalangeal Phalanx – Phalanx; AKA: IP joint.

slide-75
SLIDE 75

Temporomandibular Temporal bone – Mandible; AKA: TMJ, jaw joint.

slide-76
SLIDE 76

Atlantoaxial Atlas (C1) – Axis (C2); “No-no” joint.

slide-77
SLIDE 77

Radioulnar (proximal) Radius – Ulna.

slide-78
SLIDE 78

Carpometacarpal of the thumb Carpal – Metacarpal; AKA: CM joint.

slide-79
SLIDE 79

Radiocarpal Radius – Carpal; AKA: wrist joint.

slide-80
SLIDE 80

Metacarpophalangeal Metacarpal – Phalanx; AKA: MCP joint.

slide-81
SLIDE 81

Metatarsophalangeal Metatarsal – Phalanx; AKA: MTP joint.

slide-82
SLIDE 82

Atlantooccipital Atlas (C1) – Occiput; “Yes-yes” joint.

slide-83
SLIDE 83

Intervertebral facet Between each vertebrae from C2-L5; AKA: facet joints.

slide-84
SLIDE 84

Acromioclavicular Acromion process of the scapula – Clavicle; AKA: AC joint.

slide-85
SLIDE 85

Sternoclavicular Sternum – Clavicle; AKA: SC joint.

slide-86
SLIDE 86

Intercarpal Carpal – Carpal.

slide-87
SLIDE 87

Carpometacarpal Carpal – Metacarpal; AKA: CM joint.

slide-88
SLIDE 88

Lumbosacral facet L5 – S1.

slide-89
SLIDE 89

Patellofemoral Patella – Femur.

slide-90
SLIDE 90

Tarsometatarsal Tarsal – Metatarsal; AKA: TM joint.

slide-91
SLIDE 91

Intertarsal Tarsal – Tarsal.
