SLIDE 1
Sensice’s superior detectors
- More advantageous price/performance ratio
- Significantly reduced maintenance cost

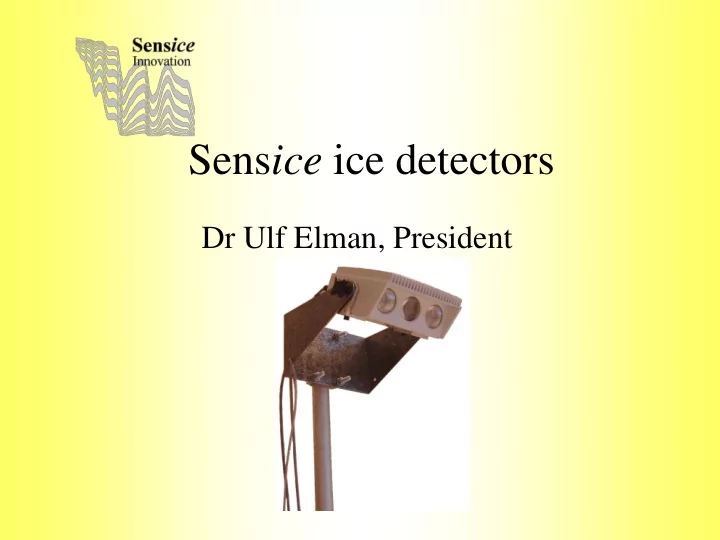

Sens ice ice detectors Dr Ulf Elman, President Sensices superior - - PowerPoint PPT Presentation
Sens ice ice detectors Dr Ulf Elman, President Sensices superior - - PowerPoint PPT Presentation
Sens ice ice detectors Dr Ulf Elman, President Sensices superior detectors Smart new design gives better performance More advantageous price/performance ratio Significantly reduced maintenance cost Traffic accidents in Sweden
SLIDE 2
SLIDE 3
Traffic accidents in Sweden 1995-1999:
- 37828 at snowy or icy road
surface conditions, of these did
- 15589 occur during black
ice conditions, and in addition did
- 572 accidents related to
aquaplaning occur
SLIDE 4
General properties
Uses infrared spectroscopy IR emission IR reception B IR reception A
SLIDE 5
General properties
Principles of spectroscopy
- Ice transparent to visible light
- Ice is reflective (metal like) in the
MIR range
- Ice is distinctly ”coloured” in the
NIR range
SLIDE 6
Applications
Use with RWS
SLIDE 7
Applications
Icing alert at building entrances
SLIDE 8
Applications
Ice detection at airports
SLIDE 9
Applications
Ice sheet or icicle buildup at sensitive spots
SLIDE 10
General properties
Large thickness interval due to two wavelength detection
0.05mm – 3 cm
SLIDE 11
General properties
Differentiates between six states:
- 2. Wet
- 1. Dry
- 3. Clear ice
- 4. Snow
- 5. Sleet
- 6. Wet clear ice
SLIDE 12
Mechanical properties
- 182mm x 154mm x 82mm
- 3.1 kg
SLIDE 13
Optical properties
Detection range
- Recommended range 3-15 m
- Use at distances exceeding
25 m impractical
SLIDE 14
Optical properties
Angular dependence of detection range
SLIDE 15
Optical properties
Detection range dependent on surface properties
SLIDE 16
Optical properties
Detects over extended area
- Beam divergence 12°
SLIDE 17
Optical properties
Lamp exchange port
SLIDE 18
Electrical properties
Power supply
- 2.6A
- 12V DC
SLIDE 19
Electrical properties
Communication interface
- 57600 baud, one stop
bit and no parity
- RS232
- New measurement
results once per second
SLIDE 20
Electrical properties
- Hardware reset
- Power on LED
SLIDE 21
Electrical properties
Ports not intended for customer use
- Software download
- Calibration
SLIDE 22
Resistance to environmental influences
Precipitation immunity
- Rain shield
SLIDE 23
Resistance to environmental influences
Dew and frost
- 31W heating
SLIDE 24
Resistance to environmental influences
Temperature range -20°C to +40°
SLIDE 25
Sensice’s superior detectors
- More advantageous price/performance ratio
- Significantly reduced maintenance cost
Smarter design gives better detectors
SLIDE 26
