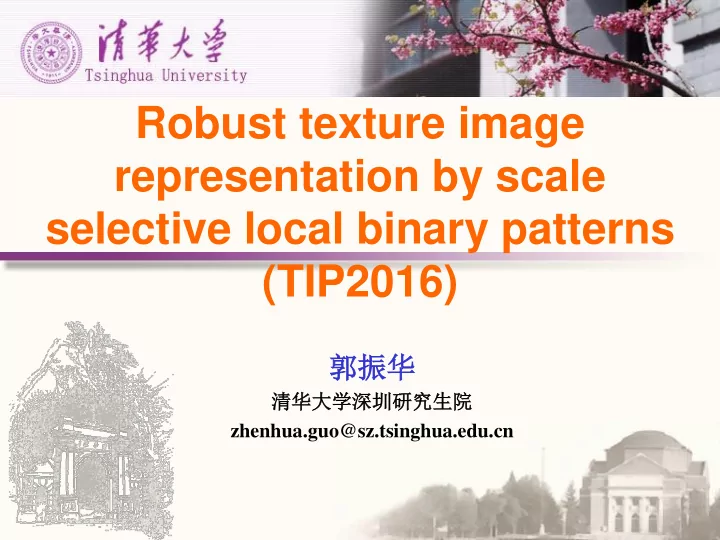

Robust texture image representation by scale selective local binary - - PowerPoint PPT Presentation

郭振华

清华大学深圳研究生院 zhenhua.guo@sz.tsinghua.edu.cn

Robust texture image representation by scale selective local binary patterns (TIP2016)

清华大学深圳研究生院

• 清华大学深圳研究生院成立于2001年。为清华大学唯一的异

地办学机构。同一学校，同一品牌，秉承同一文化传统。

• 有在校全日制研究生3000余人，其中博士生380余人。
• 有专职教师150余人，博士后80余人，双基地教师280余人，

兼职教师40余人。

2

http://www.sz.tsinghua.edu.cn

• 设生命与健康、能源与环境、信息科学与技术、物流与交通

、先进制造、海洋科学与技术、社会科学与管理七个学部。

• 着力发展信息、先进制造、网络与媒体技术、环境、材料、

新能源、物流、海洋等学科。

• 校园建筑面积10万平米，创新基地规划10万平米。

3

清华大学深圳研究生院

Outline

• Texture definition and challenge
• Texton (Statistical vs. Binary)
• Overview of LBP and CLBP
• Proposed SSLBP
• Experimental Results and Discussion

4

Texture Definition

• Definition

Wiki Dictionary: The feel or shape of a surface or substance; the smoothness, roughness, softness, etc. of something. In fact, the definition of texture is still an open issue.

Texture is everywhere

6

草地(纹理) 树林(纹理) 楼房(纹理) 天空(纹理)

Wide Application

7

Desert vs Mountain Normal vs Abnormal Defect Detection

Common issues

• Lightness, rotation and scale

8

9

Structural approach: a set of texels in some regular or repeated pattern

Structural Approach

10

How do you decide what is a texel?

Limitation of Structure Approach

grass leaves What/Where are the texels?

Statistical Texton

11

Binary Texton

12

• Two advantages:

Fast Insensitive to training set

LBP in spatial domain

13

• T. Ojala, M. Pietikäinen, and T. T. Mäenpää. Multiresolution gray-scale and rotation invariant texture classification

with Local Binary Pattern. IEEE Transactions on Pattern Analysis and Machine Intelligence 24(7), pp. 971-987, 2002.

LBP and contrast operators

14

Circle-LBP

15

Multiscale LBP

16

An example of LBP image and histogram

17

Rotation Invariance (ri)

18

Rotation Invariance

19

Completed LBP

Central pixel and its P circularly and evenly spaced neighbours with radius R. (a) (b) (c) (d) (a) A 33 sample block; (b) the local differences; (c) the sign and (d) magnitude components.

24

Completed LBP

21

Original Image LDSMT CLBP Map Center Gray Level CLBP_C CLBP_S S CLBP_M M Local Difference CLBP Histogram Classifier

Representation Example

Histogram of CLBP_S of a sample. Histogram of CLBP_M of the sample. Histogram of CLBP_S_M. Histogram of CLBP_S/M.

Zhenhua Guo, Lei Zhang, David Zhang, A Completed Modeling of Local Binary Pattern Operator for Texture Classification, IEEE Transactions on Image Processing, vol. 19, no. 6, pp. 1657-1663, 2010.

Scale Variation

• Scale invariance is more difficult.
• Two popular ways:

Local scale invariance Global scale invariance

23

Scale Invariance (I)

24

• Local scale invariance

Detect a Harris or Laplacian Region->Normalize the region->Feature Extraction

Scale Invariance (I)

25

• Local scale invariance

Estimating local scale or extracting local fractal feature

Scale Invariance (II)

26

• Global scale invariance

Global fractal feature

Scale Invariance (II)

27

• Global scale invariance

Polar transform

Scale Invariance (II)

28

• Global scale invariance

Scale shift matching

Assumption

29

• Statistical dominant local patterns provide

discriminant information for texture classification.

• When an image changes scale, percentage of

dominant patterns does not change.

• S. Liao, M. W. K. Law, and A. C. S. Chung. Dominant local binary patterns for texture classification. IEEE

Transactions on Image Processing 18(5), pp. 1107-1118, 2009.

Algorithm 1: Feature Learning

• Step 1: for one training sample, build a scale space by a 2D

Gaussian filter;

• Step 2: compute local pattern histogram for each image;
• Step 3: only maximal frequency among different scale is

kept;

• Step 4: compute average frequency for the whole training

set;

• Step 5: dominant patterns with high frequency are learnt.

30

1

, =1 , 1< L, "*" is the convolution operator

i l l

f l s s g l

 

       

1 2

( )=max( ( ), ( ), ..., ( ))

i L

f s s s CLBP _ S / C CLBP _ S / C CLBP _ S / C CLBP _ S / C

H k H k H k H k ( ) ( )= ( )+

i

f CLBP _ S / C T T CLBP _ S / C CLBP _ S / C

H k H k H k N

Algorithm 2: Feature Extraction

• Step 1: for one test sample, build a scale space by a 2D

Gaussian filter;

• Step 2: compute histogram for selected patterns by algorithm

1;

• Step 3: only maximal frequency among different scale is kept.

31

1

, =1 , 1< L, "*" is the convolution operator

l l

I l s s g l

 

       

1 2

( )=max( ( ), ( ), ..., ( ))

L

s s s I CLBP _ S / C CLBP _ S / C CLBP _ S / C CLBP _ S / C

DPH k DPH k DPH k DPH k

Scale selective LBP (SSLBP)

32

. . .

1 : Original Image I

s

Convolved by 2D Gaussian function g

Image Scale Space

2 I

s

I L

s

0 05 . 0 1 . 0 08 . 0 03 . 0 02 .

Feature Size: K Feature frequency of

DP Feature frequency

• f

DP Feature Size: K

0 14 . 0 01 . 0 02 . 0 05 . 0 0 . 0 06 . 0 07 . 0 06 . 0 05 . 0 0 .

Feature frequency of

DP Feature frequency

• f

DP

0 15 . 0 01 . 0 02 . 0 01 . 0 04 .

Feature frequency of

DP Feature frequency

• f

DP

Feature Scale Space

0 15 . 0 1 . 0 08 . 0 05 . 0 04 .

• peration

Max

0 14 . 0 02 . 0 07 . 0 05 . 0 02 . 0 09 . 0 02 . 0 04 . 0 03 . 0 02 . 0 13 . 0 01 . 0 07 . 0 01 . 0 01 .

Output feature for image I

Feature Size: 2 K 

• peration

Max

An example

33

0.35 0.17

5 Dominant Patterns

34

Scale Estimation

35

1 2 3 4 5 6 7 8 9 1.7 1.75 1.8 1.85 1.9 1.95 2 2.05 2.1 Image Scale Average Feature Scale

Scale parameter of KTH-TIPS.

, 1,2,...,9 90

z

I I IS z

FS AFS z



 



K k ScaleIndex FS

K k I I







1

) (

Texture Databases

36

Texture Database Name Imaging property Image Size Number

• f

classes Number

• f

samples CUReT The images are captured under different illumination and viewing directions. Fixed, 200*200 61 92 KTH- TIPS It extends CUReT by imaging new samples of ten of the CUReT textures at a subset of the viewing and lighting angles used in CUReT but also over a range of scales. Varied, 196*201 10 81 UIUC Textures are acquired under significant scale and viewpoint changes, arbitrary rotations, and uncontrolled illumination conditions, even including textures with non-rigid deformation. Fixed, 640*480 25 40 UMD It has been designed in a similar way as UIUC, while the image resolution is 4 times of UIUC. Fixed, 1280* 960 25 40 A LOT It is systematically collected with varied viewing angles, illumination angles, and illumination colors for each material. Varied, 1536* 891 250 100

CUReT Database

37

KTH-TIPS Database

38

39

UIUC Database

40

UMD Database

ALOT Database

41

Parameters

• Scale Space: 4
• 2D Gaussian filter: 20.25
• Radius: 3, 9
• Neighbor: 24
• Feature extractor: CLBP_S/C, CLBP_M/C
• Feature Length: 2400
• NNC: NNC+Chi-square distance
• Feature preprocessing:

42

( ), 1,2,...,

k k

H sqrt H k K  

Nearest Subspace Classifier (NSC)

• There are C classes of textures.
• n training samples in each class, a set of

histograms for one class:

• project hy into the subspace spanned by Hc :
• The projection residuals is computed as:

43

1

( )

T T y c c c c

H H H h 





2 y c c c

err h H   

,1 ,2 ,

, ,...,

c c c c n

H h h h     

• K. Lee, J. Ho, and D. Kriegman. Acquiring linear subspaces for face recognition under variable lighting. IEEE

Transactions on Pattern Analysis and Machine Intelligence 27(5), pp. 684–698, 2005.

Experimental Results

Method CUReT (46) KTH-TIPS (40) UIUC (20) UMD (20) ALOT (50) SRP [ICCV2011] (SVM) 99.37 99.29 98.56 99.30

• RP [TPAMI2012] (NNC)

98.52 97.71 96.27 99.13

• Caputo et al. [IVC2010] (SVM)

98.46 94.8 92.0

• BIF [IJCV2010] (Shift Matching NNC)

98.6 98.5 98.8

• OTF [CVIU2010] (SVM)
• 97.44

98.42 95.6 WMFS [TIP2013] (SVM)

• 97.62

98.68 96.94 PLS [CVPR2014](SVM)

• 98.4

96.57 98.99 93.35 PFS [IVC2014](SVM)

• 97.35

97.92 99.38 97.5 LEP [TIP2013] (Shift Matching NNC)

• 97.56
• scLBP [TIP2015] (SVM)

99.29

• 98.45

99.25

• COV-LBPD [TIP2014] (NNC)
• 98.0
• RPICoLBP [TPAMI2014] (SVM)

98.4 98.4

• RLBP [BMVC2013] (NNC)
• 96.7
• DLBP [TIP2009] (NNC)

84.93 86.99 60.73 89.87 78.38 LBPSRI [TIP2012] (NNC) 85.00 89.73 70.05 91.71 71.29 LBP [TPAMI2002] (NNC) 80.63 82.67 55.26 88.23 63.33 CLBP [TIP2010] (NNC) 97.40 97.19 93.26 98.00 93.28 SSLBP (NNC) 98.55 97.80 97.02 98.84 96.69 SSLBP (NSC) 99.51 99.39 99.36 99.46 99.71

44

Time Cost (I)

Method Scale Space Building Pattern/ Patch Processing Histogramming Classification (NNC) RP [TPAMI2012]

• SP·SR·Ip

SR·C·ST·Ip C·ST·(C·Tn) VZ_Patch [TPAMI2009]

• SP·C·ST·Ip

C·ST·(C·Tn) SSLBP (L-1)·Sg· Ip 2·L·P·Ip 2·L·Ip 4·K·(C·Tn)

45 Here L=4 is the size of scale space, P=24 is the number of neighbours for LBP, Ip denotes the number of pixels per image sample, Sg denotes the size of Gaussian smooth kernel, K=600 is the number of selected dominant

• patterns. SP represents the size of a local patch, usually 7*7, SR is the dimension of random projection, usually

15, C denotes the number of classes, ST represents the number of clustered textons per class, here C·ST≈4·K. Tn is the number of training samples per class.

CUReT KTH-TIPS UIUC UMD ALOT Feature extraction of MFS (ICCV2009) (Unit: Second) 0.09 0.08 0.62 2.60 2.67 Feature extraction of VZ_MR8 (ICCV2005) (Unit: Second) 1.03 0.93 9.98 37.35 40.11 Feature extraction of VZ_Patch (TPAMI2009) (Unit: Second) 12.44 11.28 96.97 309.51 346.64 Feature extraction of the proposed scheme (Unit: Second) 0.24 0.23 1.80 7.63 8.46 Matching (NNC) (Unit: Millisecond) 177.47 25.09 30.78 31.1 297.42 Matching (NSC) (Unit: Millisecond) 2.25 0.64 0.90 0.92 5.05

46

7 7

Time Cost (II)

Robust to image size

Image size \#Training Sample 20 15 10 5 1280*960 99.46+0.46 99.31+0.51 98.81+0.70 96.41+1.28 640*480 99.71+0.26 99.48+0.37 98.77+0.68 95.68+1.45 320*240 99.38+0.45 98.80+0.69 97.41+1.06 92.74+1.84

47

• Test on UMD

Dominant patterns analysis

CUReT KTH-TIPS UMD UIUC CUReT 100% 80.33% 73% 74.54% KTH-TIPS

• 100%

76.12% 80.16% UMD

• 100%

87.87% UIUC

• 100%

48

Percentage of identical dominant patterns between different training sets.

Robust to pattern selection

49

Discussion

• Traditional methods try to extract local or

global scale invariant features.

• From implementation view, extract local

scale variant feature first, then apply a global transformation to achieve invariance.

• From scale space view, instead of analyzing

scale spaces locally, analyze scale space globally.

50

Conclusion

• A simple and effective method to address

scale variation issue for texture image.

• Fast enough for many applications, 0.24

second for a 200*200 image.

• LBP with scale selection can get promising

result for challenge databases, such as UIUC and ALOT.

51

谢谢！

For any inquiry, please contact with zhenhua.guo@sz.tsinghua.edu.cn
