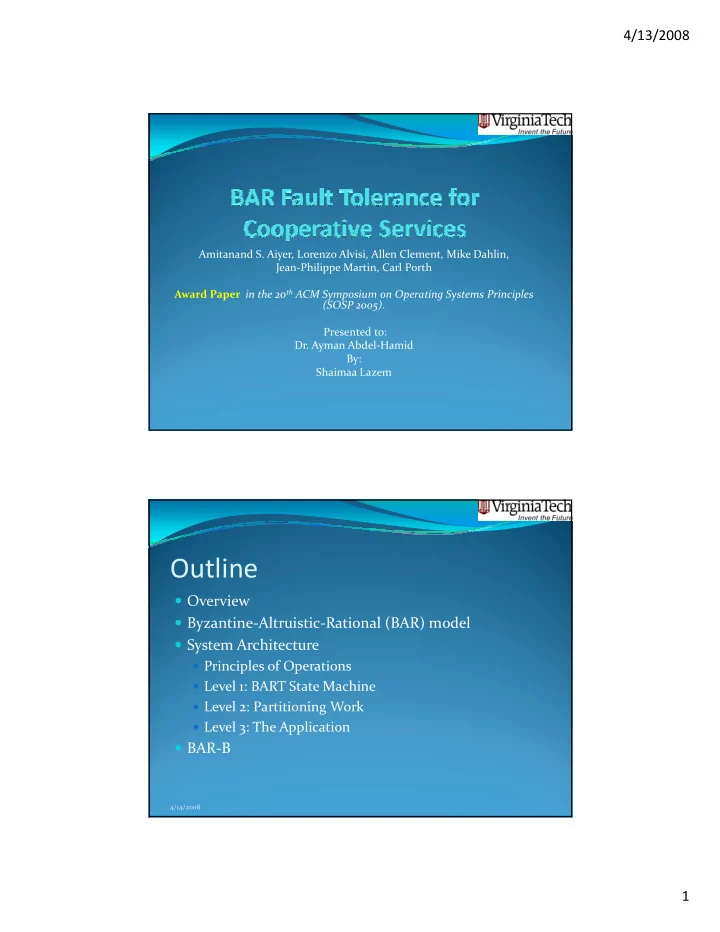

4/13/2008 Amitanand S. Aiyer, Lorenzo Alvisi, Allen Clement, Mike Dahlin, Jean-Philippe Martin, Carl Porth Award Paper in the 20 th ACM Symposium on Operating Systems Principles (SOSP 2005) . Presented to: Dr. Ayman Abdel-Hamid By: Shaimaa
Amitanand S. Aiyer, Lorenzo Alvisi, Allen Clement, Mike Dahlin, Jean-Philippe Martin, Carl Porth Award Paper in the 20th ACM Symposium on Operating Systems Principles (SOSP 2005). Presented to:
By: Shaimaa Lazem
Overview Byzantine-Altruistic-Rational (BAR) model System Architecture
Principles of Operations Level 1: BART State Machine Level 2: Partitioning Work Level 3: The Application
BAR-B
4/14/2008
Cooperative service in Multiple Administrative Domains (MAD):
Nodes collaborate to provide some service that benefits each node,
but there is no central authority that controls the nodes’ actions (Internet routing, cooperative backup). Problem
Nodes may depart from protocols . Failure, broken, security compromise,
selfish nodes. Not sufficient to verify experimentally that a protocol tolerates a
collection of attacks identified by the protocol’s creator.
It is necessary to design protocols that provably meet their
goals, no matter what strategies nodes may concoct .
4/14/2008
Formal model for reasoning about systems in the
General architecture and a set of design principles
The implementation of BAR-B, a cooperative backup
4/14/2008
Rational nodes participate in the system to gain
Byzantine nodes can depart arbitrarily from a
Altruistic nodes that execute a proposed
4/14/2008
Two classes of protocols :
Incentive-Compatible Byzantine Fault Tolerant (IC-BFT)
A protocol is IC-BFT if it guarantees the specified set of safety and liveness properties and if it is in the best interest of all rational nodes to follow the protocol exactly.
Byzantine Altruistic Rational Tolerant (BART)
A protocol is BART if it guarantees the specified set of safety and liveness properties in the presence of all rational deviations from the protocol.
4/14/2008
Technique for supporting service replication. The service is written as a deterministic state machine;
An RSM substrate coordinates the behavior of the
A key task of the RSM substrate is to establish a task
4/14/2008
4/14/2008
A typical RSM-based client-server computer system [2].
4/14/2008
RSM timing diagram [2].
BART protocols that do not depend on the existence of
Trusted authority controls which nodes may enter the
Each member has a unique identity corresponding to a
Nodes have an incentive to stay as synchronized as
4/14/2008
Rational Nodes:
Receive a long term benefit from participating in the protocol. Conservative when computing the impact of Byzantine nodes on
their utility.
Colluding nodes are classified as Byzantine.
Byzantine Nodes:
Exhibit arbitrary behavior. crash, lose data, alter data, and send
incorrect protocol messages.
At most ((n-2)/3) of the nodes in the system are Byzantine. Every non-Byzantine node is rational.
4/14/2008
Level 1, key abstractions for reliable distributed services. RSM gives the abstraction of a correct (reliable and altruistic) node. Level 2, build a system in which work can be assigned to specific
nodes instead of executed by all replicas in the RSM.
Level 3, implements a desired service using the levels underneath.
4/14/2008
Accountability, nodes are accountable for their behavior,
then rational peers have an incentive to behave correctly.
Strong identities and restricted membership are parts of
the solution.
How should a system detect and react to incorrect
behavior?
Aggressively Byzantine node, easy to address:
A node signs a promise to store a file with a particular
cryptographic hash and then responds to a request to read the file with a signed message that contains the wrong data.
4/14/2008
Passive aggressively node:
A node may decline to send a message that it should
wrongdoing, but it becomes a case of “he said/she said”.
A node may exploit non-determinism to provide
incomplete information that interfere with the protocol’s operation but are difficult to conclusively prove wrong.
A node transmits a signed copy of the request, but for liveness
it is permitted to transmit a signed timeout message instead.
Self-interested nodes may choose to send the timeout
message rather than transmit the request.
4/14/2008
Level 1 (primitives)
Nodes unilaterally deny service to nodes that fail to send
expected messages. This low-level, local tit-for-tat technique provides incentives for cooperation without requiring a third party to judge which node is to blame.
The protocol balances costs so that when nodes have a
choice between two messages, there is no incentive to choose the “wrong” one.
Nodes can unilaterally impose extra work (called
penance) when they judge that another node’s response is not timely.
4/14/2008
Level 2 (work assignment)
If a node fails to reply to a request issued via the underlying
state machine, then a quorum of nodes in the state machine generates a proof of misbehavior (POM) against the node. Level 3 (application)
Applications make use of reliable work assignment, each
request is bound to a reply or timeout.
The application protocol must be designed so that requests
and responses include sufficient information for any node to judge the validity of a request/response pair.
4/14/2008
Terminating Reliable Broadcast (TRB) Each TRB instance is organized in a series of turns. The sender for instance i is the first leader for instance i. If nodes receive the messages on time they accept the value,
Nodes other than the sender are selected round-robin for
the leader role.
Each participant thus has a periodic opportunity to propose
values to the state machine (ensure long term benefit).
An instance can terminate only in two ways to limit non-
determinism (sender’s value, default value)
4/14/2008
4/14/2008
Message Queue
The message queue used by x contains entries for the
messages that x intends to send to y, interleaved with “bubbles”.
A bubble must be filled with an appropriate message
from y before x can proceed to send the messages in the queue.
Incentive for rational nodes to send messages expected
by protocol. Balanced Messages:
Whenever the node has the opportunity to choose the
message to send next, the intended message is never more expensive than the alternatives.
4/14/2008
Penance
Each node maintains an untimely vector that tracks their
perception of other nodes timeliness.
A node is considered untimely if any timeout message
electing a new leader arrives significantly earlier or later than expected according to the receiver’s local clock.
When a node x becomes the sender, it includes its untimely
vector with the value it proposes.
After agreeing on the proposal, all nodes except the sender
expect a penance message from each node indicted in the untimely vector.
Because of the message queues, the untimely nodes must
send the penance message to all non-sender nodes.
4/14/2008
Timeouts and garbage collection
Set turn timeout to transfer leadership from a slow leader . A max response time timeout to garbage collect messages
queued for extremely slow nodes.
If node a remains silent for an extended period of time, it can
force non-Byzantine node b to retain an arbitrarily large set of pending messages to a.
The cost of participating in the protocol exceeds the benefit. if a has been holding pending messages for b for more than
max response time, then a:
records b as faulty by adding b to its badlist, garbage collects all state associated with b, refuses further communication with b.
4/14/2008
Global Punishment
A mechanism to transform local suspicion against other
nodes into POMs.
The POMs allow nodes to agree that someone misbehaved. When node a is the sender of an instance, it includes its
badlist as a bit vector with the value it proposes.
Nodes monitor the badlists they receive from others. if over time node b appears on at least f +1 different senders’
badlists, then the receivers of these badlists also begin to consider b faulty.
They add b to their own badlist, discard the state associated
with b, and refuse to communicate with b in the future.
4/14/2008
Partitions work to reduce the replication overhead
Guaranteed Response protocol ensures that every
4/14/2008
The Periodic Work protocol ensures that clients
Each node will provide the witness with an application
specified response type indicating its completion of a periodic task.
If a node does not supply the expected ReplySummary,
the witness node can either unilaterally deny its services to the offending node or generate a POM to be handled by the application.
4/14/2008
The Message Binding protocol binds messages to an
Maintains an authoritative time that is recent, non-
decreasing, and identical at all state machine nodes.
Each proposal to the state machine is required to
contain a local timestamp generated by the proposer.
Authoritative time is computed by taking the maximum
decisions and the previous authoritative time.
4/14/2008
BART applications must discharge four responsibilities
Provide rational nodes with a long-term benefit for
participating in the system.
Assign work to nodes in a fault tolerant manner. Determine if the contents of a request or response
constitute a Proof of Misbehavior (POM) under the application semantics.
Sanction nodes that have provably misbehaved. Structuring the messages so that incorrect responses act
as proofs of misbehavior .
4/14/2008
BAR-B is a cooperative backup system in which nodes commit
to participating in the system’s state machine and contributing an amount of storage to the system in exchange for an equal amount of space on other nodes.
Guarantees
Data can be retrieved within the lease period. No POM gathered against a node that does not deviate . No node store more than its quota without risking being caught. If a node crashes, it is guaranteed a window of time during which
it can rejoin the system and recover all data it has stored.
4/14/2008
1.
Fault Torelance for Cooperative Services,” in Proceedings of the 20th ACM Symposium on Operating Systems Principles, pp.45-58, Brighton, United Kingdom, October 23-26, 2005. 2.
report MSR-TR-2005-119, Microsoft Research, 2005. 3. http://www.cs.utexas.edu/users/lorenzo/bar.html
