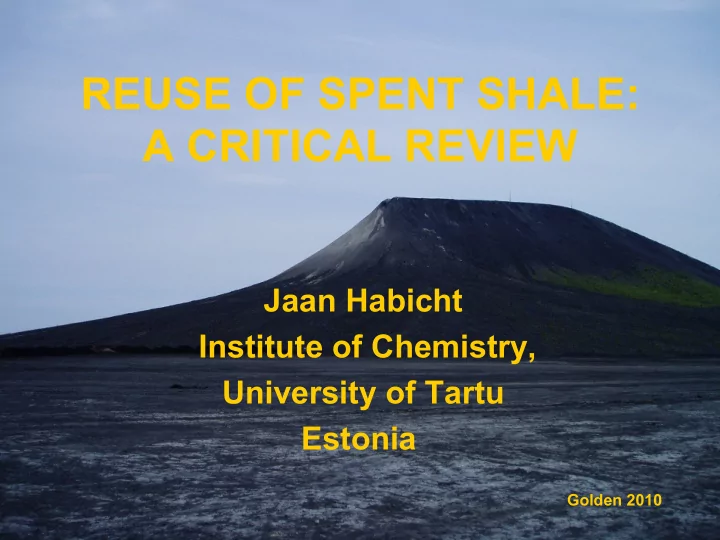

SLIDE 1
REUSE OF SPENT SHALE: A CRITICAL REVIEW
Jaan Habicht Institute of Chemistry, University of Tartu Estonia
Golden 2010
Golden 2010
Terms
- spent shale
- reuse
- recycle
- utilize
- use
REUSE OF SPENT SHALE: A CRITICAL REVIEW Jaan Habicht Institute of - - PowerPoint PPT Presentation
REUSE OF SPENT SHALE: A CRITICAL REVIEW Jaan Habicht Institute of - - PowerPoint PPT Presentation
REUSE OF SPENT SHALE: A CRITICAL REVIEW Jaan Habicht Institute of Chemistry, University of Tartu Estonia Golden 2010 Terms spent shale reuse recycle utilize use Golden 2010 FUTURE PAST PRESENT Golden 2010 According to
SLIDE 2
SLIDE 3
Golden 2010
PRESENT PAST
FUTURE
SLIDE 4
Golden 2010
120 million tons (dw), mostly semicoke According to prognosis 2015: The same amount of retorted oil shale in next 10 years as we have had during 100 years, mostly SHC process residues partly close down old embankments, continue landfilling on the same sites
SLIDE 5
Narva Kohtla-Järve Kiviõli
Golden 2010
SLIDE 6
Kiviõli semi-coke embankments
New landfill “New hill” “Old hill”
Golden 2010
SLIDE 7
Photo Toomas Volmer
Golden 2010
SLIDE 8
Golden 2010
Kiviõli International Hill-Climb 2010
SLIDE 9
Kiviõli International Hill-Climb 2010
Golden 2010
SLIDE 10
Kohtla –Järve semi-coke embankments
New landfill
Golden 2010
SLIDE 11
Golden 2010
Photo Marko Mumm
Utilization
SLIDE 12
Golden 2010
2001...2004 60 000 tons of semi-coke in cement production 2000... 40 000 tons semi-coke in soil amendment mixtures
SLIDE 13
Golden 2010
Make a soil amender mixing semi-coke and peat Get a “fertilizer” that increases crop production Semi-coke? Alkaline hydrolysis of peat Huminic and fulvic acids Total content of phenolics in the leachate increases
Soil amender - fertilizer project
SLIDE 14
Golden 2010
HASPCO project
Hybrid Aspen – Carbon dioxide capture project
- Make a fertilizer mixing semicoke and pig manure
- Plant hybrid aspen
- Make the carbon dioxide balance of oil shale
processing better
SLIDE 15
Golden 2010
semi-coke SHC process ash residue Dry matter % (105˚C, 24h) 57-61 (64-67) 80-84 (100) pH of contact water (25˚C) 12,1-12,2 (12,4-12,6) 12,6-12,8 (12,6-12,8) Hexane/ethanol extractable
- rganics g/kg(Soxlet extraction)
3-4 (1-5) 0,3-3 (˂0,5) Total sulfur (as percentage of dry matter) 2,4-2,6 (2,8-2,9) 2,1-2,2 (2,2-2,4) Sulfide 0,3-0,4 (0,6-0,7) 0,2-0,4 (0,4-1,0) Pyrite sulfur 1,2-1,4 (1,2-1,4) 0,8-0,9 (0,8-1,0) Alkalinity (mmol/kg H+) 2700-3000 3700-6700 Pyrolytic char 4-6 (6-8) 2-4 (0,5-2 )
Kohtla-Järve and Kiviõli ()
Comparison of semi-coke and SCH retort process residues
SLIDE 16
Golden 2010
Conclusions
- There is no real use for retorted oil
shale deposited so far
- Hopefully SHC process residues can
be used
- We see problems when landfilling
SHC process residues
- Enhanced recarbonatization could
help
SLIDE 17
Thank you
Golden 2010
