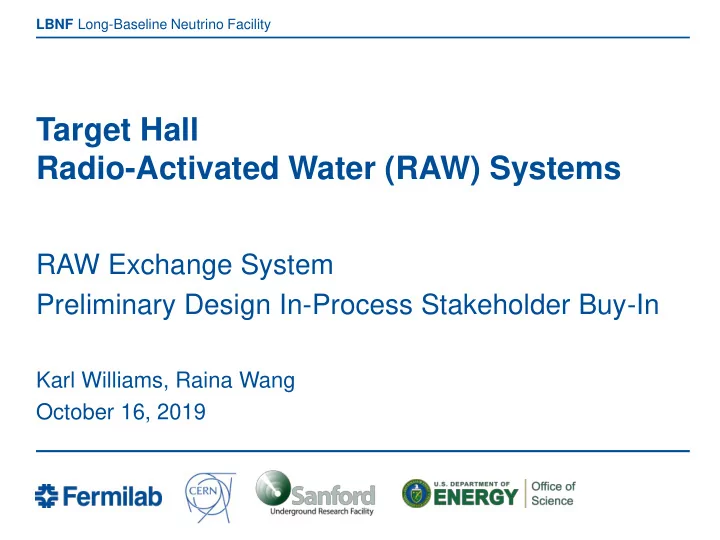

Long-Baseline Neutrino Facility LBNF

Target Hall Radio-Activated Water (RAW) Systems

RAW Exchange System Preliminary Design In-Process Stakeholder Buy-In

Karl Williams, Raina Wang October 16, 2019

LBNF

Target Hall RAW Exchange System

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

2

Purpose of this presentation:

• To show that the proposed LBNF system design will closely

mimic the design and subsequent upgrades of the system currently in use in NuMI for nearly a decade

• To highlight the major changes from NuMI to LBNF
• To address any safety, serviceability issues before completion of

Prelim Design and the Design Review at the start of the year

10.16.19

LBNF

Target Hall RAW Exchange System

3

What is desired from the stakeholders & project management:

• Do you see any show-stoppers not already addressed by either

NuMI or LBNF?

• Are we at a sufficient level of design, incorporating operational

and safety concerns, to proceed with the goal of Preliminary Design Review about the start of the new year? NOTE: A full Preliminary Design Review of this system will occur with all

• ther TH RAW Systems, about the start of the new year
• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

10.16.19

LBNF

Target Hall RAW Exchange System

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

4

Status: The RAW Exchange System is approximately 60% through the Preliminary Design Stage

• P&ID, Modeling virtually complete
• Design incorporates many lessons learned from NuMI, as well

as significant input from the current NuMI systems engineer, Dez Deshpande

• Civil (NSCF) as well as all stakeholders involved with the

components have been involved with LBNF RAW Room and corresponding RAW Systems design thus far

10.16.19

LBNF

Target Hall RAW Exchange System

5

NuMI system items kept:

• Two modes for drain and fill maintained:
• System off requiring full drain and make-up
• on-the-fly ability to burp and make up a small quantity of RAW from

any particular system during operations

• Containment
• Tank still vents to a safe path for tritiated air to escape though

the TH complex

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

10.16.19

LBNF

Target Hall RAW Exchange System

6

NuMI system items kept, cont.:

• Redundant valves in the same locations
• Transfer station and controls located outside of RAW Room for

access during beam operation

• Transfer controls in a local station, with identical safety lockout,

requiring RSO or designee to be present for operation

• Piping run overhead to maintain clear aisles
• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

10.16.19

LBNF

Target Hall RAW Exchange System

7

Modifications:

• NuMI services 3 RAW systems: target + 2 horns
• LBNF will service 5 RAW systems: target + 3 horns + shielding
• NuMI uses extraction line LCW + house chilled water systems

for intermediate systems, not serviced by the Exchange System

• LBNF will use a dedicated intermediate system, serviced by the

TH Exchange System, in a similar fashion to the NuMI Absorber Hall intermediate system in use

• Both RAW capture and LCW make-up tanks have increased

volume to service 2 more RAW systems and greater volumes

• Sufficient capture volume to ensure prolonged running between

services (raised from 300 to 1200 gallons)

• Increased LCW fill tank, from 30 gallons to 200 gallons
• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

10.16.19

LBNF

Target Hall RAW Exchange System

RAW Room Layout Isometric

8

RAW EXCHANGE SKID RAW Capture Tank Transfer Station LCW Fill Tank Shielding RAW Target RAW Intermediate System Horn A RAW Horn B RAW Horn C RAW

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In
• M. Sawtell

10.16.19

LBNF

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

9

Target Hall RAW Exchange System P&ID

Ref File - LBNF TH RAW Exchange P&ID-r2.pdf

10.16.19

LBNF

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

10

Target Hall RAW Exchange System Flows

Ref File – Target Hall RAW Exchange System Description-r1.pdf

10.16.19

LBNF

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

11

Target Hall RAW Exchange System RAW Room Layout - Detail

Ref File - F10118721---PDF1_Conceptual_26AUG19.pdf

10.16.19

LBNF

• K. Williams, R. Wang | TH RAW System Prelim Design Buy-In

12

Target Hall RAW Exchange System RAW Room Layout

Ref File - F10118721---PDF1_Conceptual_26AUG19.pdf
