Application Layer 1

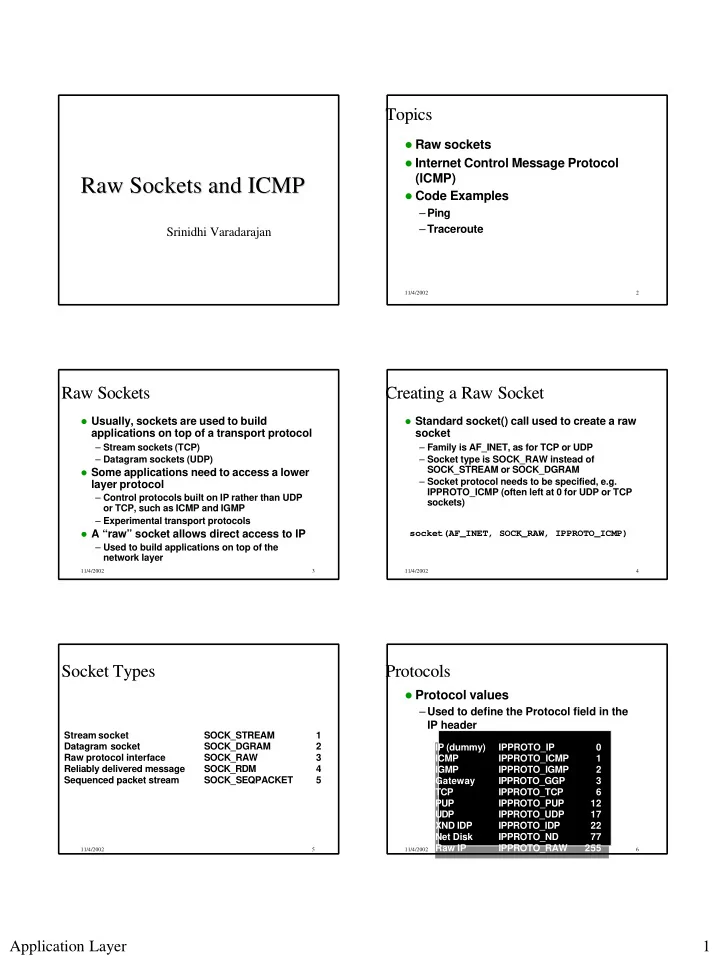

Raw Sockets and ICMP Raw Sockets and ICMP

Srinidhi Varadarajan

11/4/2002 2

Topics Topics

Raw sockets Internet Control Message Protocol

(ICMP)

Code Examples

– Ping – Traceroute

11/4/2002 3

Raw Sockets Raw Sockets

Usually, sockets are used to build

applications on top of a transport protocol

– Stream sockets (TCP) – Datagram sockets (UDP)

Some applications need to access a lower

layer protocol

– Control protocols built on IP rather than UDP

• r TCP, such as ICMP and IGMP

– Experimental transport protocols

A “raw” socket allows direct access to IP

– Used to build applications on top of the network layer

11/4/2002 4

Creating a Raw Socket Creating a Raw Socket

Standard socket() call used to create a raw

socket

– Family is AF_INET, as for TCP or UDP – Socket type is SOCK_RAW instead of SOCK_STREAM or SOCK_DGRAM – Socket protocol needs to be specified, e.g. IPPROTO_ICMP (often left at 0 for UDP or TCP sockets) socket(AF_INET, SOCK_RAW, IPPROTO_ICMP)

11/4/2002 5

Socket Types Socket Types

Stream socket SOCK_STREAM 1 Datagram socket SOCK_DGRAM 2 Raw protocol interface SOCK_RAW 3 Reliably delivered message SOCK_RDM 4 Sequenced packet stream SOCK_SEQPACKET 5

11/4/2002 6

Protocols Protocols

IP (dummy) IPPROTO_IP ICMP IPPROTO_ICMP 1 IGMP IPPROTO_IGMP 2 Gateway IPPROTO_GGP 3 TCP IPPROTO_TCP 6 PUP IPPROTO_PUP 12 UDP IPPROTO_UDP 17 XND IDP IPPROTO_IDP 22 Net Disk IPPROTO_ND 77 Raw IP IPPROTO_RAW 255 IP (dummy) IPPROTO_IP ICMP IPPROTO_ICMP 1 IGMP IPPROTO_IGMP 2 Gateway IPPROTO_GGP 3 TCP IPPROTO_TCP 6 PUP IPPROTO_PUP 12 UDP IPPROTO_UDP 17 XND IDP IPPROTO_IDP 22 Net Disk IPPROTO_ND 77 Raw IP IPPROTO_RAW 255

Protocol values

– Used to define the Protocol field in the IP header

Application Layer 2

11/4/2002 7

Internet Control Message Protocol Internet Control Message Protocol

ICMP defined in RFC 792 ICMP messages

– Query network node(s) for information – Report error conditions

ICMP messages are carried as IP

datagrams

– ICMP “uses” or is “above” IP

ICMP messages usually processed by IP,

UDP, or TCP

– IP, TCP, and UDP “use” or are above ICMP

11/4/2002 8

ICMP in the TCP/IP Suite ICMP in the TCP/IP Suite

ICMP IP IGMP ARP Hardware Interface RARP TCP UDP API Transport Network Data Link App App App Application

11/4/2002 9

ICMP Message Format (1) ICMP Message Format (1)

ICMP messages are encapsulated in IP

datagrams

– IP-level routing use to move ICMP messages through a network – IP provides multiplexing/demultiplexing based

• n protocol number (IPPROTO_ICMP = 1)

IP Header ICMP Message 20 bytes IP datagram variable length

11/4/2002 10

ICMP Message Format (2) ICMP Message Format (2)

TYPE CHECKSUM 4 8 16 24 31 CODE

TYPE: Type of ICMP message CODE: Used by some types to indicate a specific

condition

CHECKSUM: Checksum over full message Contents depend on TYPE and CODE

Contents

11/4/2002 11

Example ICMP Message Types Example ICMP Message Types

Queries

– TYPE = 8: Echo request – TYPE = 0: Echo reply – TYPE = 13: Time stamp request – TYPE = 14: Time stamp reply

Errors

– TYPE = 3: Destination unreachable

• CODE = 0: Network unreachable
• CODE = 1: Host unreachable
• CODE = 2: Protocol unreachable
• CODE = 3: Port unreachable

– TYPE = 11: Time exceeded

• CODE = 0: Time-to-live equals 0 in transit

11/4/2002 12

Error Example: Port Unreachable Error Example: Port Unreachable

Port unreachable error occurs when a

receiving host receives a packet with an unknown (inactive) port number

IP datagram is valid -- reaches addressed

host

UDP datagram contains a port that is not

in use (e.g. 8000 and no application has a socket bound to an address with that port)

UDP replies with an ICMP “Destination

Unreachable/Port Unreachable” message

– TYPE = 3, CODE =3

Application Layer 3

11/4/2002 13

ICMP Error Messages ICMP Error Messages

ICMP error messages include header and

first 8 bytes of offending IP datagram

– All of IP header

• Destination address, protocol number, etc.

– For UDP, all of UDP header including source and destination port numbers

ICMP message for port unreachable

IP Header 20 ICMP message ICMP Header 8 Offending IP Header 20 Offending UDP Header 8

11/4/2002 14

Ping Example Ping Example

“Ping” utility

– Tests whether or not a host is reachable – Provides a round-trip time – Written by Mike Muuss in 1983 to diagnose network problems

Operation

– ICMP echo request (TYPE = 8) sent to host – Host replies with ICMP echo reply (TYPE = 0)

Client-server roles

– Host sending echo request is the client – Host sending echo reply is the server – Server usually implemented in TCP/IP code

11/4/2002 15

Ping Algorithm Ping Algorithm

1) Initialize echo request 2) Send echo request 3) Wait for echo reply (or time out) 4) Receive reply 5) Report results 6) Go back to 1 until complete

11/4/2002 16

Echo Request/Reply Format (1) Echo Request/Reply Format (1)

TYPE (0, 8) CHECKSUM IDENTIFIER 4 8 16 24 31 CODE (0) Optional Data (time value) SEQUENCE NUMBER

IDENTIFIER: Means to identify sending

instance of “ping”

– Process id in UNIX

SEQUENCE NUMBER: Means to identify

lost or misordered replies

8: Request 0: Reply

11/4/2002 17

Echo Request/Reply Format (2) Echo Request/Reply Format (2)

typedef struct tagICMPHDR { u_char Type; // Type u_char Code; // Code u_short Checksum; // Checksum u_short ID; // Identification u_short Seq; // Sequence } ICMPHDR, *PICMPHDR;

Common ICMP echo reply/request header

definition from icmp.h code example

11/4/2002 18

Echo Request Echo Request

Echo request will include

– Common request/reply header – Time stamp (32 bits) – Filler data (REQ_DATASIZE bytes) typedef struct tagECHOREQUEST { ICMPHDR icmpHdr; // Header int dwTime; // Time char cData[REQ_DATASIZE]; // Fill data } ECHOREQUEST, *PECHOREQUEST; static ECHOREQUEST echo_req;

Application Layer 4

11/4/2002 19

Initializing the Echo Request Initializing the Echo Request

echo_req.icmpHdr.Type = ICMP_ECHOREQ; echo_req.icmpHdr.Code = 0; echo_req.icmpHdr.Checksum = 0; echo_req.icmpHdr.ID = id++; echo_req.icmpHdr.Seq = seq++; // Fill in some data to send memset(echo_req.cData, ' ', REQ_DATASIZE); // Save tick count when sent (milliseconds) echo_req.dwTime = gettime …; // Put data in packet and compute checksum echo_req.icmpHdr.Checksum = in_cksum(…);

11/4/2002 20

Waiting for Echo Reply Waiting for Echo Reply

readfds.fd_count = 1; // set size readfds.fd_array[0] = raw; // socket set timeout.tv_sec = 10; // timeout (s) timeout.tv_usec = 0; // timeout (us) if((rc = select(1, &readfds, NULL, NULL, &timeout)) == SOCKET_ERROR) errexit("select() failed %d\n", perror());

Time-out is important since ping will often be

used when a host is unreachable

select() used with a time-out value to wait for

echo reply

11/4/2002 21

Echo Reply Echo Reply

Raw socket returns IP header Received datagramcontains

– IP header – ICMP echo request/reply header – Echo request message – Potentially, additional fill data typedef struct tagECHOREPLY { IPHDR ipHdr; ECHOREQUEST echoRequest; char cFiller[256]; } ECHOREPLY, *PECHOREPLY;

11/4/2002 22

IP Header (1) IP Header (1)

Vers Identification HLen Service Type Total Length Flags Fragment Offset Time To Live Protocol Header Checksum Source IP Address Destination IP Address 4 8 16 24 31

11/4/2002 23

IP Header (2) IP Header (2)

typedef struct tagIPHDR { u_char VIHL; // Ver, Hdr length u_char TOS; // Type of service short TotLen; // Total length short ID; // Identification short FlagOff; // Flags, Frag off u_char TTL; // Time-to-live u_char Protocol; // Protocol u_short Checksum; // Checksum struct in_addr iaSrc; // Source IP addr struct in_addr iaDst; // Dest IP addr } IPHDR, *PIPHDR;

11/4/2002 24

Extracting Results from Reply Extracting Results from Reply

Ping client can extract IP, ICMP, and

echo information from the received datagram

… ECHOREPLY echo_reply; … type = echo_reply.echoRequest.icmpHdr.Type; ttl = echo_reply.ipHdr.TTL; …

Application Layer 5

11/4/2002 25

Traceroute Traceroute Example Example

Traceroute

– Reports the route used by an IP datagram from source to destination – Provides a round-trip time – Written by Van Jacobson as a network diagnostic and debugging tool

Operation

– Sends ICMP or other datagram toward destination – IP time-to-live (TTL) value is controlled to limit extent – Intermediate nodes return ICMP time exceeded error -- includes router address

11/4/2002 26

IP TTL Value IP TTL Value

IP Time-To-Live Value: Maximum

number of routers through which the datagram may pass

– Decremented at each router

• May be decremented once per second
• Decremented at least once per router

– Used to prevent looping in the network

Basis for Traceroute

11/4/2002 27

Traceroute Traceroute Operation Operation

source router router dest TTL=1 time exceeded TTL=2 time exceeded TTL=3 port unreachable OR echo reply

IP packets sent by source (traceroute) ICMP packets returned by routers and host IP packets sent by source (traceroute) ICMP packets returned by routers and host

11/4/2002 28

Traceroute Traceroute Algorithm Algorithm

1) Set TTL value to 1 2) Initialize echo request 3) Send echo request 4) Wait for echo reply or time exceeded error (or time out) 5) Receive reply 6) Report results 7) If echo reply, then done; else increment TTL and return to 2 May want to do echo multiple times per TTL

11/4/2002 29

Setting the TTL Value Setting the TTL Value

Need to control the IP TTL value Raw socket with ICMP does not let us

write IP header values

Use setsockopt() to set TTL value

setsockopt(raw, IPPROTO_IP, IP_TTL, (char *) &ttl, sizeof(ttl))

• r

int on = 1; setsockopt(raw, IPPROTO_IP, IP_HDRINCL, &on, sizeof(on))

11/4/2002 30

Basic Basic Traceroute Traceroute Loop Loop

ttl = 0; do { ++ttl; if(setsockopt(raw, IPPROTO_IP, IP_TTL, (char *) &ttl, sizeof(ttl))) errexit("setsockopt() failed: %d\n", perror()); done = PingTarget(raw, target_addr); } while (!done && ttl < MAX_TTL);

Application Layer 6

11/4/2002 31

Potential “Bells and Whistles” Potential “Bells and Whistles”

Multiple pings for each TTL value to better

assess round-trip time

Modify amount of data sent in echo

request

Calculate link delay and other statistics

– Delay[i] = RTT[i] - RTT[i-1]

Look up intermediate host names using

gethostbyaddr()

Graphical features

11/4/2002 32

ICMP, Ping, ICMP, Ping, Traceroute Traceroute Reference Reference

• W. Richard Stevens, TCP/IP Illustrated,

Volume 1, The Protocols, Addison- Wesley Publishing Co., Reading, MA, 1994 (Chapters 6-8).

11/4/2002 33

You should now be able to … You should now be able to …

Describe the use of ICMP for queries

and replies

Analyze ICMP message format Analyze the operation of Ping and

Traceroute applications

Analyze, design, and implement

network applications using raw sockets
