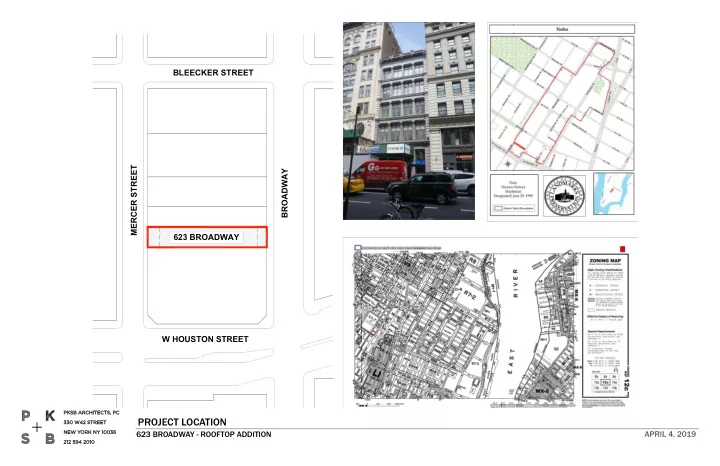

BLEECKER STREET MERCER STREET BROADWAY 623 BROADWAY W HOUSTON STREET PROJECT LOCATION APRIL 4, 2019 623 BROADWAY - ROOFTOP ADDITION 1940 TAX PHOTO HISTORICAL PHOTO & LPC DESIGNATION REPORT APRIL 4, 2019 623 BROADWAY - ROOFTOP ADDITION
SLIDE 2
SLIDE 3
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
EXISTING ROOF CONDITION LOOKING WEST TOWARD MERCER STREET LOOKING EAST TOWARD BROADWAY
SLIDE 4
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
EXISTING CONDITIONS
EXISTING SKYLIGHTS TO BE REMOVED EXISTING STAIR BULKHEAD TO BE ENLARGED EXISTING MECHANICAL UNITS TO BE RELOCATED DUNNAGE TO BE REMOVED EXISTING SLAB TO BE REMOVED FOR NEW ELEVATOR SHAFT AND STAIR BULKHEAD EXISTING FLOOR TO BE REMOVED FOR NEW ELEVATOR SHAFT PORTION OF WALL & FLOOR TO BE REMOVED FOR STAIRWELL EXPANSION PORTION OF WALL & FLOOR TO BE REMOVED FOR STAIRWELL EXPANSION NOTE: SHAFT FIRE RATING TO BE
- MAINTAINED. SEE STRUCTURAL PLANS
FOR NEW FRAMING.
DEMOLITION KEY
EXISTING PARTITION TO BE REMOVED EXISTING SLAB TO BE REMOVED
NOTE:
- 1. REFER TO DM-SERIES DRAWINGS, SEPARATE
APPLICATION, FOR MEANS, METHODS, AND SEQUENCE OF DEMOLITIONS.
- 2. LOCATION OF ALL EXISTING STRUCTURE TO BE
VERIFIED IN FIELD. STAIR UP TO EXISTING ROOF REMOVED FOR STAIRWELL EXPANSION
SLIDE 5
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
MERCER STREET BROADWAY
EXISTING BUILDING SECTION
SLIDE 6
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
EXISTING BUILDING ELEVATIONS ELEVATION ON BROADWAY ELEVATION ON MERCER STREET
SLIDE 7
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
01 A202 01 A203
PROPOSED BUILDING ELEVATIONS ELEVATION ON BROADWAY ELEVATION ON MERCER STREET
SLIDE 8
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
501
A B
502
PROPOSED FLOOR PLANS
SLIDE 9
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
605 608 607 606 609 601 602 604 603 601 602 604 603 606 605 608 607
TRAVEL DISTANCE : 135'-8" A B T R A V E L D I S T A N C E : 1 1 '
- 1
1 "
PROPOSED FLOOR PLANS
ROOF BELOW ROOF ROOF BELOW ROOF
SLIDE 10
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
R01 R02 613 614 616 615 617
A
- 2
1 1 01 A
- 2
1 2 01
B
PROPOSED FLOOR PLANS
SLIDE 11
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
01 A301 TYP. Location Plan
Architect Revision Drawing Title
Structural Engineer
Seal Project
SDG Engineering, P.C.
MEP Engineer
Freeman Engineering, PLLC
MERCER STREET BROADWAY
PROPOSED BUILDING SECTION
SLIDE 12
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
MOCK-UP AND RENDERING OF PROPOSED - BROADWAY
SLIDE 13
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
MOCK-UP & RENDERING OF PROPOSED - MERCER STREET
SLIDE 14
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
PROPOSED BUILDING SECTION - VISIBILITY FROM STREET
SLIDE 15
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEWS FROM BROADWAY
SLIDE 16
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEWS FROM BROADWAY - PROPOSED NOT VISIBLE
SLIDE 17
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEWS FROM MERCER STREET
SLIDE 18
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEWS FROM MERCER STREET - PROPOSED NOT VISIBLE
SLIDE 19
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEWS FROM SW CORNER OF HOUSTON STREET & MERCER STREET - PROPOSED NOT VISIBLE
SLIDE 20
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
MOCK-UP OF PROPOSED - BROADWAY NOT VISIBLE VIEW 1 VIEW 2 1 2
SLIDE 21
623 BROADWAY - ROOFTOP ADDITION APRIL 4, 2019
VIEW 1 MOCK-UP OF PROPOSED - MERCER STREET NOT VISIBLE 1 2
