[PPT] - PRODUCT PRESENTATION Valry Guilleaume, CEO & Founder PowerPoint Presentation

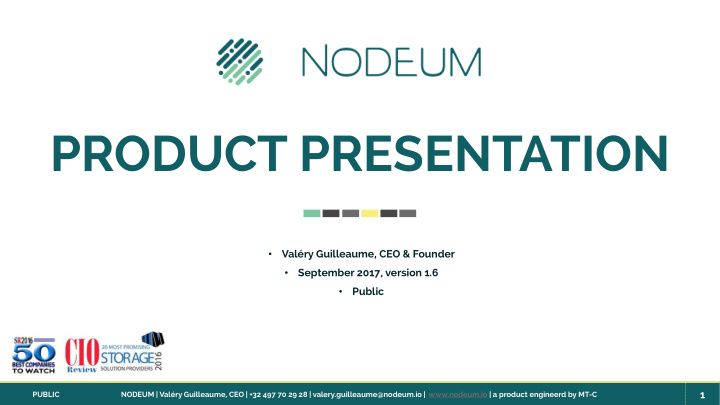

SLIDE 1

1

Valéry Guilleaume, CEO & Founder
September 2017, version 1.6
Public

PRODUCT PRESENTATION

SLIDE 2

2

NODEUM is software created by MT-C

We engineered an open platform which enables our customers to focus on their business value add. The storage Abstraction & Orchestration facilitate a fabric

f different hardware and silo technologies such as flash,

spinning disk, tapes and cloud. All behind a unique file repository.

SLIDE 3

3

NODEUM IS A DATA FABRIC PLATFORM

Capacity
Cheapest
Service
Pay per use
Accessibility
Expensive
Speed
Very

Expensive

Flash Disk Tapes Cloud

Software Appliance running on commodity hardware abstracting different classes of storage

NODEUM ABSTRACTS ALL OF THESE TECHNOLOGIES

SLIDE 4

4

PROVIDING ENHANCED FILE DATA MANAGEMENT

A Toolbox is available to quickly and effortlessly manage & retrieve data

REST API DATA MOVER DATA PLACEMENT FILE ANALYSIS BEHAVIOR ANALYSES AUTOMATIC PLACEMENT OPTIMIZATION CATALOG DATA TAGGING WITH METADATA WEB SEARCH ENGINE

TOOLBOX

SLIDE 5

5

AND SO WHAT ? A VISIONARY VALUE PROPOSITION

OUR CUSTOMER’s business model includes manipulating, comparing, associating or simulating data to create economic and/or social value

Finding/ retrieving data is critical.
Need for a self service model (quick & easy).
Keeping data to use it over and over (100+TB).

Gartner : IT Market Clock for Storage, 2016

1. We facilitate the data management of our customers, which has a direct impact on their business.

more data => more information => more business

2. Great user experience to make it simple and convenient. WHAT WE DO :

SLIDE 6

6

HEALTHCARE – GENOMIC CHALLENGE

Today, the world is facing a massive explosion of structured and unstructured data ; mainly due to the decline in genome analysis cost (100$ Genome). The challenge is at a magnitude of Exabytes and has a direct impact on the business growth of markets.

Note : 1 Exabyte (EB) = 1000 petabytes (PB) = 1 million terabytes (TB) = 1 billion gigabytes (GB)

For analysis requirements, data cannot be deleted anymore and the required retention periods are growing (30+ years).

1 2

Requirement to get control of this data. Storing data is easy, but retrieving data is still complex for users. Too much time is currently spent searching for data instead of researching data.

3

Current solutions are coming from hardware vendors. They provide IT oriented silo disk arrays, with an expensive average cost per raw TB of $1,593*.

*(Source: Gartner IT Key Metrics Data (December 2016)

4

WANT TO KNOW MORE ? LISTEN THIS PODCAST RECORDED AT BIO-IT WORLD 2017 BY THE CHI

SLIDE 7

7

NEXT GEN SEQUENCING - A GAME CHANGER !

Source: L. D. Stein Genome

Biol. 11,

207 (2010)

The price of DNA sequencing is falling faster than computer disk storage costs, making data fabric an increasingly important tool in genomics

0.10 1.00 10.00 100.00 1,000.00 10,000.00 100,000.00 1,000,000.00 10,000,000.00 100,000,000.00 0.10 1.00 10.00 100.00 1,000.00 10,000.00 100,000.00 1,000,000.00 1990 1995 2000 2005 2010 2015 2020 2025 Disk Storage (Mbytes/$) DNA sequencing (bp/$) DNA sequencing (bp/$)2

SILO DISK STORAGE DATA FABRIC

Pre-NGS (bp+$) Doubling time 19 months Hard Disk Storage (MB/$) Doubling time 14 months NGS (bp+$) Doubling time 5 months

SLIDE 8

8

WITH NODEUM

Customers generates up to 300TB per year per sequencer 1st tier storage: fast but expensive and not structured 2ndTier Storage : Nodeum software: researchers can easily find what they need, when they need it

Flash Disk Cloud Tapes

existing legacy & commodity hardware

Disk Disk Tapes Disk Cloud

the right Data is at the right Place with the right Service level for the right User at the right Cost

Flash Disk Tapes Cloud

SLIDE 9

9

WHY ? SAVING PEOPLE’S LIVES!

Genomic analyses have become much more affordable over the recent years. Research centers and hospitals have acquired specific equipment for these applications, for patient treatment purposes

r research. This has resulted in a constant creation digital

information. Once generated, this data is made available to scientists and medical staff for analysis and then stored many years for instant retrieval whenever needed. Today, researchers are spending too much of their time searching for data instead of researching data. If a researcher has instant access to data, productivity goes up, more research can be performed, and MORE LIVES CAN BE SAVED!

SLIDE 10

10

NODEUM, A DATA FABRIC

Single Namespace Data Cataloging File Data Analysis Metadata Tagging

Data Placement Data Movement Post Processing Events Data Retention Data Migration

Flash Disk Tapes Cloud

Block - File File Object IP / F.C. / SAS F.C. / SAS S3

CIFS NFS

data flow

REST

command flow

LOGICS NAS CLUSTER APPLIANCE COMMODITY HARDWARE

Integrity

INTERFACES

Workflow Manager

Web Search Engine

SLIDE 11

11

Storage Classes abstraction -> one file system

STORAGE NODE HIGH TAPE CAPACITY STORAGE NODE NEARLINE DISK STORAGE NODE HIGH PERFORMANCE FLASH

WARMEST COLDEST

NAS External Archive

MASTER CONTROLLER APPLIANCE

NODEFS

FiberChannel – SAS - IP

NFS / SMB NAS External Connector

NAS REST API

SLIDE 12

12

Workflow Manager

Scheduler

RULE_0001 RULE_0002 RULE_0003 RULE_0004 RULE_0005

Priority Queue Processing Queue 100 1

Movement Request From Source To Destination Filter : <Defined> Option : Integrity : yes

STORAGE NODE

Waiting Processing Processing Processing

SLIDE 13

13

Pre-Defined Workflows

Worfklows

Online Storage Offline Archive Data Exchange

SLIDE 14

14

Inline Data Cataloging

Inline

Global Content Catalog Metadata Tagging Real-time in ingestion Storage copies visualisation

SLIDE 15

15

Workflow – Online Storage – Tapes & Cloud

File Catalog

Drive

add copy on tapes Data Management I/O I/O I/O

Drive Drive

Tape Library

Slots Drives I/O

Nodeum

file in cache file with a copy on tape file with a copy on cloud

Bucket “a”

S3 Object Storage

File Catalog after workflow movement:

SLIDE 16

16

Workflow – Offline Archive – Tape Vaulting

File Catalog

Drive

ffline archive to

tapes Data Management I/O I/O I/O

Drive Drive

Tape Library

Slots Drives I/O

Nodeum

file in cache file in online tape file in offline tape

File Catalog after workflow movement:

SLIDE 17

17

Workflow – Data Exchange – Tapes to Cloud

File Catalog

Drive

data exchange from LTFS to cache to cloud Data Management I/O I/O I/O

Drive Drive

Tape Library

Slots Drives I/O

Nodeum

file in cache file on tape file on cloud

Bucket “a”

S3 Object Storage

File Catalog after workflow movement:

SLIDE 18

18

Smart Search Engine

SLIDE 19

19

Storage Trends Analysis

SLIDE 20

20

REST API to Automated your Workflow

EXAMPLE: 1. DNA Sequencer copies Data in NODEUM 2. From DNA Sequencer, API calls to updated Patient Field to John 3. From DNA Sequencer, API calls to updated Source Field to set the ”Sequencer box” The Restful API allows for a tight integration with the business workflows within Bio IT, allowing for control of the Data Fabric straight from sequencers and other equipment. This results in an automated and highly efficient way

f working coupled with low vault tolerances.

SLIDE 21

21

Customer Case

Virtualization of storage & archiving,
Scalability : starting from 100TB and scale to 1800TB
REST API
Intelligent Data Analysis
Dynamic Content Catalog
Active Archive, LTFS format, no vendor-lockin
Intelligent Workflows Process
Easy to use & Intuitive System
Multi site & offline vaulting.

KEY DECISION DRIVERS

WARMEST OFFICE

NODEFS

NFS / SMB

NAS REST API

STORAGE NODE HIGH TAPE CAPACITY STORAGE NODE NEARLINE DISK

GENETICS LAB COLDEST

30TB 130TB 1800TB

SCALABILITY

SLIDE 22

22

5 TOP CUSTOMER BENEFITS

1. Find and Retrieve Data is easy and fast
2. Self Service Model
3. Highly Scalable to store and archive data forever
4. Control Cost of Storage Evolution
5. Automate Business Data Management Worfklow

WANT TO KNOW MORE ? WATCH THE ONCODNA EXPERIENCE WITH NODEUM

SLIDE 23

23

MT-C S.A. Rue Ernest Solvay 29/A 4000 LIEGE, BELGIUM sales@nodeum.io www.nodeum.io

THANK YOU

I N T E R E S T E D TO K N O W M O R E ?

C O N TAC T U S sal es@ nodeu m. io

SLIDE 24

24

PUBLICATIONS

24 2016 : ComputerWeekly : Linux file system + LTFS tape = Nodeum's cold storage

PRESS

2016 : StorageNewsLetter : MT-C Said Nodeum Certified LTFS by LTO Consortium 2017 : Poweredbytape : NODEUM is the Scalable, Hybrid Software-Defined Storage Platform 2017 : LeMag IT : OncoDNA s'appuie sur la solution LTFS de Nodeum pour ses archives 2016 : CIO Review : MT-C : A route to Next Generation Storage 2017 : ComputerWeekly : Cancer researcher gets Nodeum LTFS tape NAS 2017 : CHI : Podcasts - Bio-IT World 2016 : The Silicon Review : Turning entrepreneurial vision for the future of storage into reality: MT-C 2016 : TVBEurope: Nodeum set to virtualise storage ADDITIONAL INFO.

SLIDE 25

25

PUBLICATIONS

25

PRODUCT CUSTOMER TESTIMONIAL

NODEUM - Next Storage Generation NODEUM - Business Applications cases - Product Overview Vidéo : ONCODNA precision medicine application leverage their data in using ... Case Study IPG - NODEUM Case Study Life Science - NODEUM fr Case Study OncoDNA - NODEUM ADDITIONAL INFO.

SLIDE 26

26

We are Vendor Neutral

26

VENDOR ALLIANCE TECHNOLOGY ALLIANCE CONSORTIUM ALLIANCE

ADDITIONAL INFO.

SLIDE 27

27

Leverage the LTFS Open Standard

Store your data in the Linear

Tape File System (LTFS) open standard is the best strategy for supporting data transportability and long-term data accessibility.

ADDITIONAL INFO.
