D AY 126 I NSCRIBED AND CIRCUMSCRIBED CIRCLES OF A TRIANGLE I NTRODUCTION In geometry it is possible to construct a polygon such as a triangle or a hexagon inside a circle using the basic geometrical instruments like compasses and

slide-1

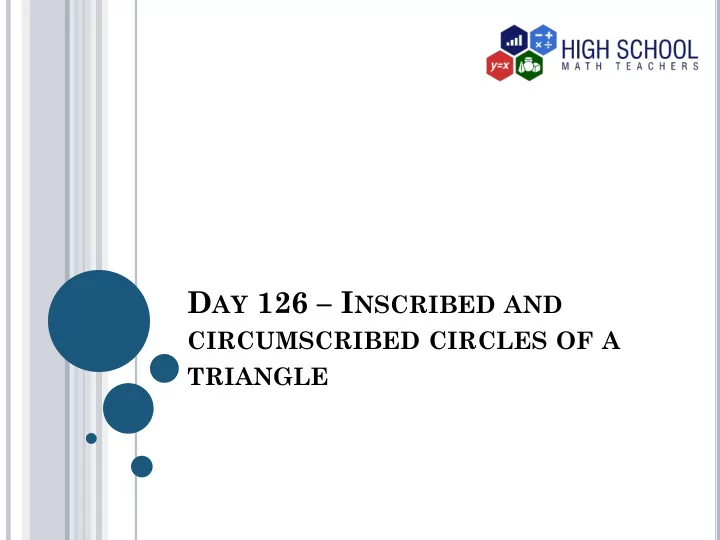

SLIDE 1

DAY 126 – INSCRIBED AND

CIRCUMSCRIBED CIRCLES OF A TRIANGLE

slide-2
SLIDE 2

INTRODUCTION

In geometry it is possible to construct a polygon such as a triangle or a hexagon inside a circle using the basic geometrical instruments like compasses and straightedges. This implies that a circle can also be constructed on the outside of a polygon. A circle can be drawn inside a triangle such that the circle just touches all the three sides of the triangle. It is also possible to draw a circle that passes through the three vertices of the triangle. In this lesson, we will learn how to construct circles inside triangles such that the circles touch the sides of the triangle and also how to construct circles which pass through the vertices of a triangle.

slide-3
SLIDE 3

VOCABULARY

  • 1. Inscribed circle (incircle)

A circle which touches all the three sides of a

  • triangle. This circle is inside the triangle.
  • 2. Circumscribed circle (circumcircle)

A circle which passes through all the vertices of a

  • triangle. This circle is outside the triangle.
  • 3. Incenter

The center of a circle that touches all the three sides of a triangle and it is the point of intersection

  • f the three angle bisectors of the triangle.
slide-4
SLIDE 4
  • 4. Circumcenter

The center of a circumscribed circle which is the point of intersection of the perpendicular bisectors

  • f the sides of the triangle.
  • 5. Perpendicular bisector

A line that bisects a line segment and forms a right angle at the point of intersection, which is the midpoint.

  • 6. Angle bisector

A line that bisects an angle into two angles, these angles are always congruent.

slide-5
SLIDE 5

INSCRIBED CIRCLE OF A TRIANGLE

An inscribed circle is drawn inside a triangle such that the circle touches the three sides of the triangle. An inscribed circle is also referred to as an incircle. The concept of bisecting an angle using a pair of compasses is key when constructing an inscribed circle. Each triangle has its own unique incircle.

slide-6
SLIDE 6

CONSTRUCTING AN INSCRIBED CIRCLE OF

A TRIANGLE

  • 1. Consider ∆KLM below.

K L M

slide-7
SLIDE 7

In order to construct an inscribed circle of ∆KLM:

  • 2. We construct the angle bisector of ∠K as shown

below.

K L M

slide-8
SLIDE 8
  • 3. We then construct the angle bisector of ∠L and

label the point of intersection of the bisectors point O.

K L M O

slide-9
SLIDE 9
  • 4. We drop a perpendicular from point O to any

side of ∆KLM, in this case, side KL.

K L M O

slide-10
SLIDE 10
  • 5. We label the point of intersection of the

perpendicular bisector and side KL point P.

K L M O P

slide-11
SLIDE 11
  • 6. We construct a circle with radius OP. This is the

inscribed circle or incircle of ∆KLM. Point O is referred to as the incenter of the circle.

K L M O P

slide-12
SLIDE 12

CIRCUMSCRIBED CIRCLE OF A TRIANGLE

A circumscribed circle is drawn outside a triangle such that the circle passes through the three vertices of the triangle. A circumscribed circle is also referred to as a circumcircle. The concept of constructing a perpendicular bisector of a line segment using a pair of compasses is key when constructing a circumcircle. Each triangle has its own unique circumcircle.

slide-13
SLIDE 13

CONSTRUCTING AN CIRCUMSCRIBED

CIRCLE OF A TRIANGLE

  • 1. Consider ∆MNP below.

N P M

slide-14
SLIDE 14

In order to construct an inscribed circle of ∆MNP:

  • 2. Construct the perpendicular bisector of side MN
  • f ∆MNP.

N P M

slide-15
SLIDE 15
  • 3. Construct the perpendicular bisector of side NP
  • f ∆MNP.

N P M

slide-16
SLIDE 16
  • 4. Label the point of intersection of the two

perpendicular bisectors point O.

N P M O

slide-17
SLIDE 17
  • 5. We use O as the center and use either OM, ON or

OP as the radius, we draw a circle. This circle will pass through the vertices M, N and P.

N P M O

slide-18
SLIDE 18

We have constructed a circumscribed circle of ∆MNP. Point O is referred to as the circumcenter

  • f the circle.

Note: The circumcenter can be either be inside the triangle, outside the triangle or on the triangle.

  • 1. It is outside the triangle when the triangle is
  • btuse.
  • 2. It is inside the triangle when the triangle is

acute.

  • 3. It is on the triangle when the triangle is a right

triangle.

slide-19
SLIDE 19

Example Construct a circumcircle of ∆ABC below.

N P M

slide-20
SLIDE 20

Solution The circumcenter will pass through the vertices A, B and C of ∆ABC. We need to perpendicular bisectors of any two sides

  • f ∆ABC.

The point of intersection of the perpendicular bisectors will be the circumcenter, O of the circle. We will use either OA, OB or OC as the radius to draw the circumcircle.

slide-21
SLIDE 21

The circumcircle is constructed as shown below.

N P M

slide-22
SLIDE 22

HOMEWORK Construct the incircle of the triangle below and label the incenter O.

slide-23
SLIDE 23

ANSWERS TO HOMEWORK

The incircle is constructed as shown below.

O

slide-24
SLIDE 24

THE END
