Planning Application LCC/2019/0028 Proposed land restoration and regrading works using inert material, Parbold Hill Quarry, Parbold Hill, Parbold Planning application LCC/2019/0028 A5209 Parbold village Parbold Hill Landfill Planning

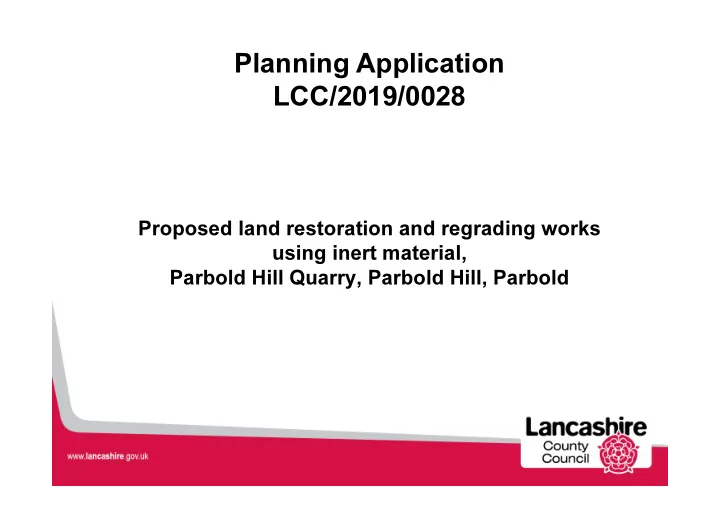

SLIDE 1

Proposed land restoration and regrading works using inert material, Parbold Hill Quarry, Parbold Hill, Parbold

Planning Application LCC/2019/0028

SLIDE 2

Planning application LCC/2019/0028

Parbold Hill Landfill A5209

Parbold village

SLIDE 3

Planning application LCC/2019/0028

Miller and Carter Beacon Lodge Parbold Hall Former Landfill site Layby off A5209

SLIDE 4

Planning application LCC/2019/0028

Parbold Hill Landfill Proposed Regrading area

SLIDE 5

Parbold Hill – Existing Contours

Maximum Height of 115 m AOD

SLIDE 6

Parbold Hill – Proposed contours

Proposed contours (red line) Figures on drawing are the proposed additional depths of fill above the existing contours (between 5.9 and 0.1 m)

SLIDE 7

Parbold Hill – Proposed sections

Existing level Proposed level

SLIDE 8

Landfill design

Dilute and disperse landfill design Modern containment landfill

SLIDE 9

View over regrading area towards viewpoint on A5209

SLIDE 10

View across regrading area towards Wigan

SLIDE 11

View across regrading area towards Liverpool

SLIDE 12

Parbold Bottle with Parbold Landfill in background

SLIDE 13

View from eastern edge of site towards Parbold Hall

SLIDE 14

View from Miller and Carter restaurant looking towards layby

SLIDE 15

Proposed access off A5209 looking west towards Parbold village Proposed access location

SLIDE 16

Planning application LCC/2019/0028 – Proposed access arrangements

A5209 Proposed access Proposed tipping bays Layby off A5209 Proposed regrading areas
