Planning and Design for Resiliency Jonathan Hammond AIA, LEED AP & Bruce Playle, AIA Yuba County Sheriff Office Case Study: Resilient Remodel 1986 Yuba-Sutter Flood Inland lake resulting from projected Sacramento Valley Superflood

SLIDE 1

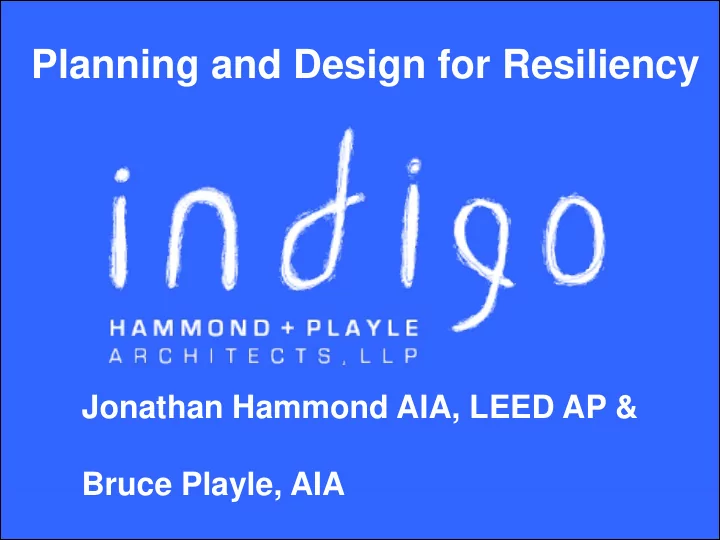

Planning and Design for Resiliency

Jonathan Hammond AIA, LEED AP & Bruce Playle, AIA

SLIDE 2

Case Study: Resilient Remodel Yuba County Sheriff Office

SLIDE 3

1986 Yuba-Sutter Flood

SLIDE 4

Inland lake resulting from projected Sacramento Valley Superflood

SLIDE 5

View from Yuba River levee, 14’ flood stage…

SLIDE 6

SLIDE 7

SLIDE 8

Elevated Infrastructure

SLIDE 9

Designing for local climate and achieving ZNE helps end the CO2 amplifying feedback loop.

SLIDE 10

Indigo’s new office extracts energy from its Environment so a small PV array can achie ZNE

SLIDE 11

Natural light all day every day Natural light from small distributed sky lights keep the lights off all day

SLIDE 12

Sac Valley climate map

Sacramento River Delta has strong sea breeze from Golden Gate - lowers night time temp to 50 degrees F.

SLIDE 13

Lovers automatically

pen bring in cool

night air. This cools the mass of the building, providing radiant cooling during the day.

SLIDE 14

Concrete floors, plaster walls and water thermal mass moderate temperature

SLIDE 15

R-40 straw bales insulate the thermal mass creating “flywheel” effect.

Straw bale construction

SLIDE 16

The result!

SLIDE 17

SLIDE 18

Zero Net Energy With an EUI of 3.6 Kw/sq ft/yr this building uses 75% less energy than the average office building so a small PV array < ¼ of floor allows us toeasily achieve ZNE.
