Long Length Large Diameter (LLLD) PE pipes for marine applications Last revision 19.12.2017. Index Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and

slide-1
SLIDE 1

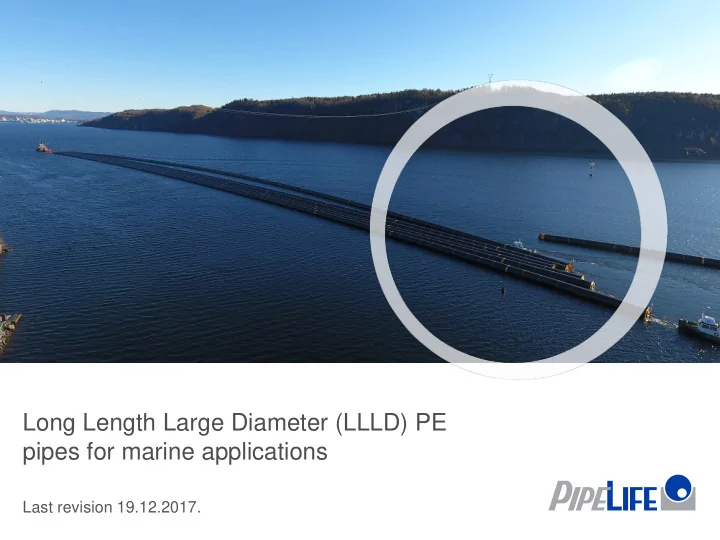

Long Length Large Diameter (LLLD) PE pipes for marine applications

Last revision 19.12.2017.

slide-2
SLIDE 2

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 2

slide-3
SLIDE 3

853 mEUR

(2015: 879 mEUR | -3,0%)

The Pipelife Group – at a glance

3

Net Sales

2.714

(2015: 2.680 | +1,3%)

Employees

26

Countries

26

Production Sites

Subsidiaries in Europe and USA Production sites in 18 countries

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-4
SLIDE 4

111 157 474 505 671 705 894 716 805 852

1989 Founding of Pipelife by Wienerberger and Solvay Early 1990’s Entry into new markets (HU) and expansion into GR, TR, CZ, SK, SI, BE, ES, NL, PT Late 1990’s Start of operations in PL and RO; further expansion into HR and Northern Europe (SE, EE, FI, LV, LT, NO) 2000 to 2004 First step into the US market;

  • pening of sales offices in RU,

UA, BG; purchase of Propipe (FI) and drainage business of Drossbach (DE) 2005 to 2010 Further acquisitions (100% of the JVs in HU and RO, Quality Plastics (IE), Twebotube (NL), Instaplast (CZ), Westpipe (SE) Investments in plants in RU and BG) 2010 Closure of Iberian subsidiaries in the course of a restructuring program 2012 Wienerberger acquires 100%

  • f Pipelife

Net sales in mEUR

The Pipelife Group – since more than 25 years

4

2010-2013 Acquisition of Westpipe (SE); Acquisition of Alphacan‘s pipe business (FR), EKO- RPM (SL), Finnflex (FI), Elektrobig (LT) 02-2016 Acquisition of Talokaivo Oy (FI)

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-5
SLIDE 5

The Pipelife Group – present worldwide

5

km pipes installed worldwide in 2016

630.000

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-6
SLIDE 6

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 6

slide-7
SLIDE 7

► PE pipe production started in 1960 ► Due to lack of proper welding

methods at that time, the pipes had to be made as long as possible.

► From there the long length pipe

concept has been developed

Pipelife Norway history

12/19/2017 7 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-8
SLIDE 8

Stathelle plant

Pipelife Norway today

Surnadal plant

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 8

slide-9
SLIDE 9

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 9

slide-10
SLIDE 10

Long Length Large Diameter (LLLD) Concept Protected location in a narrow fjord Continuous extrusion into the fjord Transport by tugboat to the marine destination

12/19/2017 10 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-11
SLIDE 11

► Important characteristics of PE

pipes that enabled the concept:

  • Buoyancy in sea water
  • Flexibility
  • Non-corrosive
  • Non-toxic, potable water approved
  • High fatigue resistance
  • High abrasion resistance
  • High chemical resistance
  • High resilience to shocks
  • Permanent low head loss
  • Weldable
  • Almost unlimited lifetime underwater
  • Light in weight, density 950 kg/m3

Long Length Large Diameter (LLLD) Concept

12/19/2017 11 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-12
SLIDE 12

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 12

slide-13
SLIDE 13

► HDPE pressure pipes in the range from OD 20 mm to OD 2500 (3000) mm ► SDR classes from 41 to 7.4 (dependent on size) ► Continuously extruded into sea ► HDPE pipes cut in lengths up to 550 - 600 m

HDPE Pipe and fittings range

12/19/2017 13 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-14
SLIDE 14

The range of products include all accessories needed for a complete pipe system:

► HDPE segment welded bends ► HDPE welded T-branches

HDPE Pipe and fittings range

12/19/2017 14 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-15
SLIDE 15

The range of products include all accessories needed for a complete pipe system:

► HDPE segment welded bends ► HDPE welded T-branches

HDPE Pipe and fittings range

12/19/2017 15 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-16
SLIDE 16

The range of products include all accessories needed for a complete pipe system:

► HDPE spool pieces ► HDPE wall connection pieces (puddle flange fittings)

HDPE Pipe and fittings range

12/19/2017 16 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-17
SLIDE 17

The range of products include all accessories needed for a complete pipe system:

► HDPE spool pieces ► HDPE wall connection pieces (puddle flange fittings)

HDPE Pipe and fittings range

12/19/2017 17 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-18
SLIDE 18

The range of products include all accessories needed for a complete pipe system:

► HDPE Diffusers ► HDPE Manholes

HDPE Pipe and fittings range

12/19/2017 18 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-19
SLIDE 19

The range of products include all accessories needed for a complete pipe system:

► HDPE Diffusers ► HDPE Manholes

HDPE Pipe and fittings range

12/19/2017 19 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-20
SLIDE 20

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 20

slide-21
SLIDE 21

► Certification according to ISO 9001 and ISO 14001 ► Pipes are produced according to ISO 4427:E and EN 12201

Quality control on PE pipes and fittings

12/19/2017 21 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-22
SLIDE 22

► Control of the raw material

Quality control on PE pipes and fittings

12/19/2017 22

  • Density
  • ISO 1183
  • Melt Flow Rate (MFR)
  • ISO 1183
  • Oxidation Induction Time (OIT)
  • ISO 728

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-23
SLIDE 23

► Control of the pipe

Quality control on PE pipes and fittings

12/19/2017 23

  • Measuring of pipe

diameter

  • Appearance
  • Diameter
  • Ovality
  • Gravimetric control

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-24
SLIDE 24

Quality control on PE pipes and fittings

12/19/2017 24

► Hydrostatic Test

  • Hydrostatic strength ISO4427:E /

EN12201

  • PE80: +80ºC / 4,5 MPa / 165 h and

+80ºC / 4,0 MPa / 1000 h

  • PE100: +80ºC / 5,4 MPa / 165 h and

+80ºC / 5,0 MPa / 1000 h

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-25
SLIDE 25

► Tensile strength test on weld, ISO 13953 – 2001

  • Conditioning: test piece in air for a min. 6 h at 23C + 2C , testing not be carried out less

than 24h after the butt fusion og the joint.

  • Procedure: Record the maximum force applied and the type of failure as ductile or brittle,

as characterized by the ductile and brittle failure modes.

Quality control on PE pipes and fittings

12/19/2017 25

  • Machining of test sample
  • Tensile strength test

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-26
SLIDE 26

► Certification Requirements on Welding Machines and Welders

Quality control on PE pipes and fittings

12/19/2017 26

  • All our machines are regularly calibrated and maintained
  • Our welders and partners are continuously educated and

certified

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-27
SLIDE 27

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 27

slide-28
SLIDE 28

► Tow with Flange Connections Ready Assembled at the Factory

Tow preparation

12/19/2017 28 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-29
SLIDE 29

► The design of the towing gears is controlled by internationally recognized

certifying bodies

Tow preparation

12/19/2017 29

  • Departure of OD2500 mm pipe tow
  • 9 pipes 280-452 m
  • Ras Djinet Power Plant, Algeria, 2014
  • Departure of OD2500 mm pipe tow
  • 9 pipes 280-560m
  • Takoradi Power Plant, Ghana, 2013

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-30
SLIDE 30

► Long length deliveries include towing and transport insurance ► Longest tow record:

  • Departure of OD2000 mm pipe tow, 9 pipes 365-497 m
  • Punta del Tigre Power Plant, Uruguay, (7477 Nm, 91 days), 2015

Towing in open ocean

12/19/2017 30 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-31
SLIDE 31

Installation

12/19/2017 31

► Surface preparation with concrete

weights

► Surface assembly of long sections ► Surface positioning along lay route ► Installation with S-bend method ► Surface to seabed transfer utilizing the

PE pipe’s flexible properties

► The operation can be reversed if

required

► Fast, practical sinking speed 500-1000

m/hour

► No sophisticated equipment required

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-32
SLIDE 32

Installation

12/19/2017 32

S-bend installation method

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-33
SLIDE 33

12/19/2017 33

Concrete ballast blocks (weights, collars)

  • OD1400mm
  • Reykjavik,

Island

  • 2001
  • OD2100mm
  • Ashdod,

Israel

  • 2012
  • OD1600mm
  • Montpellier,Fr

ance

  • 2003
  • OD2500mm,
  • Ras Djinet,

Algeria

  • 2014

► Various concrete weight designs

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-34
SLIDE 34

Installation

12/19/2017 34

OD2100mm; Ashdod, Israel, 2012

Installation in progress

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-35
SLIDE 35

Installation

12/19/2017 35

OD2500mm; Ras Djinet, Algeria, 2014

Installation in progress

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-36
SLIDE 36

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 36

slide-37
SLIDE 37

►ANTALYA SEWER OUTFALL, TURKEY, 1997 ►Contractor STFA Marine Construction, Turkey ►Delivery of LLLD PE pipes and fittings OD1600, SDR26,

2600 m Selected references

12/19/2017 37 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-38
SLIDE 38

► SIBENIK SEWER OUTFALL, CROATIA, 2003 ► Contractor Montmontaza Hidroinzenjering, Croatia ► Delivery of LLLD PE pipes and fittings OD1200, SDR26, 5134 m ► Installed at 65 m depth

Selected references

12/19/2017 38 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-39
SLIDE 39

► ASHKELON DESALINATION PLANT, ISRAEL, 2003 ► Consortium Oceana, Israel – Geocean, France ► Delivery of LLLD PE pipes and fittings OD1600, SDR26, 3000 m

Selected references

12/19/2017 39 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-40
SLIDE 40

► MONTPELLIER SEWER OUTFALL, FRANCE, 2003 ► Consortium EMCC, France – Van Oord ACZ, Netherlands – Draflumar,

France – Sogea Sud, France

► Delivery of LLLD PE pipes and fittings OD1600, SDR26, 10827 m

Selected references

12/19/2017 40 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-41
SLIDE 41

► TERGA, 1200 MW COMBINED CYCLE POWERPLANT, ALGERIA, 2009 ► Contractor Geocean SAS, France ► Delivery of LLLD PE pipes and fittings OD2000, SDR26, 3790 m

Selected references

12/19/2017 41 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-42
SLIDE 42

► CARTAGENA DE INDIAS SEWER OUTFALL, COLOMBIA, 2009 ► Contractor EDT Marine Construction, Cyprus ► Delivery of LLLD PE pipes and fittings OD2000, SDR26, 4321 m

Selected references

12/19/2017 42 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-43
SLIDE 43

► ODESSA SEWER OUTFALL, UKRAINE, 2011 ► Delivery of LLLD PE pipes and fittings OD2000, SDR30, 4300+ m ► Passage through the Bosphorus channel

Selected references

12/19/2017 43 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-44
SLIDE 44

► ASHDOD DESALINATION PLANT, ISRAEL, 2012 ► Contractor I.V.M. Minrav Sadyt, Spain ► Delivery of LLLD PE pipes and fittings OD2100, SDR26, 4984 m

Selected references

12/19/2017 44 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-45
SLIDE 45

► JORF LASFAR PHOSPHATE HUB (JPH), MOROCCO, 2012-2015 ► EPC project by SGTM, Morocco and Archirodon, Greece ► Project worth: multibillion $ in multiple stages ► Delivery of LLLD PE pipes and fittings OD1200-OD2100, SDR26&30, 24000+ m

in 5 tows. Marine and on land application.

Selected references

12/19/2017 45 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-46
SLIDE 46

► RAS DJINET, 1131 MW COMBINED CYCLE POWERPLANT, ALGERIA, 2014 ► EPC project by Daewoo E&C, Korea ► Project worth: 1.1 billion $ ► Delivery of LLLD PE pipes and fittings OD2500, SDR26&30, 4500+ m and

engineering assistance

Selected references

12/19/2017 46 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-47
SLIDE 47

► TAKORADI, 340 MW COMBINED CYCLE POWERPLANT, GHANA, 2014 ► EPC project by MITSUI, Japan and KEPCO, Korea ► Project worth: 260 million $ ► Delivery of LLLD PE pipes and fittings OD2500, SDR30, 8800+ m in 4 tows

Selected references

12/19/2017 47 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-48
SLIDE 48

► PUNTA DEL TIGRE, 530 MW COMBINED-CYCLE POWER PLANT,

URUGUAY, 2015

► EPC project by Hyundai E&C, Korea ► Project worth: 741 million $ ► Delivery of LLLD PE pipes and fittings OD2000, SDR30, 4000+ m and

engineering assistance

Selected references

12/19/2017 48 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-49
SLIDE 49

► MOSTAGANEM, 1450 MW COMBINED CYCLE POWERPLANT, ALGERIA,

2015-16

► EPC project by Samsung E&C, Korea ► Project worth: 1.37 billion $ ► Delivery of LLLD PE pipes and fittings OD2500, SDR26&30, 10000+ m in

three tows

Selected references

12/19/2017 49 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-50
SLIDE 50

Selected references - summary

12/19/2017 50

► In period 1995-2017, Pipelife has sucessfully delivered over 140 major

projects

► Delivered to over 40 countries around the world ► Installed up to 900 m depths ► Marine and on land installations ► Applications range from sewer outfalls, potable water pipelines, cooling

water intakes and discharges, industrial oufalls, fish farms, relining, cable protection

► Full reference list available online

Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-51
SLIDE 51

Index

Pipelife Group Pipelife Norway Long Length Large Diameter (LLLD) Concept Product range Factory and quality control Transport to site and installation Selected references Conclusion

12/19/2017 Long Length Large Diameter (LLLD) PE pipes for marine applications 51

slide-52
SLIDE 52

Unique advantages of LLLD concept

► Very little to no welding work on site - No risk of bad welds on site ► No risks of ovalisation ► No need for on-land storage place ► No need for local transport and manipulation with stored pipes ► No chance for negative environmental impacts ► Much lower risks for scratches and other damages on the pipes ► Short installation time, which means low installation cost ► Increased overall quality of the installed pipe system

12/19/2017 52 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-53
SLIDE 53

Unique advantages of Pipelife

► Higly experienced supplier ► Long reference list ► Possible to produce pipe with different SDR class without stopping

production

► Engineering support

12/19/2017 53 Long Length Large Diameter (LLLD) PE pipes for marine applications

slide-54
SLIDE 54

Long Length Large Diameter (LLLD) PE pipes for marine applications Thank you for your attention!

Ilija Radeljic MSc CE Technical Manager - LLLD Export ilija.radeljic@pipelife.com http://www.pipelife.no/no-en/pe-pipes-in-long-lengths-and-large-diameters-llld.php
