Marine Service - Pipes Riding Crews World Wide GRE Pipes Since July 2009 Scanunit AB has been nominated as FPIs, (Future Pipe Industries) representative in Sweden & Denmark. This nomination includes sales and installation of GRE

slide-1

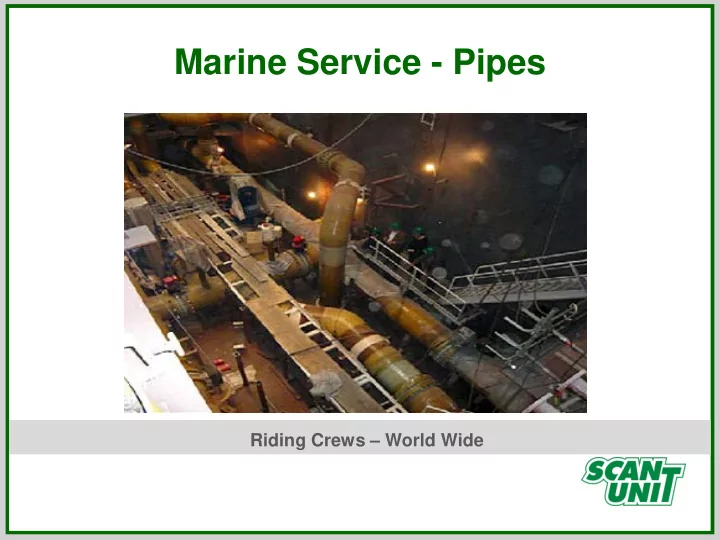

SLIDE 1

Riding Crews – World Wide

Marine Service - Pipes

slide-2
SLIDE 2

GRE Pipes

Since July 2009 Scanunit AB has been nominated as FPI’s, (Future Pipe Industries) representative in Sweden & Denmark. This nomination includes sales and installation of GRE Pipes. We currently have 15 certified installation engineers. Scanunit has installed over 2400 meters of Sea water cooling pipes on icebreakers ATLE and FREJ.

slide-3
SLIDE 3

GRE Pipes GRE Pipes - Scrubber

Scanunit has installed pipes for Scrubber unit on DFDS Tor Ficaria using GRE pipes.

slide-4
SLIDE 4

GRE Pipes GRE Pipes - Scrubber

Scanunit has installed pipes for Scrubber unit on DFDS Tor Ficaria using GRE pipes.

slide-5
SLIDE 5

BWT-systems – GRE vs steel/CUNI

  • GRE reduces installation time/cost due to the light weight
  • Chemically treated ballast water will increase corrosion
  • GRE lasts a ship´s life time
slide-6
SLIDE 6

GRE Pipes Marine Applications

  • Ballast water
  • Sea water cooling
  • Potable water
  • Fire fight
  • Gland & Flushing (Dredgers)
  • Navy ships
  • Black & Grey water
  • In-tank cargo lines
  • Ballast Water Treatment
  • Scrubber units
slide-7
SLIDE 7

GRE Pipes Advantages for Shipowners

  • GRE reduces through life cost
  • GRE is non corrosive
  • GRE weighs 25% of steel only (more cargo/passengers)
  • GRE is easy and cheaper to install than steel systems
  • GRE is non hazardous for environment and personnel
  • GRE is easy to repair
  • GRE has low maintenance costs
  • GRE reduces amount of hot work
slide-8
SLIDE 8

GRE Pipes Advantages for Shipyards

  • Due to light weight (25% of steel), prefabricated spools, easy & quick

installation significant time savings can be achieved. Cheaper installations than steel pipe systems.

  • Apposed to vinylester and polyester, working with GRE is not a risk for health

as it does not contain styrene.

slide-9
SLIDE 9

GRE Bulk head penetration

slide-10
SLIDE 10

Futurepipe Industries – Type approvals

FPI obtained type approvals of major classification societies:

  • ABS
  • Lloyd´s Register
  • Bureau Veritas
  • Germanische Lloyd
  • Det Norske Veritas
  • RINA
slide-11
SLIDE 11

+GF+ Pipes Applications

Sea and Fresh Water Cooling PE 100 Water Treatment (drinking water, waste water and swimming pools) PVC-C, PVC-U, PP-H, PE, ABS, PB Hot and Cold, Fresh Water INSTAFLEX (PB), iFIT AQUASYSTEM (PP-R)

slide-12
SLIDE 12

+GF+ Pipes Applications

Refrigeration Below 0° C ABS, PE 100 Grey and Black Water FUSEAL Sea Drain (PPFR), PVC, ABS Ballast Systems PE 100

slide-13
SLIDE 13

+GF+ Pipes Approvals

GF Piping Systems has a whole range of approvals from all the major classification societies.

slide-14
SLIDE 14

+GF+ Icebreaker Cold Water System

  • iFIT
slide-15
SLIDE 15

+GF+ Icebreaker vacuum system

  • Before replacement. Leaking pipes. Geberit.
slide-16
SLIDE 16

+GF+ Icebreaker vacuum system

  • After replacement. PE 100.
