Pattern Finding in Point & Interval Event Sequences Ben Shneiderman ben@cs.umd.edu @benbendc Founding Director (1983-2000), Human-Computer Interaction Lab Professor, Department of Computer Science Member, Institute for Advanced Computer

slide-1
SLIDE 1

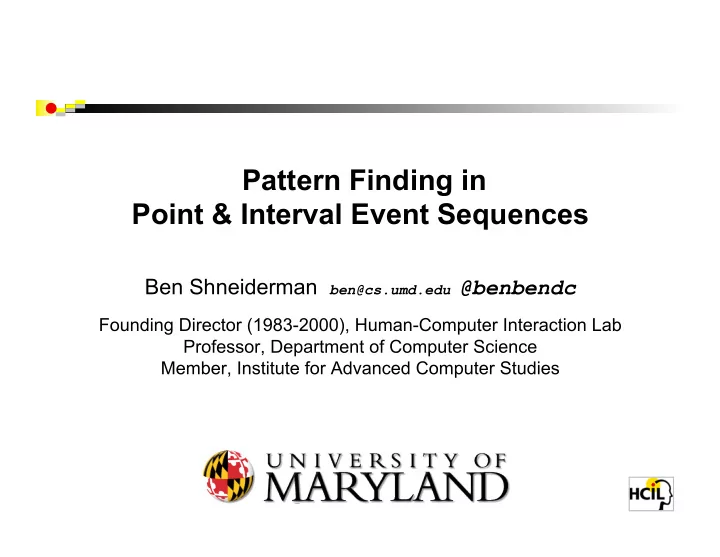

Pattern Finding in Point & Interval Event Sequences

Ben Shneiderman ben@cs.umd.edu @benbendc

Founding Director (1983-2000), Human-Computer Interaction Lab Professor, Department of Computer Science Member, Institute for Advanced Computer Studies

University of Maryland College Park, MD 20742

slide-2
SLIDE 2

Interdisciplinary research community

  • Computer Science & Info Studies
  • Psych, Socio, Poli Sci & MITH

(www.cs.umd.edu/hcil)

slide-3
SLIDE 3

Patient Histories: Our Research

www.cs.umd.edu/hcil/toolname Tool Event Types Records Display LifeLines Points, Intervals One Individual LifeLines2 Points Many Individual, Summary Similan Points Many Individual LifeFlow Points Many Individual, Aggregate EventFlow Points, Intervals Many Individual, Aggregate

slide-4
SLIDE 4

LifeLines: Patient Histories

www.cs.umd.edu/hcil/lifelines

slide-5
SLIDE 5

LifeLines2: Contrast+Creatine

www.cs.umd.edu/hcil/lifelines

slide-6
SLIDE 6

LifeLines2: Align-Rank-Filter & Summarize

www.cs.umd.edu/hcil/lifelines

slide-7
SLIDE 7

LifeLines2: Align-Rank-Filter & Summarize

www.cs.umd.edu/hcil/lifelines2

slide-8
SLIDE 8

Similan: Search

www.cs.umd.edu/hcil/similan

slide-9
SLIDE 9

LifeFlow: Aggregation Strategy

Temporal Categorical Data (4 records) LifeLines2 format Tree of Event Sequences LifeFlow Aggregation

www.cs.umd.edu/hcil/lifeflow

slide-10
SLIDE 10

LifeFlow: Interface with User Controls

slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16

EventFlow: Original Dataset

slide-17
SLIDE 17

LABA_ICSs Merged

slide-18
SLIDE 18

SABAs Merged

slide-19
SLIDE 19

Align by First LABA_ICS

slide-20
SLIDE 20

Reduce Window Size

slide-21
SLIDE 21

Overview + Details

slide-22
SLIDE 22

Current Directions

  • Motif Simplifications: Find & Replace
  • Query Features
  • Menus & Graphical Query
  • Absence for Points & Intervals
  • Flexible Temporal Patterns
  • Scalability
  • Event types, Events, Records, Query complexity
  • LP Algorithm
  • Long-term Case Studies
slide-23
SLIDE 23

30th Annual Symposium May 22-23, 2013

www.cs.umd.edu/hcil

@benbendc
