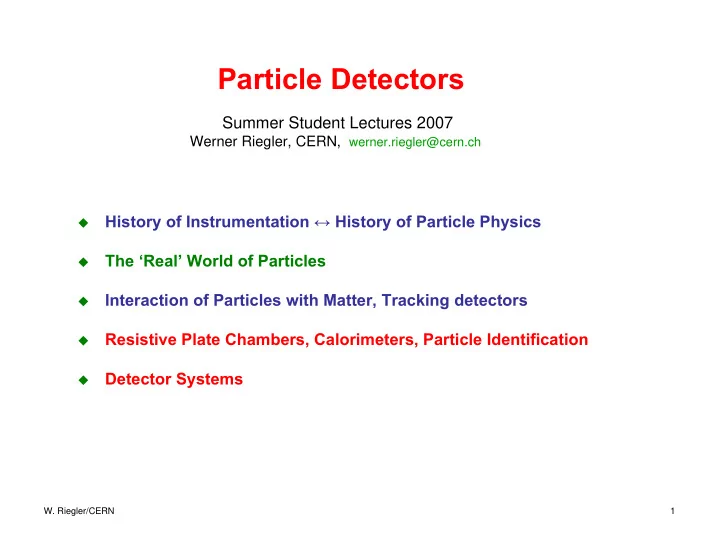

Particle Detectors Summer Student Lectures 2007 Werner Riegler, CERN, werner.riegler@cern.ch History of Instrumentation History of Particle Physics The Real World of Particles Interaction of Particles with Matter, Tracking

slide-1
SLIDE 1

Particle Detectors

  • History of Instrumentation ↔ History of Particle Physics
  • The ‘Real’ World of Particles
  • Interaction of Particles with Matter, Tracking detectors
  • Resistive Plate Chambers, Calorimeters, Particle Identification
  • Detector Systems

Summer Student Lectures 2007

Werner Riegler, CERN, werner.riegler@cern.ch

  • W. Riegler/CERN

1

slide-2
SLIDE 2
  • W. Riegler/CERN

2

Gas Detectors with internal Electron Multiplication

Parallel Plate Avalanche Chamber (PPAC) Resistive Plate Chamber

slide-3
SLIDE 3

Resistive Plate Chambers (RPCs)

Keuffel ‘Spark’ Counter:

High voltage between two metal plates. Charged particle leaves a trail of electrons and ions in the gap and causes a discharge (Spark). Excellent Time Resolution(<100ps). Discharged electrodes must be recharged Dead time of several ms.

Parallel Plate Avalanche Chambers (PPAC):

At more moderate electric fields the primary charges produce avalanches without forming a conducting channel between the electrodes. No Spark induced signal on the electrodes. Higher rate capability. However, the smalles imperfections on the metal surface cause sparcs and breakdown. Very small (few cm2) and unstable devices. In a wire chamber, the high electric field (100- 300kV/cm) that produces the avalanche exists

  • nly close to the wire. The fields on the cathode

planes area rather small 1-5kV/cm.

  • W. Riegler/CERN

3

slide-4
SLIDE 4

Resistive Plate Chambers (RPCs)

Place resistive plates in front of the metal electrodes.

No spark can develop because the resistivity together with the capacitance (tau ~ e*ρ) will only allow a very localized ‘discharge’. The rest of the entire surface stays completely unaffected. Large area detectors are possible ! Resistive plates from Bakelite (ρ = 1010-1012 Ωcm) or window glass (ρ = 1012-1013 Ωcm). Gas gap: 0.25-2mm. Elektric Fields 50-100kV/cm. Time resolutions: 50ps (100kV/cm), 1ns(50kV/cm) Application: Trigger Detectors, Time of Flight (TOF) Resistivity limits the rate capability: Time to remove avalanche charge from the surface of the resistive plate is (tau ~ e*ρ) = ms to s. Rate limit of kHz/cm2 for 1010 Ωcm.

  • W. Riegler/CERN

4

slide-5
SLIDE 5

130 mm active area 70 mm M5 nylon screw to hold fishing-line spacer honeycomb panel (10 mm thick) external glass plates 0.55 mm thick internal glass plates (0.4 mm thick) connection to bring cathode signal to central read-out PCB Honeycomb panel (10 mm thick) PCB with cathode pickup pads 5 gas gaps

  • f 250 micron

PCB with anode pickup pads Silicon sealing compound PCB with cathode pickup pads Flat cable connector Differential signal sent from strip to interface card Mylar film (250 micron thick)

Several gaps to increase efficiency. Stack of glass plates. Small gap for good time resolution: 0.25mm. Fishing lines as high precision spacers ! Large TOF systems with 50ps time resolution made from window glass and fishing lines ! Before RPCs Scintillators with very special photomultipliers – very

  • expensive. Very large systems are

unafordable.

ALICE TOF RPCs

  • W. Riegler/CERN

5

slide-6
SLIDE 6

Elektro-Magnetic Interaction of Charged Particles with Matter

1) Energy Loss by Excitation and Ionization 2) Energy Loss by Bremsstrahlung 3) Cherekov Radiation and 4) Transition Radiation are only minor contributions to the energy loss, they are however important effects for particle identification. Classical QM

  • W. Riegler/CERN

6

slide-7
SLIDE 7

A charged particle of mass M and charge q=Z1e is deflected by a nucleus of Charge Ze. Because of the acceleration the particle radiated EM waves energy loss. Coulomb-Scattering (Rutherford Scattering) describes the deflection

  • f the particle.

Maxwell’s Equations describe the radiated energy for a given momentum transfer. dE/dx

Bremsstrahlung, semi-classical:

  • W. Riegler/CERN

7

slide-8
SLIDE 8

Proportional to Z2/A of the Material. Proportional to Z1

4 of the incoming

particle. Proportional zu ρ of the particle. Proportional 1/M2 of the incoming particle. Proportional to the Energy of the Incoming particle E(x)=Exp(-x/X0) – ‘Radiation Length’ X0 ∝ M2A/ (ρ Z1

4 Z2)

X0: Distance where the Energy E0 of the incoming particle decreases E0Exp(-1)=0.37E0 .

  • W. Riegler/CERN

8

slide-9
SLIDE 9

Elektron Momentum 5 50 500 MeV/c

Critical Energy: If dE/dx (Ionization) = dE/dx (Bremsstrahlung) Myon in Copper: p ≈ 400GeV Electron in Copper: p ≈ 20MeV

  • W. Riegler/CERN

9

Critical Energy

For the muon, the second lightest particle after the electron, the critical energy is at 400GeV. The EM Bremsstrahlung is therefore only relevant for electrons at energies of past and present detectors.

slide-10
SLIDE 10

For Eγ>>mec2=0.5MeV : λ = 9/7X0 Average distance a high energy photon has to travel before it converts into an e+ e- pair is equal to 9/7 of the distance that a high energy electron has to travel before reducing it’s energy from E0 to E0*Exp(-1) by photon radiation.

  • W. Riegler/CERN

10

slide-11
SLIDE 11
  • W. Riegler/CERN

11

Electro-Magnetic Shower of High Energy Electrons and Photons

slide-12
SLIDE 12
  • W. Riegler/CERN

12

slide-13
SLIDE 13
  • W. Riegler/CERN

13

Electro-Magnetic Shower of High Energy Electrons and Photons

slide-14
SLIDE 14
  • W. Riegler/CERN

14

Calorimetry: Energy Measurement by total Absorption of Particles

slide-15
SLIDE 15
  • W. Riegler/CERN

15

Calorimetry: Energy Measurement by total Absorption of Particles

Liquid Nobel Gases (Nobel Liquids) Scintillating Crystals, Plastic Scintillators (sampling)

slide-16
SLIDE 16
  • W. Riegler/CERN

16

Crystals Noble Liquids

EM Calorimetry

slide-17
SLIDE 17
  • W. Riegler/CERN

17

EM Calorimetry

X0= 1.85cm ρ = 4.51 g/cm3 ρM = 3.5cm X0= 4.7cm ρ = 2.41 g/cm3 ρM = 5.5cm Direct CP violation experiments NA48, KTeV Excellent EM Calorimetry for π0 measurement.

slide-18
SLIDE 18
  • W. Riegler/CERN

18

Hadronic Showers

slide-19
SLIDE 19

Hadron Calorimeters

  • W. Riegler/CERN

19

slide-20
SLIDE 20
  • W. Riegler/CERN

20

Sampling Calorimeters

slide-21
SLIDE 21
  • W. Riegler/CERN

21

slide-22
SLIDE 22

Particle Identification

  • W. Riegler/CERN

22

slide-23
SLIDE 23

‘average’ energy loss Measured energy loss

In certain momentum ranges, particles can be identified by measuring the energy loss.

23

  • W. Riegler/CERN

dE/dx

slide-24
SLIDE 24

Time of Flight (TOF)

  • W. Riegler/CERN

24

NA49 combined particle ID: TOF + dE/dx (TPC)

slide-25
SLIDE 25

Cherenkov Radiation

  • W. Riegler/CERN

25

slide-26
SLIDE 26

Ring Imaging Cherenkov Detector

  • W. Riegler/CERN

26

slide-27
SLIDE 27
  • W. Riegler/CERN

27

LHCb RICH

slide-28
SLIDE 28

Transition Radiation

  • W. Riegler/CERN

28

slide-29
SLIDE 29
  • W. Riegler/CERN

29

Detector Systems, Selected Experiments

Thanks to Heinrich Schindler

ALICE: Heavy Ion Experiment at CERN Donut: Neutrino Experiment at Fermilab CNGS: Long Baseline Neutrino Experiment CERN/Gran Sasso Amanda: Neutrino Experiment at the Southpole AMS: Particle Physics Experiment in Space

slide-30
SLIDE 30
  • W. Riegler/CERN

30

ALICE

A heavy Ion Experiment at the LHC.

slide-31
SLIDE 31
  • W. Riegler/CERN

31

ALICE

slide-32
SLIDE 32
  • W. Riegler/CERN

32

0 1 2 3 4 5 p (GeV/c) 1 10 100 p (GeV/c) TPC (rel. rise) π /K/p TRD e /π PHOS γ /π0 TPC + ITS (dE/dx)

π/K π/K π/K K/p K/p K/p e /π e /π

HMPID (RICH) TOF

Alice uses ~ all known techniques!

π/K K/p

ALICE

slide-33
SLIDE 33

33

ALICE TPC

STAR STAR NA49 LHC: dNch/dy = 2000 - 4000

ALICE 'worst case' scenario: dNch/dy = 8000

slide-34
SLIDE 34

34

  • W. Riegler/CERN
slide-35
SLIDE 35
  • W. Riegler/CERN

35

AMANDA

Antarctic Muon And Neutrino Detector Array

slide-36
SLIDE 36

AMANDA

South Pole

36

  • W. Riegler/CERN
slide-37
SLIDE 37

AMANDA

37

  • W. Riegler/CERN
slide-38
SLIDE 38

AMANDA

Look for upwards going Muons from Neutrino Interactions. Cherekov Light propagating through the ice. Find neutrino point sources in the universe !

38

  • W. Riegler/CERN
slide-39
SLIDE 39

AMANDA

Up to now: No significant point sources but just neutrinos from cosmic ray interactions in the atmosphere were found . Ice Cube for more statistics ! Event Display

39

  • W. Riegler/CERN
slide-40
SLIDE 40
  • W. Riegler/CERN

40

DONUT

Detector for Observation of Tau Neutrino.

slide-41
SLIDE 41

DONUT

41

  • W. Riegler/CERN
slide-42
SLIDE 42

DONUT

42

  • W. Riegler/CERN
slide-43
SLIDE 43

DONUT

Tau lepton has very short lifetime and is therefore identified by the characteristic ‘kink’

  • n the decay point.

43

  • W. Riegler/CERN
slide-44
SLIDE 44

DONUT

One of the 4 tau candidates. Emulsion resolution 0.5um !

44

  • W. Riegler/CERN
slide-45
SLIDE 45
  • W. Riegler/CERN

45

CERN Neutrino Gran Sasso (CNGS)

slide-46
SLIDE 46
  • W. Riegler/CERN

46

νe ντ νμ

If neutrinos have mass:

CNGS

Muon neutrinos produced at CERN. See if tau neutrinos arrive in Italy.

slide-47
SLIDE 47
  • W. Riegler/CERN

47

CNGS Project

CNGS (CERN Neutrino Gran Sasso)

A long base-line neutrino beam facility (732km) send νμ beam produced at CERN detect ντ appearance in OPERA experiment at Gran Sasso

direct proof of νμ - ντ oscillation (appearance experiment)

slide-48
SLIDE 48
  • W. Riegler/CERN

48

CNGS

slide-49
SLIDE 49
  • W. Riegler/CERN

49

For 1 day of CNGS operation, we expect: protons on target 2 x 1017 pions / kaons at entrance to decay tunnel 3 x 1017 νμ in direction of Gran Sasso 1017 νμ in 100 m2 at Gran Sasso 3 x 1012

νμ events per day in OPERA

≈ 25 per day

ντ events (from oscillation)

≈ 2 per year

Neutrinos at CNGS: Some Numbers

slide-50
SLIDE 50
  • W. Riegler/CERN

50

CNGS Layout p + C → (interactions) → π+, K+ → (decay in flight) → μ+ + νμ

vacuum 800m 100m 1000m 67m 26m

slide-51
SLIDE 51
  • W. Riegler/CERN

51

CNGS

slide-52
SLIDE 52
  • W. Riegler/CERN

52

CNGS

slide-53
SLIDE 53
  • W. Riegler/CERN

53

  • E. Gschwendtner, CERN

typical size of a detector at Gran Sasso Flat top: 500m FWHM: 2800m

Radial Distribution of the νμ-Beam at GS

5 years CNGS operation, 1800 tons target:

  • 30000 neutrino interactions
  • ~150 ντ interactions
  • ~15 ντ identified
  • < 1 event of background
slide-54
SLIDE 54
  • W. Riegler/CERN

54

Lead plates: massive target Emulsions: micrometric precision 10.2 x 12.7 x 7.5 cm3 8.3kg brick Brick

Pb Couche de gélatine photographique 40 μm ν τ

1 mm

Basic unit: brick

56 Pb sheets + 56 photographic films (emulsion sheets)

Opera Experiment at Gran Sasso
