Parker Storm Retention Basin Welcome to the City of Winnipeg Parker Storm Retention Basin Public Information Session Please partjcipate today by: 1. Viewing the presentation boards for an update on the Cockburn & Calrossie Sewer Relief

slide-1
SLIDE 1

winnipeg.ca/parkersrb

Parker Storm Retention Basin

1. Viewing the presentation boards for an update

  • n the Cockburn & Calrossie Sewer Relief and

Parker Storm Retention Basin Project. 2. Asking questions and talking with the consultants and City of Winnipeg staff. 3. Providing feedback on an exit survey.

Please partjcipate today by:

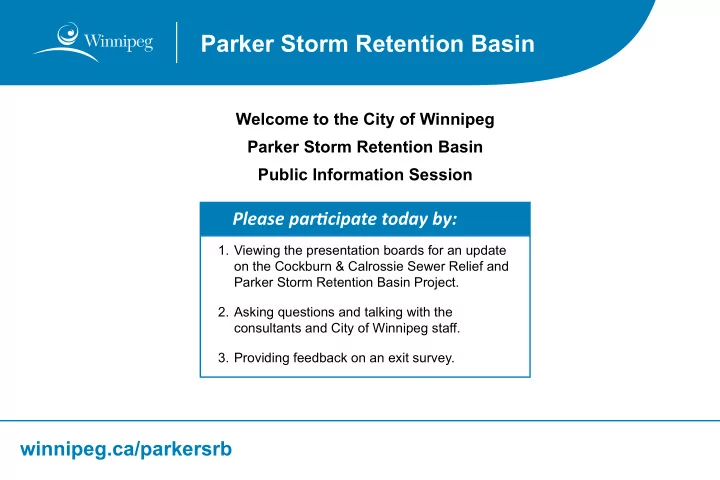

Welcome to the City of Winnipeg Parker Storm Retention Basin Public Information Session

slide-2
SLIDE 2

winnipeg.ca/parkersrb

Parker Storm Retention Basin

COCKBURN & CALROSSIE SEWER RELIEF PROJECT INTRODUCTION

  • In River Heights - Fort Garry, changes to the

Cockburn West & Calrossie sewer districts are required to reduce the impacts of combined sewers, namely basement fmooding and the release of diluted wastewater into local waterways due to combined sewer overfmows.

  • Project includes:
  • The complete sewer separation in several

areas including: Cockburn West, Calrossie and Southeast Jessie Sewer Districts.

  • The creation of the Parker Storm Retention

Basin (SRB).

2

Cockburn & Calrossie Sewer Relief Project Limits

EBBY WENTWORTH GRANT PARK PARKER BEAUMONT POINT ROAD

COCKBURN WEST DISTRICT SOUTHEAST JESSIE DISTRICT CALROSSIE DISTRICT SOMERSET DISTRICT Taylor Avenue Parker Avenue

Nathaniel St. S p a r l i n g A v e . H a r r

  • w

S t . W i l t

  • n

S t . Hector Ave.

Grant Avenue C N R a i l R O W W a v e r l e y S t r e e t Pembina Highway P e m b i n a H i g h w a y PROJECT LIMITS LEGEND SEWER DISTRICTS BOUNDARIES

slide-3
SLIDE 3

winnipeg.ca/parkersrb

Parker Storm Retention Basin

COMBINED SEWER SYSTEM

  • Combined sewers are a single system of pipes

that collect both wastewater from homes, businesses and industries as well as surface runoff from rainstorms and snow melt.

  • During 'Dry Weather Operation' all combined

fmows are treated at one of the City’s three treatment plants.

  • During 'Heavy Rain Operation' diluted sewage
  • verfmows to local waterways without treatment

to protect property, as intended.

3

COMBINED SEWER SYSTEM COMBINED SEWER SYSTEM

slide-4
SLIDE 4

winnipeg.ca/parkersrb

Parker Storm Retention Basin

SEPARATE SEWER SYSTEM

  • Separate sewer systems have two systems of

pipes:

  • One pipe system carries sewage /

wastewater to the wastewater treatment plant.

  • The second pipe system carries land

drainage and surface runoff from rainstorms and snow melt directly to the river.

  • Separate sewers eliminate the possibility of

sewage overfmow to the river system.

4

SEPARATE SEWER SYSTEM

slide-5
SLIDE 5

winnipeg.ca/parkersrb

Parker Storm Retention Basin

COCKBURN & CALROSSIE SEWER RELIEF PROJECT BENEFITS

Overall Benefjts of the Combined Sewer Separation Project include:

  • Reducing combined sewer overfmows from entering local waterways;
  • Lowering water treatment costs by preventing rain water and snow melt from going to the

treatment plant;

  • Minimizing the risk of property damage due to basement fmooding;
  • Helping the City of Winnipeg meet requirements of Environment Act Licence No. 3042

5

slide-6
SLIDE 6

winnipeg.ca/parkersrb

Parker Storm Retention Basin

6

Phase 1 (2014 - 2018)

  • Toilers Park Outfall (Completed 2014)
  • Underground LDS Pipe Installations

(Ongoing 2016 - 2017)

  • Parker SRB (2017-2018)

Phase 2 (Est. 2018)

  • Taylor Avenue Underground LDS

Pipe Installations Future Phases (2018 - 2025)

  • Various Underground LDS Pipe

Installations

COCKBURN & CALROSSIE SEWER RELIEF PROJECT PHASING

PROJECT PHASING

Taylor Avenue Parker Avenue

N a t h a n i e l S t . S p a r l i n g A v e . W i l t

  • n

S t . W e a t h e r d

  • n

A v e . H e c t

  • r

A v e .

Grant Avenue C N R a i l R O W PARKER LANDS S W R T W a v e r l e y S t r e e t Pembina Highway P e m b i n a H i g h w a y

H a r r

  • w

S t . W e n t w

  • r

t h S t .

C N R a i l R O W PARKER LANDS PARKER SRB

PHASE 1 PHASE 1

W a v e r l e y S t r e e t

slide-7
SLIDE 7

CONSTRUCTION ACCESS

winnipeg.ca/parkersrb

Parker Storm Retention Basin

PARKER STORM RETENTION BASIN (SRB) LOCATION

North

7

slide-8
SLIDE 8

winnipeg.ca/parkersrb

Parker Storm Retention Basin

HEATHERDALE AVE P R O P E R T Y L I N E F U T U R E M A N I T O B A H Y D R O R O W F U T U R E M A N I T O B A H Y D R O R O W FUTURE MANITOBA HYDRO ROW FUTURE MANITOBA HYDRO ROW FUTURE TRANSITWAY (BY OTHERS) PARKER SWRT STATION (BY OTHERS) FUTURE TRANSITWAY ACTIVE TRANSPORTATION (BY OTHERS) C N . R A I L R O W . PARKER AVE ROCKMAN ST. DEREK ST. DANIEL ST.

NEW PARKER SRB

N O R M A L W A T E R L E V E L OUTLET INTO SRB S R B I N T A K E

25 50 100m

North

2 5 Y E A R R A I N E V E N T 1 Y E A R R A I N E V E N T

NATIVE WETLAND SHORELINE PLANTING INFORMAL MOWN GRASS PATH AROUND SRB TOP OF SRB NATIVE UPLAND TALL AND MEDIUM GRASS PLANTING GRANULAR PARK PATH

  • ELM/ASPEN/OAK TREE

PLANTING

  • ROLLING LANDFORMS

BUTTERFLY HABITAT

  • NATIVE MILKWEED PLANTING
  • FLOWERING NATIVE PERENNIALS

SHADE CANOPY

  • BENCHES
  • INTERPRETIVE SIGNAGE

SHADE CANOPY

  • BENCHES
  • INTERPRETIVE SIGNAGE

PARK PATH CONNECTION

  • TO BEAUMONT

NEIGHBOURHOOD

  • THROUGH SWRT STATION

8

PARKER STORM RETENTION BASIN SITE PLAN

slide-9
SLIDE 9

PARKER STORM RETENTION BASIN BENEFITS

The storm retention basin will be a constructed wetland and will have numerous environmental benefjts:

  • Walking trails and shaded seating areas;
  • Improved water quality of surrounding waterways due to the fjltering out
  • f impurities and pollutants in stormwater;
  • The establishment of low maintenance native grasses can sequester

signifjcant amounts of atmospheric carbon (up to 15 times more compared to conventional sod);

  • The planting of native perennials, including milkweed will provide an

improved habitat for butterfmies and other pollinator species. The naturalized Parker SRB will result in no net loss of wetlands in the Parker Lands from the South West Rapid Transit and the Cockburn & Calrossie Sewer Relief projects combined, in accordance with environmental licensing requirements.

winnipeg.ca/parkersrb

Parker Storm Retention Basin

Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo

9

slide-10
SLIDE 10

Wetland Planting and Habitat

  • Wetlands and wetland vegetation slow the fmow of surface water and

improve water quality.

  • Wetland systems can fjlter pollutants and impurities (such as

phosphorus, nitrogen, pesticides and hydrocarbons) from the surface water, resulting in cleaner water being discharged into the rivers.

  • Wetlands (both natural and constructed) also provide important habitat

for many plants and animals.

  • Naturalized wetland layout may reduce nesting urban goose population

that is often associated with conventional storm water basins, while supporting a richer biodiversity.

PARKER STORM RETENTION BASIN FEATURES

winnipeg.ca/parkersrb

Parker Storm Retention Basin

Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo

10

slide-11
SLIDE 11

Native Upland Grass and Butterfmy Habitat

  • Upland grass species planted around the SRB will be native to the

region and well suited to the local climate and soils.

  • These plant species develop deep root systems that allow them to

withstand extended periods of drought and thrive without the input of fertilizer or irrigation.

  • Native perennials, including milkweed, will be planted to attract

butterfmies and other pollinator insects.

  • The habitat will attract pollinator insects, which are critical components
  • f healthy plant communities. Their abundance and diversity can be an

indicator of ecosystem health.

PARKER STORM RETENTION BASIN FEATURES

winnipeg.ca/parkersrb

Parker Storm Retention Basin

Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo PHOTO COURTESY OF: http://ereimer.net/20090713/15953_erC720.htm

11

slide-12
SLIDE 12

PHOTO COURTESY OF: http://www.fmeetwoodurban.com.au/inspiration Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo

PARKER STORM RETENTION BASIN FEATURES

winnipeg.ca/parkersrb

Parker Storm Retention Basin

FUTURE MANITOBA HYDRO ROW F U T U R E M A N I T O B A H Y D R O R O W FUTURE MANITOBA HYDRO ROW

NEW PARKER SRB GRANULAR PARK PATH

  • ELM/ASPEN/OAK TREE PLANTING
  • ROLLING LANDFORMS

BUTTERFLY HABITAT

  • NATIVE MILKWEED PLANTING
  • FLOWERING NATIVE PERENNIALS

SHADE CANOPY

  • BENCHES
  • INTERPRETIVE SIGNAGE

SHADE CANOPY

  • BENCHES
  • INTERPRETIVE SIGNAGE

PARK PATH CONNECTION

  • TO BEAUMONT NEIGHBOURHOOD
  • THROUGH SWRT STATION

North

25 50

N O R M A L W A T E R L E V E L

2 5 Y E A R R A I N E V E N T 1 Y E A R R A I N E V E N T T O P O F S R B

12

FREEBOARD 231.01

MILKWEED/ FLOWERING NATIVE PERENNIALS

TOP OF SLOPE PATH

5:1 6:1 4:1

UPLAND VEGETATION (TALL AND SHORT) TREES AND LOW NATIVE GRASS WETLAND ZONE

100 YEAR RAIN EVENT 230.11 25 YEAR RAIN EVENT 229.69 NORMAL WATER LEVEL 227.70 BOTTOM OF SRB 225.00

TYPICAL SRB SECTION WALKING PATHS SHADE CANOPIES AND SEATING

slide-13
SLIDE 13

SPRING / SUMMER 2018 FALL 2017 / SPRING 2018 SPRING 2017 2018 - 2020

REMOVAL OF EXISTING VEGETATION BASIN EXCAVATION WETLAND AND NATIVE VEGETATION ESTABLISHMENT (2 YEAR PROCESS) INSTALLATION OF PUBLIC AMENITIES (PATH, SHADE CANOPY AND SEATING)

HEAVY CONSTRUCTION TRAFFIC LIGHT CONSTRUCTION TRAFFIC LIGHT CONSTRUCTION TRAFFIC PERIODIC CONSTRUCTION TRAFFIC

PARKER STORM RETENTION BASIN CONSTRUCTION TIMELINE

winnipeg.ca/parkersrb

Parker Storm Retention Basin

13

slide-14
SLIDE 14

STORM RETENTION BASIN NATIVE PLANT DEVELOPMENT

YEAR 2 YEAR 3 YEAR 4+ YEAR 1

UPLAND SITE PREPARATION AND COVER CROP PLANTING SEEDING OF UPLAND NATIVE GRASSES UPLAND NATIVE GRASS ESTABLISHMENT REMOVAL OF EXISTING VEGETATION ON SRB SITE BASIN EXCAVATION INSTALLATION OF WETLAND PLANT MATERIAL WATER LEVEL MANIPULATION TO ENCOURAGE WETLAND PLANT ESTABLISHMENT ESTABLISHED WETLAND PLANT MATERIAL

Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo KGS Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo Scatliff+Miller+Murray Photo

winnipeg.ca/parkersrb

Parker Storm Retention Basin

14

slide-15
SLIDE 15

THANK YOU

Thank you for attending today's information session. Please complete an exit survey before you leave. For more information please visit: winnipeg.ca/parkersrb
