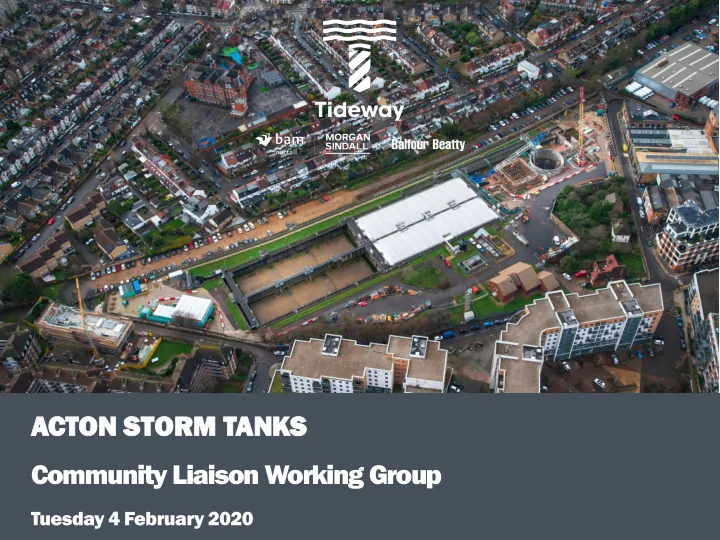

ACTO TON STORM TANKS Community Liaison Working Group Tuesday 4 - - PowerPoint PPT Presentation

ACTO TON STORM TANKS Community Liaison Working Group

Tuesday 4 February 2020

Acton Storm Tanks

Josh Roy, Section Manager

Tideway Overview

WEST

Tideway West

Acton Storm Tanks

Curren rent t ope peration ration at Acton ton Storm rm Tanks ks

Acton Storm Tanks

1 2 3 4

Stamford Brook Sewer fills up during storm Storm flows

• verflow

the weir Overflow channel directs flow to Tanks 3 & 4 Odour control system triggered by flows in

• verflow channel

Excess flows discharge to the River Thames Tanks 1 & 2 now fill only in scenarios where the river is at Tidelock

Curren rent t ope peration ration at Acton ton Storm rm Tanks ks

Acton Storm Tanks

1 2 3 4 Problem 29 discharges per year 312,000t sewage Solution Thames Tideway Tunnel No expected discharges

Curren rent t ope peration ration at Acton ton Storm rm Tanks ks

TWUL Network

To Beckton To the Thames

TWUL Network

Acton Storm Tanks What we are doing

Apr ’18 Nov ‘18 May ‘20 Aug ‘20 Remaining Drop Shaft lining and Civil works

Today

Acton Storm Tanks Timeline

Project Duration: BMB took possession of the site in November 2017. The project will take just over four years to complete.

June‘19 Nov ‘20 Feb ‘22 Year 1 Year 2 Year 3 Year 4 Apr ‘19 Sep ‘18

Acton Storm Tanks – Last 4 Months

Phased demolition below Overspill Channel Construction of Interception Chamber Construction of Air Treatment Chamber Construction below Overspill Channel

Acton Storm Tanks

September 2019 – Demolition below Overspill Channel

Acton Storm Tanks

October 2019 – Lower Chamber Wall Construction

Acton Storm Tanks

November 2019 – Upper Chamber Wall Construction

Acton Storm Tanks

December 2019 – Chamber Roof Construction

Acton Storm Tanks

January 2020 – Construction below Overspill Channel

Acton Storm Tanks – Next 3 Months

Completion of Interception and Inlet Chambers Installation of Ventilation Ducting & Backfill Construction of Bypass Damper Chamber Construction of Ventilation Column Substructure Demolition of Gallery Wall

Acton Storm Tanks – Drop Shaft Internals

Vortex drop tube and approach structure Internal baffle and weir walls Cover slab and pressure relief structure Mainline tunnel connection works

Landscaping

Majority of storm tanks area is hardstanding for operational access. Gabion wall structure to act as barrier to remaining storm retention area. Advance tree planting at Warple Way already in place. Soft landscaping to be implemented along northern Canham Road boundary including native wildflower meadow planting and native tree species including oak, cherry, hornbeam and birch.

Community Engagement Katie Ashton, Communications Manager

Community Engagement

• 2 x Information notices sent out since last meeting for:

➢ 1 x Christmas Shutdown ➢ 1 x Road Closure & Demolition Works

• 4 enquires received since last meeting:

➢ 2 x traffic and transport ➢ 1 x settlement deed ➢ 1 x site visit request All enquiries have been responded to within 24 hours (where possible)
