PANDA Fw Endcap EMC, status prototype Herbert Lhner, Henk Smit, - - PowerPoint PPT Presentation
PANDA Fw Endcap EMC, status prototype Herbert Lhner, Henk Smit, - - PowerPoint PPT Presentation

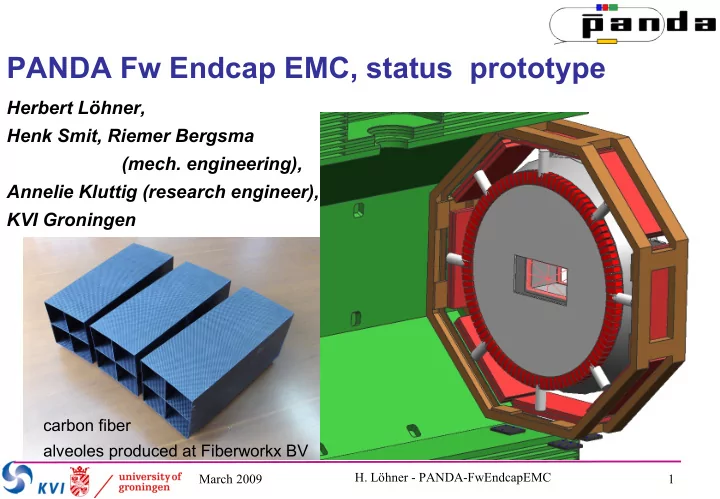

PANDA Fw Endcap EMC, status prototype Herbert Lhner, Henk Smit, Riemer Bergsma (mech. engineering), Annelie Kluttig (research engineer), KVI Groningen carbon fiber alveoles produced at Fiberworkx BV H. Lhner - PANDA-FwEndcapEMC March
SLIDE 2
SLIDE 3
March 2009
- H. Löhner - PANDA-FwEndcapEMC
3
alveole # NB003 sag progression after loading “crystals” from the back side
Proto NB003, back loaded and glued
0,01 0,02 0,03 0,04 0,05 0,06 21-1-2009 23-1-2009 25-1-2009 27-1-2009 29-1-2009 31-1-2009 2-2-2009 4-2-2009 6-2-2009 8-2-2009 10-2-2009 12-2-2009 14-2-2009 16-2-2009 18-2-2009
Date Displacement (mm)
Left dial guage Middle dial guage Right dial guage
displacement < 0.05 mm during 30 days
SLIDE 4
March 2009
- H. Löhner - PANDA-FwEndcapEMC
4
integration DIRC and FwEndcapEMC
light Al frame (540 kg) supported by solenoid, space for digitizing electronics: 16 times 0.4 m2 = in total 6.5 m2 inserts with
alignment crosses foreseen in central hole final decision needed: rectangular / elliptic hole?
SLIDE 5
March 2009
- H. Löhner - PANDA-FwEndcapEMC
5
simulation: displacement max. 0.64 mm
SLIDE 6
March 2009
- H. Löhner - PANDA-FwEndcapEMC
6
Assembly with alignment crosses
SLIDE 7
March 2009
- H. Löhner - PANDA-FwEndcapEMC
7
space for cables and supplies
SLIDE 8
March 2009
- H. Löhner - PANDA-FwEndcapEMC
8
stress and temperature sensors
SLIDE 9
March 2009
- H. Löhner - PANDA-FwEndcapEMC
9
Fiber Bragg Gratings (FBG)
- C. Doyle, Smart Fibres Ltd. 2003
maximum reflectivity occurs at Bragg wavelength λB with λB = 2 neff Λ
where neff = effective refractive index of mode of propagation in fiber, and Λ = FBG period
SLIDE 10
March 2009
- H. Löhner - PANDA-FwEndcapEMC
10
FBG interrogation techniques
time-division multiplexing: TDM
SLIDE 11
March 2009
- H. Löhner - PANDA-FwEndcapEMC
11
FBG measurement results
ELECTRONICS LETTERS 6th June 1996 Vol. 32 No. 12
SLIDE 12
March 2009
- H. Löhner - PANDA-FwEndcapEMC
12
temperature and strain sensitivity
temperature / strain applied to a Bragg Grating alters the wavelength of reflected light
SLIDE 13
March 2009
- H. Löhner - PANDA-FwEndcapEMC
13
fiber embedded in C-fiber composite
Magnified cross section of a laminated carbon fiber panel containing an embedded optical fiber sensor (125 µm diameter):
- ption to embed fiber in alveole composite:
avoid strain sensitivity?
SLIDE 14
March 2009
- H. Löhner - PANDA-FwEndcapEMC
14
(WDM)
SLIDE 15
March 2009
- H. Löhner - PANDA-FwEndcapEMC
15
SLIDE 16
March 2009
- H. Löhner - PANDA-FwEndcapEMC
16
SLIDE 17
March 2009
- H. Löhner - PANDA-FwEndcapEMC
17
SLIDE 18
March 2009
- H. Löhner - PANDA-FwEndcapEMC
18
(= 1.9 K absolute temp.)
SLIDE 19
March 2009
- H. Löhner - PANDA-FwEndcapEMC
19
