Open House State Highway 19 Improvements (Beginning 5 Miles East of US-81, Extending East 8.35 Miles to the Roaring Creek Bridge, Grady County) June 29, 2017 State Highway 19 Improvements Open House Purpose Purpose and need for SH-19

slide-1

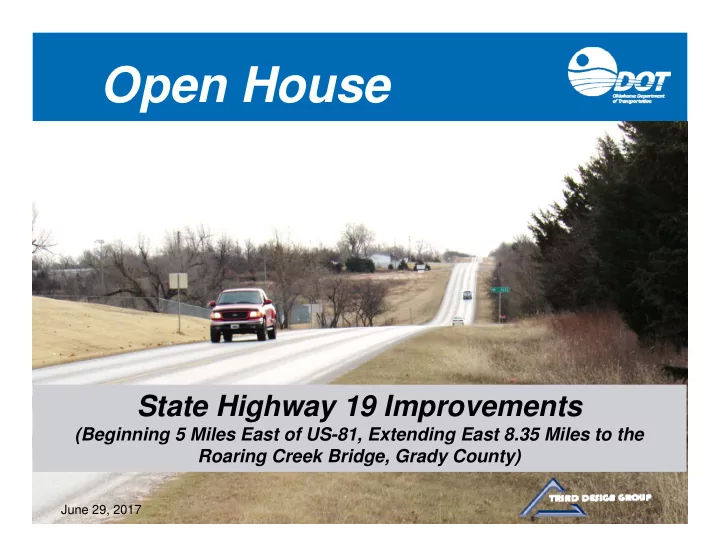

SLIDE 1

State Highway 19 Improvements

(Beginning 5 Miles East of US-81, Extending East 8.35 Miles to the Roaring Creek Bridge, Grady County)

June 29, 2017

Open House

slide-2
SLIDE 2
  • Purpose and need for SH-19 improvements
  • 3 alternatives considered for each segment
  • Preferred Alternative
  • Feedback and public input

State Highway 19 Improvements

Open House Purpose

slide-3
SLIDE 3
  • Two-lane facility with 12-ft. driving lanes
  • 1-ft. shoulder widths
  • Inadequate vertical alignment
  • Annual average daily traffic
  • Current (2017) =2,600 vehicles per day
  • Projected (2037) = 3,600 vehicles per day

State Highway 19 Improvements

Existing Facility

slide-4
SLIDE 4
  • Improve safety
  • 96 collisions recorded from 2006 through 2016
  • Collision rate for western half of the project is 1.5 times

the statewide rate for similar facilities

  • Provide a facility which meets current design standards
  • Correct sight distance due to substandard vertical alignment
  • Provide adequate shoulders and clear zone

State Highway 19 Improvements

Purpose and Need

slide-5
SLIDE 5

State Highway 19 Improvements

Project Extents

slide-6
SLIDE 6

State Highway 19 Improvements

Collisions, 2006 – 2016, West Half

slide-7
SLIDE 7

State Highway 19 Improvements

Collisions, 2006 – 2016, East Half

slide-8
SLIDE 8
  • SH-19 divided into 3 segments for study purposes:
  • Segment A: from 5 miles east of US-81 to Alex
  • Segment B: through Alex
  • Segment C: from Alex to Roaring Creek Bridge

State Highway 19 Improvements

Proposed Project

slide-9
SLIDE 9

State Highway 19 Improvements

Study Segments

slide-10
SLIDE 10
  • Correct the vertical alignment
  • Add shoulders
  • Establish clear zone
  • Add turn lanes to Cedar Hills Road intersection (Landfill)

and through Alex

State Highway 19 Improvements

Proposed Project

slide-11
SLIDE 11

State Highway 19 Improvements

Proposed Project – Typical Section

  • Two 12-Ft. Lanes
  • 8-Ft. Paved Shoulders
  • 8-Ft. Wide Ditches
  • 1:3 Backslopes
  • 1:6 Foreslopes
  • Establish Adequate Clear Zone (~28-Ft.)

Proposed Improvements

slide-12
SLIDE 12

Segment A – West of Alex

  • Alternative 1: Improvements on Existing Alignment
  • Alternative 2: North Offset
  • Alternative 3: South Offset

State Highway 19 Improvements

Segment A, Alternatives Considered

slide-13
SLIDE 13

Segment B – Thru Alex

  • Alternative 1: Curb and Gutter

(widen about centerline)

  • Alternative 2*: Open Section with 4-ft. Shoulders

(widen to south)

  • Alternative 3*: Open Section with 8-ft. Shoulders

(widen to south)

* No widening to north considered, due to area development

State Highway 19 Improvements

Segment B, Alternatives Considered

slide-14
SLIDE 14

State Highway 19 Improvements

Segment B, Alternative 1: Curb and Gutter

slide-15
SLIDE 15

State Highway 19 Improvements

Segment B, Alternative 2: Open Section with 4’ Shoulders

slide-16
SLIDE 16

State Highway 19 Improvements

Segment B, Alternative 3: Open Section with 8’ Shoulders

slide-17
SLIDE 17

Segment C – East of Alex

  • Alternative 1: Improvements on Existing Alignment
  • Alternative 2: North Offset
  • Alternative 3: South Offset

State Highway 19 Improvements

Segment C, Alternatives Considered

slide-18
SLIDE 18

Reconnaissance performed to identify constraints

  • Wetlands and waters
  • Threatened & endangered species critical habitat
  • Archeological sites and historic properties
  • Aboveground or underground storage tanks
  • Oil/gas wells
  • Residences
  • Commercial facilities
  • Utilities

State Highway 19 Improvements

Constraints Mapping

slide-19
SLIDE 19

State Highway 19 Improvements

Composite Constraints Map

slide-20
SLIDE 20

State Highway 19 Improvements

Segment A: Comparison of Alternatives

Comparison Parameters* Existing Alignment North Offset South Offset

Geometric Design Vertical Alignment 50 mph 65 mph 65 mph Environmental Impacts Wetlands Impacts (ac.) 0.47 0.55 0.48 Utility Relocation Utilities Relocation Impacts Low Medium High Right-of-Way Acquisition Potential Residential Relocations 1 2 Potential Commercial Properties Impacted 3 3 3 Southern Plains Landfill (ac.) 3.33 10.11 0.63 Total Project Cost** Estimated Construction Costs $23,008,800 $29,140,800 $28,560,000 Estimated Utility Costs $1,536,500 $2,000,600 $4,477,600 Estimated Right-of-Way Costs $880,900 $2,022,600 $1,285,800 Estimated Total Costs $25,425,900 $33,163,400 $34,323,400

*: All other parameters same for all alternatives. **: Does not include wetlands/waters mitigation costs.

Segment A: Comparison of Alternatives

slide-21
SLIDE 21

Alternative 1 – Improvements on Existing Alignment

  • Minimal improvements
  • Lower geometric standard (lower design speed)

Alternative 2 – North Offset

  • Good improvements
  • Lower offset alignment cost

Alternative 3 – South Offset

  • Good improvements
  • Most potential residential relocations
  • Highest cost

Segment A Preferred Alternative: Alt. 2, North Offset

State Highway 19 Improvements

Segment A: Preferred Alternative Selection

slide-22
SLIDE 22

State Highway 19 Improvements

Segment B: Comparison of Alternatives

Comparison Parameters* Curb and Gutter Open Section, 4’ Shoulders Open Section, 8’ Shoulders

Geometric Design Speed Limit 45 mph 50 mph 50 mph Environmental Impacts Wetlands Impacts (ac.) Utility Relocation Utilities Relocation Impacts Medium Low High Right-of-Way Acquisition Potential Residential Relocations 1 1 1 Potential Commercial Properties Impacted Total Project Cost** Estimated Construction Costs $2,167,400 $2,088,200 $2,456,600 Estimated Utility Costs $45,100 $40,600 $57,200 Estimated Right-of-Way Costs $294,000 $297,400 $298,800 Estimated Total Costs $2,506,500 $2,426,200 $2,812,600

*: All other parameters same for all alternatives. **: Does not include wetlands/waters mitigation costs.

Segment B: Comparison of Alternatives

slide-23
SLIDE 23

Alternative 1 – Curb and Gutter

  • Drainage issues (flooding outside lanes)
  • Safety concerns (proximity of curbs thru traffic)

Alternative 2 – Open Section, 4’ Shoulders

  • Lower Cost

Alternative 3 – Open Section, 8’ Shoulders

  • Higher Cost

Segment B Preferred Alternative: Alt. 2, Open Section, 4-ft. Shldrs

State Highway 19 Improvements

Segment B: Preferred Alternative Selection

slide-24
SLIDE 24

State Highway 19 Improvements

Segment C: Comparison of Alternatives

Comparison Parameters* Existing Alignment North Offset South Offset

Geometric Design Vertical Alignment 55 mph 65 mph 65 mph Environmental Impacts (Approximate) Wetlands Impacts (ac.) 0.19 0.04 0.27 Utility Relocation Utilities Relocation Impacts Low High Medium Right-of-Way Impacts Potential Residential Relocations 1 1 1 Potential Commercial Properties Impacted 2 2 2 Total Project Cost** Estimated Construction Costs $5,203,100 $6,304,700 $6,395,900 Estimated Utility Costs $285,100 $1,151,00 $727,700 Estimated Right-of-Way Costs $395,600 $191,200 $396,400 Estimated Total Costs $5,883,800 $7,646,900 $7,520,000

*: All other parameters same for all alternatives. **: Does not include wetlands/waters mitigation costs.

Segment C: Comparison of Alternatives

slide-25
SLIDE 25

Alternative 1 – Improvements on Existing Alignment

  • Moderate geometric improvements
  • Lowest cost

Alternative 2 – North Offset

  • Utility conflict
  • Highest cost

Alternative 3 – South Offset

  • High cost

Segment C Preferred Alternative:

  • Alt. 1, Improvements on Existing Alignment

State Highway 19 Improvements

Segment C: Preferred Alternative Selection

slide-26
SLIDE 26

Segment A: North Offset Segment B: Open Section, 4-Ft. Shoulders Segment C: Improvements on Existing Alignment

State Highway 19 Improvements

Preferred Alternative

slide-27
SLIDE 27
  • Consider comments from Open House
  • Finalize design report
  • Complete environmental studies and design plans

State Highway 19 Improvements

What Happens Next?

slide-28
SLIDE 28
  • Acquire right-of-way (year 2020)
  • Relocate utilities (year 2020)
  • Begin construction (year 2022 / 2023)

State Highway 19 Improvements

Roadway Improvement Process

slide-29
SLIDE 29
  • Leave your written comments with us tonight.
  • Download and submit a comment form at:

www.odot.org/publicmeetings

  • Submit your written comments by mail to:

Oklahoma Department of Transportation Environmental Programs Division 200 N. E. 21st Street Oklahoma City, OK 73105

  • Fax your written comments to:

(405) 522-5193

  • Email your comments to:

environment@odot.org

  • Please submit your comments by July 14, 2017.

State Highway 19 Improvements

Submit Your Comments

slide-30
SLIDE 30

State Highway 19 Improvements

Thank you! Thank you!
