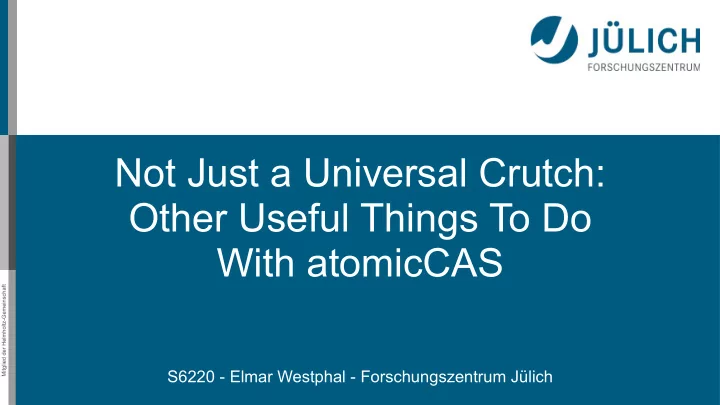

Not Just a Universal Crutch: Other Useful Things To Do With atomicCAS

S6220 - Elmar Westphal - Forschungszentrum Jülich

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

On atomicCAS

• From the CUDA C Programming Manual:



 “int atomicCAS(int* address, int compare, int val);
 …
 reads … old … located … in global or shared memory, computes



 (old == compare ? val : old)

 and stores the result back to memory at the same address. …
 The function returns old (Compare And Swap).”

“The Universal Crutch”

• According to said guide,


“any atomic operation can
 be implemented based on
 atomicCAS()”

• Example: double precision


atomicAdd

__device__ double atomicAdd(double* address, double val) { unsigned long long int* address_as_ull = (unsigned long long int*)address; unsigned long long int old = *address_as_ull, assumed; do { assumed = old;

• ld = atomicCAS(address_as_ull, assumed,

__double_as_longlong(val + __longlong_as_double(assumed))); } while (assumed != old); return __longlong_as_double(old); }

“The Universal Crutch”

• According to said guide,


“any atomic operation can
 be implemented based on
 atomicCAS()”

• Example: double precision


atomicAdd

__device__ double atomicAdd(double* address, double val) { unsigned long long int* address_as_ull = (unsigned long long int*)address; unsigned long long int old = *address_as_ull, assumed; do { assumed = old;

• ld = atomicCAS(address_as_ull, assumed,

__double_as_longlong(val + __longlong_as_double(assumed))); } while (assumed != old); return __longlong_as_double(old); }

“any atomic operation”, like that? Great, then we’re done here. Thank you for your time!

But wait! There is more!

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

Origin & Motivation

• Originally developed as part of building (partial) linked lists in

shared memory (see GTC 2012, S2036)

• original use became obsolete with Kepler’s faster atomics
• general idea became useful again with Maxwell’s native shared

atomics

Hashing using atomicCAS

• atomicCAS can be used to implement parallel hashing functions
• Works very efficiently in shared memory on Maxwell
• Building block for several useful counting and grouping operations
• Works best at warp- or block-level with Nkeys << Nthreads
• Hashing function chosen must fit data properties:
• Constantly strided keys may lead to repeated collisions

A New Building Block

How Does It Work?

• The loop maps the threads’ arbitrary keys to hash indices within the warp or block
• The hash index within a scope (warp/block) is then assigned to all threads with the same

key

• atomicCAS tries to claim the calculated hash index for its thread’s key (“my_key”)
• There are three possible outcomes for the return value of atomicCAS:
• 1. UNCLAIMED: this thread is the first to claim a hash index, success
• 2. Same key as my_key: hash index claimed by same key from different thread, success
• 3. Key different from my_key: hash index claimed by different key (hash collision), try again

with new hash index

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Iteration 1 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

(simple to show, but ineffective for data with stride of BLOCK_SIZE!)

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Iteration 1 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

(simple to show, but ineffective for data with stride of BLOCK_SIZE!)

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6 Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U

Iteration 1 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

(simple to show, but ineffective for data with stride of BLOCK_SIZE!)

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6 Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U

Iteration 1 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

(simple to show, but ineffective for data with stride of BLOCK_SIZE!)

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15

Iteration 2 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Iteration 2

Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Iteration 2

Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Hash

2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15

Iteration 2 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 3 7 2 8 7 9 7 14 11 15 5 3 4 7 6

Key from Slot

U 19 7 2 U 7 U U U U U U U U 7 U Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 U U 14 15 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Hash

2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15

Iteration 2 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15

Iteration 3 Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15 Hash 2 13 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Iteration 3

Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15 Hash 2 13 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Iteration 3

Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Example, 13 Unique Keys in 16 Threads

Slot 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U U U U U U U U U U U U U U U Key 2 3 7 2 8 7 9 7 14 11 15 21 19 20 23 22 Hash 2 8 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• 8
• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 U 14 15 Hash 2 13 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• Hash

2 13 7 2 8 7 9 7 14 11 15 5 3 4 12 6

Key from Slot

• U
• Slot

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Key U U 2 19 20 21 22 7 8 9 U 11 23 3 14 15

Iteration 3. Done. Hash function: (key+5*hash_iteration)%BLOCK_SIZE

assigned unassigned collision

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

Use Case 1: Counting Unique Keys

50 100 150 200 250 300 600 650 700 750 800 850 900 950

Kernel runtime for counting keys

10M keys, 1M unique keys, ordered by key with added noise from neighboring 3D cells

average number of keys per block (512 threads) kernel runtime GTX980 [µs]

Variation of Use Case 1: Counting Unique Keys Using More Hash Values

50 100 150 200 250 300 600 650 700 750 800 850 900 950

Kernel runtime for counting keys

10M keys, 1M unique keys, ordered by key with added noise from neighboring 3D cells

1 hash value per thread 2 hash values per thread average number of keys per block (512 threads) kernel runtime GTX980 [µs]

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

Use Case 2: Finding Peers in a Warp

See also: GTC15, S5151 - Voting and Shuffling… Calculates a bit mask with bits set for all threads in this warp sharing the same key

Variation of Use Case 2: UNCLAIMED is a valid key

50 100 150 200 250 300 500 1000 1500 2000 2500

Kernel runtime for finding peers in a warp

10M keys, 1M unique keys, ordered by key with added noise from neighboring 3D cells hash loop warp vote loop average number of unique keys per block (512 threads) kernel runtime GTX980 [µs]

50 100 150 200 250 300 500 1000 1500 2000 2500 3000 3500 4000

Kernel runtime for finding peers in a warp, different architectures

10M keys, 1M unique keys, ordered by key with added noise from neighboring 3D cells hash loop warp vote loop hash loop Kepler warp vote loop Kepler average number of unique keys per block (512 threads) kernel runtime GTX980/GTX690 [µs]

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

Conclusions

• atomicCAS based hashing loops are a versatile tool for counting

and grouping operations

• With proper hashing function, runtime is relatively independent of

number of unique data keys

• Benefits from Maxwell’s natively implemented shared atomics
• Downside: significant performance penalty on older cards

Thank you for your time!

Questions?

Overview

• atomicCAS and the “Universal Crutch”
• Parallel hashing on GPUs using atomicCAS
• Example 1: Counting unique keys in a block
• Example 2: Group by keys within a warp
• Conclusions
• Addendum: Sample source codes

Code example: count unique keys

template<int keys_per_thread=1,uint UNCLAIMED=0xffffffff> __global__ void count_keys_kernel2(uint *key, uint *n_keys, int n) { __shared__ uint hash[keys_per_thread*BLOCK_SIZE]; __shared__ uint found_unclaimed; #pragma unroll for(int i=0;i<keys_per_thread;++i) // initialise all hash values hash[BLOCK_SIZE*i+threadIdx.x]=UNCLAIMED; if (threadIdx.x==0) found_unclaimed=0; __syncthreads(); // all threads may access all elements, so we need to sync int i=GLOBAL_THREAD_INDEX; // use your own appropriate function if (i<n) { uint my_key=key[i]; // get actual data if (my_key==UNCLAIMED) { found_unclaimed=1; } else { uint hash_index=UNSET; uint old; do { hash_index=new_hash_index(my_key,hash_index,WITHIN_BLOCK*keys_per_thread);

• ld=atomicCAS(hash+hash_index,UNCLAIMED,my_key);

} while (old!=UNCLAIMED && old!=my_key); } } __syncthreads(); // sync to ensure all loops from all threads are finished int total_claimed=found_unclaimed; #pragma unroll for(int i=0;i<keys_per_thread;++i) total_claimed+=__syncthreads_count(hash[BLOCK_SIZE*i+threadIdx.x]!=UNCLAIMED); // count claimed if (threadIdx.x==0) // only one thread writes the result n_keys[GLOBAL_BLOCK_INDEX]=total_claimed; }

Code example: find warp peers

template<uint UNCLAIMED=0xffffffff> __global__ void get_warp_peers_shared(uint *key, uint *peers, int n) { int i=GLOBAL_THREAD_INDEX; // use your own appropriate function __shared__ int hash[BLOCK_SIZE]; hash[TX]=UNCLAIMED; // initialize hash, no sync necessary (access stays within warp) int lane=threadIdx.x%WARP_SIZE; int *hash_for_warp=&(hash[threadIdx.x-lane]); // saves lots of index calculations if (i<n) { uint my_key=key[i]; // get actual data uint my_peers; if (my_key==UNCLAIMED) // can be left out if UNCLAIMED is not a valid key my_peers=__ballot(my_key==UNCLAIMED); else { uint hash_index=UNSET; uint old; do { // look for hash unclaimed or claimed by same key hash_index=new_hash_index(my_key,hash_index,WITHIN_WARP);

• ld=atomicCAS(hash_for_warp+hash_index,UNCLAIMED,my_key);

} while (old!=UNCLAIMED && old!=my_key); hash_for_warp[hash_index]=0; // shared memory is sparse, recycle it! atomicOr(hash_for_warp+hash_index,1<<lane); // build peers for separate keys in different places my_peers=hash_for_warp[hash_index]; } peers[i]=my_peers; } }
