NODE.JS APPLICATIONS The Mystery of the Missing Stack Trace THE - - PowerPoint PPT Presentation

Oct 24, 2022 171 likes •995 views

BUILDING SCALABLE AND DEPENDABLE JAMUND FERGUSON NODE.JS APPLICATIONS The Mystery of the Missing Stack Trace THE MYSTERY OF THE MISSING STACK TRACE Error: Can't set headers after they are sent. at

slide-1

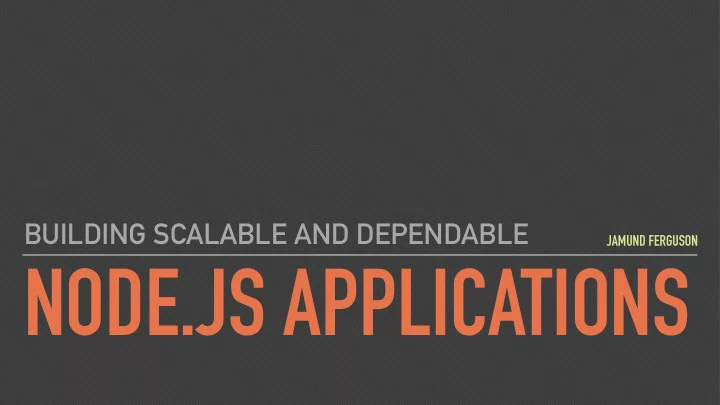

SLIDE 1

NODE.JS APPLICATIONS

BUILDING SCALABLE AND DEPENDABLE

JAMUND FERGUSON
slide-2
SLIDE 2

The Mystery of the Missing Stack Trace

🕶

slide-3
SLIDE 3 THE MYSTERY OF THE MISSING STACK TRACE Error: Can't set headers after they are sent. at ServerResponse.OutgoingMessage.setHeader (_http_outgoing.js:356:11) at ServerResponse.header (/web/mynodeapp/node_modules/express/lib/response.js:767:10) at ServerResponse.send (/web/mynodeapp/node_modules/express/lib/response.js:170:12) at ServerResponse.res.send (/web/mynodeapp/node_modules/pplogger/index.js:225:18) at done (/web/mynodeapp/node_modules/express/lib/response.js:1004:10) at Stub.callback (/web/mynodeapp/node_modules/adaro/lib/engine.js:137:22) at Stub.flush (/web/mynodeapp/pp/node_modules/dustjs-linkedin/lib/dust.js:513:10) at Chunk.end (/web/mynodeapp/node_modules/dustjs-linkedin/lib/dust.js:612:15) at /web/mynodeapp/node_modules/adaro/lib/patch/index.js:89:53 at /web/mynodeapp/node_modules/adaro/lib/reader/js.js:39:13 at /web/mynodeapp/node_modules/engine-munger/lib/munger.js:85:13 at /web/mynodeapp/node_modules/engine-munger/lib/cache.js:65:13 at /web/mynodeapp/node_modules/graceful-fs/graceful-fs.js:78:16 at /web/mynodeapp/node_modules/async-listener/glue.js:188:31 at FSReqWrap.readFileAfterClose [as oncomplete] (fs.js:380:3)
slide-4
SLIDE 4

😣

slide-5
SLIDE 5

We had no idea why or where our apps were failing

slide-6
SLIDE 6

WHAT CAN WE DO?

▸ Compare a diff between last known working code ▸ Look through other logs for more information (nginx logs, access logs, etc) ▸ Look at system metrics (is there a memory leak or CPU spike?) ▸ Add console.log statements somewhere??? ▸ Advanced debugging techniques (post-mortem debugging, heapdumps, etc.)

THE MYSTERY OF THE MISSING STACK TRACE
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9 DECRYPT RETURNS A PROMISE ADDUSER EXPECTS A STRING LOG EXPECTS A SMALL OBJECT OR A STRING
slide-10
SLIDE 10

💤

slide-11
SLIDE 11 THE MYSTERY OF THE MISSING STACK TRACE

LESSONS LEARNED

▸ We need better static analysis ▸ We need better debugging tools ▸ We need a consistent way to handle errors ▸ We need to better understand our logging & monitoring💤

slide-12
SLIDE 12

FLOWTYPE & ESLINT

STATIC ANALYSIS WITH

slide-13
SLIDE 13

TYPE CHECKING COULD HAVE CAUGHT THAT BUG WITH 2-LINES OF CODE

STATIC ANALYSIS
slide-14
SLIDE 14 STATIC ANALYSIS

PREVENTING BUGS WITH TYPES

slide-15
SLIDE 15 STATIC ANALYSIS

PREVENTING BUGS WITH TYPES

slide-16
SLIDE 16 STATIC ANALYSIS

FLOW WON’T LET THAT SLIDE

slide-17
SLIDE 17 STATIC ANALYSIS

WHY ADD TYPES TO YOUR JS?

▸ Prevents large % of bugs ▸ Helps surface architectural problems ▸ Both Flow and TypeScript are well maintained, high quality tools ▸ Both syntaxes are light-weight and easy to use ▸ Both allow for gradual adoption

slide-18
SLIDE 18
slide-19
SLIDE 19

🙌 🍪 🚬

slide-20
SLIDE 20

Type systems have a lot in common with linters

slide-21
SLIDE 21 Each JS File Parser (Acorn) Abstract Syntax Tree (AST) Rules Warning Success Errors Architecture of JavaScript Linter (ESLint)
slide-22
SLIDE 22

Linters can only think about one file at a time

slide-23
SLIDE 23 All Your JS Files Flow Types & Relationships Graph Architecture of JavaScript Type System (Flow) Single JS File Warning Success Errors Flow Graph
slide-24
SLIDE 24

COULD A LINTER HAVE HELPED US WITH OUR MYSTERY BUG?

slide-25
SLIDE 25 STATIC ANALYSIS
slide-26
SLIDE 26 STATIC ANALYSIS
slide-27
SLIDE 27 STATIC ANALYSIS

STATIC ANALYZERS AND FORMATTERS ARE PRETTY COOL

FlowType ESLint Prettier
slide-28
SLIDE 28

Unfortunately, we still get bugs from time to time

slide-29
SLIDE 29

INSPECTOR MODULE

DEBUGGING USING THE

slide-30
SLIDE 30 THE BUILT-IN INSPECTOR MODULE
slide-31
SLIDE 31
slide-32
SLIDE 32 THE BUILT-IN INSPECTOR MODULE

SETTING UP A DEBUG MODE

TURN IT ON TURN IT OFF

slide-33
SLIDE 33 THE BUILT-IN INSPECTOR MODULE
slide-34
SLIDE 34 THE BUILT-IN INSPECTOR MODULE Set Breakpoint
slide-35
SLIDE 35 THE BUILT-IN INSPECTOR MODULE PAUSE ON UNCAUGHT EXCEPTIONS
slide-36
SLIDE 36 THE BUILT-IN INSPECTOR MODULE PAUSE ON CAUGHT EXCEPTIONS
slide-37
SLIDE 37 THE BUILT-IN INSPECTOR MODULE
slide-38
SLIDE 38 THE BUILT-IN INSPECTOR MODULE
slide-39
SLIDE 39 THE BUILT-IN INSPECTOR MODULE
slide-40
SLIDE 40 THE BUILT-IN INSPECTOR MODULE
slide-41
SLIDE 41

Don’t try this in production


 STOP

slide-42
SLIDE 42 THE BUILT-IN INSPECTOR MODULE
slide-43
SLIDE 43 THE BUILT-IN INSPECTOR MODULE
slide-44
SLIDE 44 THE BUILT-IN INSPECTOR MODULE https://chromedevtools.github.io/devtools-protocol/
slide-45
SLIDE 45 THE BUILT-IN INSPECTOR MODULE Default Node Error Inspector Based Error
slide-46
SLIDE 46 DEBUGGING NODE.JS APPS

FIND A DEBUGGING APPROACH THAT WORKS FOR YOU AND YOUR TEAM

slide-47
SLIDE 47

ASYNC/AWAIT

ERROR HANDLING USING

slide-48
SLIDE 48 ERROR HANDLING WITH ASYNC/AWAIT
slide-49
SLIDE 49

Errors thrown inside async functions get converted into rejected Promises

💢

slide-50
SLIDE 50 ERROR HANDLING WITH ASYNC/AWAIT
slide-51
SLIDE 51

Async Middleware Pattern

slide-52
SLIDE 52 ERROR HANDLING WITH ASYNC/AWAIT T H I S I S P R E T T Y N I C E
slide-53
SLIDE 53 ERROR HANDLING WITH ASYNC/AWAIT B U T W E D O N ’ T A C T U A L LY C AT C H I T 💤 E R R O R S W I L L B U B B L E U P
slide-54
SLIDE 54 ERROR HANDLING WITH ASYNC/AWAIT

💦

slide-55
SLIDE 55 ERROR HANDLING WITH ASYNC/AWAIT PASS IN YOUR ASYNC MIDDLEWARE RETURN A STANDARD MIDDLEWARE FUNCTION CATCH ANY ERRORS PASS THOSE TO THE EXPRESS ERROR HANDLER EXECUTE THE ASYNC MIDDLEWARE APPLY AS NEEDED
slide-56
SLIDE 56 ERROR HANDLING WITH ASYNC/AWAIT

💦

slide-57
SLIDE 57

Make it easy for your engineers
 to do the right thing

slide-58
SLIDE 58 ERROR HANDLING WITH ASYNC/AWAIT
slide-59
SLIDE 59

Custom Error Classes

slide-60
SLIDE 60 CUSTOM ERRORS
slide-61
SLIDE 61 CUSTOM ERRORS
slide-62
SLIDE 62 CUSTOM ERRORS 1. 2. 3.
slide-63
SLIDE 63 CUSTOM ERRORS
slide-64
SLIDE 64 CUSTOM ERRORS
slide-65
SLIDE 65 CUSTOM ERRORS
slide-66
SLIDE 66 CUSTOM ERRORS

SUMMARY

▸ Don’t use object literals or strings for errors (missing stack trace) ▸ Use the Error built-in object ▸ Subclass Error to add statusCodes or to convert error codes into user-

friendly error messages for localization, etc

▸ We basically have one error class per micro-service to handle parsing the

errors out of the response….

slide-67
SLIDE 67

The Mystery of the Client-Side Errors

slide-68
SLIDE 68 THE MYSTERY OF THE CLIENT-SIDE ERRORS

CLIENT-SIDE MONITORING

BUTTON DOESN’T WORK REAL ISSUE USUALLY IN DEV TOOLS
slide-69
SLIDE 69 THE MYSTERY OF THE CLIENT-SIDE ERRORS

CLIENT-SIDE MONITORING

window.onerror = function (msg, url, line, col, error) {
 // 1. clean up the data
 // 2. log to server w/AJAX or sendBeacon() API
 }
slide-70
SLIDE 70 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE NOTICED A SPIKE DURING DEPLOY

slide-71
SLIDE 71 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE CONGRATULATED OURSELVES…THEN ACTUALLY LOOKED INTO THE BUG

🏇 😯

slide-72
SLIDE 72 THE MYSTERY OF THE CLIENT-SIDE ERRORS
slide-73
SLIDE 73 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE HAVE A LOT OF SERVERS

slide-74
SLIDE 74 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE HAVE A LOT OF SERVERS

slide-75
SLIDE 75 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE HAVE A LOT OF SERVERS

slide-76
SLIDE 76 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE HAVE A LOT OF SERVERS

slide-77
SLIDE 77 THE MYSTERY OF THE CLIENT-SIDE ERRORS

WE HAVE A LOT OF SERVERS

slide-78
SLIDE 78 THE MYSTERY OF THE CLIENT-SIDE ERRORS UI Code Server code A B
slide-79
SLIDE 79 THE MYSTERY OF THE CLIENT-SIDE ERRORS

ROLLING BACK MADE THINGS WORSE

slide-80
SLIDE 80 THE MYSTERY OF THE CLIENT-SIDE ERRORS

LESSONS LEARNED

▸ UI is a huge monitoring blind-spot ▸ Be aware of how the deploy process affects users ▸ Try to make your code changes backwards compatible ▸ Consider separating UI and server deploys

slide-81
SLIDE 81 BUILDING SCALABLE AND DEPENDABLE NODE.JS APPLICATIONS

▸Use static analysis (including types) to catch bugs early ▸Have a plan for debugging apps in production ▸Adopt a consistent approach to error handling ▸Know how to access all of your logs ▸Don’t forget to monitor client-side errors

slide-82
SLIDE 82

THE END
