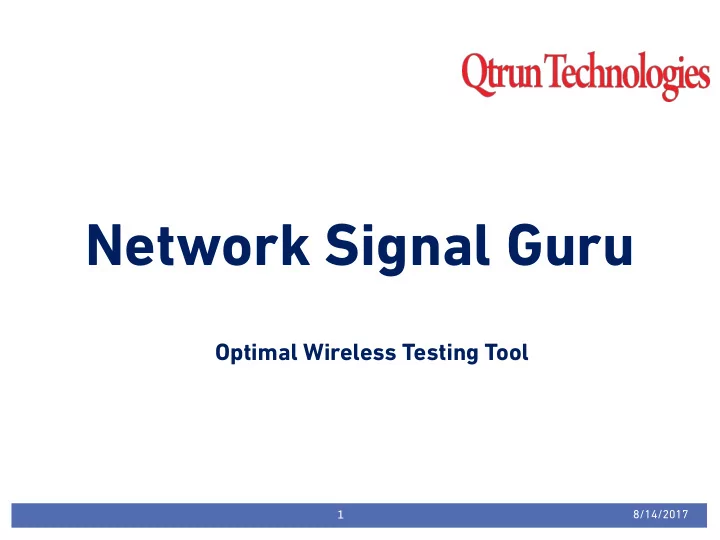

Optimal Wireless Testing Tool

Network Signal Guru

About Qtrun Technologies

 QTRUN Technologies, Founded in 2014 and

headquartered in Beijing, China, offers a solution for end-to-end quality of service (QoS) and quality of experience (QoE) benchmarking, optimization, and service monitoring as well as for data management analysis and reporting.

 For over ten years, NSG team has played a key role in

the mobile telecom market, and as an active player in the field of Mobile Network Testing.

8/14/2017 2

About Network Signal Guru

 Network Signal Guru (NSG) is a multi-functional Android OS based tool

for voice and data service quality troubleshooting, RF optimization and engineering field work.

 It supports all wireless network technologies worldwide, and covers

multiple mobile layers as well as data stack in real-time.

 NSG provides extensive test functions for latest technologies such as:

GSM, GPRS, EDGE, UMTS, HSDPA, HSUPA, CDMA2000, EVDO, LTE(FDD & TDD, LTE-A).

 NSG integrates full recording and decoding of protocol layers on the

supported technologies(3GPP, Layer2, Layer3 and SIP) and direct decoding of Layer 3 signaling and data protocol packets on cell phones.

8/14/2017 3

NSG main features

 Ultra-portable tool with commercial Qualcomm

Phone

 Full Technologies supports

 LTE (FDD and TDD), LTE-Advanced Technologies  WCDMA/HSPA/HSPA+  GSM/GPRS/EGPRS  TD-SCDMA (including interactions with LTE and GSM)  EV-DO Rev. B/EV-DO Rev. A/EV-DO Rel. 0/ cdma2000/ cdmaOne

8/14/2017 4

LTE Features

 LTE Configurations

8/14/2017 5

 LTE CA Matrix

LTE Features

 MIMO supports

8/14/2017 6

 Dedicated Mode

IMS and VoLTE

 EUTRA Session

8/14/2017 7

 VoLTE

WCDMA

 WCDMA

8/14/2017 8

HSPA

8/14/2017 9

GSM

8/14/2017 10

CDMA

8/14/2017 11

CDMA 1xEV

8/14/2017 12

TD-SCDMA

8/14/2017 13

Full Message and Decodings

8/14/2017 14

Forcing Features

 Band locking(LTE, WCDMA, GSM)

8/14/2017 15

Forcing Controls

 Cell locking

8/14/2017 16

Mapping and Graphing

8/14/2017 17

Cells and Mapping

8/14/2017 18

In-Building Test

8/14/2017 19

 Two Optional Test

mode: predefined and real-time.

 Zoom tools is built

in Indoor testing mode.

 Optimal in-building

testing solution

Testing Scripts

 The following

services and tasks are supported by the script function:

 Voice Originate  Voice Terminate  FTP Download  FTP Upload  HTTP Get  HTTP Post

8/14/2017 20

Extensive Handsets

 Wide range of commercial handsets(Samsung, LG,

Sony, Xiaomi, Google, Lenovo and etc)

 Extensive qualcomm snapdragon processors

200/400/600/800 series;

 Newly Qualcomm 835 supports, Sony XZP, OnePlus 5,

Xiaomi 6, Samsung Galaxy S8 G9500, HTC U11and etc

 Extensive ROM supports, CM, AOSP, Google, Xiaomi or

some other 3rd party ROMs

 Android Root access needed(*)

8/14/2017 21

Easy to Access

 So far, NSG provides an easiest way to access. Which

can be downloaded from app stores, such as google play or China app servers.

 User can access free features with NSG, such as cell

table, simple map, band locking and some simple features.

 Wide range of users, unlike some other testing apps,

NSG is accepted by not only operators, and vendors, but also training center, security researchers, college students.

8/14/2017 22

Other features

 Replay recoding files in android terminals  Exporting log files to post processing

software

 Google pay to purchase advanced

features

 Low cost of worldwide deliveries  Advanced mapping  Cell database importing

8/14/2017 23

Still to Come

 More control functions  More analysis with terminals

8/14/2017 24

Contact us

 info@qtrun.com  Or our local representatives

8/14/2017 25
