Waveform Generation Fundamental part of signal processing is the signal. Within the context of hardware implementations of signal processing this signal may arise from: A local waverform/signal generator. Continuous stream from a

slide-1
SLIDE 1

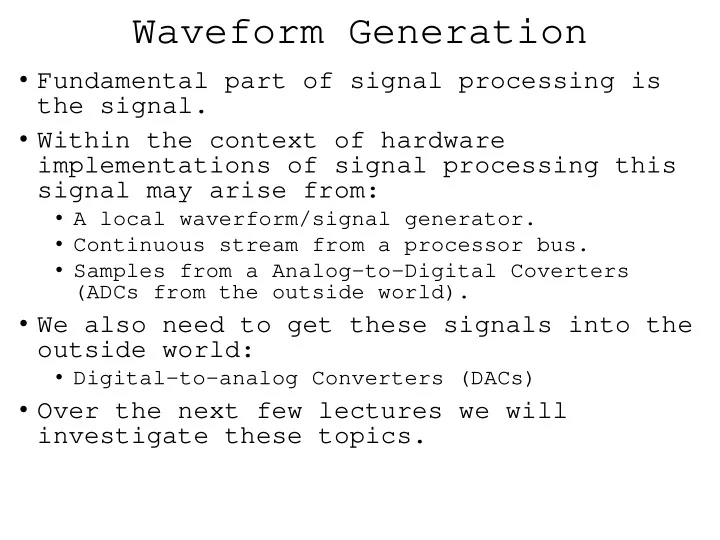

Waveform Generation

  • Fundamental part of signal processing is

the signal.

  • Within the context of hardware

implementations of signal processing this signal may arise from:

  • A local waverform/signal generator.
  • Continuous stream from a processor bus.
  • Samples from a Analog-to-Digital Coverters

(ADCs from the outside world).

  • We also need to get these signals into the
  • utside world:
  • Digital-to-analog Converters (DACs)
  • Over the next few lectures we will

investigate these topics.

slide-2
SLIDE 2

Waveform Generation

  • Some common types of waveform signal

generators:

  • Ramp Generator.
  • Arbitrary Waveform Generator (AWG)
  • Period Signal Generator - Pulse Train
  • Sinusoidal Signals- Direct Digital

Synthesizer (DDS)

  • (Pseudo) Random Number Generator (RNG)
  • Communication signals & Modulation
slide-3
SLIDE 3

Time Base

  • Common to all these types of signals

and waveform generators we need some type of time base (sample base) “n”, which will consist of:

  • Sample duration (Δt = 1/fSMP)
  • Used to relate the signal to the outside world.
  • Sample count (n)
  • The sample base itself.
  • Count Limit (N)
  • Since hardware numbers are confined to a finite

width.

slide-4
SLIDE 4

Implementation

  • A sample base can be implemented with a

simple counter.

N-1 1 z-1 = n n_next wrap sum module counter #( parameter WIDTH = W, parameter LIMIT = N) ( input wire clock,

  • utput reg

[WIDTH-1:0] n = 0,

  • utput wire wrap);

wire [WIDTH-1:0] n_next; wire [WIDTH-1:0] sum; assign wrap = (n == (LIMIT-1)); assign sum = n + 1; assign n_next = wrap ? 0 : sum; always@(posedge clock) n <= n_next; endmodule z-1 1 The “clock” is not explicitly shown in the block diagram? Where is it?

slide-5
SLIDE 5

Simulation

`timescale 1ns/1ps module ex1_tb; localparam WIDTH=8; localparam N=24; reg clock; wire [WIDTH-1:0] n; wire wrap; counter #( .WIDTH(WIDTH), .LIMIT(N)) dut ( .clock(clock), .n(n), .wrap(wrap)); always begin clock <= 1'b0; #5; clock <= 1'b1; #5; end endmodule Not only do we have a sample base to generate other waveforms, we also have a signal – ramp.

slide-6
SLIDE 6

Configurable Logic Block

slide-7
SLIDE 7

Implementation

  • A slight modification.

N-1 1 z-1 = n n_next wrap sum module counter #( parameter WIDTH = W, parameter LIMIT = N) ( input wire clock, input wire reset, input wire enable,

  • utput reg

[WIDTH-1:0] n = 0,

  • utput wire wrap);

wire [WIDTH-1:0] n_next; wire [WIDTH-1:0] sum; assign wrap = (n == (LIMIT-1)); assign sum = n + 1; assign n_next = wrap ? 0 : sum; always@(posedge clock) begin if (reset) n <= 0; else if (enable) n <= n_next; end endmodule z-1 1

  • The “clock” is not explicitly shown

in the block diagram?

  • Where is it?
  • Similar for reset & enable.
  • These already exist in the hardware.
  • Just need to hook them up.

clock reset enable

slide-8
SLIDE 8

Simulation

... wire [2:0] n0; wire [4:0] n1; wire wrap0; wire wrap1; counter #( .WIDTH(3), .LIMIT(6)) dut0 ( .clock(clock), .reset(1’b0), .enable(1’b1), .n(n0), .wrap(wrap0)); counter #( .WIDTH(5), .LIMIT(24)) dut1 ( .clock(clock), .reset(1’b0), .enable(wrap0); .n(n1), .wrap(wrap1)); ... time expansion for n1; What about time compression;

slide-9
SLIDE 9

Implementation

  • A slight modification.

LIMIT-STEP 1 z-1 >= n n_next wrap sum module counter #( parameter WIDTH = W, parameter LIMIT = N, parameter STEP = D) ( input wire clock, input wire reset, input wire enable,

  • utput reg

[WIDTH-1:0] n = 0,

  • utput wire wrap);

wire [WIDTH-1:0] n_next; wire [WIDTH-1:0] sum; wire [WIDTH-1:0] diff; assign wrap = (n >= (LIMIT-STEP)); assign sum = n + STEP; assign diff = n-(LIMIT-STEP); assign n_next = wrap ? diff : sum; always@(posedge clock) begin if (reset) n <= 0; else if (enable) n <= n_next; end endmodule z-1 STEP clock reset enable

  • subtraction

diff

slide-10
SLIDE 10

Simulation

... wire [7:0] n0; wire wrap0; counter #( .WIDTH(8), .LIMIT(32), .STEP(4)) dut0 ( .clock(clock), .reset(1’b0), .enable(1’b1), .n(n0), .wrap(wrap0)); ... Count by 4’s. What about fractional?

slide-11
SLIDE 11

Simulation

... wire [2:0] n0; wire [4:0] n1; wire wrap0; wire wrap1; counter #( .WIDTH(3), .LIMIT(5), .STEP(3)) dut0 ( .clock(clock), .reset(1’b0), .enable(1’b1), .n(n0), .wrap(wrap0)); counter #( .WIDTH(5), .LIMIT(24), .STEP(1)) dut1 ( .clock(clock), .reset(1’b0), .enable(wrap0); .n(n1), .wrap(wrap1)); ... wrap0 is high 3/5th of the time.

slide-12
SLIDE 12

Pulse Train

Counter n wrap LIMIT(200) STEP(1) clock reset enable < WIDTH DUTY CYCLE = WIDTH/LIMIT *not* Clock, reset, enable are assumed to be connected to a clock, reset=0, enable=1.

slide-13
SLIDE 13

The Arbitrary Waveform Generator

Counter n wrap LIMIT(DEPTH) STEP(1) clock reset enable Memory Addr Data DEPTH() WIDTH() ROM_FILENAME() clock reset enable address

slide-14
SLIDE 14

Verilog Memory

  • Verilog memory can be inferred from the

register array definition.

module waveform_rom #( parameter DATA_WIDTH = XX, parameter ROM_DEPTH = XX, parameter ADDR_WIDTH = XX, parameter ROM_FILENAME = “wave.mem”) ( input wire clock, input wire reset, input wire enable, input wire [ADDR_WIDTH-1:0] addr,

  • utput reg

[DATA_WIDTH-1:0] do = 0); reg [DATA_WIDTH-1:0] rom [ROM_DEPTH-1:0]; initial $readmemh(ROM_FILENAME,rom); always@(posedge clock) begin if (reset) do <= 0; else if (enable) do <= rom[addr]; end endmodule If the rom register variable is used incorrectly, the build tools may not be able to make use of the BLOCK RAM available within the PL.

slide-15
SLIDE 15

Simulation

... counter #( .WIDTH(12), .LIMIT(4096), .STEP(1)) dut0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .n(addr), .wrap(wrap0)); waveform_rom #( .DATA_WIDTH(12), .ROM_DEPTH(4096), .ADDR_WIDTH(12)) wfm0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .addr(addr), .do(do)); always begin clock <= 1'b0; #5; clock <= 1'b1; #5; end ...

slide-16
SLIDE 16

The Arbitrary Waveform Generator

Counter n wrap LIMIT(DEPTH) STEP(1) clock reset enable Memory Addr Data DEPTH() WIDTH() ROM_FILENAME() clock reset enable Stop after one pulse, Trigger to initiate. Trigger address

slide-17
SLIDE 17

The Arbitrary Waveform Generator

Trigger Counter n wrap LIMIT(DEPTH) STEP(S) clock reset enable Memory Addr Data DEPTH() WIDTH() ROM_FILENAME() clock reset enable Counter n wrap LIMIT(L) STEP(1) clock reset enable

  • Stop after one pulse, Trigger to initiate.
  • Time Scale of S/L.
  • For a specific ratio it typically is best

to find the lowest denominator.

  • For example S/L of 2/3 is better than 4/6.

rate address

slide-18
SLIDE 18

The Arbitrary Waveform Generator

Trigger Counter n wrap LIMIT(DEPTH) STEP(S) clock reset enable Memory Addr Data DEPTH() WIDTH() ROM_FILENAME() clock reset enable Counter n wrap LIMIT(L) STEP(1) clock reset enable

slide-19
SLIDE 19

... counter #( .WIDTH(12), .LIMIT(4096), .STEP(1)) dut0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .n(addr), .wrap(wrap0)); waveform_rom #( .DATA_WIDTH(12), .ROM_DEPTH(4096), .ADDR_WIDTH(12)) wfm0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .addr(addr), .do(do)); always begin clock <= 1'b0; #5; clock <= 1'b1; #5; end ...

Back a few slides

  • What if the waveform is one cycle of a

sinusoid?

slide-20
SLIDE 20

... counter #( .WIDTH(12), .LIMIT(4096), .STEP(1)) dut0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .n(addr), .wrap(wrap0)); waveform_rom #( .DATA_WIDTH(12), .ROM_DEPTH(4096), .ADDR_WIDTH(12)) wfm0 ( .clock(clock), .reset(1'b0), .enable(1'b1), .addr(addr), .do(do)); always begin clock <= 1'b0; #5; clock <= 1'b1; #5; end ...

Back a few slides

  • What if the waveform is one cycle of a

sinusoid?

Direct Digital Synthesizer (DDS)

slide-21
SLIDE 21

DDS

  • Clock frequency is 100MHz
  • ROM Depth is 64 and contains 1 cycle.
  • What is the signal frequency.
  • Period =
  • Frequency = 1/Period =
slide-22
SLIDE 22

DDS

Counter n wrap LIMIT(D) STEP(S) clock reset enable Memory Addr Data “single cycle” DEPTH(D) WIDTH() ROM_FILENAME() clock reset enable Counter n wrap LIMIT(L) STEP(1) clock reset enable Variables

  • F: Clock frequency
  • D: number of points in the sine single cycle rom file.
  • S: step size of address counter
  • L: limit of the rate counter

Frequency Fout = address rate

slide-23
SLIDE 23

DDS

Memory Addr Data “single cycle” DEPTH(D) WIDTH() ROM_FILENAME() clock reset enable Variables

  • F: Clock frequency
  • D: number of points in the sine single cycle rom file.
  • S: step size of address counter
  • L: limit of the rate counter

Frequency Fout = (F/D)*(S/L) address rate Counter limit n step wrap WIDTH() clock reset enable Counter limit n step wrap WIDTH() clock reset enable 1 D L S

slide-24
SLIDE 24

DDS

Memory Addr Data “single cycle” DEPTH(D) WIDTH() ROM_FILENAME() clock reset enable What does this do? address rate Counter limit n step wrap WIDTH() clock reset enable Counter limit n step wrap WIDTH() clock reset enable 1 D L Counter limit n step wrap WIDTH() clock reset enable K D

slide-25
SLIDE 25

The Rate Counter?

Memory Addr Data “single cycle” DEPTH(D) WIDTH() ROM_FILENAME() clock reset enable address rate Counter limit n step wrap WIDTH() clock reset enable Counter limit n step wrap WIDTH() clock reset enable 1 D L Counter limit n step wrap WIDTH() clock reset enable K D The Rate Counter is acting as a clock divider, effectively reducing the update rate of all the downstream components. Here it is done correctly, but do not fall in the following trap.

slide-26
SLIDE 26

Divide clock by 4.

Clock Div Counter limit n[1] step wrap WIDTH(2) clock reset enable 1 4 Here it is done incorrectly. Counter limit n step wrap WIDTH() clock reset enable Clock Div Counter limit n[1] step wrap WIDTH(2) clock reset enable 1 4 Counter limit n step wrap WIDTH() clock reset enable Here it is done correctly.
