SLIDE 1
Traffic Safety Unit
2

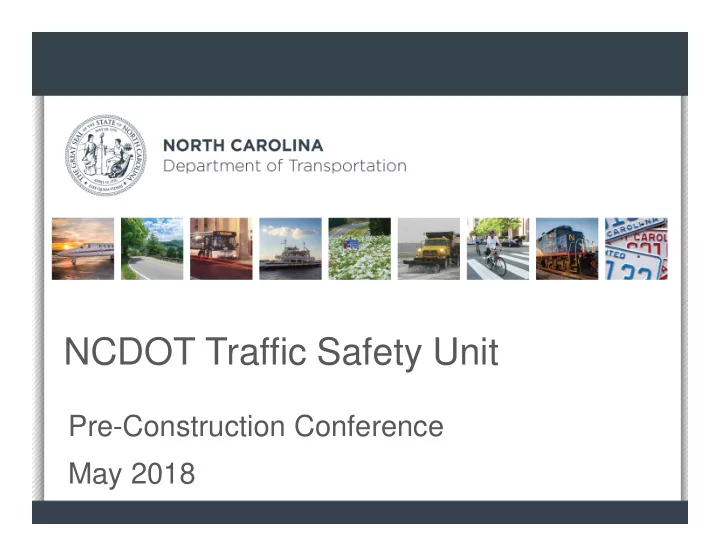

NCDOT Traffic Safety Unit Pre-Construction Conference May 2018 - - PowerPoint PPT Presentation
NCDOT Traffic Safety Unit Pre-Construction Conference May 2018 - - PowerPoint PPT Presentation
NCDOT Traffic Safety Unit Pre-Construction Conference May 2018 Traffic Safety Unit 2016 Crash Facts Statewide Summary 2 Traffic Safety Unit Mission Reduce Crashes and/or Severity of Crashes 3 Traffic Safety Unit Unit Work Groups /
SLIDE 2
SLIDE 3
Traffic Safety Unit
3
Mission
Reduce Crashes and/or Severity of Crashes
SLIDE 4
Traffic Safety Unit
4
Unit Work Groups / Areas
Traffic Safety Specialist Highway Safety Improvement Program Regional Field Operations Safety Evaluation Safety Planning Mobility and Safety Information
SLIDE 5
Regional Field Operations
Pre-Construction Conference May 2018
SLIDE 6
Regional Field Operations
6
NCDOT Regional Offices
Western Mobility and Safety Field Operations Region Central Mobility and Safety Field Operations Region Eastern Mobility and Safety Field Operations Region
SLIDE 7
Regional Field Operations
7
Regional Traffic Role
Field Investigations Funding
Mobility Funds $20 Million <$750K Spot Safety 12.1 Million <$400K
Systemic Projects
Guardrail End Units Signing Markings Median Barrier Fatal sites HSIP Sites
Countermeasures
Roundabouts Realignment Super elevation Traffic Signals Turn Lanes School Zones
Ordinances
Speed Limits Citizen Request
TIP Projects
Signal Recommendations No Parking, No Trucks, No U-turns, etc... HSIP Funds $40 Million $400K to $1M Public Officials Request Plan Review Directional crossovers AWS Work Zone Penalty $250 Signing Markings R/W, Maintenance Vulnerable User Signs Markings Division/City
SLIDE 8
US 1 A (Main St)
Regional Field Operations
8
SLIDE 9
Regional Field Operations
9
SLIDE 10
Regional Field Operations
10
SLIDE 11
US 1 A (Main St)
Regional Field Operations
11
SLIDE 12
SR 1006 (Old Stage Rd)
Regional Field Operations
12
SLIDE 13
Regional Field Operations
13
SLIDE 14
Regional Field Operations
14
SLIDE 15
SR 1006 at SR 1010
Regional Field Operations
15
SLIDE 16
Regional Field Operations
16
SLIDE 17
Regional Field Operations
17
SLIDE 18
Regional Field Operations
18
Before After
Spot Safety & Hazard Elimination
SLIDE 19
Safety Planning
Pre-Construction Conference May 2018
SLIDE 20
Safety Planning
20
Safety Planning Group
Transportation Planning / STIP
(300+ per year)
Customer Service Requests
(400+ per year) Consultant Requests (TIAs / Project Related)
Fatal Crash Review Program
(900+ per year) Regional Traffic Engineers for Investigation Media Divisions Merger Team Divisions Project Development MPOs / RPOs / SPOT Office Citizens
TEAAS / Crash Data Management
(Shared with HSIP and TSIS) Large scale data linkages / Data issues 900+ TEAAS application users TEAAS application maintenance and enhancements Address Safety Issues for a corridor or special concern
Road Safety Reviews
Scoping Phase Fatal Notifications / Year-To-Date Metrics / Crash Analyses Alternative Analysis Project Support / Environmental Document Bridge Design Speeds Crash Analyses / Collision Diagrams / GIS Mapping / Ad-Hoc Queries Municipalities / MPOs / RPOs STI Support / Safety Benefit Factors Traffic Records Coordinating Committee
SLIDE 21
Safety Planning
- Identify patterns of crashes the project should address
– Detailed Crash Analysis
21
Project Scoping
SLIDE 22
Safety Planning
- Identify patterns of crashes the project should address
– Detailed Crash Analysis – Mapping
- Helps to identify patterns
- Helps to communicate safety concerns
22
Project Scoping
SLIDE 23
Safety Planning
- Identify patterns of crashes the project should address
– Detailed Crash Analysis – Mapping
- Helps to identify patterns
- Helps to communicate safety concerns
23
Project Scoping
SLIDE 24
Safety Planning
- Compare the “Safety” of each Alternative
– How???
24
Alternative Analysis
SLIDE 25
Safety Planning
- Compare the “Safety” of each Alternative
– How??? – Predictive Analysis utilizing Safety Performance Functions
- Using crash, roadway, and traffic volume data to provide estimates of an existing or
proposed roadway’s expected safety performance
- Can be used to quantify the safety impacts of proposed transportation
improvements
25
Alternative Analysis
SLIDE 26
Safety Planning
- Safety Performance Functions
– Example: Base function for 2-lane rural roadway
26
Alternative Analysis
SLIDE 27
Safety Planning
- Methodology for Analyzing a Corridor Alternative
– Break corridor down into “like” segments
- Intersections, curves, tangents, etc.
27
Alternative Analysis
SLIDE 28
Safety Planning
- Methodology for Analyzing a Corridor Alternative
– Break corridor down into “like” segments – Analyze each segment individually
28
Alternative Analysis
CMFs CMFs
SLIDE 29
Safety Planning
- Methodology for Analyzing a Corridor Alternative
– Break corridor down into “like” segments – Analyze each segment individually – Incorporate existing crash history
29
Alternative Analysis
SLIDE 30
Safety Planning
- Methodology for Analyzing a Corridor Alternative
– Break corridor down into “like” segments – Analyze each segment individually – Incorporate existing crash history – Calculate predicted and expected crashes
- Predicted -> Based on calibrated safety performance function
- Expected -> Based on Empirical Bayes (EB) analysis
30
Alternative Analysis
Crash History at Treatment Site Crash History at Large Pool Of Reference Sites (Described by SPF)
α 1 − α
Clue #1 Clue #2
SLIDE 31
Safety Planning
- Methodology for Analyzing a Corridor Alternative
– Break corridor down into “like” segments – Analyze each segment individually – Incorporate existing crash history – Calculate predicted and expected crashes – Summarize results of each individual segment analyzed to get estimates for entire corridor
31
Alternative Analysis
SLIDE 32
Safety Planning
- Benefits of Alternative Analysis
– Quantifies expected safety for each alternative
- Allows safety to be part of the discussion when comparing all measurables (i.e.
wetlands impacted, relocations, etc.) for each alternative
– Often allows projects to move forward and not get mired down in subjective discussions
32
Alternative Analysis
SLIDE 33
Strategic Mobility Formula
Safety Planning
33
