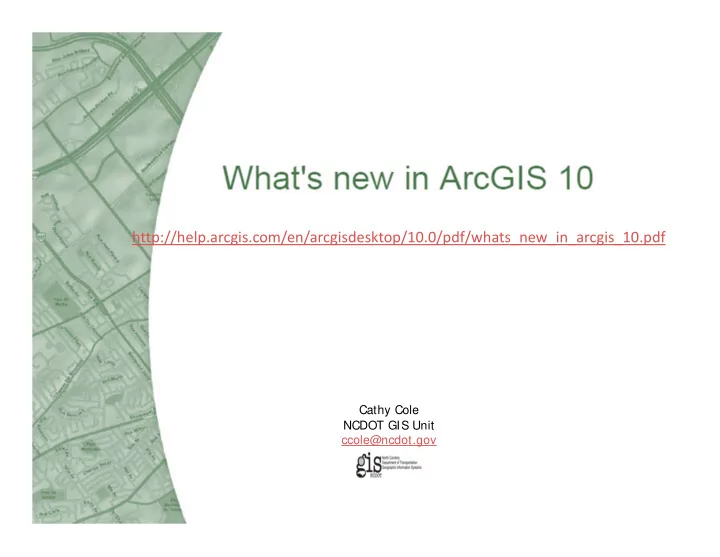

Cathy Cole NCDOT GIS Unit ccole@ncdot.gov

http://help.arcgis.com/en/arcgisdesktop/10.0/pdf/whats_new_in_arcgis_10.pdf

I. Administration II. Data Management

A. Geodatabases B. Topology rules C. Editing D. Rasters E. Tables F. Cad G. Metadata

III. Mapping and Visualization

A. Basics B. Data C. Display D. Page layouts E. Cartographic Representations

IV. Geoprocessing and Analysis V. Resources

Table of Contents

Administration

ArcGIS Desktop Administration ArcGIS for Desktop is licensed under three functionality levels:

• ArcGIS for Desktop Basic (formerly known as ArcView), which allows
• ne to view spatial data, create layered maps, and perform basic spatial

analysis;

• ArcGIS for Desktop Standard (formerly known as ArcEditor), which in

addition to the functionality of ArcView, includes more advanced tools for manipulation of shapefiles and geodatabases; or

• ArcGIS for Desktop Advanced (formally known as ArcInfo), which

includes capabilities for data manipulation, editing, and analysis.

• You can borrow licenses for temporary use away from the office
• License Manager can be installed on any location on the system and

transferred from one license manager to another

Administration

Administration

Data Management

Geodatabases

• Upgrade Geodatabase Tool and Python script
• Geodatabase schema restructured to 6 tables
• New geoprocessing tools that allow user to create
• lder version of geodatabase
• Six new topology rules
• Geometric Network Wizard
• New functionality in ArcMap allows you to define a

spatial query against SQL spatial types in a spatial database to create a layer (query layer) that can be viewed and queried in ArcMap

Data Management

Data Management

Data Management

Six topology rules have been added Six topology rules have been added to the collection of rules that allow you to model the spatial relationships of your data. The rules are as follows:

• Polygon: Contains One Point
• Line: Must Not Intersect With
• Line: Must Not Intersect or Touch Interior With
• Line: Must Be Inside
• Point: Must Be Coincident With
• Point: Must Be Disjoint

See Geodatabase topology rules and topology error fixes for a description of topology rules.

Data Management

Must contain 1 point Must not intersect with Must not intersect or Touch interior with Must be inside

Data Management

Geodatabases

• Support has been added for one‐way, child‐to‐

parent replicas. This type of replica allows you to edit the data in the child replica and synchronize it with the parent replica

• A new SQL raster type (ST_Raster) can be installed

in ArcSDE geodatabases in Oracle, PostgreSQL, and SQL Server

Data Management

Data Management

Editing

• Editor toolbar redesigned
• Easier to add new features through templates
• Snapping redesigned
• Mini pop‐up toolbars
• Start editing with a right‐click
• Easier to create and edit annotation

Data Management

Data Management

Raster Data

• All raster formats use GDAL library
• New pyramids are saved as OVR files (flexible)
• Raster Storage environment settings added to ArcGIS
• A new raster data model—mosaic datasets—has been

introduced

• New geoprocessing tools are available for raster data
• The Image Analysis window is new dockable window
• Color correction tab and Mosaic Color Correction

window are new

Data Management

Data Management

Data Management

Tables and Attributes

• A Table window has been added that displays all
• pen attribute tables
• The Table window includes a toolbar that lets you

interact with the attributes and map

• You can validate a join before it is created by

validating the join field names and values

• The Field Calculator works with Python scripting
• Features now support file attachments
• The Identify window is now dockable
• Attachments can be added

Data Management

Data Management

CAD

• Context menus now enable right‐click conversion of

CAD feature layers to a geodatabase and automatically add them to your map

• A new tool—CAD To Geodatabase—allows you to bulk

load CAD data from the Catalog window

• Nonessential fields are now turned off by default in

ArcMap feature class attribute tables

• Spline geometry is now supported

Data Management

Data Management

Metadata

• All the items in your catalog now have a simple,

standardized core set of metadata properties

• A new Metadata Editor dialog box has been

introduced

• Importing Metadata and Exporting Metadata are

now geoprocessing tools

• You can now validate metadata based on a metadata

standard's XML schema

Mapping and Visualization

Mapping and Visualization

ArcMap Basics

• Improved organization of menus and toolbars,

updated icons

• Easy to access great‐looking basemaps for your map

via the new File > Add Data > Add Basemap command

• New dockable window controls
• The table of contents now has buttons along the top

instead of tabs along the bottom

Mapping and Visualization

Mapping and Visualization

Accessing Data

• You can access and manage your data through the new Catalog

window that is built into the desktop applications

• Access project through Catalog Window and new Home button
• You can specify the default geodatabase you want your map to

use

• The new Search window in the desktop applications lets you

instantly search for maps, data, and tools

• Catalog items have a simple, standardized core set of metadata

properties called the item description

Mapping and Visualization

Mapping and Visualization

Sharing maps and data

• ArcGIS now lets you access maps and data from the GIS

community at large

• ArcGIS Online command lets you manage uploaded data
• The new File > Add Data > Add Data From ArcGIS Online

command in ArcMap lets you search

• New map packaging capability lets you share complete map

documents with others

• The new ArcGIS.com Web site enables anyone to create a Web

map containing one or more map services and share the map with others as part of ArcGIS Online

Mapping and Visualization

Map display and navigation

• Basemap layers have been added
• Quickpan mode has been added
• Scale Settings dialog limits map display scale
• Manage the cache for services, basemaps &

ArcGlobe

• The Data View tab has settings to enable hardware

acceleration and control basemap drawing behavior

• Fewer redraws when working with ArcMap

Mapping and Visualization

Page Layouts and Data Frames

• Data driven pages
• Dynamic text
• Data frame options

Mapping and Visualization

Cartographic Representations

• Two new geometric effects have been added:

– Jog effect – Arrow effect

• User interface enhancements

– The representation renderer displays value for the number of features assigned a rule – The Move tool provides additional options for distance – The Set Size provides more options to refine size change – A position property has been added to Dashes geometric effect

• Feature layer representation has been improved

Mapping and Visualization

Cartographic Representations

Mapping and Visualization

Geoprocessing and Analysis

Geoprocessing and Analysis

• General

– ArcToolbox has been replaced by the Search window, the Catalog window and the Results window – A new Geoprocessing menu has been introduced – You can add tools to any menu or toolbar

• Python and ArcPy

– The Python window replaces the Command Line window – ArcPy site replaces arcgisscripting in Python code – ArcPy contains mapping module, Spatial Analyst module and Geostatistical Analyst module

Geoprocessing and Analysis

Geoprocessing and Analysis

• Tools

– 7 tools for ModelBuilder have been added – Calculate Value, Collect Values, Get Field Value, Merge Branch, Parse Path, Select Data, and Stop – More than 50 core geoprocessing tools have been added – Password protection

• Model Builder

– Undo & redo supported – Default spacing between elements has changed from 30 to 15

• Iterators

– Iterators replace the series option in Model Properties – 12 iterators have been added – Sets the default value of ‐1

Other Changes

• Page layout and data frame
• Automating workflows
• Temporal data
• Animations
• Selection tools
• Graphs
• Reports
• Snapping & Measure tools

Resources

Resources

Documentation

• ArcGIS Resource Center http://resources.arcgis.com
• Over 75% of help has been rewritten and updated
• Topics organized by skill set
• Tutorials are presented as topics in the help
• Installed help files take up less space

Resources

Resources

OTHER TRAINING RESOURCES: Esri also has a number of online training courses available for free. You will need version 10 installed on your machine to complete these exercises. Please go to these links for more information:  Getting Started with ArcGIS (for ArcGIS 10) ‐ refresher course : http://training.esri.com/gateway/index.cfm?fa=catalog.webCours eDetail&courseid=1911  Using ArcMap in ArcGIS Desktop 10: http://training.esri.com/gateway/index.cfm?fa=catalog.webCours eDetail$courseid=1822  Turning Data into Information using ArcGIS 10: http://training.esri.com/gateway/index.cfm?fa=catalog.webCours eDetail&courseid=2017

Resources

Thank you for your time! For questions, you can contact Cathy Cole at ccole@ncdot.gov or GIS Help at gishelp@ncdot.gov

• r just download

“What’s New in ArcGIS 10” at

http://help.arcgis.com/en/arcgisdesktop/10.0/pdf/whats_new_in_arcgis_10.pdf
