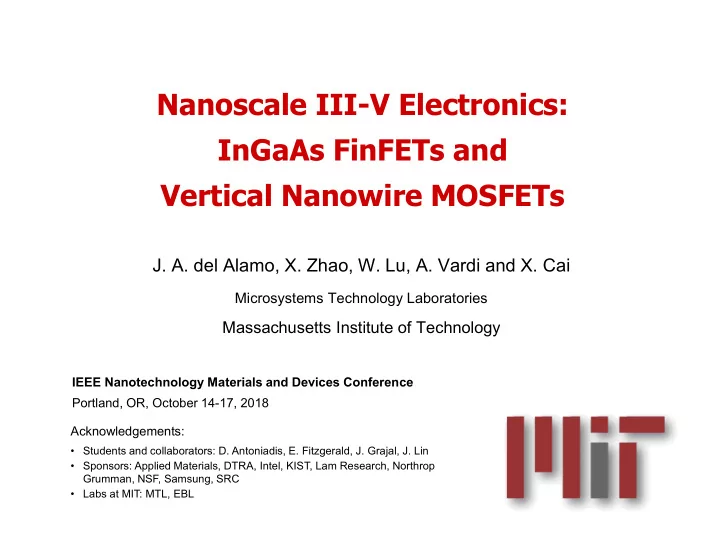

Nanoscale III-V Electronics: InGaAs FinFETs and Vertical Nanowire MOSFETs

• J. A. del Alamo, X. Zhao, W. Lu, A. Vardi and X. Cai

Microsystems Technology Laboratories

Massachusetts Institute of Technology

IEEE Nanotechnology Materials and Devices Conference Portland, OR, October 14-17, 2018 Acknowledgements:

• Students and collaborators: D. Antoniadis, E. Fitzgerald, J. Grajal, J. Lin
• Sponsors: Applied Materials, DTRA, Intel, KIST, Lam Research, Northrop

Grumman, NSF, Samsung, SRC

• Labs at MIT: MTL, EBL

2

Evolution of transistor structure for improved scalability

Planar bulk MOSFET Thin-body SOI MOSFET Nanowire MOSFET

Enhanced gate control  improved scalability

FinFET

Moore’s Law: The Problem

3

Scaling: Voltage ↓  Current density ↓  Performance ↓ Current density of n-MOSFETs at nominal voltage:

III-V CMOS: The Promise

4

del Alamo, Nature 2011

Source injection velocity: Si vs. InGaAs vinj(InGaAs) > 2vinj(Si) at less than half VDD  high current at low voltage

5

Evolution of transistor structure for improved scalability

Planar bulk MOSFET Thin-body SOI MOSFET Nanowire MOSFET

Enhanced gate control  improved scalability

FinFET Thin-body MOSFET

n-MOSFETs in Intel’s nodes at nominal voltage

Transconductance of Planar Si vs. InGaAs MOSFETs

6

“Comparisons always fraught with danger…”

n-MOSFETs in Intel’s nodes at nominal voltage

Transconductance of Planar Si vs. InGaAs MOSFETs

7

• InGaAs stagnant for a long time

n-MOSFETs in Intel’s nodes at nominal voltage

Transconductance of Planar Si vs. InGaAs MOSFETs

8

• Rapid recent progress  Atomic Layer Deposition
• InGaAs exceeds Si

n-MOSFETs in Intel’s nodes at nominal voltage

Transconductance of Planar Si vs. InGaAs MOSFETs

9

MIT (VDS=0.5 V)

Lin, IEDM 2014, EDL 2016

• Rapid recent progress  Atomic Layer Deposition
• InGaAs exceeds Si

10

Evolution of transistor structure for improved scalability

Planar bulk MOSFET Thin-body SOI MOSFET Nanowire MOSFET

Enhanced gate control  improved scalability

FinFET FinFET

Transconductance of planar Si vs. InGaAs MOSFETs

11

Transconductance of Si vs. InGaAs FinFETs

12

Transconductance of Si vs. InGaAs FinFETs

13

gm normalized by fin width

Wf FinFET: large increase in current density per unit footprint over planar MOSFET

Transconductance of Si vs. InGaAs FinFETs

14

Best InGaAs FinFETs nearly match 14 nm Si MOSFETs

MIT (VDS=0.5 V)

gm normalized by fin width

Wf

Transconductance of Si vs. InGaAs FinFETs

15

10 nm node Si MOSFETs: a great new challenge!

10 nm node Intel (VDS=0.7 V)

gm normalized by fin width

Wf

MIT (VDS=0.5 V)

InGaAs FinFETs @ MIT

16

Vardi, DRC 2014, EDL 2015, IEDM 2015

Key enabling technologies: BCl3/SiCl4/Ar RIE + digital etch

• Sub-10 nm fin width
• Aspect ratio > 20
• Vertical sidewalls

InGaAs FinFETs @ MIT

17

Vardi, IEDM 2017

• Si-compatible process
• Contact-first, gate-last process
• Fin etch mask left in place  double-gate MOSFET

InAlAs InGaAs

n+-InGaAs

W/Mo Lg SiO2 HSQ High-K InP δ - Si InP Mo Mo HSQ High-K InGaAs

18

Most aggressively scaled FinFET

Wf=5 nm, Lg=50 nm, Hc=50 nm (AR=10), EOT=0.8 nm:

Vardi, IEDM 2017

• 0.2

0.0 0.2 0.4 0.6 0.8 1E-9 1E-8 1E-7 1E-6 1E-5 1E-4 1E-3

Ssat=75 mV/dec Slin=65 mV/dec

50 mV VDS=500 mV Id [A/m] VGS [V] Lg=50 nm Wf=5 nm 0.0 0.1 0.2 0.3 0.4 0.5 50 100 150 Id [A/m] VGS [V]

VGS=-0.2 to 0.5 V VGS=0.1 V

gm,max=565 µS/µm (VDS=0.5 V)

Normalized by conducting gate periphery = 2Hc

5 10 15 20 25 40 60 80 100 120 Ssat Slin S [mV/dec] Wf [nm]

19

• Excellent subthreshold swing scaling behavior
• From long Lg devices: Dit ~ 8x1011 cm-2.eV-1

Vardi, IEDM 2017

Slin (VDS = 50 mV) Ssat (VDS = 0.5 V) Lg=40-60 nm

• 0.2

0.0 0.2 0.4 0.6 0.8 1E-9 1E-8 1E-7 1E-6 1E-5 1E-4 1E-3

Ssat=75 mV/dec Slin=65 mV/dec

50 mV VDS=500 mV Id [A/m] VGS [V] Lg=50 nm Wf=5 nm

Wf scaling of OFF-state characteristics

5 10 15 20 25 200 400 600 800 1000 Ron[-m] Wf [nm]

5 10 15 20 25 0.0 0.5 1.0 1.5 2.0 gm[mS/m] Wf [nm]

Wf scaling of ON-state characteristics

20

• gm independent of Wf down

to Wf=7 nm

• In planar MOSFET (x=0.53)

expect gm~ 2.2 mS/µm

• Missing performance hints

at sidewall damage

Vardi, IEDM 2017 in planar MOSFETs expect 2.2 mS/µm

Lg=40-60 nm VDS = 0.5 V Normalized by conducting gate periphery = 2Hc

DC underestimates transistor potential!

21

gm frequency dispersion Pulsed vs. DC

• Severe frequency dispersion in gm
• Pulsed I-V ≠ DC I-V
• Due to gate oxide trapping

Cai, CSW 2018

22

Planar bulk MOSFET Thin-body SOI MOSFET Nanowire MOSFET FinFET VNW MOSFET

InGaAs Vertical Nanowire MOSFETs

Vertical NW MOSFET:  ultimate scalable transistor  uncouples footprint scaling from Lg, Lspacer, and Lc scaling

InGaAs Vertical Nanowires on Si by direct growth

23

Selective-Area Epitaxy (SAE) InAs NWs on Si by SAE Riel, MRS Bull 2014, IEDM 2012

VNW MOSFETs: path for III-V integration on Si for future CMOS

NMOS PMOS

InGaAs VNWs by top-down approach

Key enabling technologies: BCl3/SiCl4/Ar RIE + digital etch DE = O2 plasma oxidation + acid-based oxide removal

24

Zhao, EDL 2014 RIE + 5 cycles DE Radial etch rate = 1 nm/cycle

25

10% HCl in DI water, Yield = 0%

Broken NWs

8 nm InGaAs VNWs after 7 DE cycles: Lu, EDL 2017 RIE down to D~20 nm + multiple cycles of DE

Towards D<10 nm InGaAs VNWs

26

10% HCl in DI water, Yield = 0%

Broken NWs

8 nm InGaAs VNWs after 7 DE cycles: Lu, EDL 2017 Water-based acid is problem:

Surface tension (mN/m):

• Water: 72
• Methanol: 22
• IPA: 23

Solution: alcohol-based digital etch RIE down to D~20 nm + multiple cycles of DE

Towards D<10 nm InGaAs VNWs

27

10% HCl in IPA, Yield = 97% 10% HCl in DI water, Yield = 0%

Alcohol-based DE key for D < 10 nm

Broken NWs

8 nm InGaAs VNWs after 7 DE cycles: Lu, EDL 2017 RIE down to D~20 nm + multiple cycles of DE

Towards D<10 nm InGaAs VNWs

D=5.5 nm InGaAs VNW arrays

28

90% yield

10% H2SO4 in methanol

• H2SO4:methanol yields 90% at D=5.5 nm!
• Viscosity matters: methanol (0.54 cP) vs. IPA (2.0 cP)

Lu, EDL 2017

29

Aspect Ratio > 40

D=5 nm InGaAs VNW

Lu, EDL 2017

30

InGaAs VNW-MOSFETs by top-down approach @ MIT

Zhao, IEDM 2017

Top-down approach: flexible and manufacturable

III-V VNW MOSFET process flow

31

also Ni

32

D=7 nm InGaAs VNW MOSFET (Ni contact)

Zhao, IEDM 2017, TED 2018

• 0.2

0.0 0.2 0.4 0.6 10

• 9

10

• 8

10

• 7

10

• 6

10

• 5

10

• 4

10

• 3

D = 7 nm

Slin/Ssat = 85/90 mV/dec DIBL = 222 mV/dec Vds=0.5 V Vgs(V) Id (A/m) Vds=0.05 V

0.0 0.1 0.2 0.3 0.4 0.5 100 200 300 400 500 600 700 800 Id (A/m)

Vgs= 0 V to 0.8 V in 0.1 V step D = 7 nm

Vds (V) 0.0 0.1 0.2 0.3 0.4 0.5 20 40 60 80 100 Vgs= 0 V to 0.8 V in 0.1 V step D = 7 nm Top contact = Source Vds (V) Id (A/m)

Source down Source up

• Single nanowire MOSFET (Lch= 80

nm)

• First sub-10 nm diameter VNW FET
• f any kind on any material system

33

Output characteristics

• vs. D (source up)

As D↓:

• Ni contact becomes

Schottky

• Mo contact opens

up Source up: Ni top contact Mo top contact

Zhao, TED 2018

Sidewall MOS interface quality

34

Subthreshold swing vs. electrostatic aspect ratio of channel:

Zhao, TED 2018

Poor MOS interface at sidewall Dit ~ 6x1012 cm-2.eV-1 (200oC RTA)

(ideal)

Dit ~ 4x1012 cm-2.eV-1 (300oC RTA)

60 160 260 400 800 1200 1600 2000 This work - Mo Vds=0.5 V

Ssat (mV/dec)

gm,pk (S/m)

Persson EDL 2010 Tomioka IEDM 2011 Tomioka Nature 2012 Persson DRC 2012 Berg IEDM 2015 Ramesh VLSI 2016, 0.4 V Kilpi VLSI 2017 Kilpi IEDM 2017 Ramesh IEDM 2017 Zhao IEDM 2013 This work - Mo This work - Ni

This work - Ni

Benchmark with Si/Ge VNW MOSFETs

35

Excellent combination of on-and off-state characteristics Peak gm (VDS=0.5 V) vs. Ssat of InGaAs VNW MOSFETs

Zhao, IEDM 2017

5 10 15 20 25 30 35 40 400 800 1200 1600 2000 Target: D = 7 nm This work - Mo gm,pk (S/m)

Si/Ge, 1-1.2 V InGaAs This work - Mo This work - Ni

Diameter (nm) This work - Ni

Benchmark with Si/Ge VNW MOSFETs

36

InGaAs competitive with Si [hard to add strain] Peak gm of InGaAs (VDS=0.5 V), Si and Ge VNW MOSFETs

Zhao, IEDM 2017

37

InGaAs/InAs VNW Tunnel FETs @ MIT

38

InGaAs VNW-TFET

0.0 0.1 0.2 0.3 0.4 0.5 0.0 0.5 1.0 1.5 2.0

Vgs=0 V to 0.6 V in 0.1 V step Vds (V)

Id (A/m)

• 0.4
• 0.2

0.0 0.2 0.4 10

• 6

10

• 5

10

• 4

10

• 3

10

• 2

10

• 1

10

Vgs= 0 V to 0.6 V in 0.1 V step Vds (V)

Id (A/m)

• Saturated output characteristics
• Clear negative differential resistance
• Peak to valley ratio of 3.4 @ Vgs = 0.6 V

Zhao, EDL 2017 Single NW: D= 40 nm, Lch= 60 nm, 3 nm Al2O3 (EOT = 1.5 nm)

39

VNW-TFET subthreshold characteristics

0.0 0.1 0.2 0.3 0.4 0.5 10

• 11

10

• 10

10

• 9

10

• 8

10

• 7

10

• 6

10

• 5

0.0 0.1 0.2 0.3 0.4 0.5 5 10 15 20 Vgs(V) gm (S/m) Vd= 0.3 V

Vd=0.3 V Vgs(V) Id (A/m) Vd=0.05 V

• Sub-thermal for 2 orders of magnitude of current
• Slin = 55 mV/dec
• Ssat = 53 mV/dec

10

• 11

10

• 10

10

• 9

10

• 8

10

• 7

10

• 6

50 60 70 80 90 100 110 120 130 140 150

10

• 10

10

• 9

50 55 60 Id (A/m) S (mV/dec) Vd = 0.3 V

S (mV/dec) Id (A/m)

Vd = 0.05 V Vd = 0.3 V

T=300 K

Zhao, EDL 2017

Conclusions

1. Great recent progress on planar, fin and nanowire InGaAs MOSFETs 2. Device performance still lacking for 3D architecture designs  severe oxide trapping masks true transistor potential 3. Vertical Nanowire MOSFET: ultimate scalable transistor; integrates well on Si

40

NMOS PMOS
