Musings on the Logistic Map Shane Celis and Yun Tao PHY 256 Hypothesis Entropy rate measures randomness Lyapunov exponent measures randomness Is there a relationship between the two? Perhaps theres a functional form something

slide-1
SLIDE 1

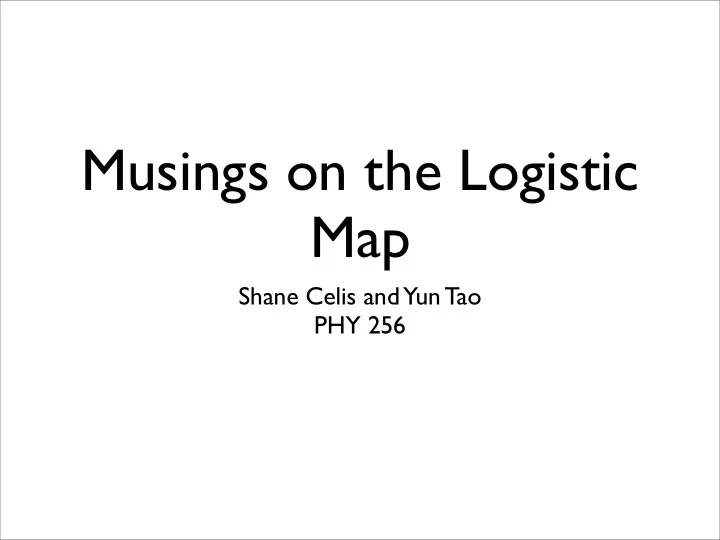

Musings on the Logistic Map

Shane Celis and Yun Tao PHY 256

slide-2
SLIDE 2

Hypothesis

  • Entropy rate measures randomness
  • Lyapunov exponent measures randomness
  • Is there a relationship between the two?
  • Perhaps there’s a functional form something

like this:

  • And how does partition resolution affect

the transient entropy rate?

λ = lim

p→∞ f(hµ)

slide-3
SLIDE 3

Method

  • Start simple. Use a 1D map, the beloved

logistic map.

xn+1 = r xn(1 − xn)

slide-4
SLIDE 4

Transient Uncertainty

  • f Length One

0.5 1 1.5 2 2.5 3 3.5 4 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

2 Partitions

slide-5
SLIDE 5

Transient Uncertainty

  • f Length One

0.5 1 1.5 2 2.5 3 3.5 4 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

4 Partitions

slide-6
SLIDE 6

Transient Uncertainty

  • f Length One

3 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4 0.5 1 1.5 2 2.5 3

8 Partitions

slide-7
SLIDE 7

Transient Entropy Convergence Rate

0.5 1 1.5 2 2.5 3 3.5 4 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

slide-8
SLIDE 8

Lovely

1.5 2 2.5 3 3.5 4 0.2 0.4 0.6 0.8 1 1.5 2 2.5 3 3.5 4

  • 500
  • 400
  • 300
  • 200
  • 100

100

slide-9
SLIDE 9

Entropy

2.5 2.75 3.25 3.5 3.75 4 1 2 3 4

slide-10
SLIDE 10

Entropy and Lyapunov

2.5 2.75 3.25 3.5 3.75 4 1 2 3 4 2.25 2.5 2.75 3.25 3.5 3.75 4

  • 500
  • 400
  • 300
  • 200
  • 100

100

slide-11
SLIDE 11

Bifurcation and Entropy

2.5 2.75 3.25 3.5 3.75 4 1 2 3 4 2.25 2.5 2.75 3.25 3.5 3.75 4 0.2 0.4 0.6 0.8 1

slide-12
SLIDE 12

Entropy Rate

3.2 3.4 3.6 3.8 4 0.1 0.2 0.3 0.4 0.5 0.6 0.7

slide-13
SLIDE 13

Entropy Rate vs. Lyapunov Exponent

  • 300
  • 200
  • 100

100 0.1 0.2 0.3 0.4 0.5 0.6

slide-14
SLIDE 14

FOILED!

  • 300
  • 200
  • 100

100 0.1 0.2 0.3 0.4 0.5 0.6

really?

slide-15
SLIDE 15

Just for fun

  • 300
  • 200
  • 100

100 1.5 2 2.5 3 3.5 4

slide-16
SLIDE 16

Entropy vs Lyapunov Connected

  • 300
  • 200
  • 100

100 1.5 2 2.5 3 3.5 4
