Motion Perception Chapter 8 Lecture 14 Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325) Spring 2015 1 countering the depth-from-focus cue 2 Depth Illusions Mller-Lyer Illusion

slide-1
SLIDE 1

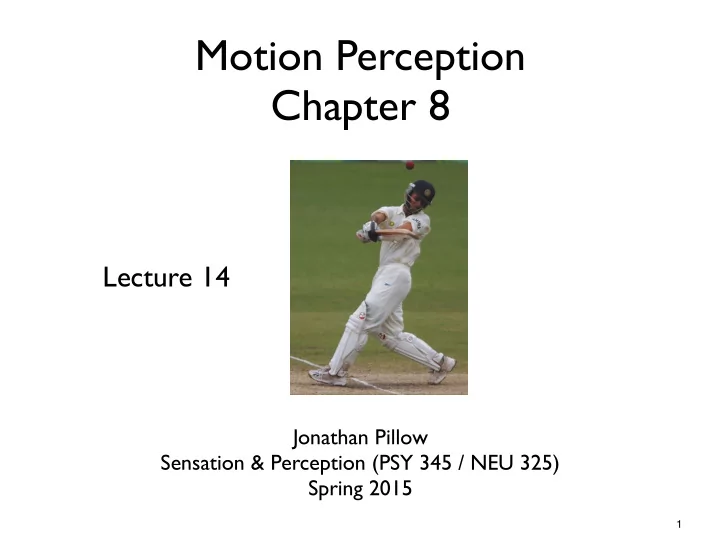

Motion Perception Chapter 8

Lecture 14

Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325) Spring 2015

1

slide-2
SLIDE 2

countering the depth-from-focus cue

2

slide-3
SLIDE 3

Depth Illusions

Müller-Lyer Illusion

http://www.michaelbach.de/ot/sze_muelue/index.html

3

slide-4
SLIDE 4

figures are the same size

4

slide-5
SLIDE 5

“Terror Subterra”

5

slide-6
SLIDE 6

“Terror Subterra”

6

slide-7
SLIDE 7

red lines are all the same length

7

slide-8
SLIDE 8

Depth / Size illusion

  • all 3 cars take up the same space in the image + on your retina!

8

slide-9
SLIDE 9

Binocular Rivalry

9

slide-10
SLIDE 10

Two stimuli battle for dominance of the percept

10

slide-11
SLIDE 11

Strabismus

  • eyes are not aligned,

so different images fall

  • n the fovea
  • If not corrected at an

early age, stereopsis will not develop stereoblindness: inability to use binocular disparity as a depth cue.

Defects in Stereopsis

11

slide-12
SLIDE 12
  • monocular depth cues
  • binocular depth cues (vergence, disparity)
  • horopter
  • crossed / uncrossed disparities
  • free fusing
  • random dot stereogram
  • stereoscope
  • “correspondence problem”
  • panum’s fusional area
  • strabismus / stereoblindness
  • binocular rivalry (in book)

Chapter 6 Summary:

12

slide-13
SLIDE 13

Motion Perception Chapter 8

13

slide-14
SLIDE 14

Main point of this chapter: Motion = Orientation in Space-Time

time space

14

slide-15
SLIDE 15

which motion is faster?

time space time space

slow fast

15

slide-16
SLIDE 16

Real vs. Apparent motion

Apparent motion - motion percept that results from rapid display of stationary images in different locations

time space time space

apparent

(movies, flip-books)

“real” Q: why don’t we notice the difference?

16

slide-17
SLIDE 17

How does the nervous system encode motion? What makes a Motion Receptive Field? Answer: a surprisingly simple neural circuit called a “Reichardt detector”

17

slide-18
SLIDE 18

Reichardt detector simple summing neuron

delay line

18

slide-19
SLIDE 19

space time

excitatory inhibitory

Reichardt detector in space-time first RF second RF 2nd neuron has a spatially separated Receptive Field (RF), and a shorter temporal delay

19

slide-20
SLIDE 20

space time

excitatory inhibitory

Smoother Reichardt detector Like an oriented V1 receptive field, but oriented in space-time!

20

slide-21
SLIDE 21

space time

excitatory inhibitory

Reichardt detectors respond to real and apparent motion

21

slide-22
SLIDE 22

Figure 7.3 Constructing a neural circuit for the detection of rightward motion (Part 1)

22

slide-23
SLIDE 23

Figure 7.3 Constructing a neural circuit for the detection of rightward motion (Part 2)

23

slide-24
SLIDE 24

Clockwise or Counter-clockwise rotation? (web demo)

Correspondence problem (motion):

  • problem of knowing the correspondence between features in

successive frames (which points in frame 1 are the same objects in frame 2?)

http://sites.sinauer.com/wolfe3e/chap8/correspondenceF.htm

24

slide-25
SLIDE 25
  • Aperture problem:

when a moving object is viewed through an aperture, the direction of motion may be ambiguous

25

slide-26
SLIDE 26
  • Aperture problem:

when a moving object is viewed through an aperture, the direction of motion may be ambiguous

26

slide-27
SLIDE 27
  • Aperture problem:

when a moving object is viewed through an aperture, the direction of motion may be ambiguous

27

slide-28
SLIDE 28
  • this is a problem because each neuron only sees the scene

through a small aperture (its receptive field!)

  • how can the brain figure out the “global” direction of motion?
  • Aperture problem:

when a moving object is viewed through an aperture, the direction of motion may be ambiguous

28

slide-29
SLIDE 29

http://sites.sinauer.com/wolfe3e/chap8/mottypesF.htm

aperture problem / correspondence problem

29

slide-30
SLIDE 30

building a global motion detector

30

slide-31
SLIDE 31

Motion aftereffect (MAE): The illusion of motion that occurs after prolonged exposure to a moving stimulus http://www.michaelbach.de/ot/mot-adapt/index.html

31

slide-32
SLIDE 32

Motion after-effect

  • Always gives rise to motion in the opposite

direction of the adapting motion

  • Also known as: “waterfall illusion” -

stare at a waterfall; stationary objects will then appear to move upwards.

  • evidence for “opponent channels” in

processing motion

32

slide-33
SLIDE 33

Computation of Visual Motion Interocular transfer: The transfer of an effect (such as adaptation) from one eye to another

  • MAE: exhibits interocular transfer

What does this tell us about where in the brain motion is computed?

  • Remember: Input from both eyes is combined in area V1
  • Motion seems to be computed in area MT (middle temporal area)

33

slide-34
SLIDE 34

Interocular transfer: The transfer of an effect (such as adaptation) from one eye to another

  • MAE: exhibits interocular transfer
  • Remember: Input from both eyes is combined in area V1

Q: What does this tell us about where in the brain motion is computed?

34

slide-35
SLIDE 35

“Motion After-Effect”

35

slide-36
SLIDE 36

“Motion After-Effect”

36

slide-37
SLIDE 37

Computation of Visual Motion Newsome and Pare (1988) conducted a study on motion perception in monkeys

  • Trained monkeys to respond to dot motion displays
  • Area MT of the monkeys was lesioned
  • Result: Monkeys needed about ten times as many

dots to correctly identify direction of motion

37

slide-38
SLIDE 38
  • Optic flow: the local velocity at each point in an image
  • ptic flow field

Q: How do we use motion information to navigate?

  • We experience “optic flow” fields as we move through the

world Example of pilot landing a plane: “Radial expansion”

38

slide-39
SLIDE 39

Focus of expansion (FOE): point in the center of the horizon from which, when we are in motion, all points in the perspective image seem to emanate

  • one aspect of optic

flow

  • tells the observer

which way they are heading

39

slide-40
SLIDE 40

Using Motion Information Biological motion: The pattern of movement of all animals

40

slide-41
SLIDE 41

Biological motion

41

slide-42
SLIDE 42

non-biological motion

42

slide-43
SLIDE 43

Eye movements: also give rise to retinal motion.

  • important to distinguish motion due to eye movements

from motion due to moving objects!

two scenarios with same retinal motion eye moves

  • bject moves

time 1 time 2 time 1 time 2

43

slide-44
SLIDE 44
  • Smooth pursuit - eyes smoothly follow a

moving target

  • Saccade - rapid movement of the eyes that

changes fixation from one location to another

  • Vergence - two eyes move in opposite

directions, as when both eyes turn towards the nose

  • Reflexive - automatic / involuntary (e.g.,

vestibular)

Eye Movements

44

slide-45
SLIDE 45

Partner up! Smooth pursuit vs. saccadic eye movements in-class experiment

45

slide-46
SLIDE 46

Saccadic suppression - reduction of visual sensitivity during a saccade

Test it out yourself: Look closely in a mirror and shift your gaze from one eye to the other. You will never see the eyes moving. (But you will see the motion if you watch a friend.)

46

slide-47
SLIDE 47

How do we discriminate motion due to eye movements vs. object movements? Comparator: compensates for retinal motion due to eye movement

  • receives a copy of the order issued by the motor system to the eyes, and

subtracts the expected motion from the retinal motion

Two scenarios with same retinal motion

  • bject motion = eye motion - retinal motion

47
