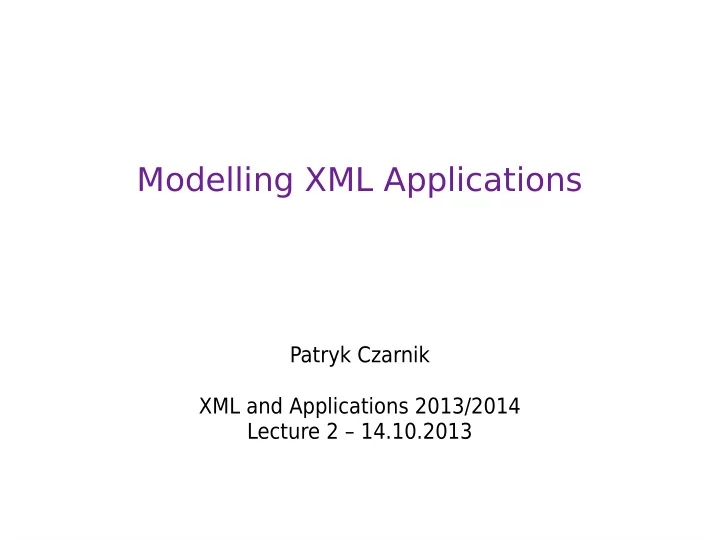

Modelling XML Applications Patryk Czarnik XML and Applications 2013/2014 Lecture 2 14.10.2013 XML application (recall) XML application ( zastosowanie XML ) A concrete language with XML syntax T ypically defined as: Fixed set of
SLIDE 2
SLIDE 3
3 / 19
Modelling new XML application
Analysis & design
analysis of existing documents, new requirements, etc. identifying nouns, their role and dependencies data types, constraints, limits
Writing down
structure definition – “schema” semantics description – usually in natural language;
in schema (comments, annotations) or a separate document
SLIDE 4
4 / 19
Standards for defining structure of XML documents
DTD
part of XML standard (1998, 2004)
- rigins from SGML (1974)
XML Schema – W3C Recommendation(s)
version 1.0 – 2001 version 1.1 – 2012
Relax NG
OASIS Committee Specification – 2001 ISO/IEC 19757-2 – 2003
Schematron
alternative standard and alternative approach several version since 1999 impact on XML Schema 1.1
SLIDE 5
5 / 19
Benefits of formal definition
T angible asset resulting from analysis & design
Formal, unambiguous definition of language Reference for humans (document authors and readers, programmers and tool engineers)
Ability to validate documents using tools or libraries
Programs may assume correctness of content of validated documents (less conditions to check!)
Content assist in editors
autocomplete during typing, stub document generation
SLIDE 6
6 / 19
T wo levels of document correctness (recall)
Document is well-formed (poprawny składniowo) if:
conforms to XML grammar, and satisfies additional well-formedness constraints defined in XML recommendation. Then it is accessible by XML processors (parsers).
Document is valid (poprawny strukturalnie, “waliduje się”) if additionally:
is consistent with specified document structure definition; from context: DTD, XML Schema, or other; in strict sense (DTD): satisfies validity constraints given in the recommendation. Then it is an instance of a logical structure and makes sense in a particular context.
SLIDE 7
7 / 19
Element content – simple case
<student> <first-name>Monika</first-name> <surname>Domżałowicz</surname> <birth-date>1990-03-13</birth-date> </student> Example content <!ELEMENT student (first-name, surname, birth-date)> <!ELEMENT first-name (#PCDATA)> <!ELEMENT surname (#PCDATA)> <!ELEMENT birth-date (#PCDATA)> DTD definition <xs:element name="student"> <xs:complexType> <xs:sequence> <xs:element name="first-name" type="xs:string"/> <xs:element name="surname" type="xs:string"/> <xs:element name="birth-date" type="xs:date"/> </xs:sequence> </xs:complexType> </xs:element> XML Schema definition
SLIDE 8
8 / 19
Details in examples!
Disclaimer Taking our experience and students' opinions into account we will try not to copy standard specifications onto slides but rather to show by examples: some typical usage, different paths to do a thing – so you can choose your approach depending on needs, chosen cases of advanced usage and rarely used features – it is impossible to show all of them during a short lecture, some good and bad practices. It also means, in particular, that slides are not a complete source of knowledge required to pass the exam.
SLIDE 9
9 / 19
Details in examples!
Examples presented during the lecture: Structure of DTD, structure of XML Schema definition T ypical element definition Controlling number of occurrences Sequence and choice Building complex models Any order (xs:all)– schema only Defining attributes in schema and DTD
SLIDE 10
10 / 19
Details in examples! (ctd)
Examples on lab classes (see lab scenario) Mixed content
DTD approach – (#PCDATA| a | b)* Mixed content with controlled subelements – schema only
Avoiding code duplication and different ways of writing definitions in schemas
Local definitions vs global definitions Anonymous types vs named (global) types Named groups Extending complex types
SLIDE 11
11 / 19
Common design decisions Natural language
Which natural language to use?
It would be a nonsense not to use English in solutions that have a potential to be used worldwide. But XML supports internationalisation. You may choose to honour you native language if the solution is dedicated for a particular country.
Law acts processed in Polish Parliament use Polish tags, as well as XML-version forms for tax declarations.
<Podmiot1 poz="P_1A" rola="Podatnik"> <etd:OsobaFizyczna> <etd:PESEL>00000000000</etd:PESEL> <etd:ImiePierwsze>a</etd:ImiePierwsze> <etd:Nazwisko>a</etd:Nazwisko> <etd:DataUrodzenia>1900-01-01</etd:DataUrodzenia> </etd:OsobaFizyczna>
SLIDE 12
12 / 19
Common design decisions Element or attribute?
<teacher tel="5544458"> <first-name>Patryk</first-name> <surname>Czarnik</surname> </teacher> <teacher> <first-name>Patryk</first-name> <surname>Czarnik</surname> <tel>5544458</tel> </teacher>
Where should a field be written:
in an attribute
- r in an element?
I would write this particular one in an element.
<tel type="office">55<internal>44458</internal></tel>
SLIDE 13
13 / 19
Common design decisions Element or attribute?
Advantages of attributes:
more compact syntax (only in DTD) some features available only for attributes
T echnical restrictions of attributes:
- nly text, without marked up structure
multiple attributes with the same same forbidden
General hints
Semantic hint: Use elements for data, attributes for metadata (whatever it means in you case ;)). Presentational hint: If you had to print your document on paper, which parts of text would you print literally (they are elements) and which parts would only have some impact (or no impact) on the way things are presented (should become attributes)?
SLIDE 14
14 / 19
Common design decisions Names
How descriptive (and long) should a name be? T
- use multipart names, or assume that the context is
known?
Unique element names simplify some kinds of document processing
CSS, SAX, or DOM (in some cases) – in large scope XPath/XSLT/XQuery – not so important
<program> <item>Introduction to XML</item> <item>XML Schema</item> </program> <lecture-program> <lecture-program-item>Introduction to XML</lecture-program-item> <lecture-program-item>XML Schema</lecture-program-item> </program>
SLIDE 15
15 / 19
Common design decisions Wrappers
<group> <number>1</number> <students> <student>Jan Kowalski</student> <student>Anna Nowakowska</student> ... </students> </group> <group> <number>1</number> <student>Jan Kowalski</student> <student>Anna Nowakowska</student> ... </group>
SLIDE 16
16 / 19
Modularisation options
Combining multiple files
DTD – external parameter entities Schema – include, import, redefine
Reusing fragments of model definition
DTD – parameter entities Schema – groups and attribute groups (in practice equivalent to the above) Schema – types, type derivation (no such feature in DTD)
Global and local definitions
In DTD all elements global, all attributes local In schema both can be global or local, depending on case
See examples for details!
SLIDE 17
17 / 19
Import or include?
xs:import
Imports foreign definitions to refer to
xs:redefine
Includes external definitions, but a local definition
- verrides external one if they share the same name
xs:include
Basic command, almost like textual insertion Imported module must have the same target namespace
- r no target namespace
A multi-module, namespace-aware project with overused xs:include leads to duplication of logic in the software that processes documents (or enforces meta-programming tricks to avoid it). /based on personal experience/ A multi-module, namespace-aware project with overused xs:include leads to duplication of logic in the software that processes documents (or enforces meta-programming tricks to avoid it). /based on personal experience/
SLIDE 18
18 / 19
Schema and namespaces
DTD is namespace-ignorant XML Schema conceptually and technically bound with XML namespaces
Basic approach: one schema (file) = one namespace
Splitting one ns into several files technically possible
Referring to components from other namespaces available
Important attributes
targetNamespace – if given, all global definitions within a schema go into that namespace elementFormDefault, attributeFormDefault – should local elements or attributes have qualified names?
default for both: unqualified typical approach: elements qualified, attributes unqualified setting may be changed for individual definitions
SLIDE 19
