Modeling by Drawing with Shadow Guidance Lubin Fan 1 , Ruimin Wang 2 , Linlin Xu 2 , Jiansong Deng 2 , Ligang Liu 2 1 Zhejiang University 2 University of Science and Technology of China 1 3D Modeling Fundamental problem Many

slide-1

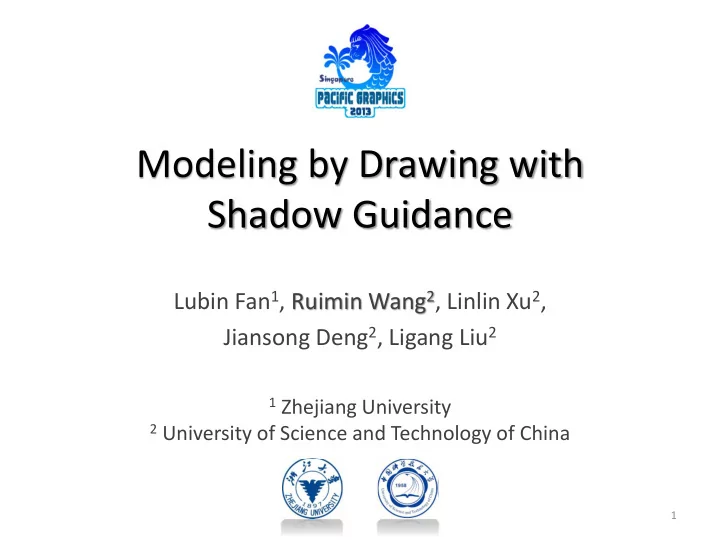

SLIDE 1

Modeling by Drawing with Shadow Guidance

Lubin Fan1, Ruimin Wang2, Linlin Xu2, Jiansong Deng2, Ligang Liu2

1 Zhejiang University 2 University of Science and Technology of China

1

slide-2
SLIDE 2

3D Modeling

  • Fundamental problem
  • Many professional modeling systems
  • Requiring skills and costing time
  • Too difficult for non-professional users!

2

slide-3
SLIDE 3
  • Easy-to-use systems

3

3D Modeling

Drawing sketch is a very natural way to express oneself.

slide-4
SLIDE 4

4

Sketch-based Modeling Systems

[Igarashi et al. 1999] [Karpenko et al. 2006] [Rivers et al. 2010]

Not easy to draw!

slide-5
SLIDE 5

5

Example-based Modeling System

[Funkhouser et al. 2004] [Chaudhuri et al. 2011] [Jain et al. 2012]

slide-6
SLIDE 6

6

Hybrid Systems

Sketch2Scene [Xu et al. 2013] Sketch-to-Design [Xie et al. 2013]

slide-7
SLIDE 7

7

Guidance

Helpful!

slide-8
SLIDE 8

8

Shadow Guidance

ShadowDraw [Lee et al. 2011]

slide-9
SLIDE 9

9

Shadow Guidance

ShadowDraw [Lee et al. 2011]

slide-10
SLIDE 10
  • Creating an easy-to-use system.
  • Providing guidance.
  • Allowing creative variations

10

Goal: Guided Sketch-based System

slide-11
SLIDE 11

11

Our System

slide-12
SLIDE 12

12

System Pipeline

Online operations

slide-13
SLIDE 13

13

System Pipeline

slide-14
SLIDE 14

Chairs Airplanes

…

  • Database

– Part repository – Image repository

14

Database Constructions

slide-15
SLIDE 15

15

Part Repository

slide-16
SLIDE 16
  • High-level Information

– Hierarchy information – Contact points – Symmetry information

16

Part Repository

Hierarchy Contact points Symmetry

slide-17
SLIDE 17
  • Sample 114 views on the unit view sphere
  • Assign camera up-direction for each view position
  • Extract line drawing image at each view

17

Image Repository

𝑣∗ 𝑣

slide-18
SLIDE 18
  • Search engine is based on encoding the patches
  • f all the images in the repository.
  • Descriptor: BiCE [Zimmermann et al. 2007]
  • Min-hash [Chum 2008]

18

Search Engine

101011…011010110 BiCE ac...ddt

Min-Hash code

slide-19
SLIDE 19

19

System Pipeline

Online Operation

slide-20
SLIDE 20

20

Online Operation

slide-21
SLIDE 21

3d voting histogram

21

View-dependent Retrieval

1

retrieved parts Up-direction Alignment

slide-22
SLIDE 22
  • Shadow image
  • Hierarchy-based shadow image

22

Shadow Composition

S* =a WiIi

å

slide-23
SLIDE 23

23

Shadow Composition

slide-24
SLIDE 24
  • Contact point guided conjoining
  • Symmetry information

24

Part Conjoining

slide-25
SLIDE 25
  • Global fitting

– The silhouette of the top candidate is fitted to the drawing strokes.

  • Local editing

– Sketch based local deforming.

25

Creative Modeling

slide-26
SLIDE 26

RESULTS

26

slide-27
SLIDE 27

27

Results

Speed: 𝟑𝟏𝟏%

slide-28
SLIDE 28

28

Results

× 𝟒

slide-29
SLIDE 29

29

Results

Bicycle models created by users using our system.

slide-30
SLIDE 30
  • Modeling with/without shadow guidance.

30

User Study

slide-31
SLIDE 31
  • Limited variations of the model.
  • Part placement.
  • Inconsistent segmentation.

31

Limitation

slide-32
SLIDE 32
  • A sketch-based modeling system

– provides shadow suggestions to guide the user’s drawing dynamically – preserves the high-level geometry structure – provides geometric variations

32

Summary

3D models created by users using our system

slide-33
SLIDE 33

Thank you for your attention!

33

Project page:

http://staff.ustc.edu.cn/~lgliu/Projects/2013_3DShadowModeling/default.htm 3D models created by users using our system
