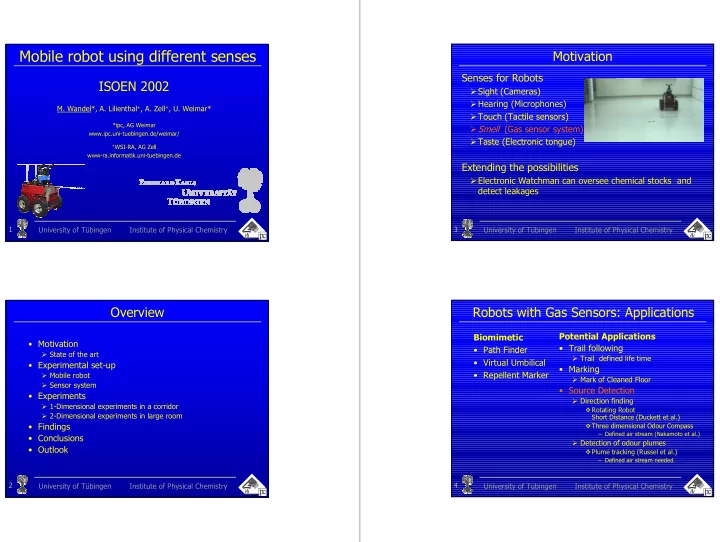

Mobile robot using different senses Motivation Senses for Robots - - PowerPoint PPT Presentation

University of Tübingen Institute of Physical Chemistry 1

Mobile robot using different senses

ISOEN 2002

• M. Wandel*, A. Lilienthal+, A. Zell+, U. Weimar*

*ipc, AG Weimar www.ipc.uni-tuebingen.de/weimar/

+WSI-RA, AG Zell

www-ra.informatik.uni-tuebingen.de

University of Tübingen Institute of Physical Chemistry 2

Overview

• Motivation

State of the art

• Experimental set-up

Mobile robot Sensor system

• Experiments

1-Dimensional experiments in a corridor 2-Dimensional experiments in large room

• Findings
• Conclusions
• Outlook

University of Tübingen Institute of Physical Chemistry 3

Senses for Robots

Sight (Cameras) Hearing (Microphones) Touch (Tactile sensors) Smell (Gas sensor system) Taste (Electronic tongue)

Extending the possibilities

Electronic Watchman can oversee chemical stocks and detect leakages

Motivation

University of Tübingen Institute of Physical Chemistry 4

Biomimetic

• Path Finder
• Virtual Umbilical
• Repellent Marker

Potential Applications

• Trail following

Trail defined life time

• Marking

Mark of Cleaned Floor

• Source Detection

Direction finding

Rotating Robot Short Distance (Duckett et al.) Three dimensional Odour Compass

– Defined air stream (Nakamoto et al.)

Detection of odour plumes

Plume tracking (Russel et al.)

– Defined air stream needed

Robots with Gas Sensors: Applications

University of Tübingen Institute of Physical Chemistry 5

Biomimetic

• Path Finder
• Virtual Umbilical
• Repellent Marker

Potential Applications

• Trail following

Trail defined life time

• Marking

Mark of Cleaned Floor

• Source Detection

Direction finding

Rotating Robot Short Distance (Duckett et al.) Three dimensional Odour Compass

– Defined air stream (Nakamoto et al.)

Detection of odour plumes

Plume tracking (Russel et al.)

– Defined air stream needed

Source Detection

• Direction finding

Rotating Robot Short Distance (Duckett et al.) Three dimensional Odour Compass

Defined air stream (Nakamoto et al.)

• Detection of odour plumes

Plume tracking (Russel et al.)

Defined air stream needed

• Convection / Diffusion profile

Map Building

No Defined Airstream needed

Robots with Gas Sensors: Applications

University of Tübingen Institute of Physical Chemistry 6

Experimental: Mobile Robot “Arthur”

Mobile Robot “ATRV-Jr”

• Skid Steering
• Standard PC inside
• Ultrasonic sensors
• Wireless Ethernet

Additional Sensors

• Laser range finder
• Stereoscopic camera

System

• Gas sensor system

mounted inside the robot, behind front window 60cm

University of Tübingen Institute of Physical Chemistry 7

Experimental: Sensor System

VOCmeter Vario

• Commercially available
• Lightweight, small
• Low power consumption

(24V DC supply possible)

• RS-232 interface
• Various sensors types

available (MOX, QMB, U/I)

• Up to 8 sensors, connected

with thin flexible cables

University of Tübingen Institute of Physical Chemistry 8

1-Dimensional Location

Locations

No ventilation! No personnel traffic

Experiments

• Analyte used: Ethanol
• Recordings
• dometry, sensor system, laser range finder,
• temperature, humidity (offline)

University of Tübingen Institute of Physical Chemistry 9

500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500

• 20
• 15
• 10
• 5

s [m]

t [s]

2 4 6 8 10 12 14

∆n [ppm]

Results: 1-Dimensional Location

University of Tübingen Institute of Physical Chemistry 10

500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500

• 20
• 15
• 10
• 5

s [m]

t [s]

2 4 6 8 10 12 14

∆n [ppm]

Results: 1-Dimensional Location

University of Tübingen Institute of Physical Chemistry 11

500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500

• 20
• 15
• 10
• 5

s [m]

t [s]

2 4 6 8 10 12 14

∆n [ppm]

Results: 1-Dimensional Location

University of Tübingen Institute of Physical Chemistry 12

Determination of Source Position

1 2 3 4 3000 3100 3200 3300

• 10
• 5

5 10

s [m]

t [s] ∆c [ppm] 2500 2750 3000 3250 3500

• 20
• 15
• 10
• 5

s [m]

t [s] 2 4 6 8 10 12 14 ∆c [ppm]

University of Tübingen Institute of Physical Chemistry 13

2-Dimensional Location

• Unventilated
• One side of the room is a window front
• The automatic source was placed in the middle of

the room

• The robot’s path describes a rectangular helix

x y

University of Tübingen Institute of Physical Chemistry 14

Results 2-Dimensional Location

2 4 6 8 10 12 1 2 3 4 5

signal [a.u.] University of Tübingen Institute of Physical Chemistry 15

Comparison Summer - Winter

2 4 6 8 10 12 1 2 3 4 5 s i g n a l [ a . u . ] 2 4 6 8 10 12 1 2 3 4 5 signal [a.u.]

Summer Winter

University of Tübingen Institute of Physical Chemistry 16

Peaks / Position

2 4 6 8 10 12 1,0 1,5 2,0 2,5 3,0 3,5 4,0

Summer Winter

Y [m] X [m]

University of Tübingen Institute of Physical Chemistry 17

Time of Occurrence

1000 2000 3000 4000

Signal (baseline) Signal (peak) Online computed baseline

topen, predicted topen, real

Offline fit time / s

signal / a.u. 1000 2000 3000 4000 t [s]

University of Tübingen Institute of Physical Chemistry 18

Findings

• Signal nearly independent of stick position
• Simple mounting of the sensor, without fan,

without pumping unit, sufficient

• Meaningful measurements only during movement
• Even small leaks can be detected

University of Tübingen Institute of Physical Chemistry 19

Conclusion

• In a 1-dimensional environment the position
• f the source can be estimated within a range
• f 1m
• In 1- and 2-dimensional environment the

time of occurrence of the leak can be computed with good precision

• The measured concentration profile requires

time consuming search strategies e.g. map building, this is possible because of the stable concentration profile

University of Tübingen Institute of Physical Chemistry 20

Outlook

• Implementation of a feedback from the

sensor signal evaluation to the driving programme

• Larger rooms
• Classification of the analyte

Using a sensor system with different sensors including QMBs and pattern recognition software

• Testing in real world environment

University of Tübingen Institute of Physical Chemistry 21

Acknowledgements

Landesforschungsschwerpunktsprojekt Baden-Württemberg Sensing organs for mobile robots Project partners:

• Wilhelm-Schickard-Institut für Informatik, AG Zell (coordinator)
• Zoologisches Institut, AG Schnitzler
• Institut für Physikalische und Theoretische Chemie, AG Weimar

University of Tübingen Institute of Physical Chemistry 22

Thank You
