Collaboration Meeting MVD Subgroup MVD Subgroup FZ Jlich, September 8, 2009 Thomas Wrschig Mass estimates and internal MVD routing Mass estimates: Strip part Sensor 700 g Frontend chips Frontend chips 100 g 100 g Cooling

slide-1
SLIDE 1

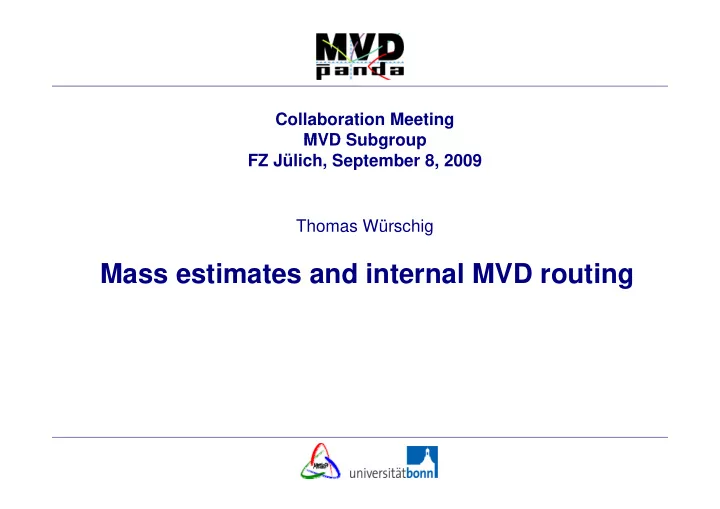

Collaboration Meeting MVD Subgroup MVD Subgroup FZ Jülich, September 8, 2009 Thomas Würschig

Mass estimates and internal MVD routing

slide-2
SLIDE 2

Mass estimates: Strip part

Sensor 700 g Frontend chips 100 g Frontend chips 100 g Cooling (pipe+water) 350 g Cooling connectors 200 g Cooling connectors 200 g Global support 1100 g * Local support 1300 g *

* Full massive carbon fibre

UPPER LIMITS FOR

Local support 1300 g HD connectors 550 g Supply connectors 270 g

FOR MECHANICS ONLY !!

pp y g HV connectors 50 g Bus cables 870 g HV+power cables 120 g TOTAL 5600 g

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 2 -
slide-3
SLIDE 3

Mass estimates: Pixel part

Sensor 75 g Frontend chips 85 g Frontend chips 85 g Cooling (pipe+water) 200 g Cooling connectors 140 g Cooling connectors 140 g Global support 600 g * Local support 750 g *

* Full massive carbon fibre

UPPER LIMITS FOR

Local support 750 g HD connectors 450 g ** Supply connectors 120 g **

FOR MECHANICS ONLY !!

** Based on strip estimate

HV connectors 25 g ** Bus cables 700 g ***

*** Based on strip estimate

HV+power cables 65 g *** TOTAL 3210 g

strip estimate, scaled to strip values

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 3 -
slide-4
SLIDE 4

Mass estimates: MVD

Strip part 5.6 kg

UPPER

p p g Pixel part 3.2 kg Gl b l MVD t 1 0 k

UPPER LIMITS FOR MECHANICS

Global MVD support < 1.0 kg TOTAL < 10 kg

MECHANICS ONLY !!

  • Estimate based on updated info and

d t il more details

  • Good agreement with specified number

for the collaboration so far  MVD weight: 10 kg ... 15 kg

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 4 -
slide-5
SLIDE 5

Internal MVD routing

  • Last MVD

mechanics workshop:

  • First concepts
  • Space problems
  • Space problems

Dedicated internal ... Dedicated internal meeting yesterday ...

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 5 -
slide-6
SLIDE 6

MVD routing: barrel

  • Implementation: Simplified routing scheme based
  • n former assumptions for space req’s
  • n former assumptions for space req s ...

Barrel 1 Barrel 2

45 mm 62 mm

14 staves / 7 staves / half-barrel half-barrel

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 6 -
slide-7
SLIDE 7

MVD routing: barrel

  • Implementation: Simplified routing scheme based
  • n former assumptions for space req’s
  • n former assumptions for space req s ...

B l 3 Barrel 4 Barrel 3

20 mm

10 staves / half-barrel 13 staves / half-barrel

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 7 -
slide-8
SLIDE 8

MVD routing: barrel

  • Implementation: Simplified routing scheme based
  • n former assumptions for space req’s
  • n former assumptions for space req s ...

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 8 -
slide-9
SLIDE 9

MVD routing: barrel

  • Implementation: Simplified routing scheme based
  • n former assumptions for space req’s
  • n former assumptions for space req s ...

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 9 -
slide-10
SLIDE 10

MVD routing: barrel

  • Implementation: Simplified routing scheme based
  • n former assumptions for space req’s
  • n former assumptions for space req s ...

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 10

10 -

slide-11
SLIDE 11

MVD routing: disks

  • Total area cross section

St i t 2300

2

Strip part 2300 mm2

  • Add. layers: factor 2

2

Pixel part 3500 mm2 Total: 8100 mm2 (no safety factor)

  • Current

version: Not sufficient space !

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 11

11 -

  • p
slide-12
SLIDE 12

MVD routing: disks

  • Problems so far ... 

N t ffi i t ith thi l b l t

  • Not sufficient space, even with thinner global support
  • Required routing inside global MVD support
  • Solution ...  ... (!?)
  • Decrease outer radius of barrel layer 4 and strip disks
  • Global MVD support shifted inside
  • Global MVD support shifted inside

 Smallest impact of overall concepts in strip part  Sufficient space created in between global MVD  Sufficient space created in between global MVD

support and maximum outer radius of 150 mm

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 12

12 -

slide-13
SLIDE 13

MVD routing: disks

  • Solution ...  ... (!?)
  • Decrease of outer radius barrel layer 4:

rmax = 140 mm – 5 mm  rmax = 135 mm

  • Global MVD support:

r = 137 mm ... 141 mm  Space: 8,228 mm2 Remark: Remark: Additional space at radii > 150 mm along CF for cooling pipes : 20 mm (width) up to min. r = 175 mm g p p ( ) p  Additional space outside r = 150 mm: > 1,400 mm2

  • Check:
  • Effects for strip disks
  • Coverage tests

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 13

13 -

slide-14
SLIDE 14

Internal routing concept

(Schematic)

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 14

14 -

slide-15
SLIDE 15

Internal routing concept

(Schematic), Pixel barrel

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 15

15 -

slide-16
SLIDE 16

Internal routing concept

(Schematic), ( ) Strip barrel

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 16

16 -

slide-17
SLIDE 17

Internal routing concept

(Schematic), ( ) Forward part

Cooling

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 17

17 -

slide-18
SLIDE 18

Conclusion

  • Updated mass estimates (for mechanics input!)

in agreement with former specifiaction

  • First concept for MVD barrel routing

First concept for MVD barrel routing

  • Solution for internal routing of forward part

To be checked Question: Question:

Alternative routing of additional disks

  • What about routing into forward part

(e.g. GEM system) ?

PANDA Collaboration Meeting PANDA Collaboration Meeting – – MVD, MVD, FZJ, September 8 FZJ, September 8 , 2009 , 2009 Thomas Thomas Würschig Würschig, ,

  • 18

18 -

  • (

g y )
