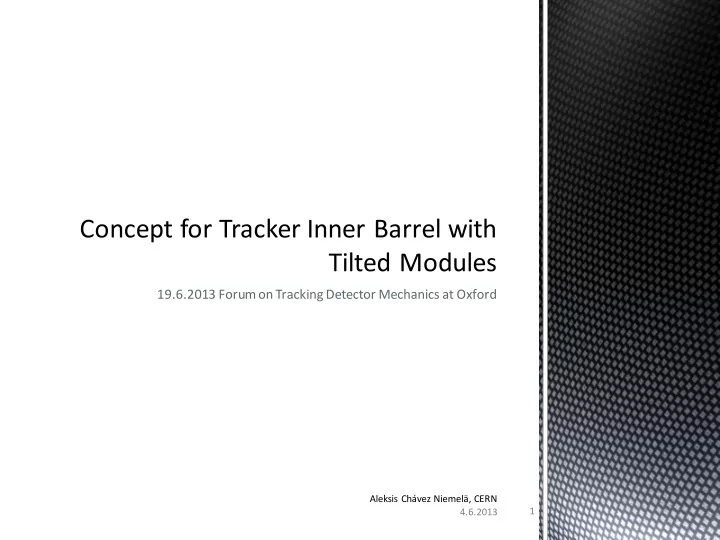

19.6.2013 Forum on Tracking Detector Mechanics at Oxford Aleksis Chvez Niemel, CERN 1 4.6.2013 Abbaneo, Duccio Conde Garca, Antonio Honma, Alan Mersi, Stefano Onnela, Antti Postema, Hans Aleksis Chvez Niemel,


slide-1
SLIDE 1

19.6.2013 Forum on Tracking Detector Mechanics at Oxford

4.6.2013 Aleksis Chávez Niemelä, CERN 1

slide-2
SLIDE 2

2 4.6.2013 Aleksis Chávez Niemelä, CERN

  • Abbaneo, Duccio
  • Conde García, Antonio
  • Honma, Alan
  • Mersi, Stefano
  • Onnela, Antti
  • Postema, Hans
slide-3
SLIDE 3
  • Benefits of tilting the modules
  • How it works (modelling)
  • Challenges with this geometry
  • Mid-section
  • Ring sections
  • Few words on rods and end disks

(if we have time)

4.6.2013 3 Aleksis Chávez Niemelä, CERN

slide-4
SLIDE 4

4.6.2013 Aleksis Chávez Niemelä, CERN

PS modules 2S modules

4

  • S. Mersi
slide-5
SLIDE 5

4.6.2013 5 Aleksis Chávez Niemelä, CERN

  • Traditionally implemented with

rods

slide-6
SLIDE 6

4.6.2013 6 Aleksis Chávez Niemelä, CERN

PS modules 2S modules

  • S. Mersi
slide-7
SLIDE 7

4.6.2013 Aleksis Chávez Niemelä, CERN

  • Base line concept
  • Distinct barrel and end gap geometries
  • Relatively small surface area of the PS

modules not used to greatest extent -> more modules

  • Tilted module concept
  • Gradual transformation from barrel to

end cap –like geometry

  • PS module surface area better utilized ->

less modules

7

slide-8
SLIDE 8
  • Some degree of modularity
  • Reasonable assembly, structures, etc.
  • Reduce the number of modules

4.6.2013 Aleksis Chávez Niemelä, CERN 8

slide-9
SLIDE 9
  • Ideal case: module faces always

perpendicular to particle tracks

  • PS module shape facilitates

compact inner rings (closest to the beam line

4.6.2013 Aleksis Chávez Niemelä, CERN 9

slide-10
SLIDE 10
  • Number of modules in the barrel

section: 2836 vs. 4164

  • Less modules -> less material..
  • Less power consumption
  • Less material in active volume
  • Fewer services required..
  • Lower cost

4.6.2013 10 Aleksis Chávez Niemelä, CERN

slide-11
SLIDE 11
  • Coordinates generated on an excel

table (Duccio Abbaneo, Stefano Mersi)

  • Copied to a design table in Catia
  • Adjustment by eye (at this stage)

4.6.2013 11 Aleksis Chávez Niemelä, CERN

slide-12
SLIDE 12
  • ..And we get a CAD model

4.6.2013 12 Aleksis Chávez Niemelä, CERN

slide-13
SLIDE 13

4.6.2013 13 Aleksis Chávez Niemelä, CERN

slide-14
SLIDE 14
  • Avoid clashes: some geometries

simply impossible

  • Staying ‘close’ to optimal

coordinates

  • Routing of services, cables..
  • Different support structure needed

as compared to rod assemblies, not much experience

4.6.2013 Aleksis Chávez Niemelä, CERN 14

slide-15
SLIDE 15
  • Ideal solution.. modules are always
  • ptimally aligned ..but

4.6.2013 Aleksis Chávez Niemelä, CERN 15

slide-16
SLIDE 16
  • Clashes, clashes and clashes
  • Deviation from optimal coordinates

required to avoid clashes

4.6.2013 Aleksis Chávez Niemelä, CERN 16

slide-17
SLIDE 17
  • The module positions can be

adjusted in various ways:

  • (Radius) Each module ring can be

adjusted individually – but the adjacent ones have to compensate

  • (Angle) Module pairs – upper and

lower modules on the same ring – can also be adjusted

  • Other adjustments include:

coverage and gap

4.6.2013 17 Aleksis Chávez Niemelä, CERN

slide-18
SLIDE 18
  • Deviations from optimal positions

and angles necessary to avoid clashes

4.6.2013 Aleksis Chávez Niemelä, CERN

beamline

18

slide-19
SLIDE 19

4.6.2013 19 Aleksis Chávez Niemelä, CERN

  • Upper layer provides hermiticity

(one hit)

  • Lower layer modules can then be

tuned for best clearance (with limitation)

slide-20
SLIDE 20
  • Three layers
  • Layer 1 has less modules than 2

and 3

  • But is also more packed due to smaller

radius

  • Layer 3 has the most modules
  • But is slightly ‘easier’ to populate

4.6.2013 20 Aleksis Chávez Niemelä, CERN

slide-21
SLIDE 21
  • Divide the modules into easy and

not so easy sections

  • For example, most congested

modules could form a group..

4.6.2013 21 Aleksis Chávez Niemelä, CERN

slide-22
SLIDE 22

4.6.2013 22 Aleksis Chávez Niemelä, CERN

slide-23
SLIDE 23

4.6.2013 23 Aleksis Chávez Niemelä, CERN

slide-24
SLIDE 24

4.6.2013 24 Aleksis Chávez Niemelä, CERN

  • Rods including a number of

modules could form a ring-like structure to cover the mid-section

slide-25
SLIDE 25
  • ..And they could be assembled

something like this..

4.6.2013 25 Aleksis Chávez Niemelä, CERN

slide-26
SLIDE 26
  • Let’s add some connectors

4.6.2013 26 Aleksis Chávez Niemelä, CERN

slide-27
SLIDE 27

4.6.2013 27 Aleksis Chávez Niemelä, CERN

slide-28
SLIDE 28
  • Modules after the midsection in

+/- direction

  • Larger gaps between modules
  • More clearance
  • More minimalistic support structure so

save in mass?

4.6.2013 28 Aleksis Chávez Niemelä, CERN

slide-29
SLIDE 29
  • Cooling pipe between the layers

4.6.2013 29 Aleksis Chávez Niemelä, CERN

slide-30
SLIDE 30

4.6.2013 30 Aleksis Chávez Niemelä, CERN

slide-31
SLIDE 31

4.6.2013 31 Aleksis Chávez Niemelä, CERN

slide-32
SLIDE 32

4.6.2013 32 Aleksis Chávez Niemelä, CERN

slide-33
SLIDE 33

4.6.2013 33 Aleksis Chávez Niemelä, CERN

slide-34
SLIDE 34
  • Combines both layers into one ring

unit

  • Only one cooling pipe
  • Limited weight for the support

structure

4.6.2013 34 Aleksis Chávez Niemelä, CERN

slide-35
SLIDE 35
  • We can fit the modules but..
  • How optimal are the coordinates, tilt,

coverage..

  • Support structures (weight, rigidity)
  • Services (cooling, routing cables)
  • Dark clouds..
  • Can the PS module be cooled effectively

4.6.2013 35 Aleksis Chávez Niemelä, CERN

slide-36
SLIDE 36

4.6.2013 36 Aleksis Chávez Niemelä, CERN

slide-37
SLIDE 37

4.6.2013 37 Aleksis Chávez Niemelä, CERN

slide-38
SLIDE 38
  • We have done preliminary layout

exercises with rods and 2S modules

  • Relying on past experience
  • Cooling under research: pipe,

inserts, contact area..

4.6.2013 38 Aleksis Chávez Niemelä, CERN

slide-39
SLIDE 39

4.6.2013 39 Aleksis Chávez Niemelä, CERN

slide-40
SLIDE 40
  • Research done by Nick Lumb in

Lyon

  • Modules arranged into cocentric

disks or into D’s

  • Space required depends on the height of

components

  • Cooling and services also affect the

thickness of the disks

4.6.2013 40 Aleksis Chávez Niemelä, CERN

slide-41
SLIDE 41
  • Nick is also battling with clashes
  • Especially in the transition from PS to 2S

modules

4.6.2013 41 Aleksis Chávez Niemelä, CERN

slide-42
SLIDE 42

4.6.2013 42 Aleksis Chávez Niemelä, CERN
