CLICdp Tracker Technology Meeting Status of the Mechanics of Tracking Detector Szymon Sroka, Wolfgang Klempt Szymon Krzysztof Sroka, Wolfgang Klempt Presentation Layout I. Tracking Detector System Atlas Upgrade Strips Example Reminder

SLIDE 1

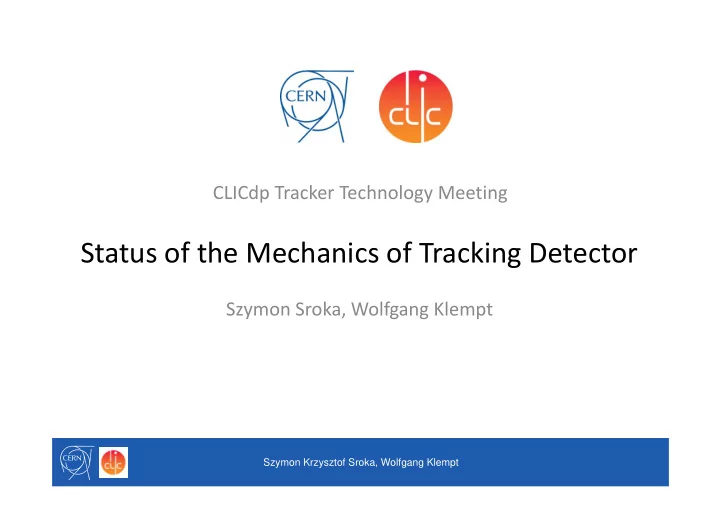

Status of the Mechanics of Tracking Detector

Szymon Sroka, Wolfgang Klempt CLICdp Tracker Technology Meeting

Szymon Krzysztof Sroka, Wolfgang Klempt

SLIDE 2

10/29/2015

Presentation Layout

I. Tracking Detector System

Atlas Upgrade Strips Example ‐ Reminder
Alice’s Modules Conception – Overview
Alice’s Modules Conception – Reminder
Alice’s Modules Conception – CLIC adaptation
Support Structure – Looking for inspiration
Support Structure – New concept of 3D Space

Frame

Tracking Detector System – Current Layout
Tracking Detector System ‐ Alternative proposition

Szymon Krzysztof Sroka, Wolfgang Klempt 2

SLIDE 3

10/29/2015

Assumptions:

Inner Tracking Detector Sub – System (Only first and second layer)

Module size: 60mm x 60mm

Outer Tracking Detector Sub – System (third, fourth and fifth layer)

Module size: 120mm x 120mm

Modules are combined in packets of length equal to half the length of the barrel
Two packages of modules per length of the barrel.
At the end of each package is placed the SMC card ( Surface‐Mounted‐Components)

Szymon Krzysztof Sroka, Wolfgang Klempt 3

60 x 60 mm 120 x 120 mm

Atlas Upgrade Strips Example

Modules Conception – Reminder

SLIDE 4

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 4

Alice’s Modules Conception

Overview of the ALICE’s ITS Upgrade

Single Alice’s stave plus Electronic Card (zoom in ) Flex Power Bus Extension Cable Electronic Card BUS + FPC cables Support Staves Alice’s Arrangement of Staves and Electronics Cards Module + Cold Plate + Power Bus

SLIDE 5

10/29/2015

Alice’s Modules Conception

Reminder

Szymon Krzysztof Sroka, Wolfgang Klempt 5

Estimated contributions of the Outer Layer Stave to the material budget

Component Material Thickness [µm]

Module

FPC Metal Layer Aluminium

FPC Insulating Layers Polyimide

100

Module Plate Carbon Fibre

120

Pixel Chip Silicon

300

Glue Eccobond 54

100

Cold Plate

Carbon fleece

Graphite foil

Cooling pipe Polyimide

Cooling fluid Water

Carbon Plate

Carbon Fibre

120

Glue Eccobond 54

100

Power Bus

Metal Layer Aluminium

200

Insulating layers Polyimide

200

Glue Eccobond 54

100

SLIDE 6

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 6

Alice’s Modules Conception

CLIC adaptation

Barrel 1 Barrel 2 Barrel 3 Barrel 4 Barrel 5 Windmill design; Zoom in Design Proposal ‐ Single Modules Package; Zoom in Support Plate 4 x (Module + Cold Plate + Power BUS) Arrangement of Electronics Cards and Power Suppliers

SLIDE 7

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 7

Support Structure – Looking for inspiration

SLIDE 8

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 8

Support Structure

New concept of 3D Space Frame

3D Space Frame made of Alice’s Staves connected each other by Interlinks 3D Space Frame; Zoom in Single Stave + Support Plate 2 Staves + 2 Support Plate 2 Staves + 2 Support Plate connected each

ther by Interlinks = Slice of 3D space frame

SLIDE 9

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 9

Tracking Detector System

Current Layout – 5 layers

Arrangement of Electronics Cards and Power Suppliers

SLIDE 10

10/29/2015 Szymon Krzysztof Sroka, Wolfgang Klempt 10

Tracking Detector System

Alternative proposition – 6 layers

Additional sixth layer? Arrangement of Electronics Cards and Power Suppliers Comment: We needed to move

utward the first layer

in order to achieve more uniform distribution
