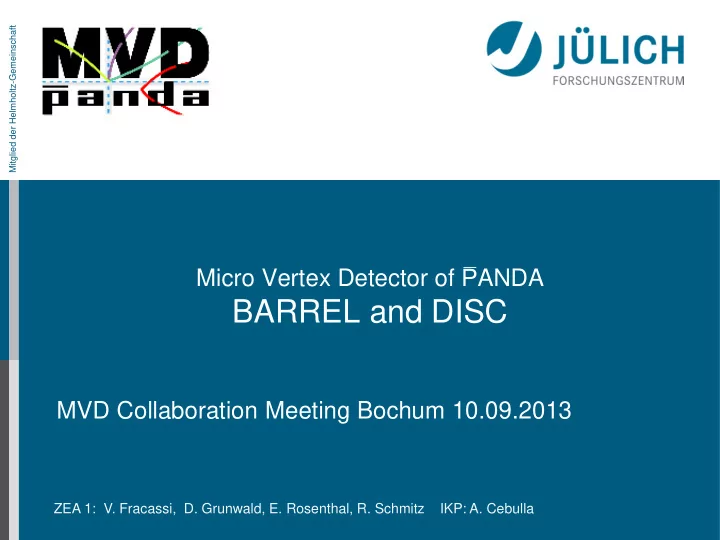

BARREL and DISC MVD Collaboration Meeting Bochum 10.09.2013 ZEA 1: - - PowerPoint PPT Presentation

Mitglied der Helmholtz-Gemeinschaft Micro Vertex Detector of P ANDA BARREL and DISC MVD Collaboration Meeting Bochum 10.09.2013 ZEA 1: V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz IKP: A. Cebulla Content MVD CAD Design State ,


slide-1
SLIDE 1

ZEA 1: V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz IKP: A. Cebulla

Mitglied der Helmholtz-Gemeinschaft

Micro Vertex Detector of PANDA

BARREL and DISC

MVD Collaboration Meeting Bochum 10.09.2013

slide-2
SLIDE 2

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz, IKP A. Cebulla

2

Content

  • MVD CAD Design State , Barrel and Disc
  • Barrel Design State status
  • Removable mounting of the Staves of the CFRP

Support Cylinder

  • Disc Support Design State
  • Technical Developments
  • Test stave
  • Quality Control
  • Hydraulic investigation
  • Cooling Piping,
  • Bending device, Fittings
  • Thermal Investigation
  • FEM Investigation
  • FEM Calculation Cylinder
  • Thermal
  • Summary / Outlook
slide-3
SLIDE 3

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

3

Design Barrel and Disc

Main Dimensions unchanged Changes:

  • Stave cutouts
  • Chip adaptation
  • Flexible Tube diameter enlarged from 4 mm to 6 mm
  • Developing of fixing means

~315 ~175 ~450 ~266

Design State: Sept. 2003 Draft_Sv3.5

Bochum 10.9.2013

slide-4
SLIDE 4

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

4

3D Structure

Rapid Prototyping 1/8 Model Scale 1:1 (Cylinder , Flange, Barrel Staves Layer 3+4)

Bochum 10.9.2013

slide-5
SLIDE 5

Current Drawing MVD-Disc

5

Actually the Structure design concept will be revised in collaboration with the Institute of Plastic Processing from the RWTH Aachen Rapid Prototyping 1/2 Model

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-6
SLIDE 6

ZEA 1 V. Fracassi, D. Grunwald,

  • E. Rosenthal, R. Schmitz

6

Barrel Strips removable mounting

  • ball and barrel
  • bold
  • saddle

Bochum 10.9.2013

Example solution

More solution were carried out in collaboration with the Institute of Plastic Processing from the RWTH Aachen The solution are yet not been rated

slide-7
SLIDE 7

Bochum 10.09.2013

7

Barrel Strip: Support for Detector Moduls

Beam Strip N4

  • CFRP (2* ~0,2 mm pre-preg 90° /0° mm
  • Foam (Rohacell unpressed =2 mm)
  • POCO HTC ~ 2,8 x ~ 10 mm (scheduled)
  • Tube Do=2 mm Di=1.8 Material: MP35m (1.4571)

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-8
SLIDE 8

8

Test Barrel Stave Design

  • Bochum 10.9.2013

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-9
SLIDE 9

9

Barrel Stave

150 122 10

POCO-HTC thin-walled tube (D=2/1,8 mm)

glue

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-10
SLIDE 10

10

Quality control

CFRP Test stave two prepreg with integrated wood and Rohacel foam Studies on the determination of the quality control (delamination) for the production of CFRP (carbon-fiber-reinforced polymer) staves using X-rays were performed successfully. Further studies are planned with a Test stave (for example with Pulse Thermography)

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

CFRP Test stave two prepreg with POCO HTC Tube Glue and Rohacel foam

slide-11
SLIDE 11

Base Cooling concept from INFN

11

  • Coolant Water (18°C)
  • Vacuum-operated mode using hydrostatic pressure
  • Active cooling pipe Dext 2,0 mm d int 1,8 mm

(1.4571)

  • Upstream routing Dext 4 mm d int 2 mm
  • Pressure drop must be evaluated
  • Cooling capacity has yet to be determined
  • (last information about Barrel chips from University

Giessen 1W/cm²)

  • the same value is assumed for the disc

Thermal hydraulic investigation

  • Pressure drop and mass flow rate

evaluation (with jet pump)

  • Heat Active cooling pipe (Different cooling

tubes)

  • Steel-Pipe (D= 2/1.8mm Reference from

INFN MP35M)

  • Steel-Pipe (D= 1.6/1.2 mm)
  • Upstream Routing
  • Flexible plastic pipe (D= 4/2 mm)

(Reference INFN: SMC Polyurethan)

  • Fittings (Reference INFN: Ryton R 4-220)

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

Technical Developments

  • ptimize components complete with

piping

  • Materials
  • Heat Transfer (Calculation / Tests)
  • Cooling part (Pressure Drop, Flow
  • Rate. Calculation / Tests)
  • Cabling (More information about Cable

type, isolation, shielding, number)

  • Pressure drop must be evaluated
slide-12
SLIDE 12

12

Hydraulic test rig

  • Cooling part (Pressure Drop, Flow Rate. Calculation / Tests).

Hydraulic-Test

Hydraulic studies on the strip cooling system

  • f the barrels were carried
  • ut.

Results are currently being evaluated.

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-13
SLIDE 13

Cooling Piping: Schematic Drawing

13

Barrel Strip Cooling Strip Disk Cooling

Space problem especially at the Cooling Connections

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

Bending Devise

Glass beads 100-200 µm

inlet

  • utlet
  • utlet

inlet

slide-14
SLIDE 14

14

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

Hydraulic-Test

Flow rate Pressure drop Pipe Pipe and flexible ptube Max. allowed vacuum Delta T= 3K

slide-15
SLIDE 15

15

Test Stave

Top

Dummy chip resistor

  • Size 7.15 x4 mm
  • Maximum power 600 mW (nominal 256 W)

Test Stave below

Resistence (Chip 1W/cm²) Glue Thinflex Glue Preepack Rohacell Carbon Foam POCO HTC Tube Do/di 2/1,8 mm Water ~ 25°C Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-16
SLIDE 16

16

Measurement

  • Accurate difference

temperature (inlet vs. outlet flow)

  • Difference pressure
  • Absolute pressure
  • Volume flow
  • Power supply voltage and

current

  • Water-cooling from 5°C up to

80°C

  • Defined room temperature 10-

30°C

Thermography FLIR SC6000

  • Spectral Range: 8 –9.2 μm
  • Resolution: 640 ×512 Pixel
  • Frame Rate: 1Hz -125Hz

Upgrade (Okt. 2013) closed, underpressure water cooling circle

Thermal Test Facility PANDA MVD Stave

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla Bochum 10.9.2013

slide-17
SLIDE 17

17

Structure analysis

Heated test stave (water temperature 35°C, ambient temperature 23°C)

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla Bochum 10.9.2013

slide-18
SLIDE 18

18

Static evaluation of the cooling

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla Bochum 10.9.2013

slide-19
SLIDE 19

19

  • 1. without cooling
  • 2. beginning of cooling
  • 3. with cooling

Dynamic evaluation of the cooling process

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla Bochum 10.9.2013

slide-20
SLIDE 20

10. September 2013 20

Analysing the influence of heat conductance (pcb, thermal glue, etc.) Analysing the influence of different volume flows

Different measuring options

ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-21
SLIDE 21

21

Thermal Investigation

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-22
SLIDE 22

Boundary Conditions

FEM Investigation

  • Cooling capacity 1W/cm² (information

about Barrel chips from University of Giessen)

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

Temperature Distribution

Temperature Distribution – Test Stave

slide-23
SLIDE 23

Temperature Distribution FEM Calculation

Temperature Distribution - Test Stave

Temperature: Tube 35 °C Convection 23°C Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

Temperature Distribution Experimental

slide-24
SLIDE 24

24

Barrel Stave

56,7 7,07 3,9 ? S=??

  • Geometry ?
  • Flatness ?
  • Thickness ?
  • Surface Texture ?
  • Quality control ?

170° ??? ??? Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla Resistance (Chip 1W/cm²) Glue Thin flex Glue Prepack Rohacell Carbon Foam POCO HTC Tube Do/di 2/1,8 mm Water ~ 25°C

Final compilation and geometry depends from the Test results

slide-25
SLIDE 25

Selection of CFRP Half Shell with the aid of FEM

25

3 Different fiber orientation Type 1 Type 2 Type 3

  • Pre-preg outer shell

0/90° 0/90° +-45°

  • Pre-preg inner shell

+- 45° 0/90° +-45°

  • Stress, Thermal expansion

CFRP (preimpregnated) inner shell CFRP (preimpregnated)

  • uter shell

Foam (Rohacell)

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-26
SLIDE 26

Boundary Conditions

Fibre Orientation – Cylindrical Support

Total Deformation - qualitative analysis Vector Principal Stress - qualitative analysis

slide-27
SLIDE 27

27

  • MVD CAD Design optimization , Barrel and Disk going on
  • Detector Support (Stave)
  • Update on barrel strip module design (Electronics arrangements

and cut outs: Report from Tommaso). We update that in our MVD basic design (no relevance for the Space management)Further development: barrel mounting (Clips) in collaboration with the Institute of Plastic Processing from the RWTH Aachen

  • Flange Development
  • Flange drawing for the 3D model with original material is ready to

start production

  • Test strip
  • Was designed and made
  • Disk Development (Service lines, additional Lines for electronics and

cooling systems, support)

  • Disc Support Design was started (Development of the mechanical

structure) (Artur Cebulla)

Summary/Outlook

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-28
SLIDE 28

28

  • Technical Developments
  • ptimize components complete with piping and cabling
  • going on
  • Type of half shells (Decide witch Type is the best)
  • going on
  • New Barrel Staves with modified cutouts
  • Is designed but not produced (results from test stave are needed)
  • Barrel Strips optimization (Strips Texture, geometry, flatness, thickness,

surface

  • some studies were carried out (mill, grinding), further optimization is

needed (results from test stave are needed)

  • Materials
  • going on
  • Heat Transfer (Calculation / Tests)
  • going on
  • Cooling part (Pressure Drop, Flow Rate. Calculation / Tests)
  • Hydraulic studies on the strip cooling system of the barrels were

carried out. Results are currently being evaluated.

  • Cooling capacity
  • (last information about Barrel chips from Uni Giessen 1W/cm²)

Summary/Outlook

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-29
SLIDE 29

29

  • Technical Developments
  • Cabling
  • (More information are needed about Cable type, isolation, shielding,

number)

  • Quality Controlls
  • Studies on the determination of the quality control (delamination) for

the production of CFRP staves using X-rays were performed

  • successfully. Further studies are planned with a test stave
  • Thermal Conductivity:
  • Some studies on the thermal conductivity of different materials were

performed, results are currently being evaluated. Further studies are planned

  • Hardware
  • Test Stave
  • Experiment and Calculation results have to be evaluated.
  • Components selection (Pipes, Fittings, Glue, Foam)
  • going on
  • 3D Barrel (Detector Support ¼ sector) Cabling and Piping
  • 3 D model as 1/8 partial section was created with rapid-prototyping.
  • 3D Disc Model (Detector Support ½ sector) Cabling and Piping
  • 3 D model as 1/8 partial section was created with rapid-prototyping

Summary/Outlook

Bochum 10.9.2013 ZEA 1 V. Fracassi, D. Grunwald, E. Rosenthal, R. Schmitz , IKP A. Cebulla

slide-30
SLIDE 30

30

Thank you for your attention
