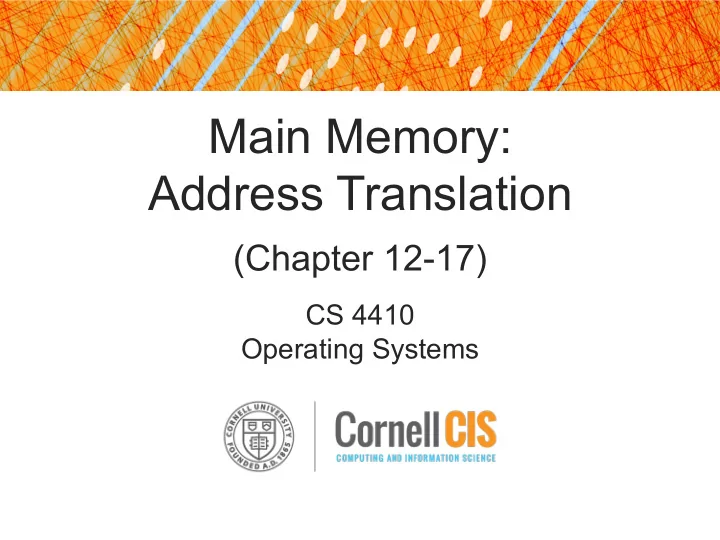

Main Memory: Address Translation

(Chapter 12-17)

CS 4410 Operating Systems

SLIDE 2

Physical Reality: different processes/threads share the same hardware à need to multiplex

CPU (temporal)
Memory (spatial)
Disk and devices (later)

Why worry about memory sharing?

Complete working state of process and/or kernel is

defined by its data (memory, registers, disk)

Don’t want different processes to have access to

each other’s memory (protection)

Can’t We All Just Get Along?

2

SLIDE 3

Isolation

Don’t want distinct process states collided in physical memory (unintended overlap à chaos)

Sharing

Want option to overlap when desired (for efficiency and communication)

Virtualization

Want to create the illusion of more resources than exist in underlying physical system

Utilization

Want to best use of this limited resource

Aspects of Memory Multiplexing

3

SLIDE 4

A Day in the Life of a Program

4

sum.c

source files

... 0C40023C 21035000 1b80050c 8C048004 21047002 0C400020 ... 10201000 21040330 22500102 ...

0040 0000 1000 0000 .text

.data

main

max

#include <stdio.h> int max = 10; int main () { int i; int sum = 0; add(m, &sum); printf(“%d”,i); ... }

Compiler

(+ Assembler + Linker)

executable sum

“It’s alive!”

Loader

stack text data heap

process

0x00000000

pid xxx

0x00400000 0x10000000

SP PC

0xffffffff

max addi jal

SLIDE 5

Virtual view of process memory

5

0xffffffff 0x00000000 stack text data heap

SLIDE 6

TERMINOLOGY ALERT: Page: virtual Frame: physical

Paged Translation

6

stack text data heap Process View

Virtual Page 0 Virtual Page N

STACK 0 TEXT 0 DATA 0 HEAP 1

Physical Memory

HEAP 0 TEXT 1 STACK 1

Frame 0 Frame M

No more external fragmentation!

SLIDE 7

Divide:

Physical memory into fixed-sized blocks called frames
Virtual memory into blocks of same size called pages

Management:

Keep track of which pages are mapped to which frames
Keep track of all free frames

Notice:

Not all pages may be mapped to frames

Paging Overview

7

SLIDE 8

Address Translation, Conceptually

8

Translation Physical Memory Virtual Address Raise Exception Physical Address Valid Processor Data Data Invalid

W h

d
e

s t h i s ?

SLIDE 9

Hardware device
Maps virtual to physical address (used to

access data) User Process:

deals with virtual addresses
Never sees the physical address

Physical Memory:

deals with physical addresses
Never sees the virtual address

Memory Management Unit (MMU)

9

SLIDE 10

red cube is 255th byte in page 2. Where is the red cube in physical memory?

High-Level Address Translation

10

stack text data heap Process View

STACK 0 TEXT 0 DATA 0 HEAP 1

Physical Memory

HEAP 0 TEXT 1 STACK 1

Page 0 Page N Frame 0 Frame M

SLIDE 11

Page number – Upper bits

Must be translated into a physical frame number

Page offset – Lower bits

Does not change in translation

For given logical address space 2m and page size 2n

Virtual Address Components

11

page number page offset

m - n n

SLIDE 12

High-Level Address Translation

12

stack text data heap Virtual Memory

STACK 0 TEXT 0 DATA 0 HEAP 1

Physical Memory

HEAP 0 TEXT 1 STACK 1 0x0000 0x1000 0x2000 0x3000 0x4000 0x5000

0x20FF

0x0000 0x1000 0x2000 0x3000 0x4000 0x5000 0x6000

0x????

Who keeps track of the mapping? à Page Table

1 2 3 4 5…

3

6 4 8 5

SLIDE 13

13

Simple Page Table

Lives in Memory Page-table base register (PTBR)

Points to the page table
Saved/restored on context switch

PTBR Page-table

SLIDE 14

Protection
Demand Loading
Copy-On-Write

Leveraging Paging

14

SLIDE 15

15

Full Page Table

Meta Data about each frame Protection R/W/X, Modified, Valid, etc. MMU Enforces R/W/X protection (illegal access throws a page fault) PTBR Page-table

SLIDE 16

Protection
Demand Loading
Copy-On-Write

Leveraging Paging

16

SLIDE 17

Page not mapped until it is used
Requires free frame allocation
What if there is no free frame???
May involve reading page contents from

disk or over the network

Demand Loading

17

SLIDE 18

Protection
Demand Loading
Copy-On-Write (or fork() for free)

Leveraging Paging

18

SLIDE 19

P1 forks()
P2 created with
own page table
same translations
All pages

marked COW (in Page Table)

Copy on Write (COW)

19

stack text data heap P1 Virt Addr Space stack text data heap Physical Addr Space stack text data heap P2 Virt Addr Space COW X X X X X X X X

SLIDE 20

Now one process tries to write to the stack (for example):

Page fault
Allocate new frame
Copy page
Both pages no

longer COW

Option 1: fork, then keep executing

20

stack text data heap P1 Virt Addr Space stack text data heap Physical Addr Space stack text data heap P2 Virt Addr Space stack COW X X X X X X X X

SLIDE 21

Before P2 calls exec()

Option 2: fork, then call exec

21

stack text data heap P1 Virt Addr Space stack text data heap Physical Addr Space stack text data heap P2 Virt Addr Space stack text data heap P2 Virt Addr Space COW X X X X X X X X

SLIDE 22

stack text data

After P2 calls exec()

Allocate new

frames

Load in new

pages

Pages no longer

COW

22

stack text data heap P1 Virt Addr Space stack text data heap Physical Addr Space P2 Virt Addr Space stack text data COW

Option 2: fork, then call exec

SLIDE 23

Memory Consumption:

Internal Fragmentation
Make pages smaller? But then…
Page Table Space: consider 48-bit address space,

2KB page size, each PTE 8 bytes

How big is this page table?
Note: you need one for each process
How many pages in memory does it need?

Performance: every data/instruction access requires two memory accesses:

One for the page table
One for the data/instruction

Problems with Paging

23

SLIDE 24

Paged Translation
Efficient Address Translation
Multi-Level Page Tables
Inverted Page Tables
TLBs

Address Translation

24

SLIDE 25

25 Physical Memory Implementation

Level 1 Level 2 Level 3 Processor Virtual Address Offset Index 3 Index 2 Index 1 Frame Offset Physical Address

+ Allocate only PTEs in use + Simple memory allocation − more lookups per memory reference

Multi-Level Page Tables to reduce page table space

index 1 | index 2 | offset

Frame | Access Frame

SLIDE 26

32-bit machine, 1KB page size

Logical address is divided into:

– a page offset of 10 bits (1024 = 2^10) – a page number of 22 bits (32-10)

Since the page table is paged, the page number is

further divided into:

– a 12-bit first index – a 10-bit second index

Thus, a logical address is as follows:

Two-Level Paging Example

page number page offset 12 10 10

26

index 1 index 2

ffset

SLIDE 27

27 Physical Memory Implementation

Level 1 Level 2 Level 3 Processor Virtual Address Offset Index 3 Index 2 Index 1 Frame Offset Physical Address

+ First Level requires less contiguous memory − even more lookups per memory reference

This one goes to three levels!

SLIDE 28

Index is an index into:

frames
physical process memory or next level page table
backing store
if page was swapped out

Synonyms:

Valid bit == Present bit
Dirty bit == Modified bit
Referenced bit == Accessed bit

Complete Page Table Entry (PTE)

28 Valid Protection R/W/X Ref Dirty Index

SLIDE 29

Paged Translation
Efficient Address Translation
Multi-Level Page Tables
Inverted Page Tables
TLBs

Address Translation

29

SLIDE 30

So many virtual pages… … comparatively few physical frames Traditional Page Tables:

map pages to frames
are numerous and sparse

Inverted Page Table: Motivation

30

physical address space P1 virtual address space P2 virtual address space P3 virtual address space P5 virtual address space P4 virtual address space

SLIDE 31

31

Inverted Page Table: Implementation

Page-table

Physical Memory

pid

S e a r c h F

r

m a t c h i n g p a g e & p i d

page pid

Not to scale! Page table << Memory

Implementation:

1 Page Table for entire system
1 entry per frame in memory
Why don’t we store the frame #?

page #

ffset

Virtual address

frame

ffset

pid page

SLIDE 32

Tradeoffs: ↓ memory to store page tables ↑ time to search page tables Solution: hashing

hash(page,pid) à PT entry (or chain of

entries)

What about:
collisions…
sharing…

Inverted Page Table: Discussion

32

SLIDE 33

Paged Translation
Efficient Address Translation
Multi-Level Page Tables
Inverted Page Tables
TLBs

Address Translation

33

SLIDE 34

Associative cache of virtual to physical page translations

34 Physical Memory

Frame Offset Physical Address Page# Offset Virtual Address Translation Lookaside Buffer (TLB) Virtual Page Page Frame Access Matching Entry Page Table Lookup

Translation Lookaside Buffer (TLB)

SLIDE 35

Access TLB before you access memory.

Address Translation with TLB

35

TLB Physical Memory Virtual Address Virtual Address Frame Frame Raise Exception Physical Address Hit Valid Processor Page Table Data Data Miss Invalid Offset

Trick: access TLB while you access the cache.

SLIDE 36

Process isolation

Keep a process from touching anyone else’s memory,
r the kernel’s

Efficient inter-process communication

Shared regions of memory between processes

Shared code segments

common libraries used by many different programs

Program initialization

Start running a program before it is entirely in memory

Dynamic memory allocation

Allocate and initialize stack/heap pages on demand

Address Translation Uses!

36

SLIDE 37

Program debugging

Data breakpoints when address is accessed

Memory mapped files

Access file data using load/store instructions

Demand-paged virtual memory

Illusion of near-infinite memory, backed by disk or

memory on other machines

Checkpointing/restart

Transparently save a copy of a process, without

stopping the program while the save happens

Distributed shared memory

Illusion of memory that is shared between machines

MORE Address Translation Uses!

37
