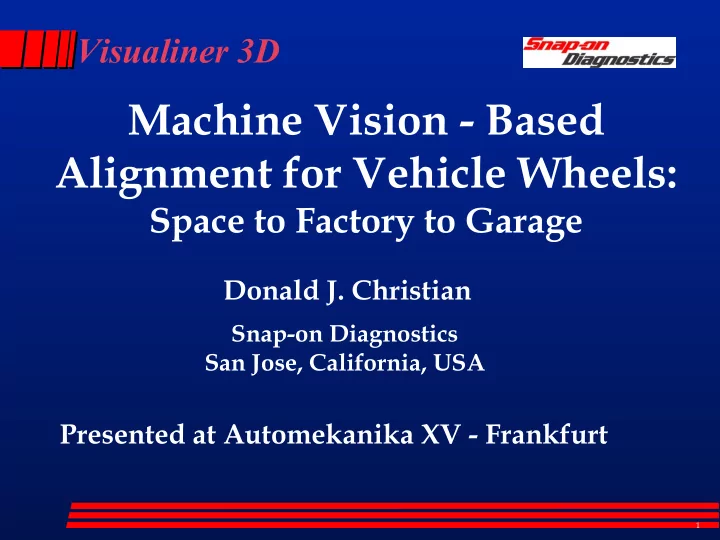

Visualiner 3D Machine Vision - Based Alignment for Vehicle Wheels: Space to Factory to Garage Donald J. Christian Snap-on Diagnostics San Jose, California, USA Presented at Automekanika XV - Frankfurt 1 Visualiner 3D wheel alignment
SLIDE 2
SLIDE 3
Visualiner 3D
3
Conventional Wheel Aligner Instrumentation
Front
SLIDE 4
Visualiner 3D
4
SLIDE 5
Visualiner 3D
5
SLIDE 6
Visualiner 3D
6
What is the 3D What is the 3D Visualiner Visualiner ? ?
l Solid-state cameras and wheel targets l Modern machine vision software l Array of high-power microprocessors l 3-dimensional workstation software l 3-D graphical user interface / presentation l Database of adjustment illustrations
SLIDE 7
Visualiner 3D
7
SLIDE 8
Visualiner 3D
8
Why machine vision? Benefits: Why machine vision? Benefits:
l The aligner is faster and more productive l More reliable, cheaper to operate l Easier to operate, physically and cognitively l High precision l Easier for technicians to learn l More capable geometric instrumentation
SLIDE 9
Visualiner 3D
9
Benefits: Benefits: It’s faster.
It’s faster.
l In field use it’s almost twice as fast
– 6 minutes on 3D-V, 11 minutes on conventional.
Measured from drive-in to print-out on 3000 cars
– Greater technician productivity – More alignments per bay per day
l No jacking. The vehicle stays on its wheels. l Built-in expert help. l Graphic illustrations and textual
descriptions for all adjustments.
SLIDE 10
Visualiner 3D
10
Benefits: Benefits: More reliable, cheaper to operate
More reliable, cheaper to operate
l No calibration after it’s installed l No sensitive electronics in the heads
– No downtime due to damaged heads
l No wires to get tangled, broken, or lost l No radio-frequency interference l No batteries to recharge or wear out l No electronics under the wheels (turntables)
to get dirty and rusty
SLIDE 11
Visualiner 3D
11
Benefits: Benefits: Easier to operate.
Easier to operate.
l Light-weight heads. Easy to carry and easy
to mount
– Less physical effort, greater productivity
l No interference from under-car obstructions
– Spoilers or air dams – Low exhaust pipes – Custom running boards – Low-rider vehicles
SLIDE 12
Visualiner 3D
12
Benefits: Benefits: High Precision
High Precision
l Wheels stay on the ground during
measurement
– real road conditions, not laboratory conditions
l Full lock-to-lock caster swings, T-O-O-T l No caster distortion due to vehicle yaw
during caster swing
l High resolution electronic cameras
SLIDE 13
Visualiner 3D
13
Benefits: Benefits: It’s easier for mechanics to learn
It’s easier for mechanics to learn
l Ergonomic, intuitive graphical interface
– Alignment meters displayed in 3-D
l All vehicle adjustments shown graphically
– Exclusive 3-D orientation indicator simplifies diagrams
l Expert, context-sensitive help is 1 or 2
keystrokes away at all times
SLIDE 14
Visualiner 3D
14
Graphic adjustment illustrations Graphic adjustment illustrations
SLIDE 15
Visualiner 3D
15
3 3-
- Dimensional meter display
Dimensional meter display
SLIDE 16
Visualiner 3D
16
Benefits: Benefits: New vehicle measurements
New vehicle measurements
l Absolute wheel base distances l Absolute rim-to-rim track widths l Individual wheel side-set l Symmetry about vehicle center line l
- ther geometries previously impractical
with conventional instruments . . .
SLIDE 17
Visualiner 3D
17
Why is 3D alignment now possible ? Why is 3D alignment now possible ?
l Availability of great computer power
– Pentium processors, faster clock speeds – Parallel microprocessor arrays
l High resolution solid state cameras l New machine vision technologies
– Stochastic subpixel interpolation techniques – High-precision microelectronics manufacturing – Well-developed alignment techniques
SLIDE 18
Visualiner 3D
18
Machine Vision Architecture Machine Vision Architecture
Secondary Image Buffers Camera MicroController (Moto HC6811) Primary Image Buffer MIPS Image Analysis Microprocessors 3-D Graphics Workstation
Camera
Multiprocessor Array
Camera
SLIDE 19
Visualiner 3D
19
Target Design Target Design
SLIDE 20
Visualiner 3D
20
Camera Views Camera Views
SLIDE 21
Visualiner 3D
21
Target distortion: rotation Target distortion: rotation
SLIDE 22
Visualiner 3D
22
Target distortion: perspective Target distortion: perspective
SLIDE 23
Visualiner 3D
23
Target motion infers axis of rotation Target motion infers axis of rotation
SLIDE 24
Visualiner 3D
24
Cycloidal Cycloidal motion of targets identifies motion of targets identifies the axes of rotation the axes of rotation
SLIDE 25
Visualiner 3D
25
Image Analysis Image Analysis
1 2 3 4 5 6 7 8 9
List of Centroid Coordinate Pairs
# X Y 1 251.768 473.112 2 207.449 476.432 3 231.956 573.020 4 266.712 492.909 5 227.193 481.409 6 . . . 7 . . . 8 . . .
SLIDE 26
Visualiner 3D
26
Multiple measurements per image for Multiple measurements per image for high total accuracy high total accuracy
A B C D
SLIDE 27
Visualiner 3D
27
Vehicle wheel alignment is just the latest application Vehicle wheel alignment is just the latest application
- f machine vision to precision alignment . . .
- f machine vision to precision alignment . . .
SLIDE 28
Visualiner 3D
